Fuel tank position/design/function - GF47.10-P-3000E: Notes
MODEL 202.0, 208
| Fuel tank position | The fuel tank (80) is positioned at the frame floor ahead of the rear axle because of the through-loading facility (from trunk into passenger compartment) | ||

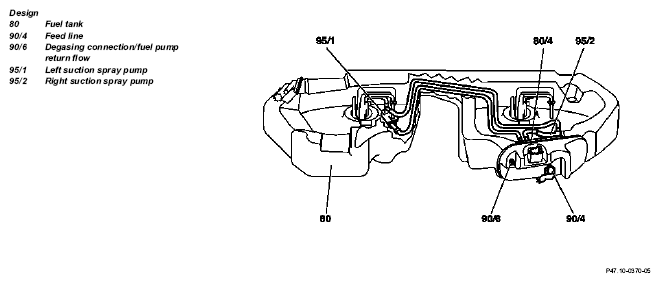

| Fuel tank design | Because of the U-shaped recess, the fuel tank (80) is split into two chambers. The chambers are connected in the upper half. Splash bowl (80/5), connection lines from the left to the right fuel chamber, closing plate with fuel gage sensor, drain valves and suction spray pumps (95/1) and (95/2) are installed in the bottom area | ||
| Fuel tank function | GF47.10-P-3000-01E | ||
| Fuel gage sensor (B4) position/task/design/ function | GF47.10-P-3001H | ||
| Drain valves task/design/function | GF47.10-P-3100H | ||
| Splash bowl position/task/function | GF47.10-P-3101E | ||
| Suction spray pump position/task/design/function | GF47.10-P-3102E | ||
| Closing plate task/design | GF47.10-P-3103H | ||
| On-board refueling vapor recovery function | GF47.10-P-3004B |
