Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| AIRmatic With ADS Control Module | Under left front seat. |
| Booster Blower Electronic Blower Controller | In rear of center console. |
| Central Gateway Control Module | Under left front seat. |
| Emergency Call System Control Unit | Under left rear seat. |
| ESP Control Unit | Left front of engine compartment. |
| Front SAM Control Unit | Under right front seat. |
| Headlamp Range Adjustment Control Module | Under right front seat. |
| Keyless Go Control Module | Right rear of cargo area. |

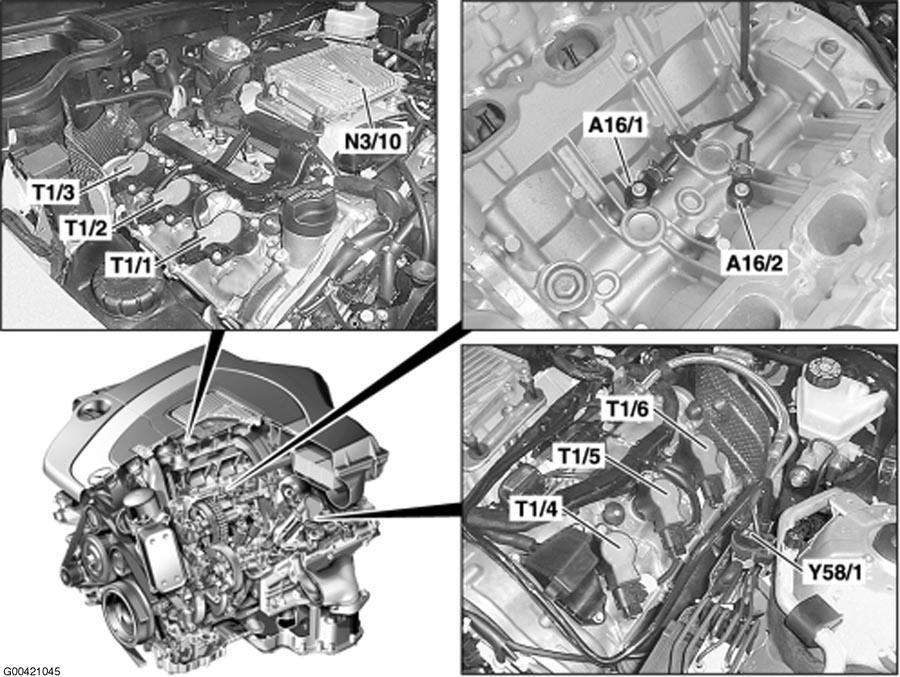

| ME Control Unit (V6) | On top of engine. See Figure . |
| ME-SFI Control Unit | In right front footwell. See Figure . |
| PTS Control Module | Under left front seat. |
| Rear Axle Differential Lock Control Module | Under left rear seat. |
| Rear-End Door Closing Control Unit | Right rear of cargo area, under floor. |
| Rear SAM Control Unit | Right rear of vehicle. See Figure . |
| Restraints System Control Unit | Under center console. |
| SDAR Control Unit | Under left rear seat. |
| TPM [RDK] Control Module | Right rear of cargo area. |
| Transfer Case Control Module | Under right front seat. |
| Trip Computer Control Module | In front of roof. |
| WSS Control Unit (Weight Sensing System) | On right front seat frame. |
| Xenon Headlamp Control Module (Left/Right) | Behind respective headlamp. |
| Xenon Headlamp Ignition Module (Left/Right) | Behind respective headlamp. |
