Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| AdBlue Control Unit (K118/5) | Rear cargo area. See Figure. |
| Airmatic Control Unit | Under front of driver seat. |
| Backup Camera Voltage Supply Module | Under spare tire compartment liner. See Figure. |
| Battery Management System Control Unit (Hybrid) | Part of high-voltage battery module. |
| Blower Regulator | On bottom of blower motor. |
| Booster Blower Electronic Blower Controller | On blower motor. |

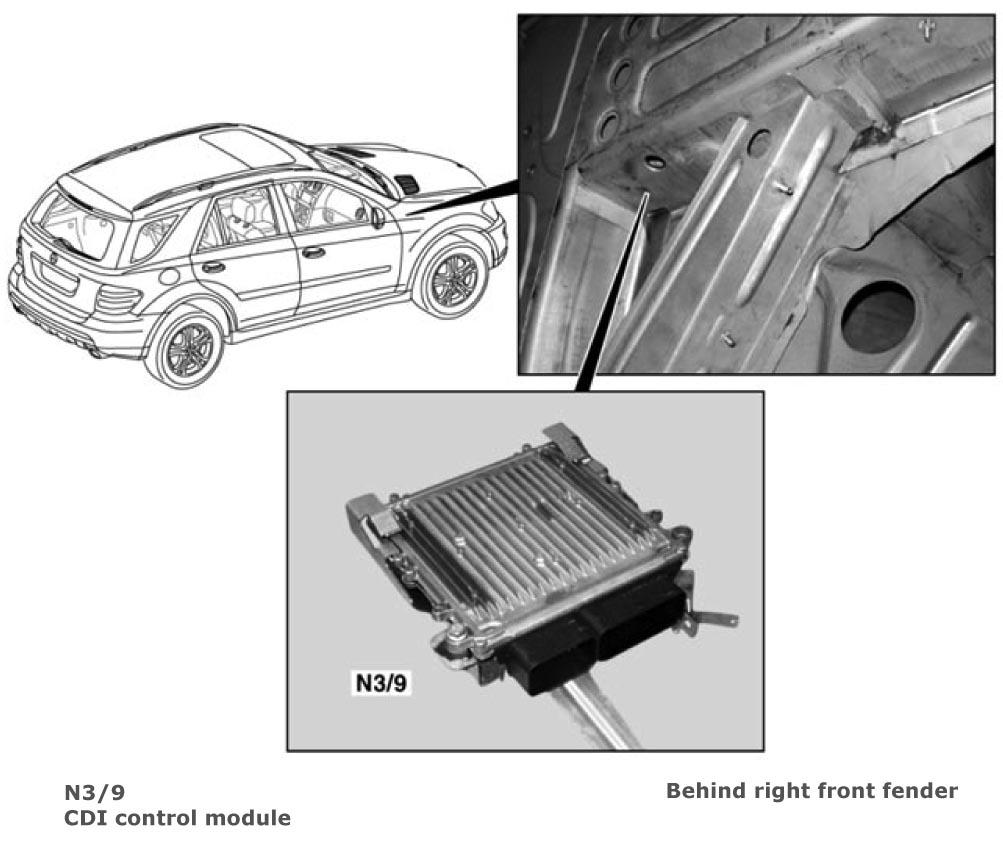

| CDI Control Module | Right front fender. See Figure. |
| Central Gateway Control Module | Under driver seat. See Figure. |

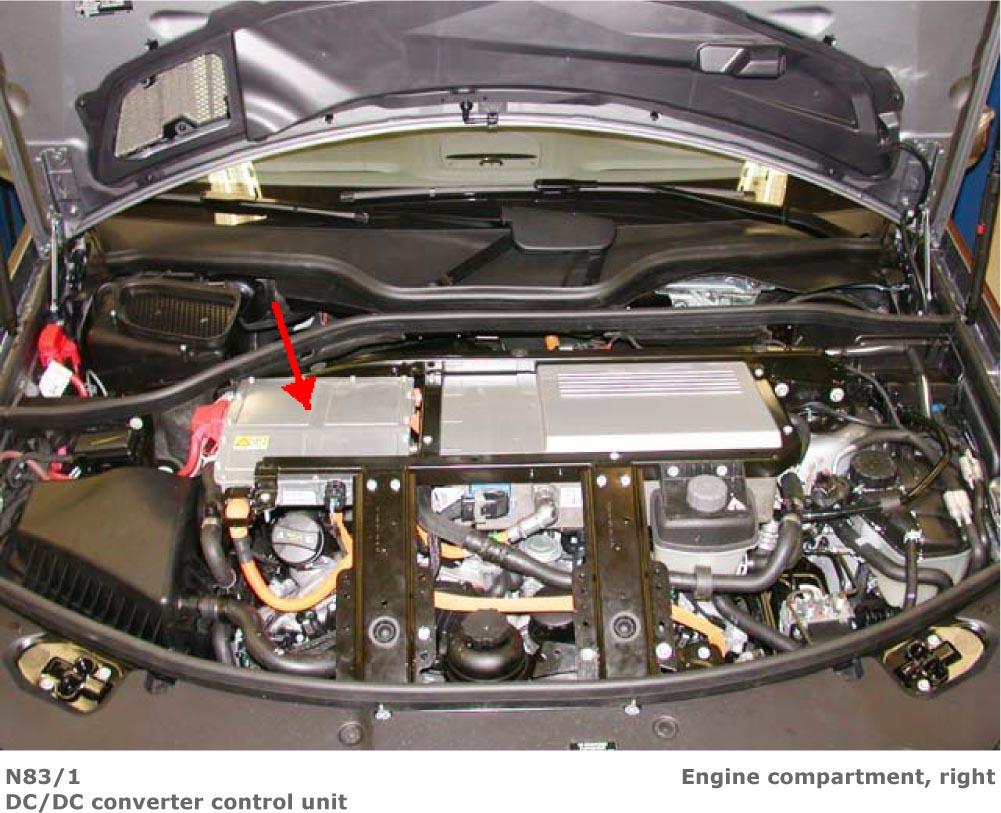

| DC/DC Converter Control Unit | Right side of engine compartment. See Figure. |
| Driver Front Seat Adjustment Control Module With Memory | Under driver seat. |
| DTR Control Unit | Behind front bumper. |

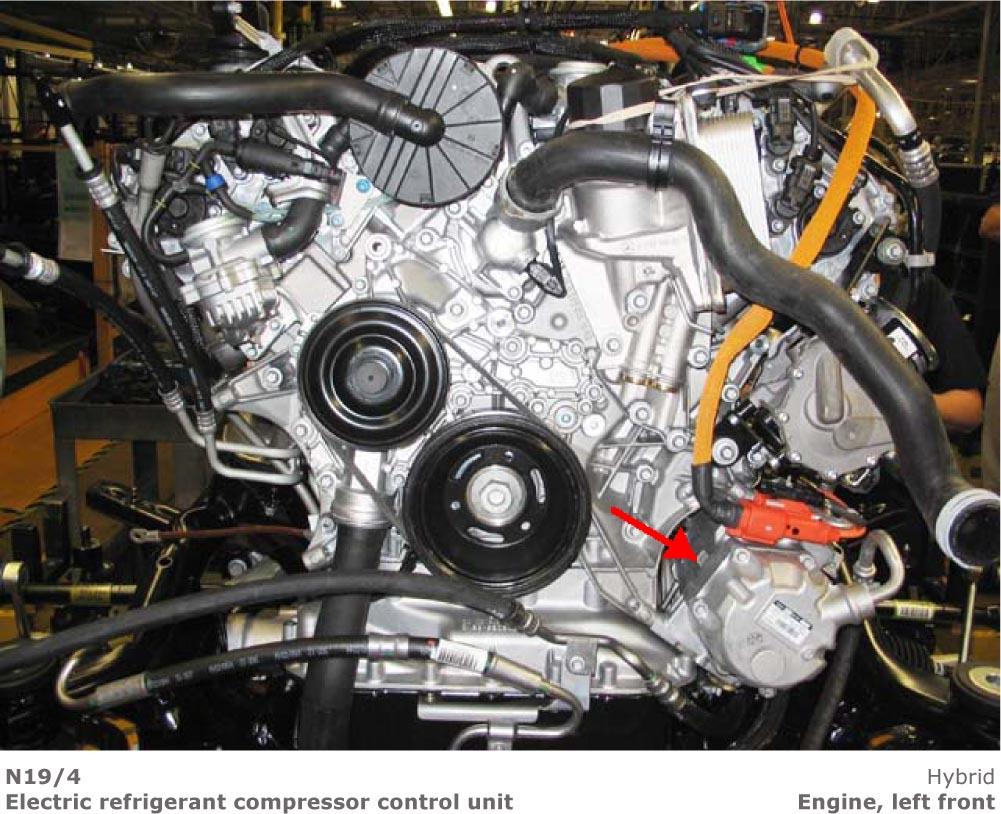

| Electric Refrigerant Compressor Control Unit | Lower left front of engine. See Figure. |
| Electronic Compass | Behind instrument cluster. See Figure. |
| Emergency Call System Control Unit | Under left seat of 2nd seat row. |
| ESP Control Module | Left front corner of engine compartment. |
| Folding Rear Bench Seat Control Unit | Under left seat of 2nd seat row. See Figure. |
| Front Passenger Front Seat Adjustment Control Module With Memory | Under front passenger seat. |
| Front SAM Control Unit | Under right front seat. See Figure. |
| Headlamp Range Adjustment Control Module | Under right front seat. See Figure. |

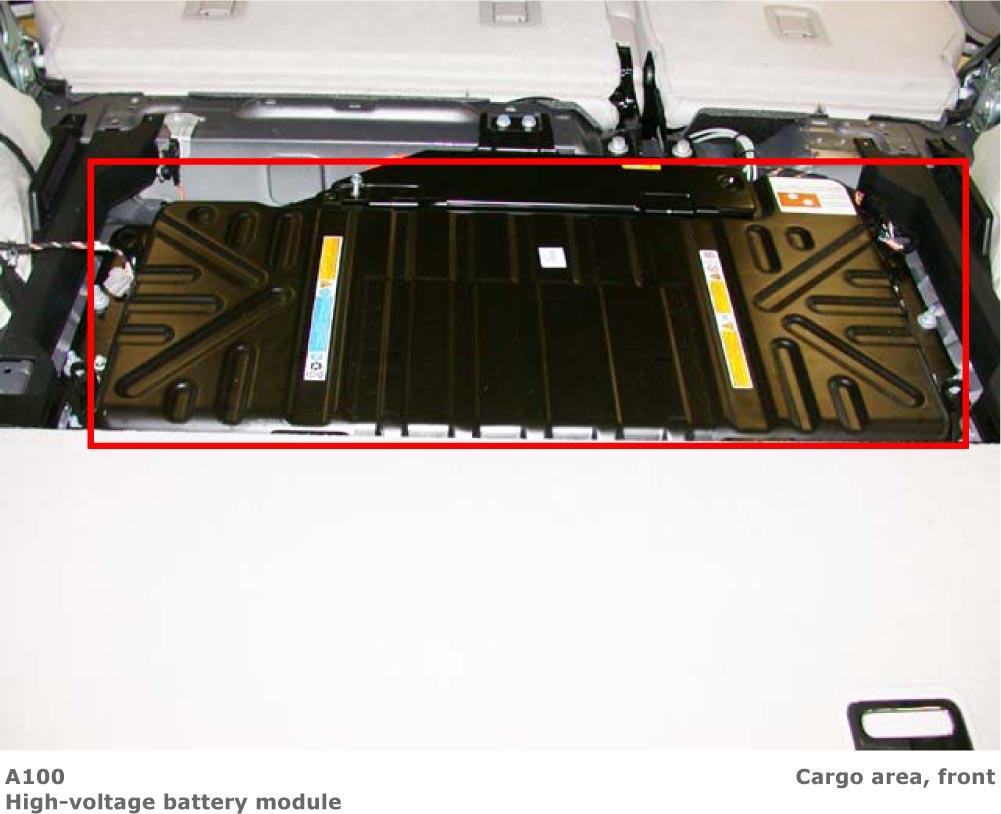

| High-Voltage Battery Module | Front of cargo area. See Figure. |

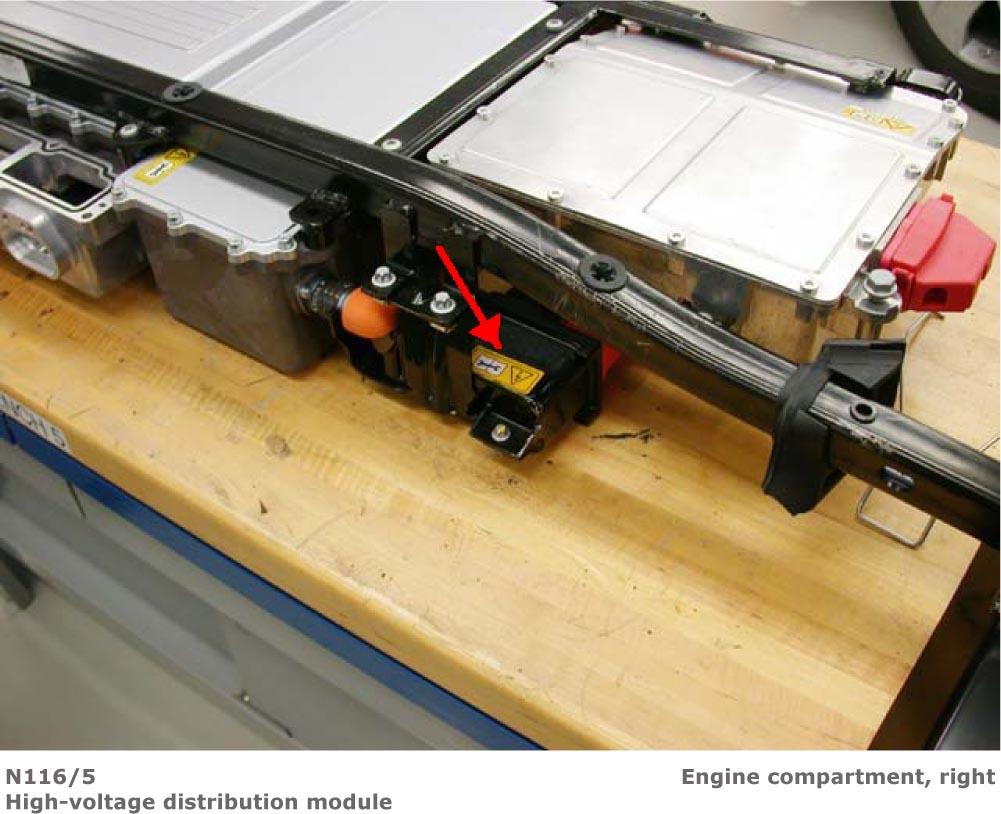

| High-Voltage Distribution Module | Right side of engine compartment. See Figure. |
| HRA (LWR) Power Module (Left/Right) | Inside rear of respective headlight assembly. |
| HS (SIH) Seat Ventilation & Steering Wheel Heater Control Unit | Under left seat of 2nd seat row. See Figure. |

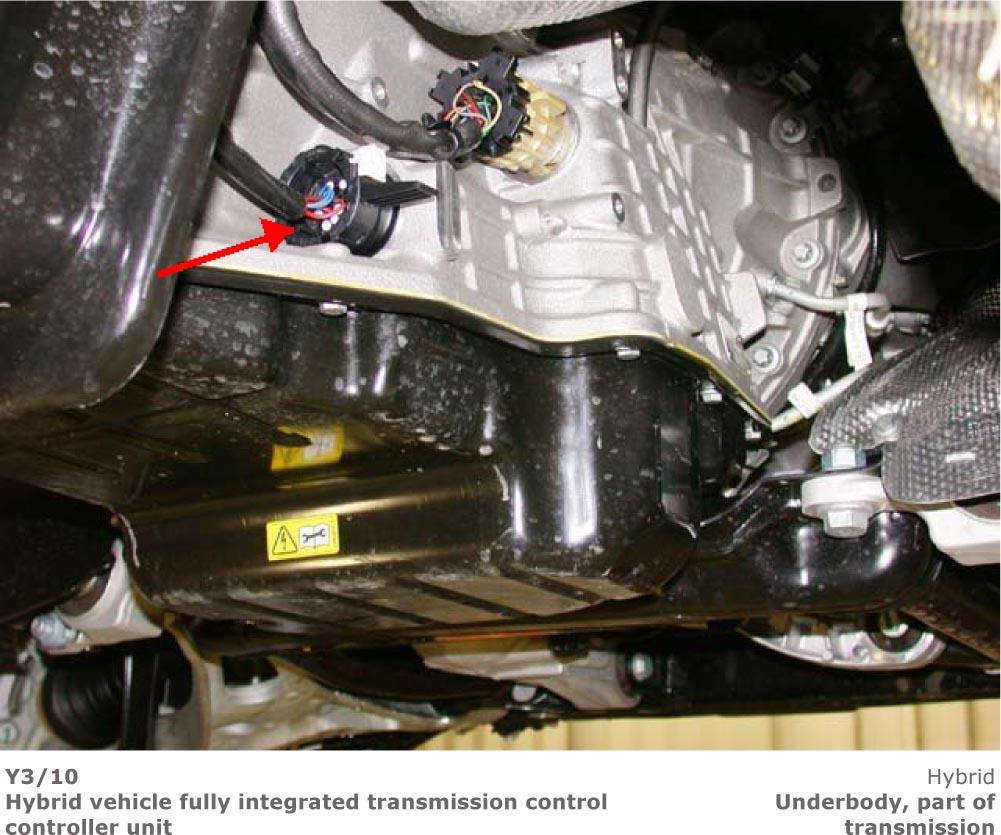

| Hybrid Vehicle Fully Integrated Transmission Control Controller Unit | In transmission. See Figure. |
| Keyless Go Control Module | Right side of cargo area. |
| Left Front Door Control Module | In left front door. |
| Left Front Seat Ventilation Blower Regulator | In driver seat back. |
| Left Fuel Pump Control Unit | Under right seat of 2nd seat row. See Figure. |
| ME-SFI (ME) Control Module (Except Hybrid) | Top center of engine. |

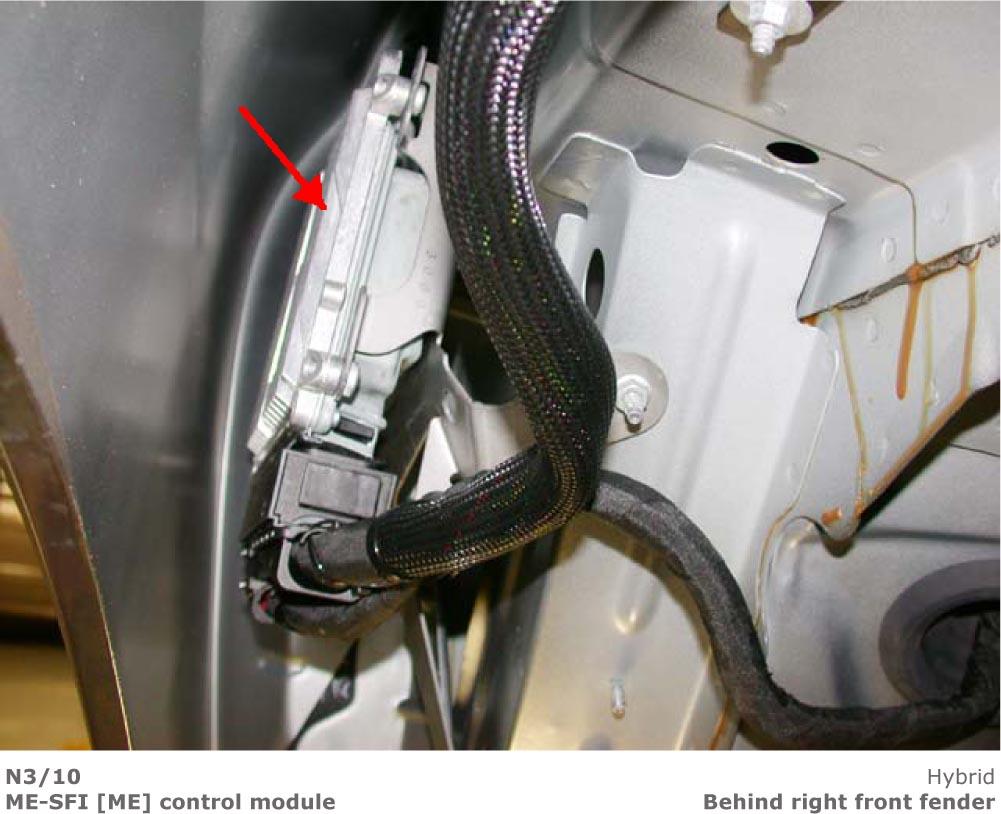

| ME-SFI (ME) Control Module (Hybrid) | Behind right front fender. See Figure. |
| Multifunction Steering Wheel Electronics Unit | Inside steering wheel. See Figure. |

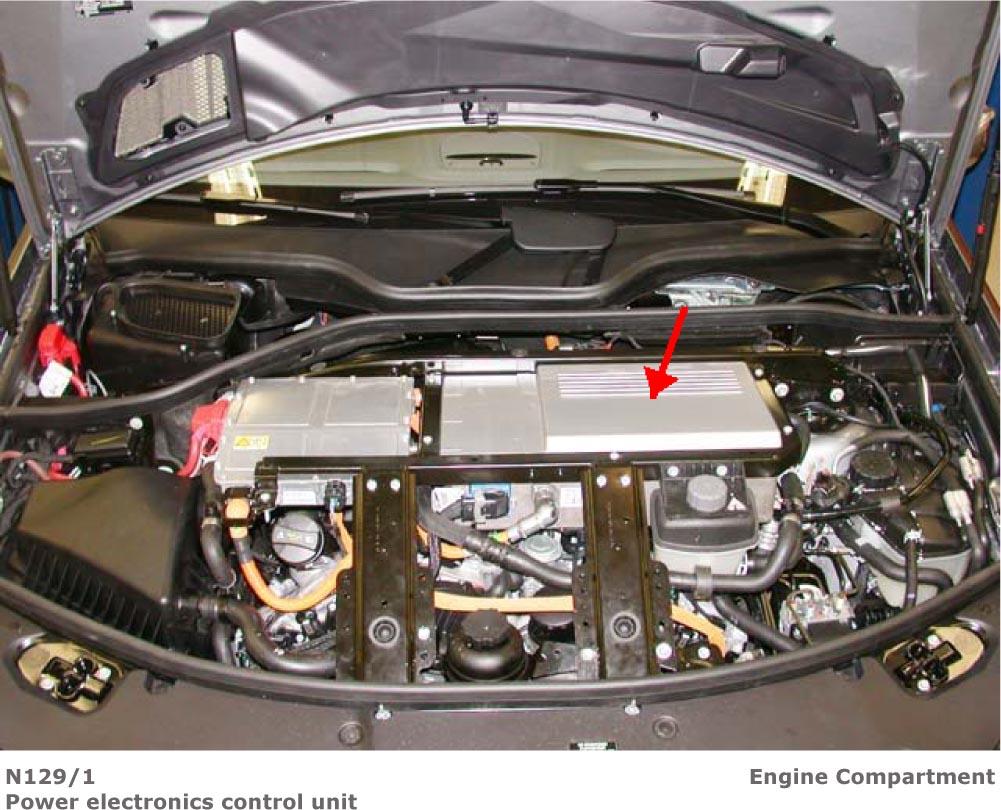

| Power Electronics Control Unit | Left side of engine compartment. See Figure. |
| PTS Control Module | Under left front seat. |
| Rear AC Blower Regulator | On rear blower motor. |
| Rear Audio Control Unit | Under rear of driver seat. |
| Rear Axle Differential Lock Control Module | Under left seat of 3rd seat row. |
| Rear-End Door Closing Control Module | Right rear of trunk, under carpet. |
| Rear SAM Control Module | Right rear of cargo area. See Figure. |
| Restraints System Control Module | Under center console. |
| Right Front Door Control Module | In right front door. |
| Right Front Seat Ventilation Blower Regulator | In front passenger seat back. |
| Right Fuel Pump Control Unit | Under right seat of 2nd seat row. |
| SDAR Control Unit | Under left seat of 2nd seat row. See Figure. |
| Steering Column Module | Top of steering column. See Figure. |
| TPM Control Module (Except Hybrid) | Right side of cargo area. |

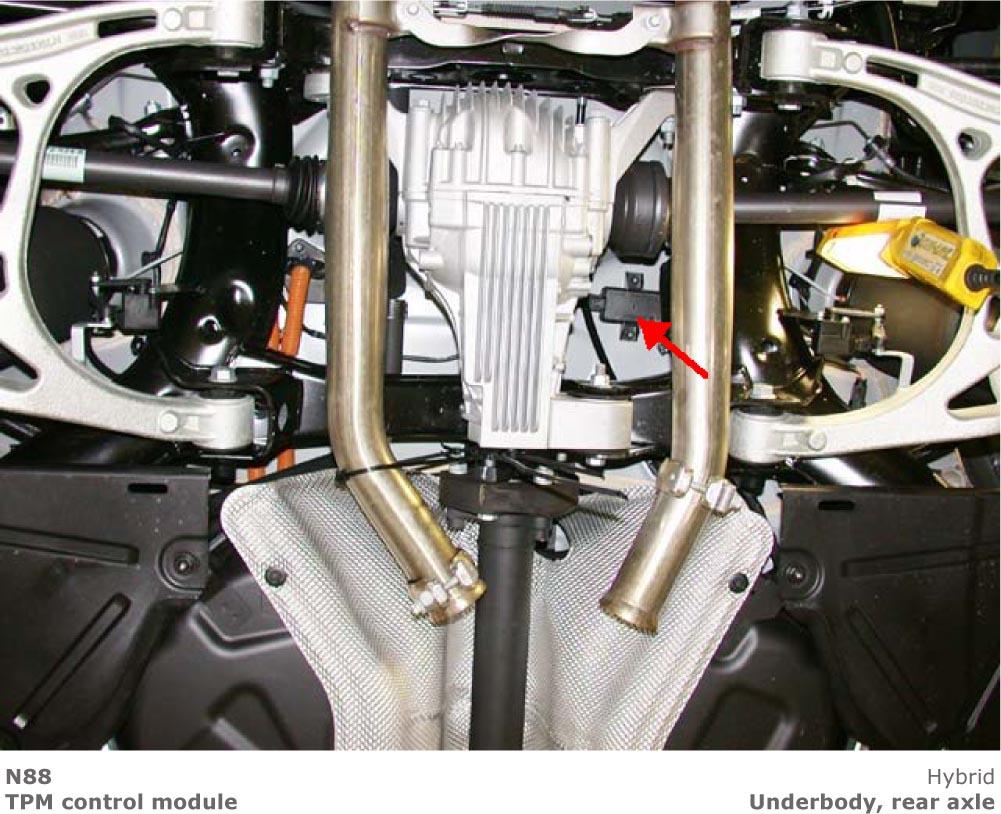

| TPM Control Module (Hybrid) | Near rear axle. See Figure. |
| TPM (RDK) Control Module | Right rear of cargo area. |
| Traction System Hydraulic Unit | Left front of engine compartment. See Figure. |
| Transfer Case Control Module | Under front passenger seat. |
| Universal Portable CTEL Interface (UPCI (UHI)) Control Module | Under left seat of 2nd seat row. |
| WSS Control Unit (Weight Sensing System) | On right front seat frame. See Figure. |
| Xenon Headlamp Ignition Module (Left/Right) | Behind respective headlamp. |
