Overview Of System Components For Overall Network (GVN) - GF00.19-D-9997H
Model 906

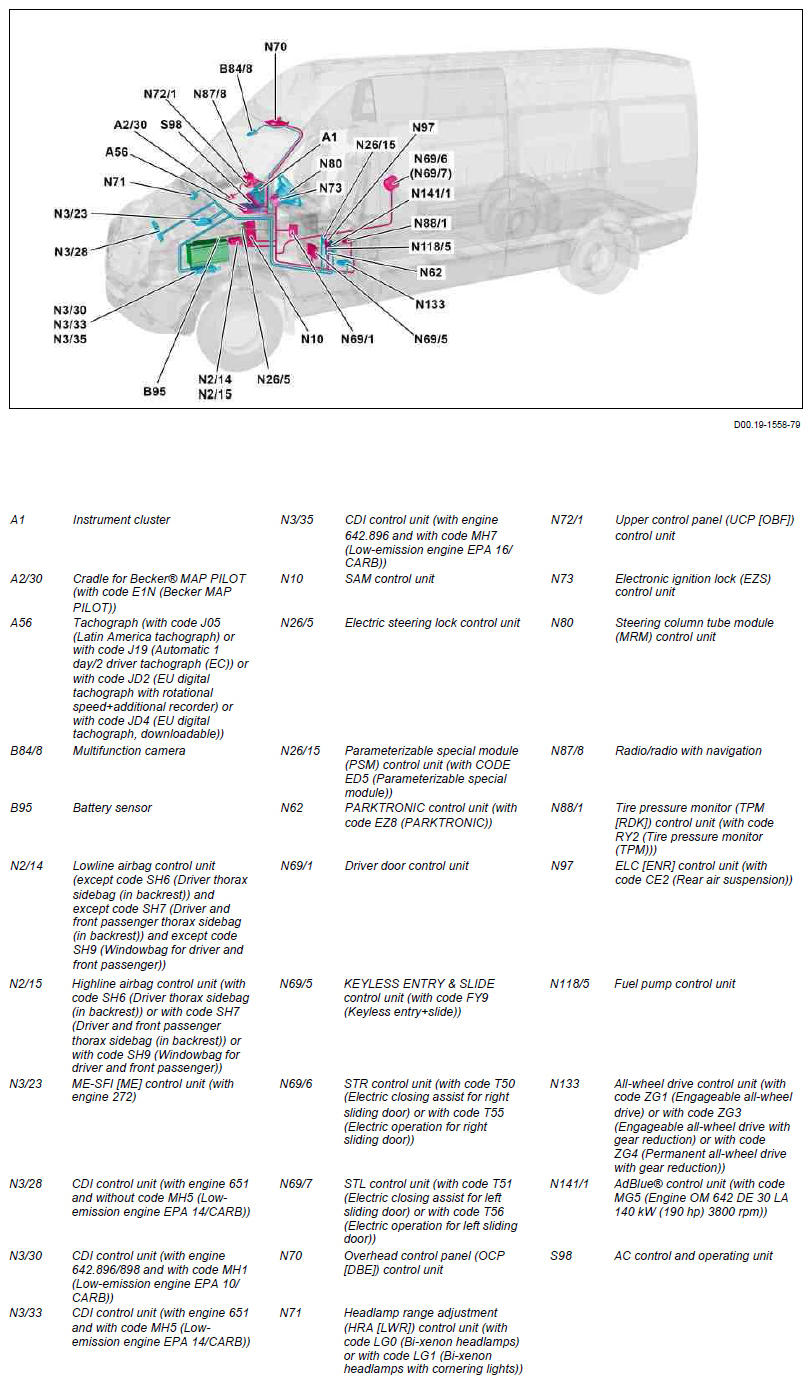

Overall network, model year 2010

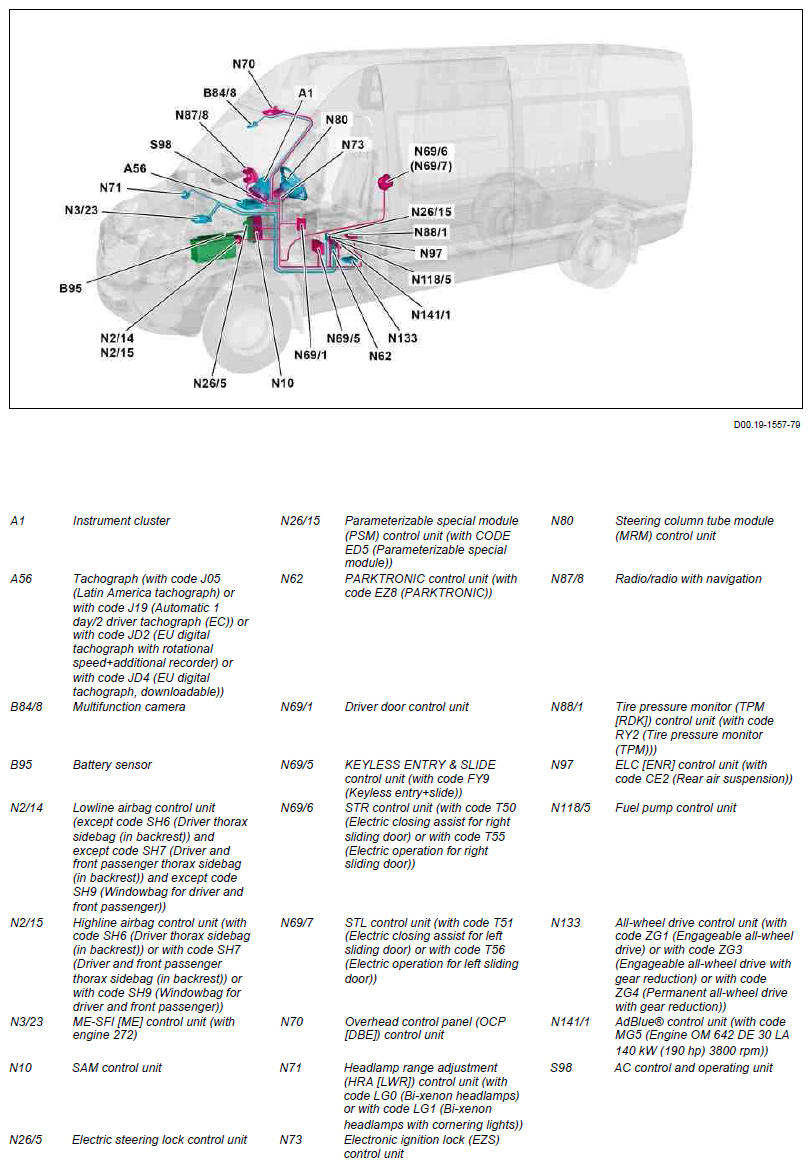

Overall network with code XM0 (Model refinement)

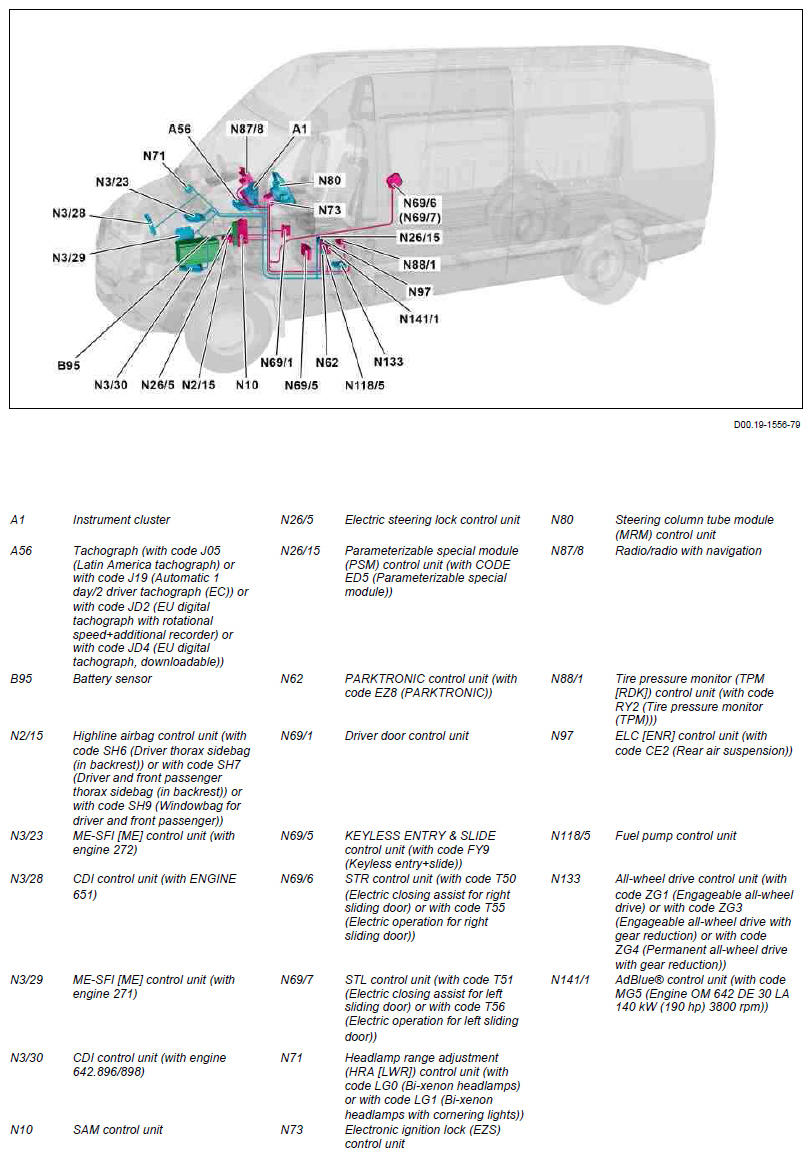

Overall network, model year 2015
| Component description for instrument cluster | With CODE JK3 (Instrument cluster, high end with speedometer with km scale) A1 | GF54.30-D-6000HH |
| Except CODE JK3 (Instrument cluster, high end with speedometer with km scale) A1 | GF54.30-D-6000HL | |
| Becker(R) MAP PILOT control unit mount, component description | With code E1N (Becker MAP PILOT) A2/30 | GF82.85-D-3145H |
| Modular tachograph (MTCO), component description | With code J19 (Automatic 1 day/2 driver tachograph (EC)) A56 |
GF54.61-D-4103H |
| Digital tachograph (DTCO) component description | With code JD4 (EU digital tachograph, downloadable) A56 |
GF54.61-D-4104H |
| Component description for nitrogen oxides control unit with NOx sensor | With engine 642 and with code MP6 (Euro VI engine variant) A97/1, A97/2 | GF14.40-D-3023HOC |
| Model 906 with engine 642 and with code MG5 (Engine OM 642 DE 30 LA 140 kW (190 hp) 3800 rpm) and with code MH1 (Low-emission engine EPA 10/CARB) and with code ZU8 (USA national version) A97/1, A97/2 | GF14.40-D-3023HU | |
| Component description for battery sensor | With engine 642 or with engine 651 and with transmission 722.9 and with code MJ7 (ECO start/stop function) B95 |
GF54.10-D-2100HD |
| Component description for intelligent radar sensor control unit | With CODE JA7 (Blind Spot Assist) B161/1, B161/2, B161/3, B161/4 | GF30.30-D-3305H |
| COLLISION PREVENTION ASSIST controller unit, component description | With CODE JA6 (COLLISION PREVENTION ASSIST) B162 |
GF30.30-D-3214H |
| Component description for CDI control unit | With engine 642 N3/20 |
GF07.16-D-6000HOA |
| With engine 651 N3/28 |
GF07.16-D-6000HD | |
| Model 906 with engine 642 and with code MG5 (Engine OM 642 DE 30 LA 140 kW (190 hp) 3800 rpm) and with code MH1 (Low-emission engine EPA 10/CARB) and with code ZU8 (USA national version) N3/30 |
GF07.16-D-6000HU | |
| Component description for front SAM control unit with fuse and relay module | N10 | GF54.21-D-6070H |
| Component description for glow output stage | With engine 642 N14/3 |
GF15.20-D-2105HOA |
| With engine 651 N14/5 |
GF15.20-D-2105HD | |
| With engine 642 N14/7 |
GF15.20-D-2105HOB | |
| ETC (EGS) control unit, component description | with transmission 722.6 N15/3 |
GF27.19-D-4018H |
| Electronic selector lever module control unit, component description | With transmission 722.6/9 N15/5 |
GF27.19-D-5300H |
| Electric steering lock control unit, component description | with code ZU8 (National version for USA) N26/5 |
GF80.57-D-5000HU |
| Parameterizable special module (PSM) control unit component description | With code ED5 (Parameterizable special module) except code XM0 (Facelift) N26/15 | GF54.21-D-5005H |
| With code ED5 (Parameterizable special module) and with code XM0 (Facelift) N26/15 |
GF54.21-D-5005P | |
| Trailer connection unit (AAG) control unit, component description | with CODE E43 (Trailer socket (13-pin) N28/1 |
GF31.19-D-4200H |
| Model 906 with code E40 (Trailer socket, 7-pin) N28/1 |
GF31.19-D-4200HU | |
| Component description for ESP control unit | N30/4 | GF42.45-D-5118H |
| ZUH control unit, component description | With code HZ9 (Heater booster) or model 906 with code HZ5 (Auxiliary water heater 10 kW with timer) N33/2 |
GF83.70-D-4215H |
| STH control unit, component description | With code H12 (Auxiliary water heater) or model 906 with code HZ5 (Auxiliary water heater 10 kW with timer) N33/3 |
GF83.70-D-4200H |
| PTC heater booster control unit, component description | With code HH2 (Electric warm air auxiliary heater) N33/4 |
GF83.70-D-4064H |
| Auxiliary heater control unit, component description | Model 906 with code H11 (Auxiliary hot-air heater) N33/6 |
GF83.70-D-4216H |
| Parktronic system (PTS) control unit, component description | Model 906 with code EZ8 (PARKTRONIC) N62 | GF54.65-D-5000H |
| Driver-side front door control unit, component description | N69/1 | GF72.29-D-6000H |
| Keyless Entry control unit, component description | Model 906 with code FY9 (Keyless entry+slide) and with code T55 (Electric operation for right sliding door) or with code T56 (Electric operation for left sliding door) N69/5 |
GF80.61-D-4205H |
| Electric load compartment sliding door (E-LST) control unit, component description | Model 906 with code T50 (Electric closing assist for right sliding door) or with code T51 (Electric closing assist for left sliding door) or with code T55 (Electric operation for right sliding door) or with code T56 (Electric operation for left sliding door) N69/6, N69/7 |
GF72.29-D-4014H |
| Overhead control panel (OCP (DBE)) control unit component description | With code LD0 (Overhead control panel with two reading spotlights) N70 |
GF54.21-D-6080H |
| Component description of headlamp range adjustment control unit | With code LG1 (Bi-xenon headlamps with cornering lights) N71 |
GF82.10-D-2112H |
| Upper control panel control unit, component description | N72/1 | GF54.21-D-6040H |
| Component description for steering column tube module | N80 | GF54.21-D-6050H |
| Radio/navigation unit, component description | With code EN8 (Sound 50 APS radio) N87/1 |
GF82.61-D-4111H |
| With code EN4 (COMAND with TMC interface) N87/1 |
GF82.61-D-4111HA | |
| Component description for tire pressure monitor control unit | With CODE RY2 (Tire pressure monitor) N88/1 |
GF40.15-D-5124H |
| Component description for transmission oil auxiliary pump control unit | With transmission 722.9 and with code MJ7 (ECO start/stop function) N89 |
GF27.19-D-4030HAG |
| Rear axle level control system control unit, component description | With code CE2 (Rear air suspension) N97 |
GF32.33-D-3400H |
| Component description for fuel pump control unit | With engine 642 N118/5 |
GF47.40-D-2001HO |
| Component description of transfer case control unit | Model 906 with code ZG1 (Engageable all-wheel drive) or with code ZG4 (Permanent all-wheel drive with gear reduction) N133 |
GF28.19-D-3200HA |
| Component description for exhaust aftertreatment control unit | With engine 642 with code MP6 (Euro VI engine variant) N141, N141/1 |
GF14.40-D-3030HOC |
| Model 906 with engine 642 and with code MG5 (Engine OM 642 DE 30 LA 140 kW (190 hp) 3800 rpm) and with code MH1 (Low-emission engine EPA 10/CARB) and with code ZU8 (USA national version) N141, N141/1 | GF14.40-D-3030HU | |
| FleetBoard control unit, component description | with CODE YM1 (FleetBoard vehicle computer) N149 |
GF82.85-D-1000H |
| Tempmatic ™ control and operating unit, component description | With CODE HH9 (TEMPMATIC semi-automatically controlled air conditioning) S98 | GF83.40-D-4015H |
| Component description for fully integrated transmission control unit | with transmission 722.9 Y38n4 |
GF27.60-D-5165HAG |
| Overall network (GVN) function description table of contents | GF00.19-D-0999H |
