Remove/Install Alternator - AR15.40-P-5032MNL
Engine 176 in model 217, 222
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Disconnect battery ground line | AR54.10-P-0003LF | |
| 2 | Remove fan unit | AR20.40-P-5050MNL | |
| 3 | Remove guide pulley | AR13.20-P-0011MNL | |
| 4 | Remove contact protection of nut (4) | ||
| 5 | Remove electrical line B+ (5) from alternator (G2) | *BA15.40-P-1003-01T | |
| 6 | Remove coolant hose (11) from the inlet nozzle (10) of the coolant pump and seal the openings with suitable protective covers | AR20.20-P-7441-01RQ | |

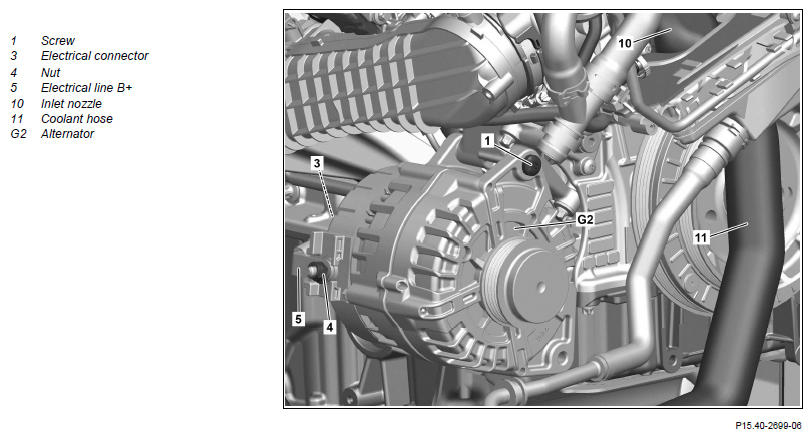

| Fig 2 | |||
| 7 | Remove screw (1) | ||
| 8 | Lift alternator (G2) off the bracket and turn horizontally so that the electrical connector (3) can be reached | ||
| 9 | Release and disconnect electrical connection (3) | ||
| 10 | Press radiator package upward out of the left elastomer bearing of the left radiator support mounting console | ||
| 11 | Pull the radiator package on the left side forward | ||
| 12 | Take alternator (G2) down and out | ||
| 13 | Install in the reverse order | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 14 | Carry out engine test run, checking the alternator (G2) for proper operation and checking the engine cooling system for leak tightness | ||
| 15 | Install front and center engine compartment paneling | AR61.20-P-1105LF |
ALTERNATOR
| Number | Designation | Engine 176 | |
|---|---|---|---|
| BA15.40-P-1003-01T | Nut, positive line to alternator | Nm | 16 |
