Overview Of System Components For Gasoline Injection And Ignition System With Direct Injection - GF07.70-P-9998MNE
Engine 177.9 in model 213
up to model year 2021

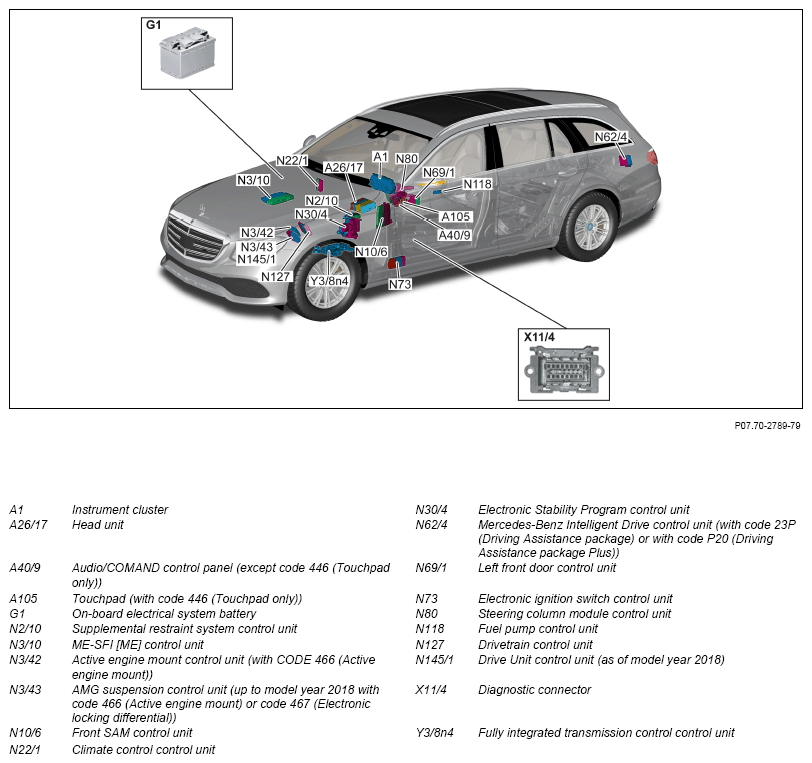

Shown on model 213.2

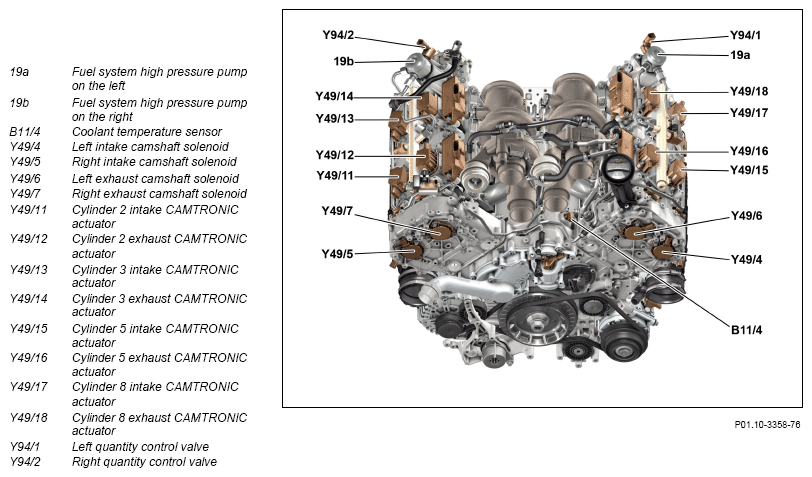

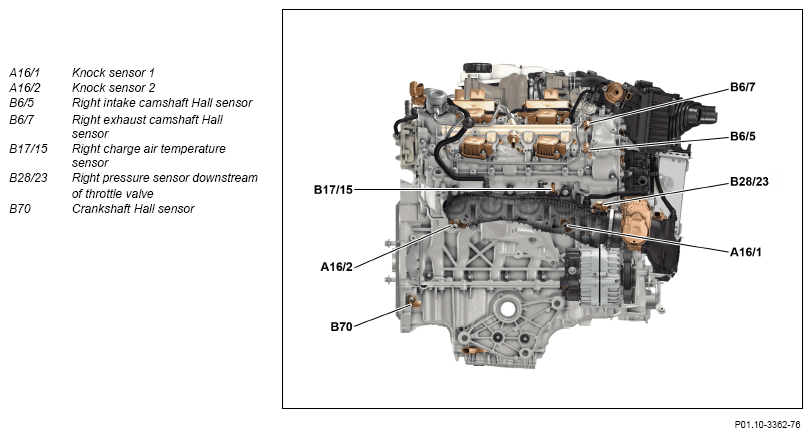

Shown: engine from the top front

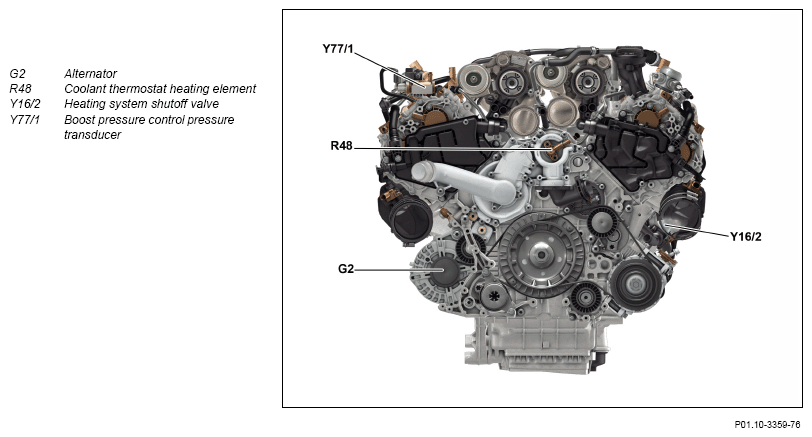

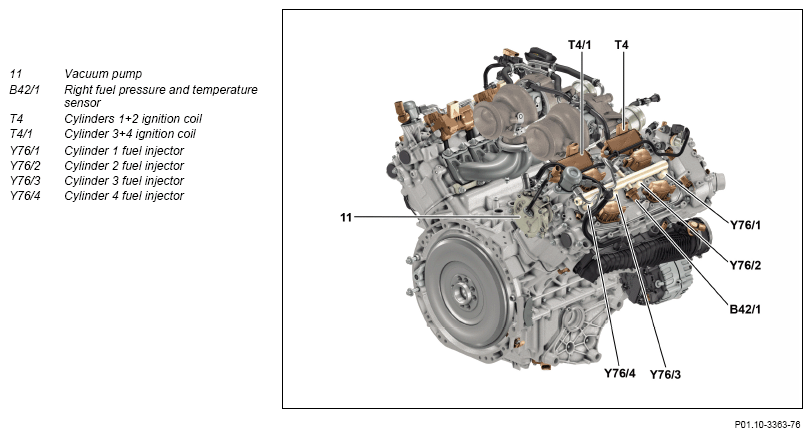

Shown: engine from the front

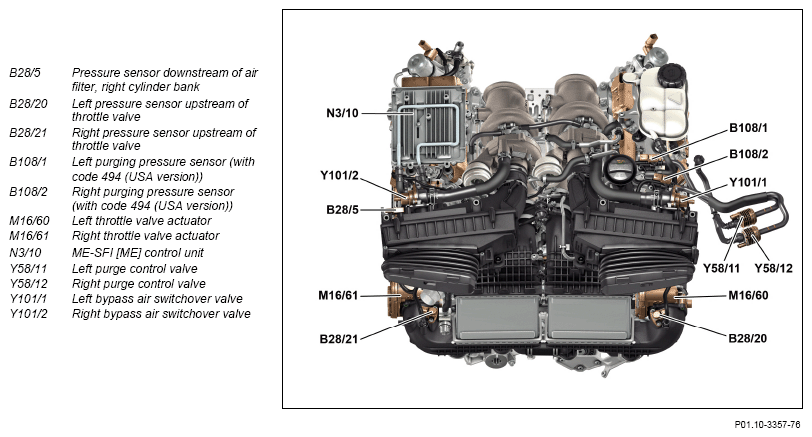

Shown: engine from the top front

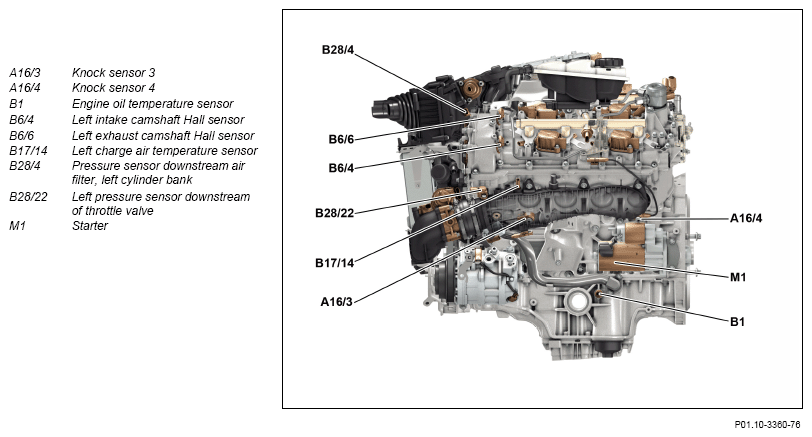

Shown: engine from the left

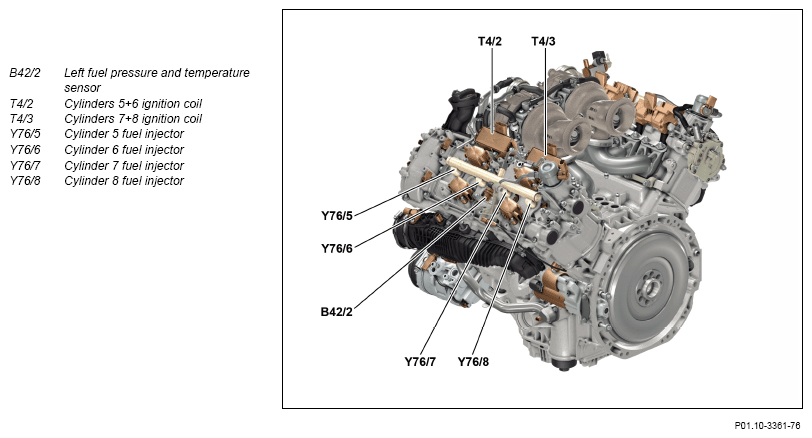

Shown on engine from rear left
Shown: engine from the right
Shown on engine from rear right

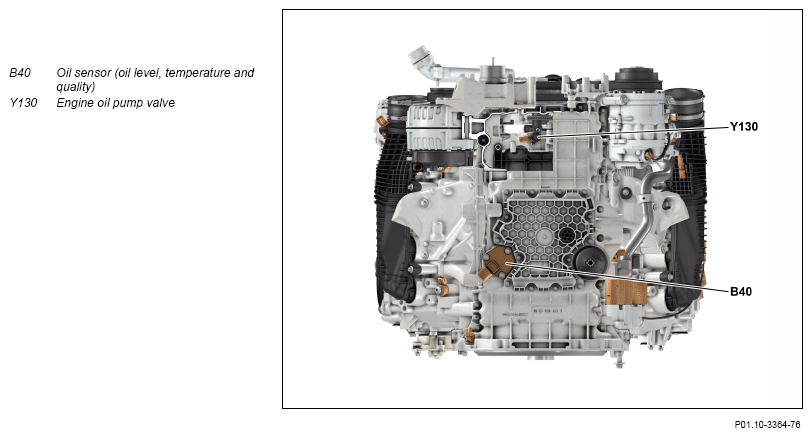

Shown: engine from below

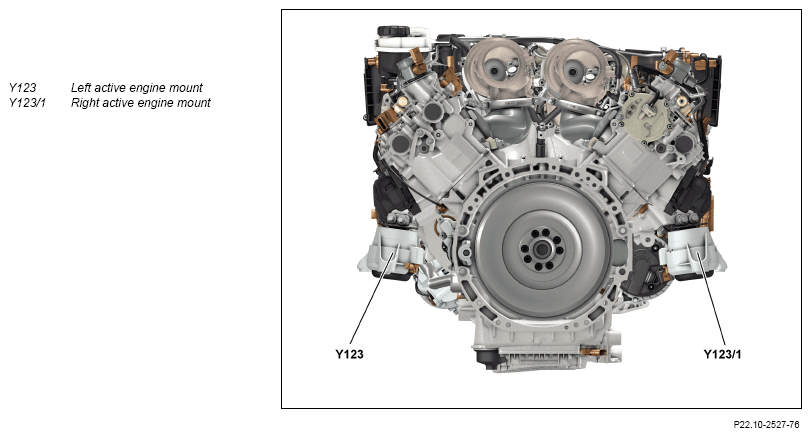

Shown on engine from rear (with code 466 (Active engine mount))

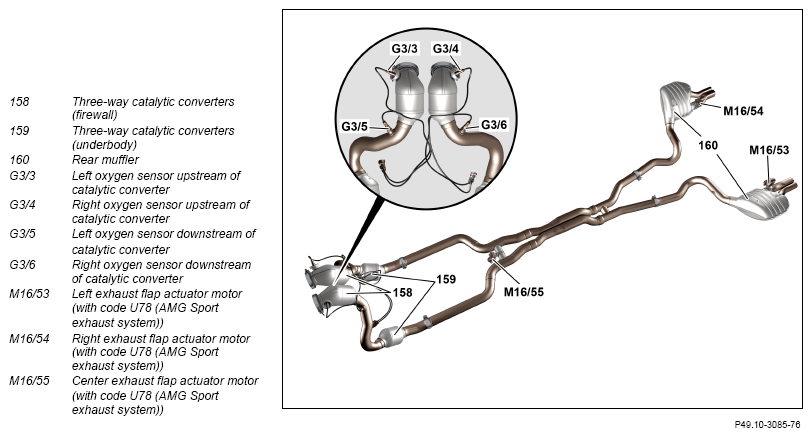

Shown on AMG performance exhaust system (with code U78 (AMG Sport exhaust system))

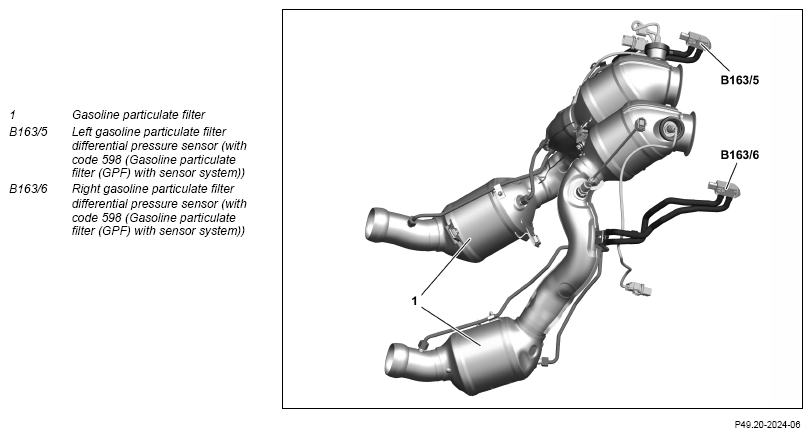

Shown on gasoline particulate filter (with code 472 (Gasoline particulate filter) or code 598 (Gasoline particulate filter (GPF) with sensor system))

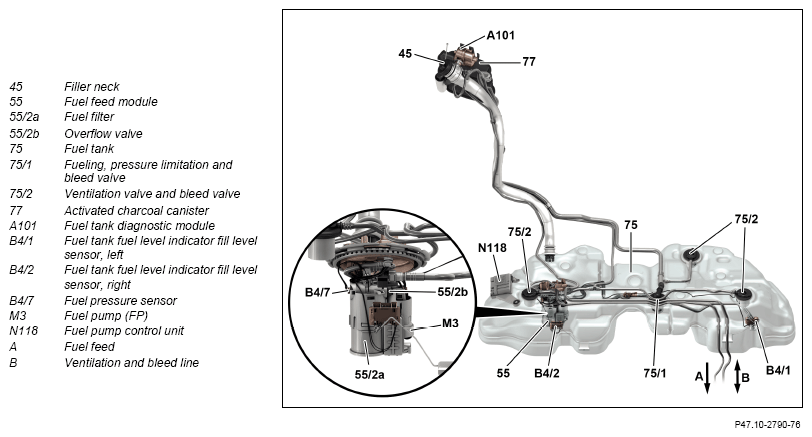

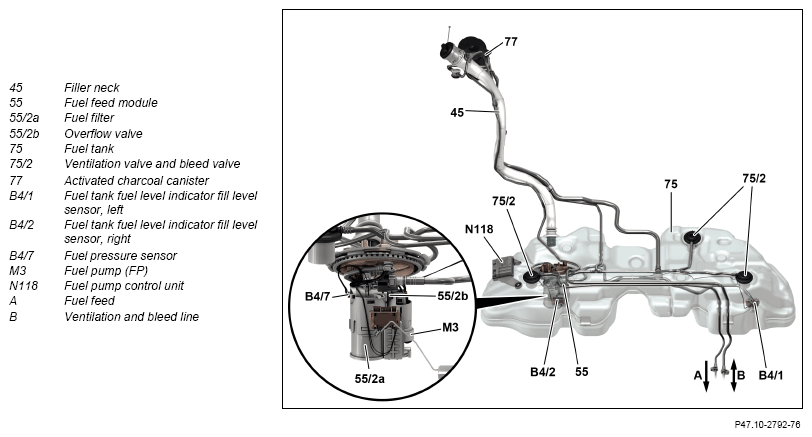

Phantom view of the fuel tank (except code 494 (USA version))
Phantom view of fuel tank (with CODE 494 (USA version))
Shown on fan motor from rear

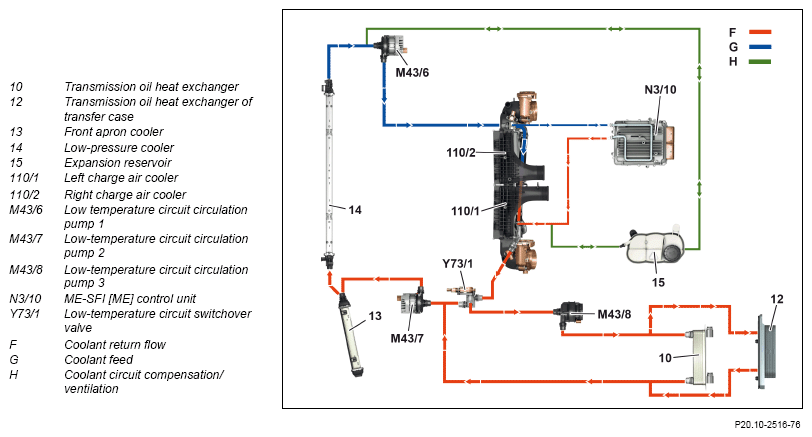

Schematic diagram of low-temperature circuit

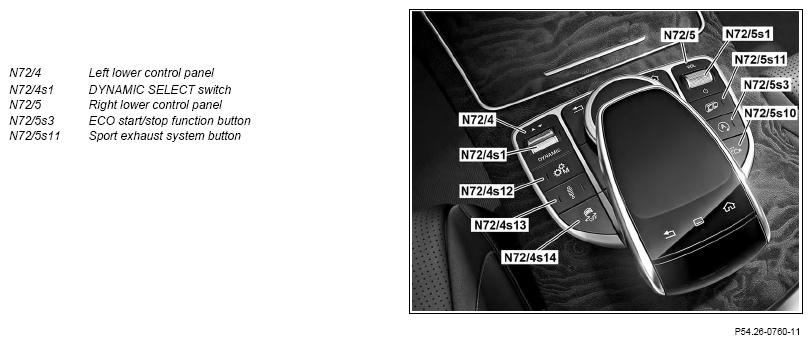

Shown on lower control panel

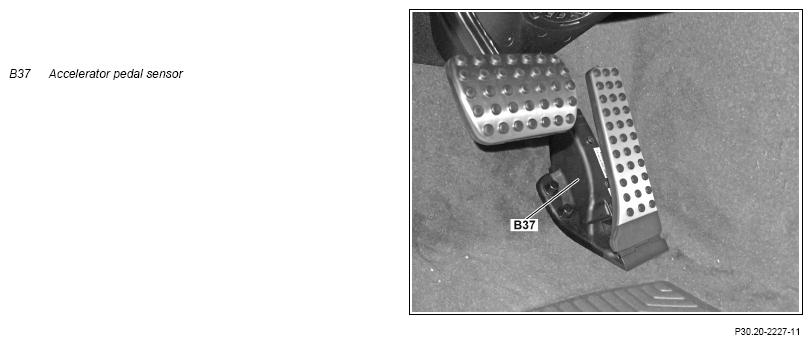

Shown on driver-side footwell

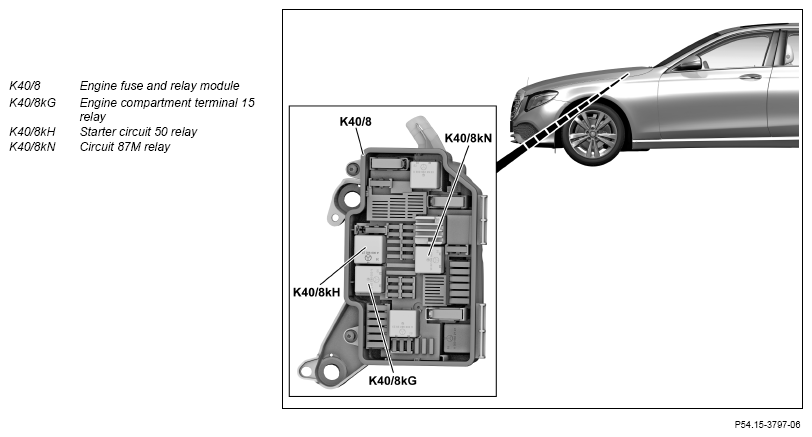

Shown on engine fuse and relay module in left rear engine compartment
| Component description for instrument cluster | A1 | GF54.30-P-6000FG | |
| Head unit, component description | Engine 177.9 in model 213 up to model year 2021 with code 520 (Audio 20 USB) except code 506 (Audio 20 NTG 5.5 radio) except code 522 (Audio 20 radio) except code 531 (COMAND APS) A26/17 |
GF82.85-P-3140FG | |
| Engine 177.9 in model 213 up to model year 2021 with code 522 (Audio 20 radio) except code 506 (Audio 20 NTG 5.5 radio) except code 520 (Audio 20 USB) except code 531 (COMAND APS) A26/17 |
GF82.85-P-3140FGA | ||
| Engine 177.9 in model 213 up to model year 2021 with code 506 (Audio 20 NTG 5.5 radio) Engine 177.9 in model 213 up to model year 2021 with code 531 (COMAND APS) A26/17 |
GF82.85-P-3140FGB | ||
| Component description for Audio/COMAND control panel | Model 213 with engine 177.9 up to model year 2021 except code 446 (Touchpad only) A40/9 | GF54.21-P-4501FG | |
| Touchpad, component description | Model 213 with engine 177.9 up to model year 2021 with code 446 (Touchpad only) A105 | GF54.21-P-4511FG | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080FG | |
| Component description for ME-SFI (ME) control unit | N3/10 | GF07.61-P-6000MNA | |
| Active engine mount control unit, component description | Model 213 with engine 177.9 up to model year 2021 with code 466 (Active engine mount) N3/42 | GF22.10-P-2001MNA | |
| AMG sports suspension control unit, component description | Model 213 with engine 177.9 with transmission 725.096 up to model year 2018 with code 466 (Active engine mount) with code 467 (Electronic locking differential) N3/43 | GF54.21-P-1002FG | |
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010FG | |
| Climate control, control unit, component description | N22/1 | GF83.40-P-2250FG | |
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119FG | |
| AIR BODY CONTROL, control unit, component description | Model 213 with engine 177.9 up to model year 2021 with code 489 (AIR BODY CONTROL) N51/3 | GF32.22-P-5111FG | |
| Mercedes-Benz Intelligent Drive control unit, component description | Model 213 with engine 177.9 up to model year 2021 with code 23P (Drive package) Model 213 with engine 177.9 up to model year 2021 with code P20 (Driving assistant package Plus) N62/4 |
GF30.30-P-3312FG | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001FG | |
| Lower control panel, component description | N72/4, N72/5 | GF54.25-P-4270FG | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001FG | |
| Component description for steering column tube module control unit | Model 213 with engine 177.9 up to model year 2019 N80 | GF54.21-P-6051FG | |
| Model 213 with engine 177.9 as of model year 2019 up to model year 2021 N80 | GF54.21-P-6051FGA | ||
| Component description for fuel pump control unit | N118 | GF47.40-P-2001MNA | |
| Drivetrain control unit, component description | N127 | GF54.21-P-2141MNA | |
| Drive unit control unit component description | Model 213 with transmission 725.096 as of model year 2018 up to model year 2021 N145/1 | GF27.60-P-5168FG | |
| Component description for fully integrated transmission control unit | Transmission 725.096 in model 213 up to model year 2021 Y38n4 | GF27.60-P-5165ANO | |
| Table of contents for function description of gasoline injection and ignition system with direct injection | GF07.70-P-0998MNA |
