Component Locations

COMPONENT LOCATIONS

Component Location
Circuit Breaker Behind Left Side Of Instrument Panel, Near Cowl Panel, Left Of Instrument Panel Fuse Block

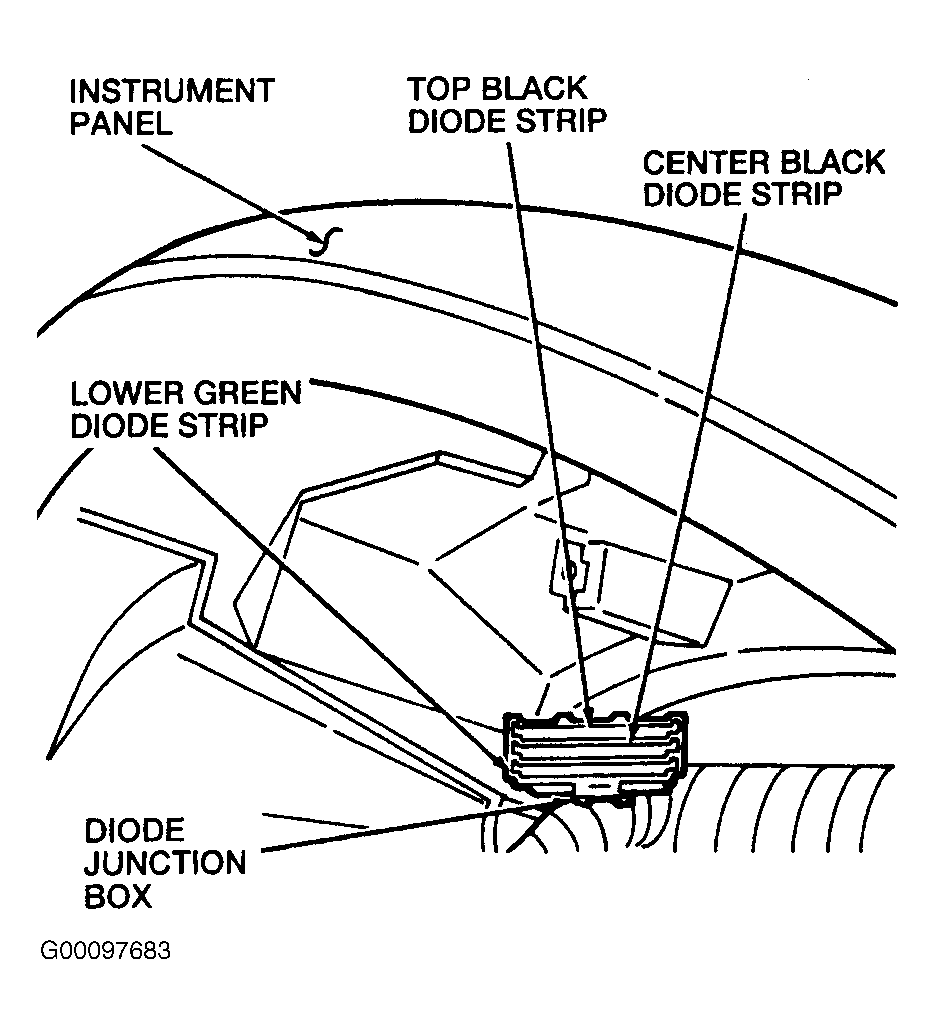

Diode Junction Block Behind Top Left Side Of Instrument Panel, Taped To Main Wiring Harness. See Figure .
Ground G200 Top of Left Cowl, Near Door Grommet.See Fig 1 .
Ground G203 Top Right Hand Cowl Panel, Near Door Grommet. See Fig 1 .
Instrument Fuse Panel Behind Instrument Panel, Left Of Steering Column
Left front Power Window Motor In Center Of Left Front Door
Master Window Control Switch Front Of Left Front Door, In Armrest

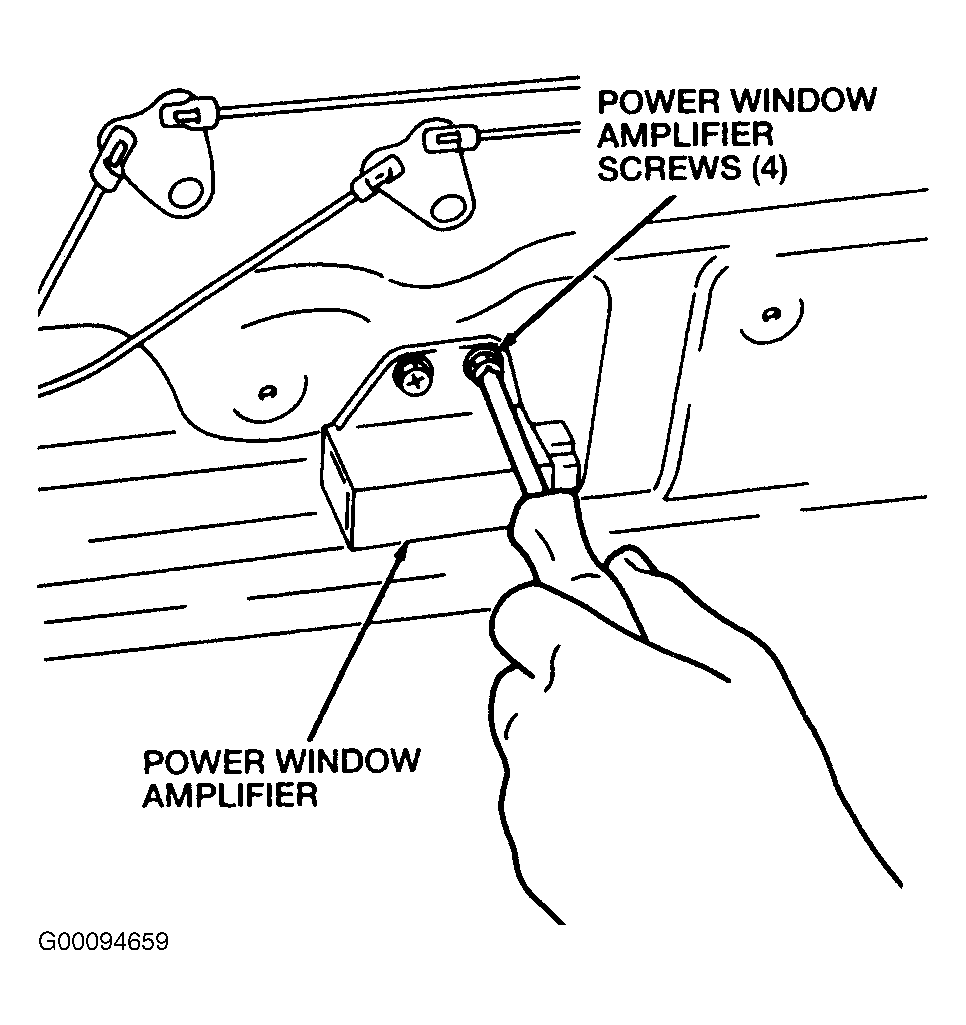

Power Window Amplifier In Rear Of Left Front Door. See Figure .
Power Window Relay Behind Left Side Of Instrument Panel. See Figure .
Fig 1: Locating Power Window System Components (1 of 2)
G00097649Courtesy of FORD MOTOR CO.
Fig 2: Locating Power Window System Components (2 of 2)
G00097650Courtesy of FORD MOTOR CO.
