Sliding Door Control Module: Removal

WARNING: This page is about a different car, the 2004 Dodge Grand Caravan, 2004 Dodge Caravan, and 2004 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable.
  2. Remove the appropriate door trim panel from the vehicle. Refer to TRIM PANEL for the procedure.
  3. Remove the weather shield. Refer to SLIDING DOOR WEATHERSTRIP for the procedure.
  4. Disconnect the power door control module electrical connectors. Slide the red locking tab out (away from module) and depress connector retaining tab, while pulling straight apart.

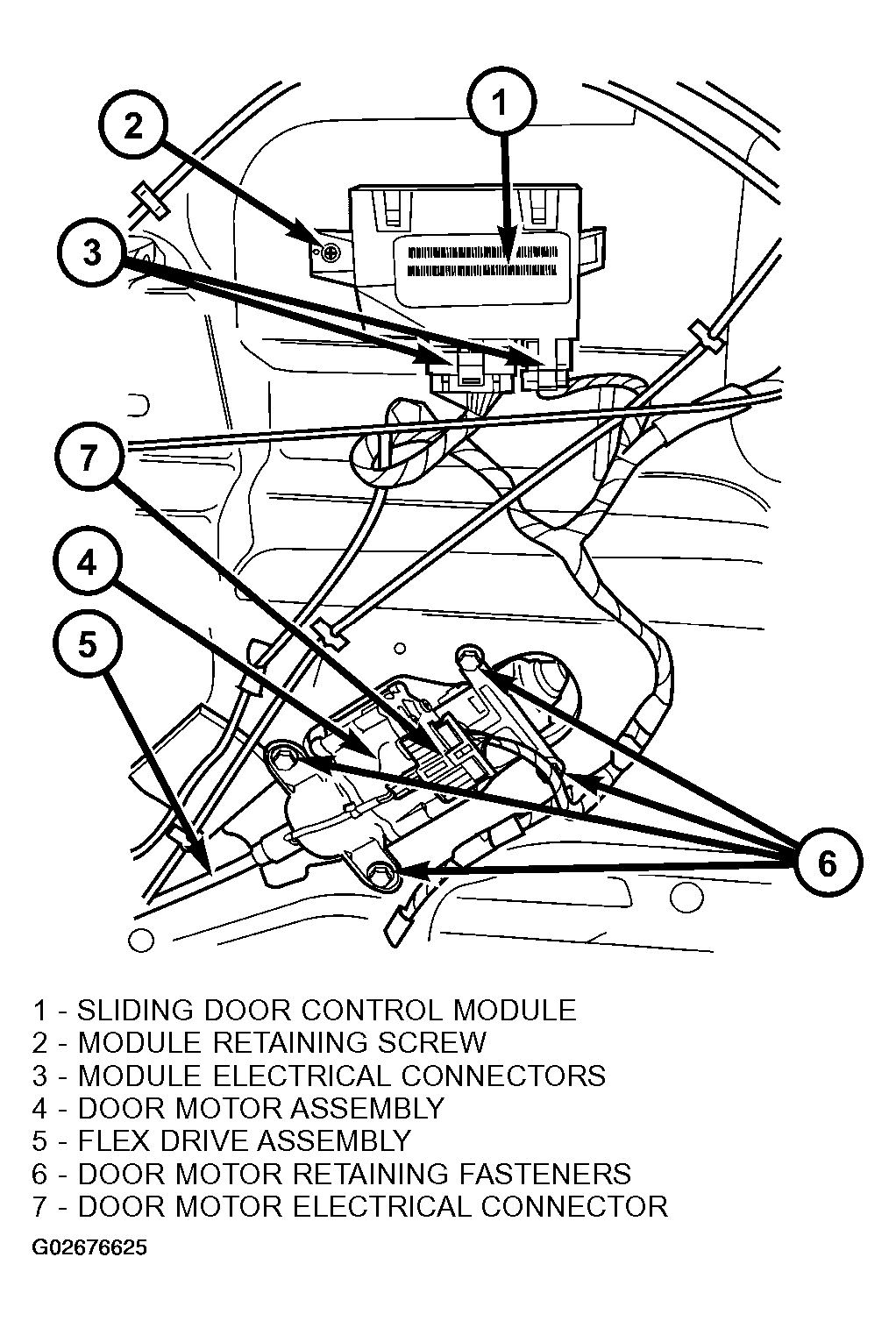

  5. Remove the control module retaining screw (Figure).
  6. Remove the module from the vehicle.
