Component Locations

COMPONENT LOCATIONS

Component	Location
Diode Junction Box	Behind Upper Left Side Of Instrument Panel. See Fig 1 .
Electronic Door Lock Control Processor	Behind The Control Console, Below & To The Left Of The Anti-Lock Brake Module. See Fig 2 .
G200	Top Left Of Cowl Panel, Near Door Grommet. See Fig 3 .
G203	Top Right Of Cowl Panel, Near Door Grommet. See Fig 3 .
G409/G411	Left Rear Corner Of Cargo Area

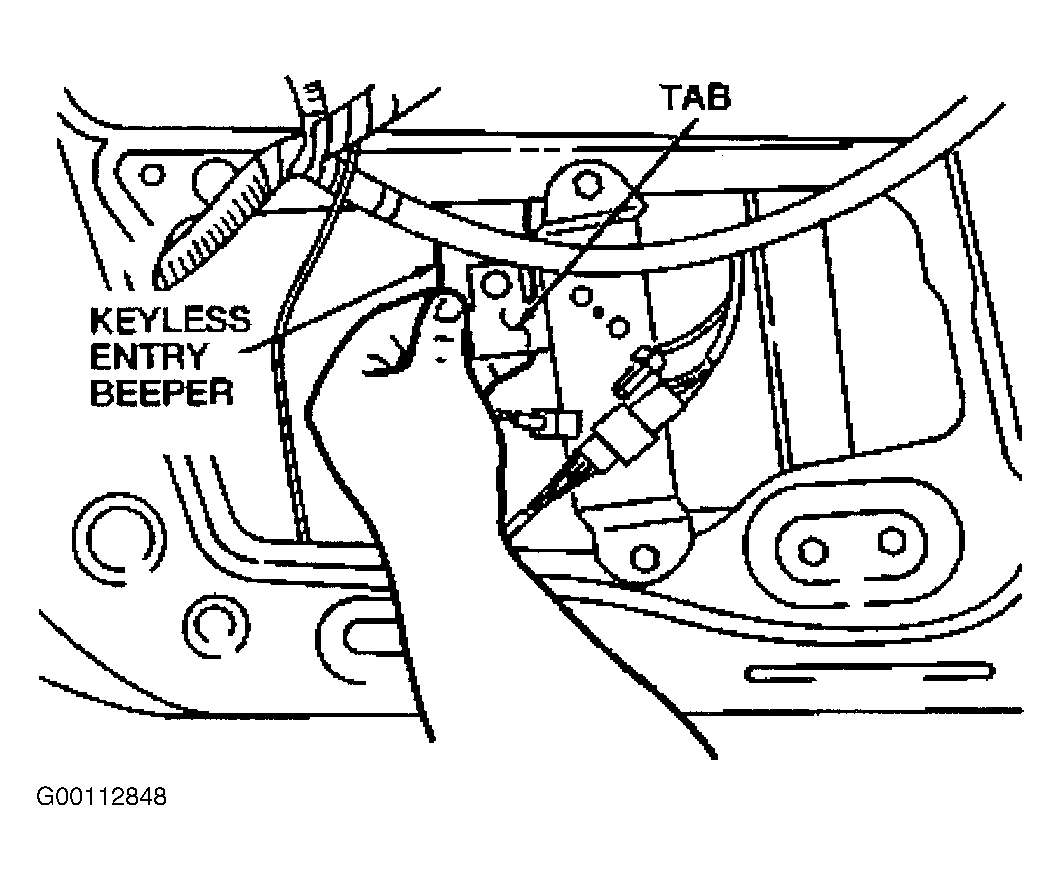

Keyless Entry Beeper	Behind LF Door Trim Panel. See Figure .
RH Circuit Breaker	Under Left Side Of Instrument Panel, Above The LH Cowl Side Trim Panel. See Fig 3 .
Timer Module	Behind The LH Cowl Side Trim Panel. See Fig 3 .

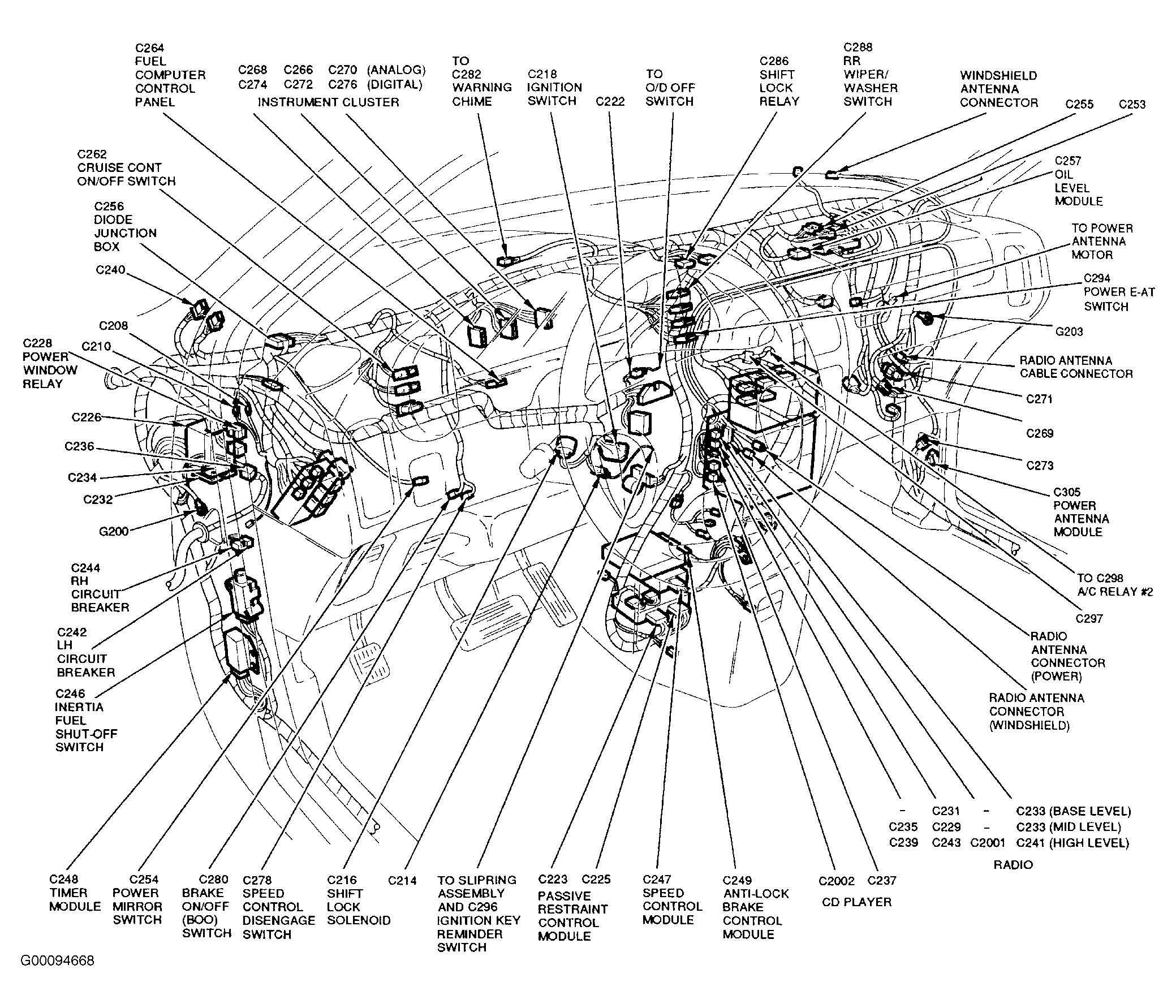

Fig 1: Locating Diode Junction Box

Courtesy of FORD MOTOR CO.

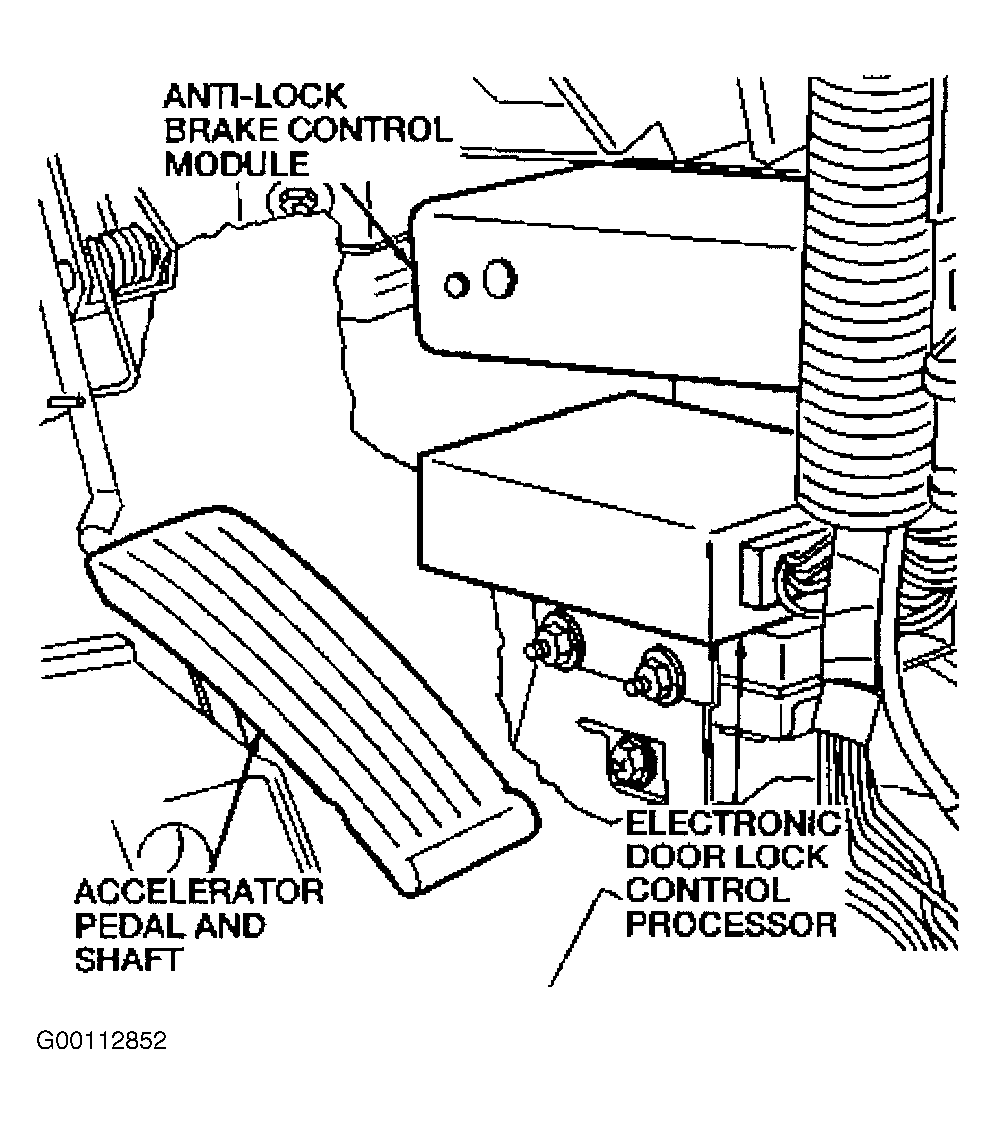

Fig 2: Locating Electronic Door Lock Control Processor

Courtesy of FORD MOTOR CO.

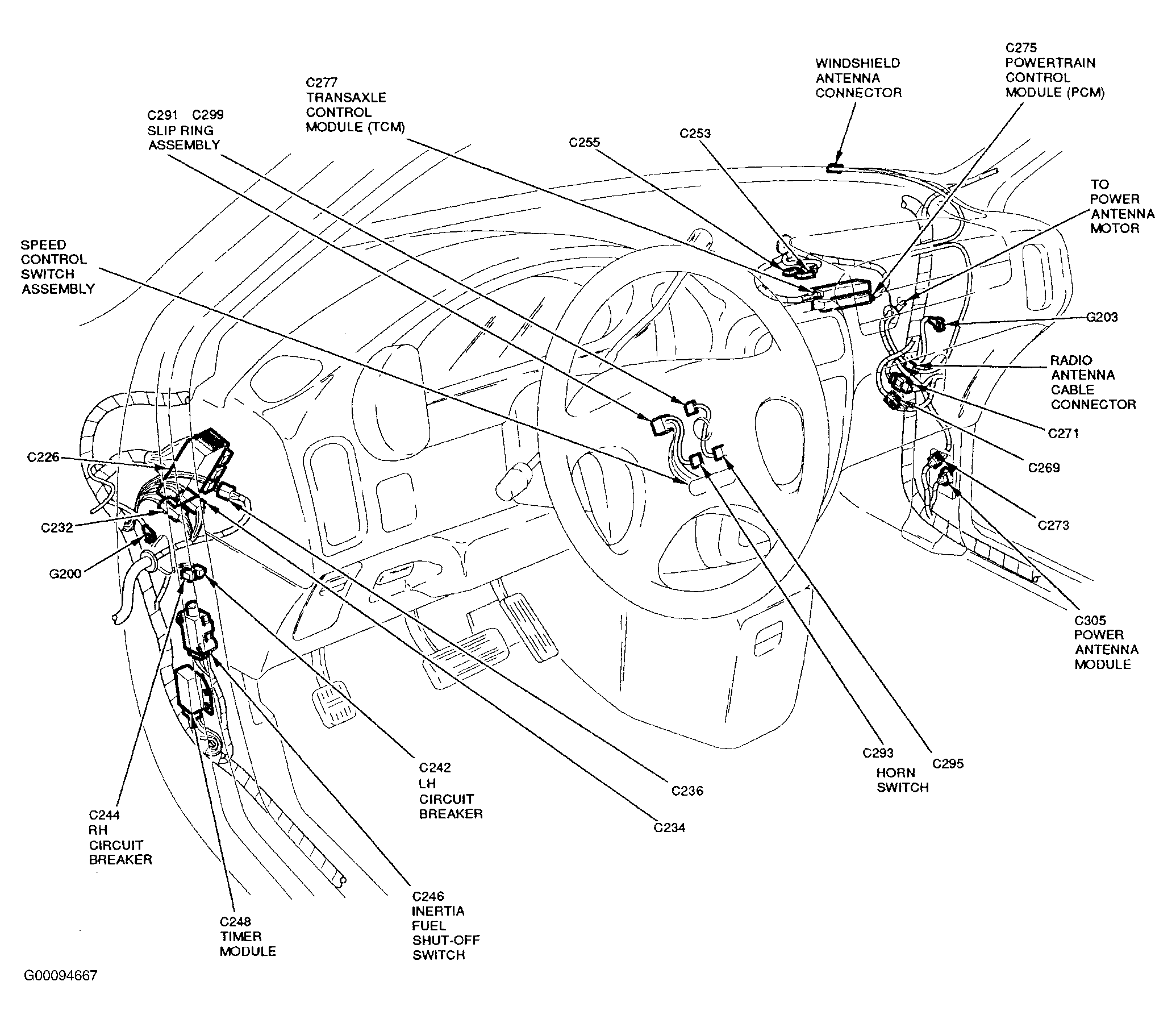

Fig 3: Locating Ground G200, G203, RH Circuit Breaker & Timer Module

Courtesy of FORD MOTOR CO.
