Removal & Installation
WARNING: This page is about a different car, the 2002 Mercury Grand Marquis and 2002 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

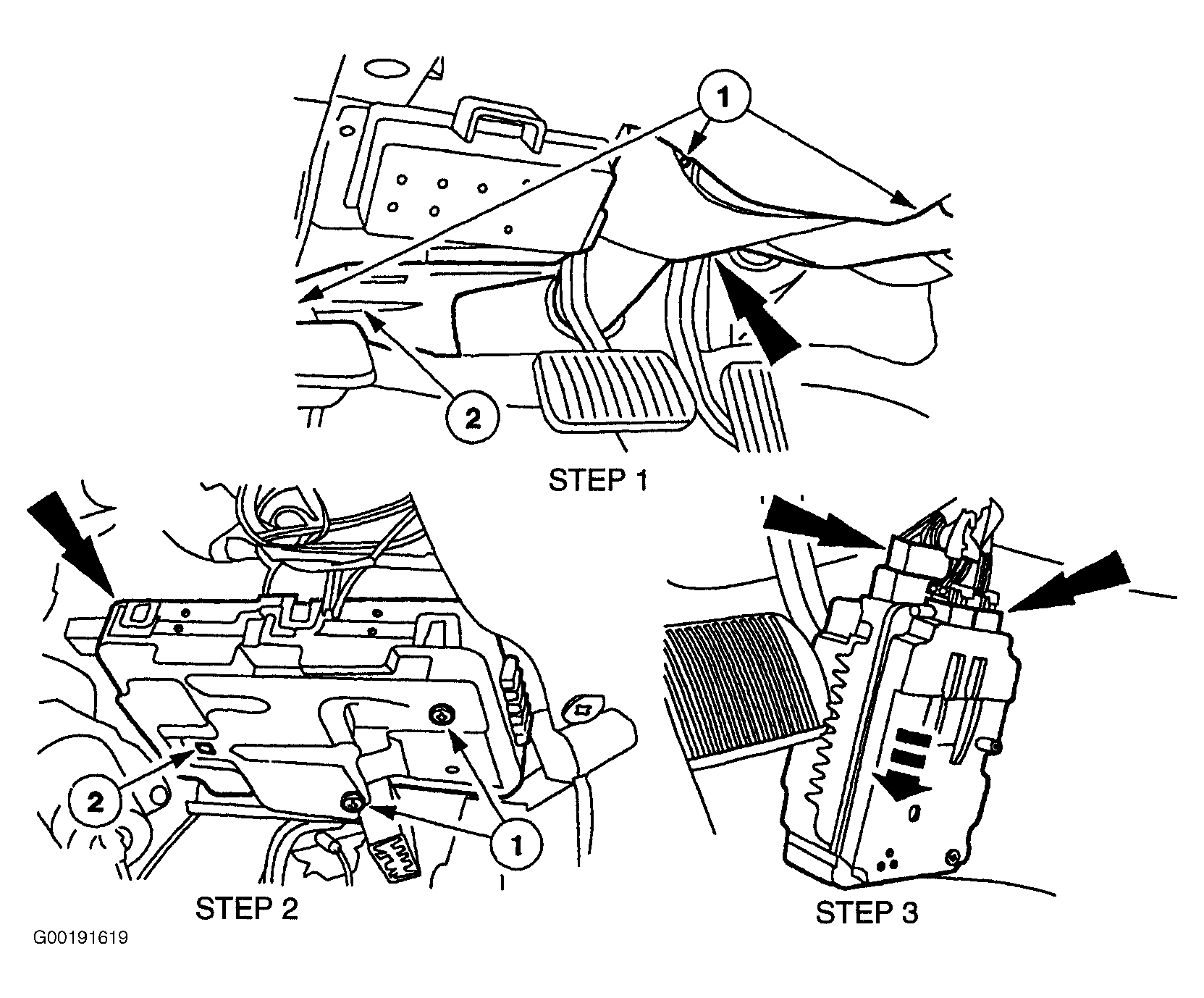

Disconnect negative battery cable. Remove driver's side underdash panel pin retainers. Disconnect courtesy lamp harness connector. See STEP 1 in Fig 1. Locate Lighting Control Module (LCM) above accelerator pedal. If vehicle is equipped with adjustable pedals, remove accelerator pedal. See FIXED & ADJUSTABLE ACCELERATOR PEDAL under REMOVAL & INSTALLATION. Remove LCM holding bracket screws. Unclip module from mounting bracket. See STEP 2 in Fig 1. Disconnect LCM harness connectors. See STEP 3 in Fig 1. To install, reverse removal procedure.
