Removal and Installation

Remove the integrated control panel. Refer to Climate Control Assembly .
Remove the right-side lower instrument panel insulator.

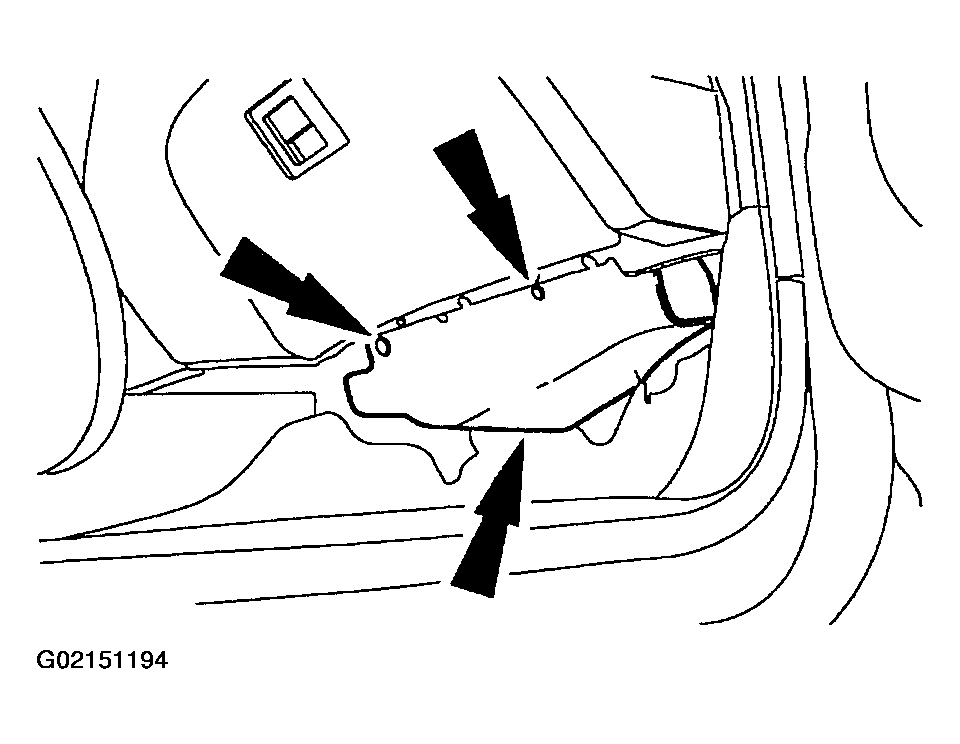

Fig 1: Removing Right-Side Lower Instrument Panel Insulator
Courtesy of FORD MOTOR CO.
Open the glove compartment. Pressing the tabs inward, lower the glove compartment towards the floor.

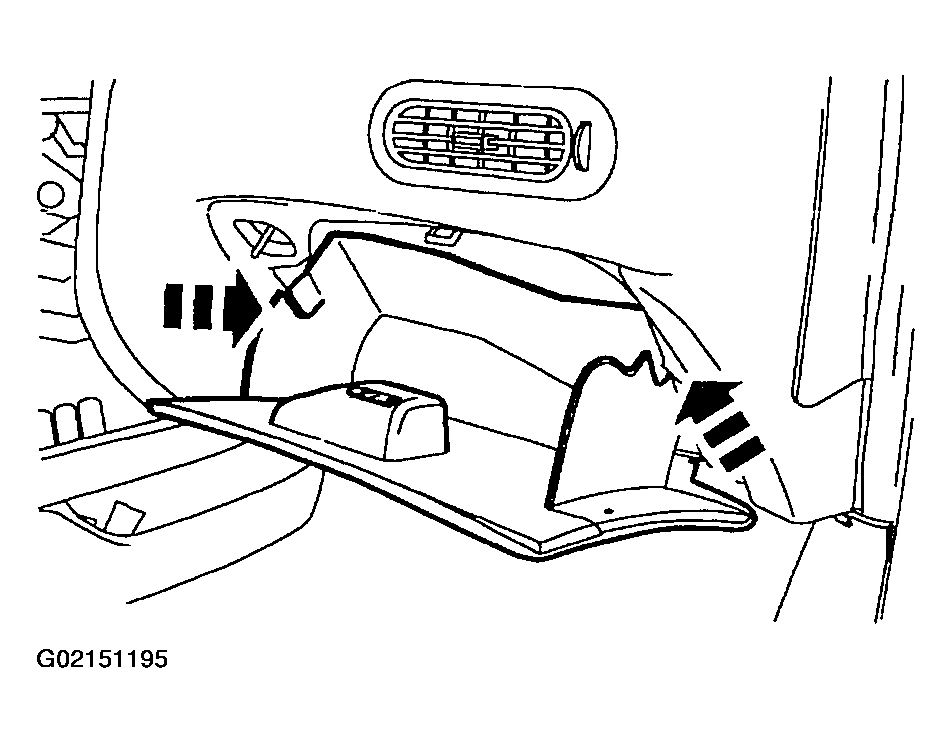

Fig 2: Lowering Glove Box
Courtesy of FORD MOTOR CO.
Remove the screw.

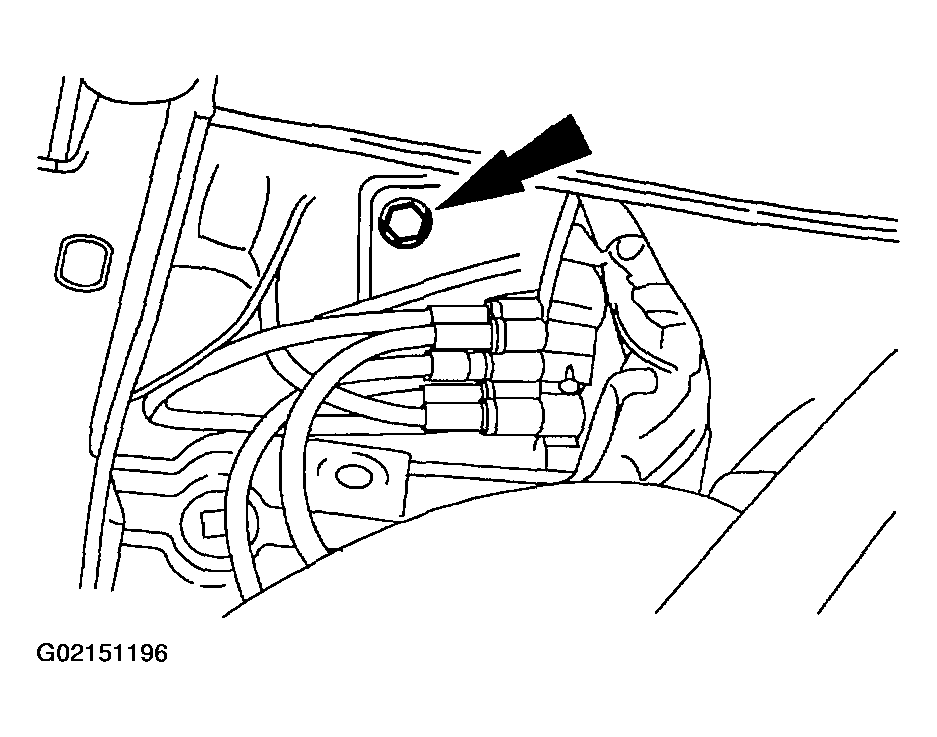

Fig 3: Identifying Screw
Courtesy of FORD MOTOR CO.
Remove the screw.

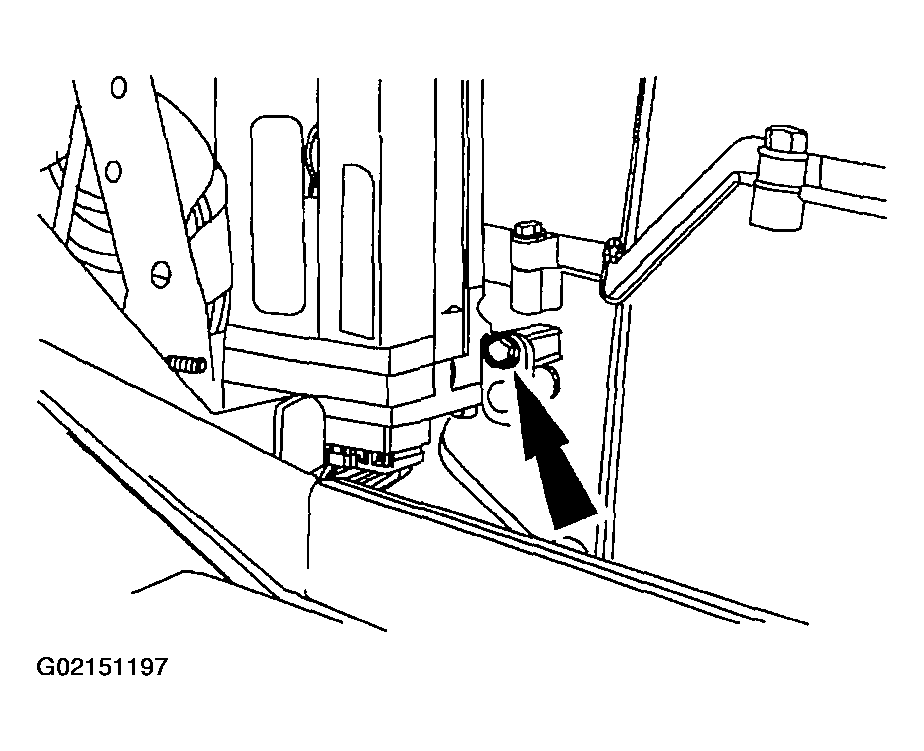

Fig 4: Identifying Screw
Courtesy of FORD MOTOR CO.
Disconnect the remote climate control (RCC) module electrical connector.

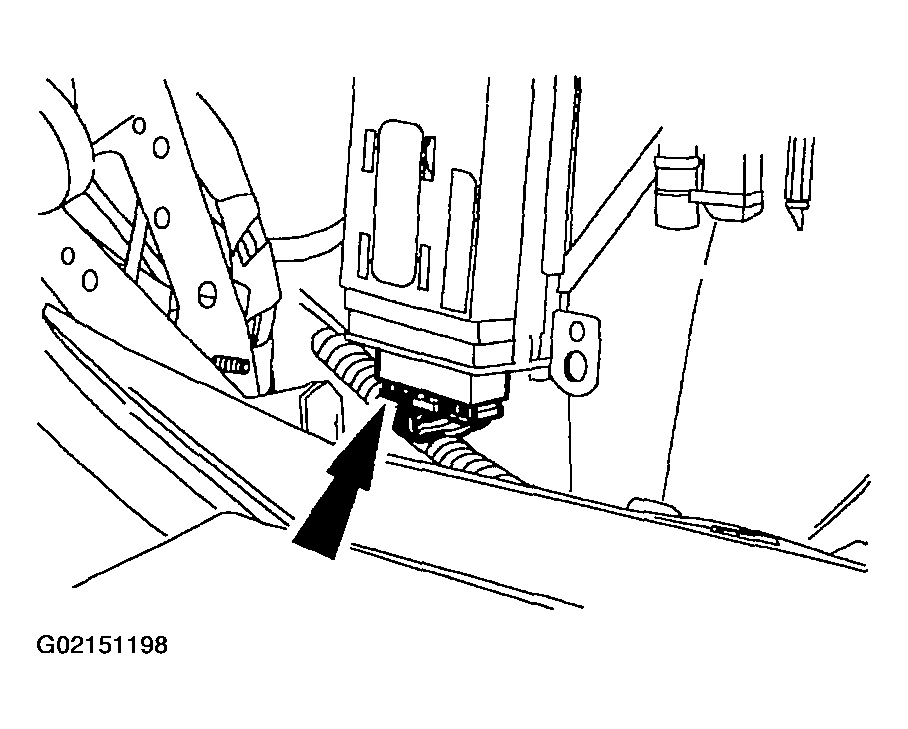

Fig 5: Removing Remote Climate Control Module Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the two nuts. Disconnect the plenum vacuum harness. Remove the RCC module (18C612).

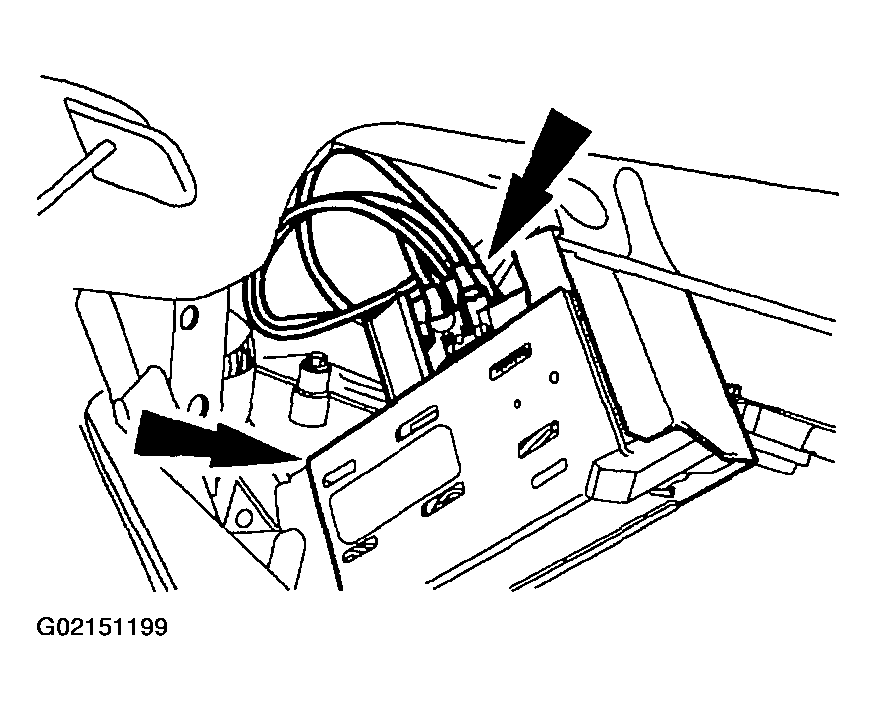

Fig 6: Disconnecting Plenum Vacuum Harness
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
