31 ... . Overview of Front Axle (AWD)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW 335xi, 2008 BMW 328xi, 2007 BMW 335xi, 2007 BMW 328xi, and 2006 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

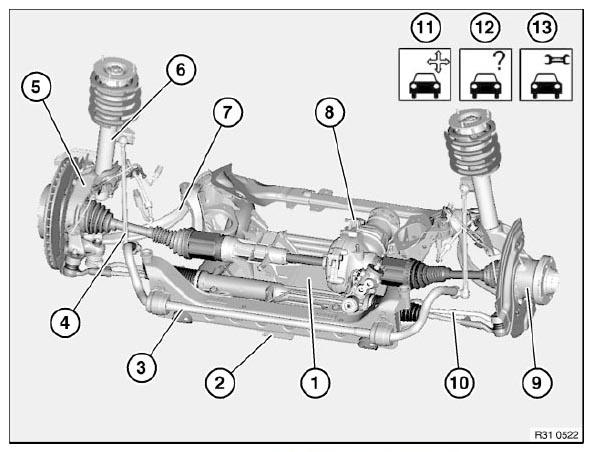

Fig 1: Identifying Front Axle (AWD) Components
G04745136Courtesy of BMW OF NORTH AMERICA, INC.
  1. REINFORCEMENT PLATE .
  2. FRONT AXLE SUPPORT
  3. STABILISER
  4. STABILISER LINK
  5. SWIVEL BEARING
  6. SPRING STRUT SHOCK ABSORBER
  7. TRACTION STRUT
  8. FRONT DIFFERENTIAL / OUTPUT SHAFTS
  9. WHEEL BEARING
  10. CONTROL ARM
