52 26... Removing and installing outer fold adapter

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove OUTER FOLD TRIM .
Remove REAR PANEL TRIM .
Partially remove seat cover with padding . See 52 26 400 REPLACING SEAT COVER FOR LEFT REAR SEAT or 52 26 400 REPLACING SEAT COVER FOR RIGHT REAR SEAT .

Release screw.

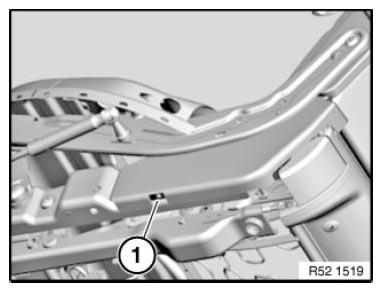

Fig 1: Locating Rear Panel Trim Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

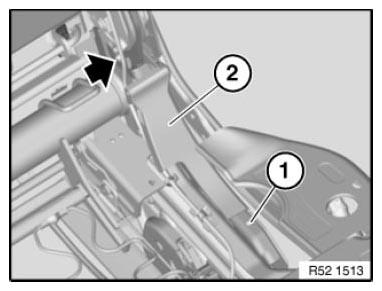

Fig 2: Identifying Outer Fold Trim Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Unclip trim (2) at top.

Carefully tighten follower on seat cushion frame.

Feed trim (2) out of seat mechanism.

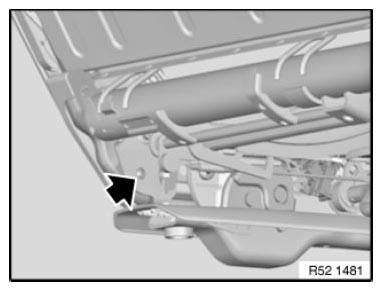

Fig 3: Identifying Seat Mechanism Trim And Screw

Courtesy of BMW OF NORTH AMERICA, INC.
