64 11 970 Replacing fogging sensor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

Necessary preliminary tasks:

Remove two-part mirror base cover. Refer to 61 35 177 REMOVING AND INSTALLING (REPLACING) RAIN/LIGHT SENSOR .

WARNING: Make sure rooms are well ventilated when working with adhesive remover indoors.

IMPORTANT: Do not under any circumstances use paint thinner to clean the bonding surface.

Unfasten plug connection (1) and disconnect.

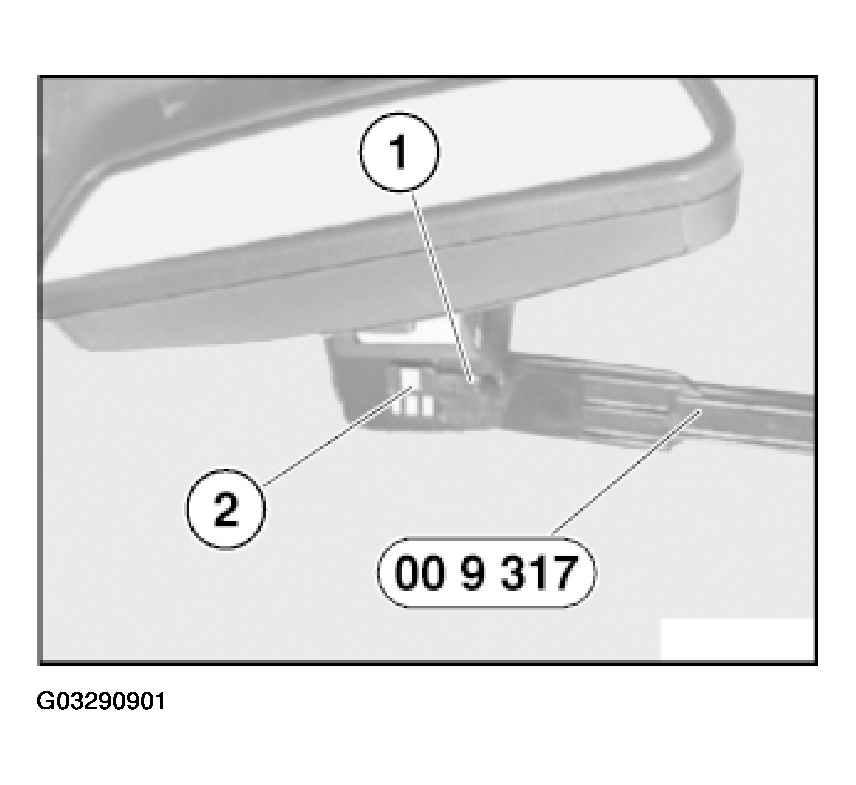

Fig 1: Removing Fogging Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: If necessary, carefully heat fogging sensor (2) with a hot air blower to approx. 40-60°C.

Lift off fogging sensor (2) with special tool 00 9 317 and slowly pull off from windshield.

Installation:

Bonding surface must be dry and free of dust and grease.

Clean bonding surface with adhesive remover (sourcing reference: BMW Parts Service).

After cleaning, do not touch bonding surface with bare hands.

Pull off protective film completely from fogging sensor (3).

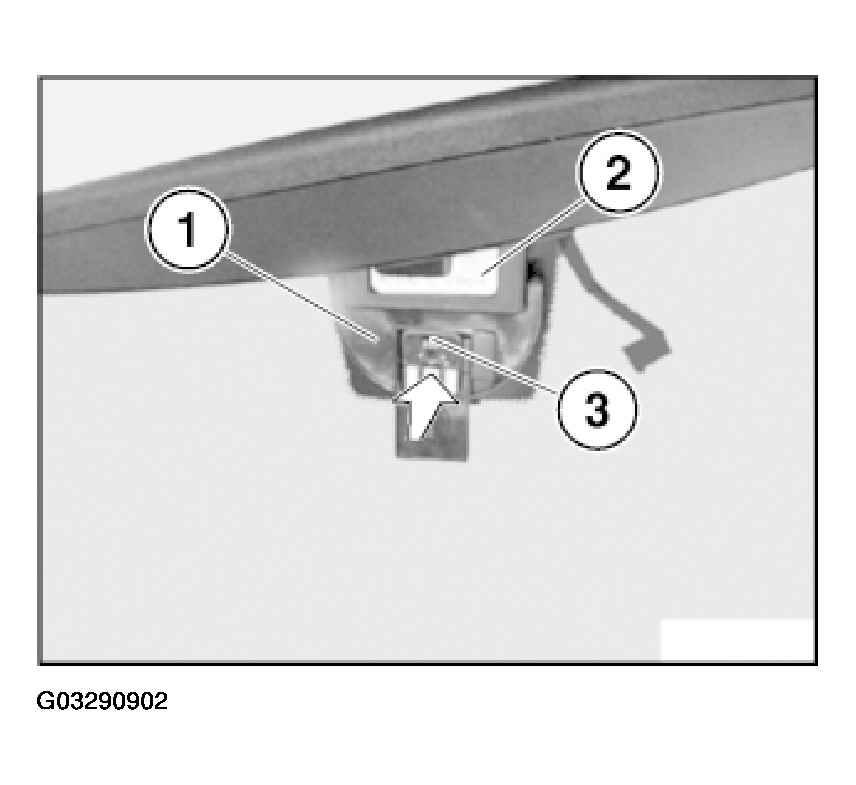

Fig 2: Placing Mounting Template

Courtesy of BMW OF NORTH AMERICA, INC.

Place mounting template (1) as pictured on rain sensor (2).

Press fogging sensor (3) in direction of arrow with a contact pressure of +/- 15 N/cm² onto inside of windshield.

NOTE: Firm thumb pressure attains approx. 30 N/cm² .

Remove mounting template (1) carefully from fogging sensor (3).
