Control Units
WARNING: This page is about a different car, the 1998 BMW Z3 and 1998 BMW M Roadster. However, it is still accessible from the selected car via links, so may be relevant.
CONTROL UNITS
| Component | Component Location |
|---|---|
| ABS Control Module/Hydraulic Unit | On rear left side of engine compartment. |
| ABS Hydraulic Unit (M Roadster) | On rear left side of engine compartment. |
| Anti-Theft Control Module (Alpine) | Behind glove box. |

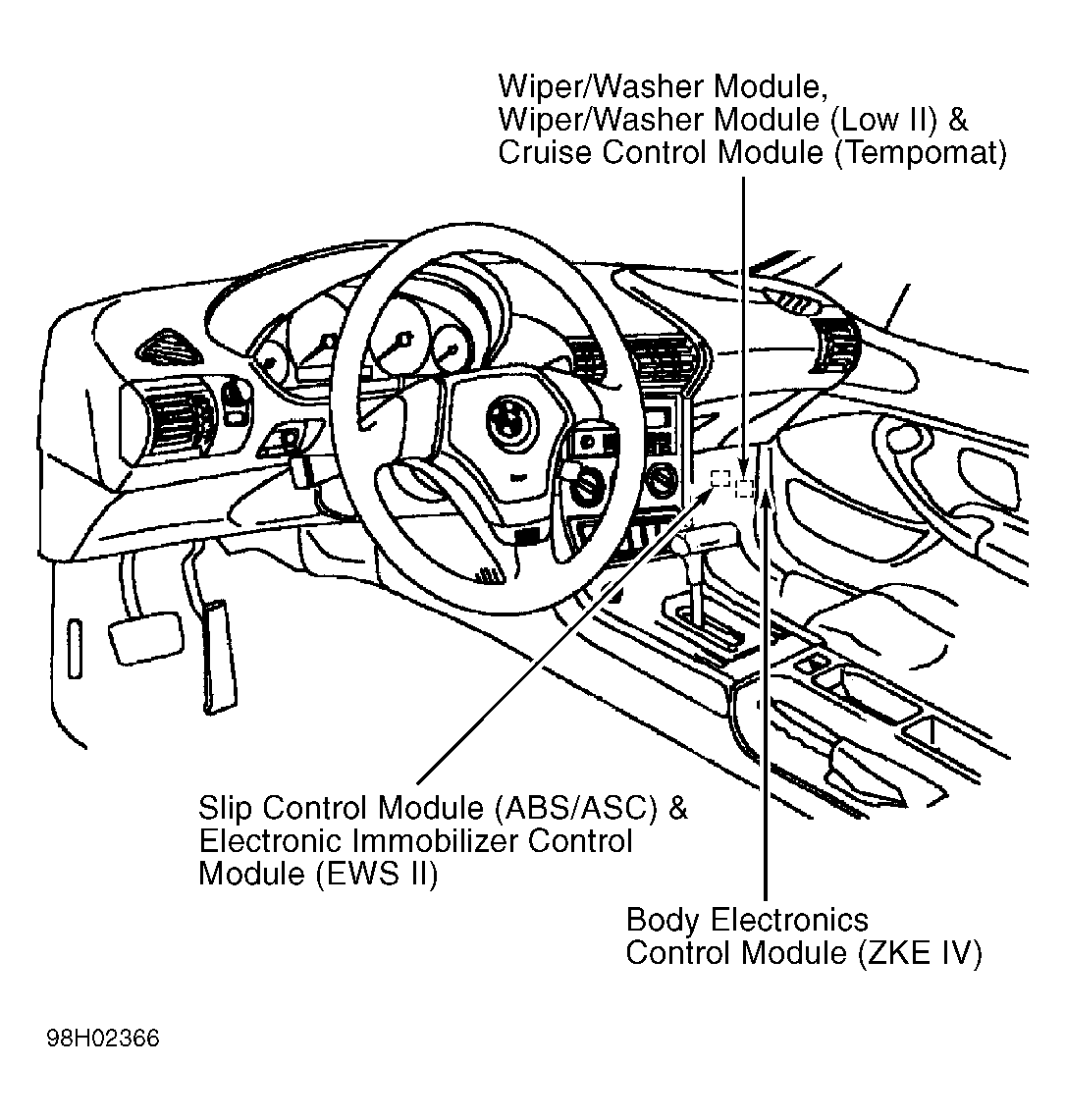

| Body Electronics Control Module (ZKE IV) | Behind glove box. See Figure. |
| Board Computer (BC-Low) | Behind center console. |
| Chime Module | Below left side of dash. |
| Crash Control Module | On relay panel, under left side of dash. See Figure. |
| Cruise Control Module (Tempomat) | Under right side of dash, behind glove box. See Figure. |
| Electronic Immobilizer Control Module (EWS II) | Under right side of dash, behind glove box. See Figure. |
| Engine Control Module (DME) | On rear right side of engine compartment, in E-box. |
| Evaporator Controller | On right side of left footwell. |
| Slip Control Module (ABS/ASC) | Under right side of dash, behind glove box. See Figure. |
| Supplemental Restraint System Control Module | Below center console. |
| Transmission Control Module (EGS) | On right rear side of engine compartment, in E-box. |
| Transmitter Module (EWS II) | Behind left side of dash, near steering column. |
| Wiper/Washer Module | Behind glove box. See Figure. |
| Wiper/Washer Module (Low II) | Behind glove box. See Figure. |
