Power Window Switch: Installation

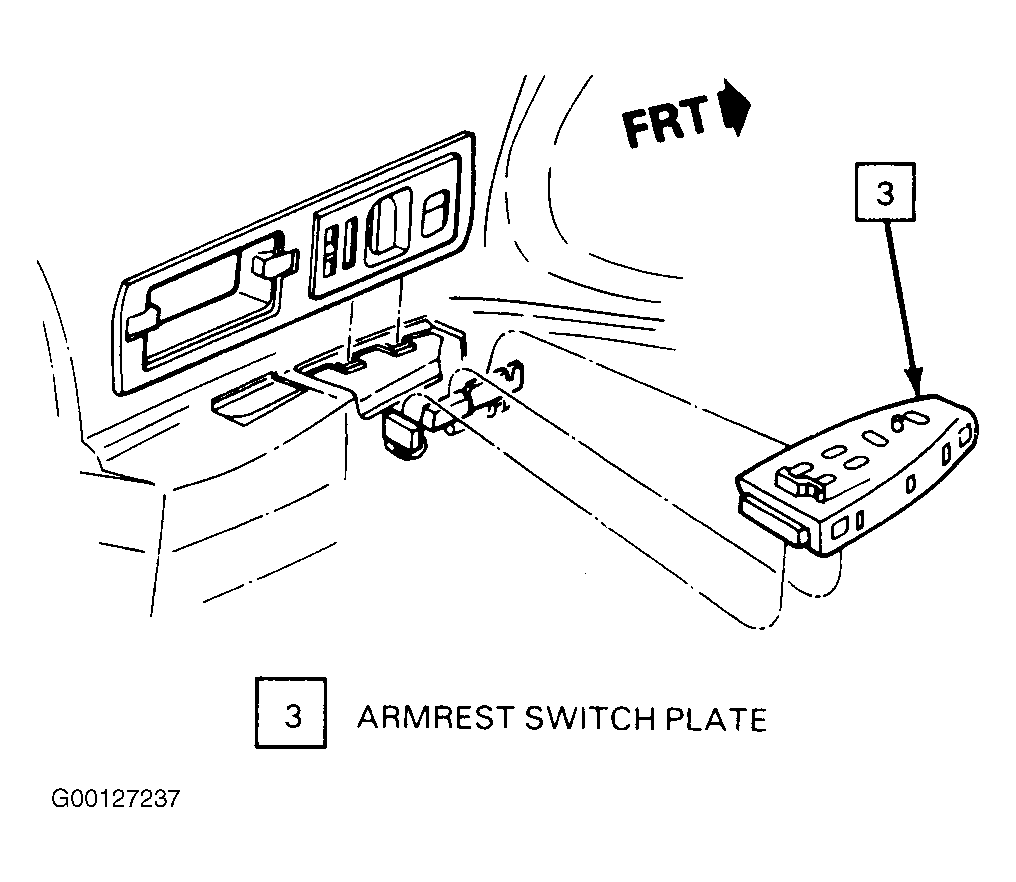

- Install switch to armrest switch plate (3). See Figure
.
- Install screws, if driver's side of vehicles
- Snap to secure, is passenger side of vehicle.
- Install wiring harness connector to switch.
- Install armrest switch plate (3).
- Snap in to secure.
- Install negative battery cable.
