All Windows Automatic Down (AWAD) Module (Convertible): Installation

1. Install electrical connector to AWAD module. See Fig 1 .
2. Install module to instrument panel using screws.
3. Install parking brake lever assembly, switch, and release handle. See PARKING BRAKE LEVER ASSEMBLY  .

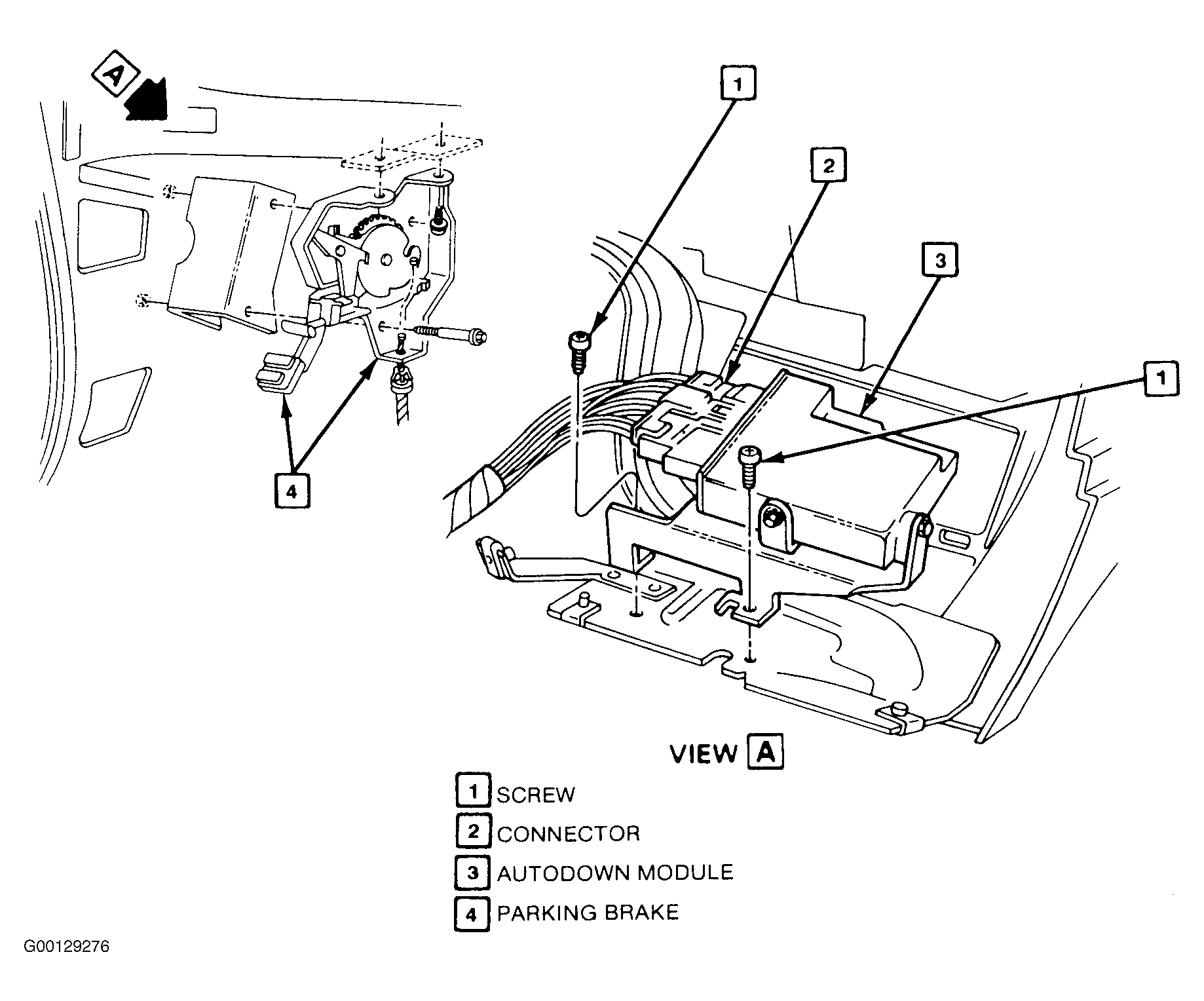

Fig 1: Removing & Installing AWAD Module (Convertible)

Courtesy of GENERAL MOTORS CORP.
