Component Locations

COMPONENT LOCATIONS

Component Location
Heated Seat Control Module Under Respective Front Seat
Instrument Panel Fuse Block Behind Left Side Of Instrument Panel, Behind Trim Panel. See Fig 1 .
Relay Center Behind Right Side Of Instrument Panel, Top Of Right Shroud. See Fig 3 .
Right Underhood Fuse Block Center Rear Of Engine Compartment. See Fig 4 .
Seat Air Pump Assembly Under Front Of Left Front Seat
Seat Control Module Front Of Center Console
Seat Recline Down Relay Under Respective Front Seat
Seat Recline Up Relay Under Respective Front Seat
Seat Recliner Capacitor Under Respective Front Seat
Seat Recliner Motor Under Respective Front Seat
Seat Solenoid Valve Assembly Under Respective Front Seat
C300 (2 Cavities) Under Left Front Seat
C301 (10 Cavities) Under Center Console
C302 (2 Cavities) Under Right Front Seat
C312 (6 Cavities) Under Left Front Seat
C314 (6 Cavities) Under Right Front Seat
C324 (6 Cavities) Under Left Front Seat
C326 (6 Cavities) Under Right Front Seat
C332 (10 Cavities) Right Front Door Sill, Taped To Composite Harness
C340 (10 Cavities) Left Front Door Sill, Taped To Composite Harness
G202 Middle Of Left Shroud. See Fig 5 .
G203 Middle Of Right Shroud. See Fig 6 .
P101 Right Rear Of Engine Compartment, Behind Strut Tower
P500 Front Of Left Front Door. See Fig 7 .
P600 Front Of Right Front Door. See Fig 7 .
S218 Composite Harness, Top Of Right Shroud. See Fig 6 .
S225 Composite Harness, Middle Of Left Shroud. See Fig 5 .
S227 Composite Harness, Top Of Right Shroud. See Fig 6 .
S228 Instrument Panel Harness, Behind Left Side Of Instrument Panel, Above Steering Column. See Fig 8 .
S251 Composite Harness, Middle Of Right Shroud. See Fig 6 .
S253 (IDC) Composite Harness, Behind Left Side Of Instrument Panel, Behind Instrument Panel Fuse Block. See Fig 1 .
S282 Composite Harness, Top Of Right Windshield Pillar
S288 Composite Harness, Middle Of Left Shroud
S300 Seat Solenoid Jumper Harness, Under Left Front Seat
S301 Seat Solenoid Jumper Harness, Under Right Front Seat
S304 Composite Harness, Under Center Console
S308 Composite Harness, Bottom Of Left Shroud
S345 Composite Harness, Bottom Of Right Shroud
S346 Seat Solenoid Jumper Harness, Under Left Front Seat
S347 Seat Solenoid Jumper Harness, Under Right Front Seat
S348 Seat Jumper, Under Left Front Seat
S349 Seat Jumper, Under Right Front Seat
S350 Seat Jumper, Under Left Front Seat
S351 Seat Jumper, Under Right Front Seat
S380 Recliner Seat Harness, Under Left Front Seat
S381 Recliner Seat Harness, Under Right Front Seat

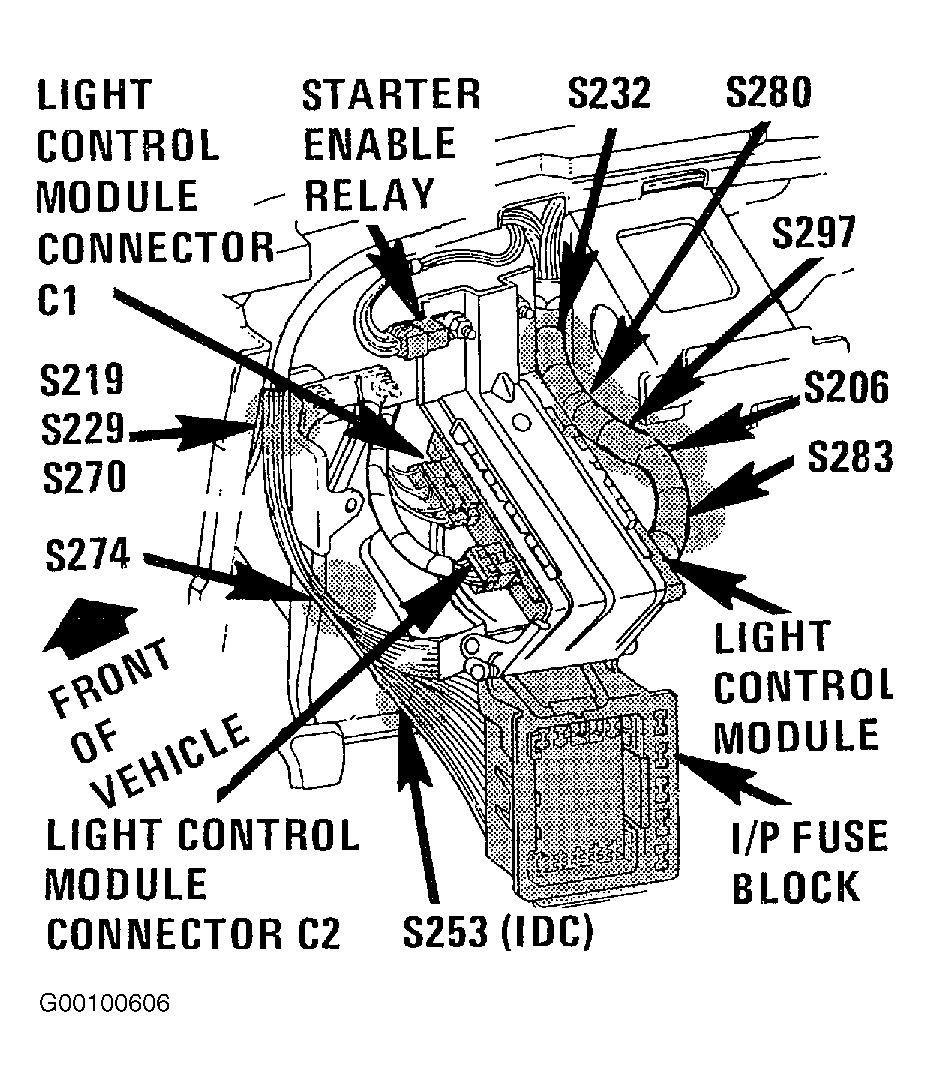

Fig 1: Locating Instrument Panel (I/P) Fuse Block & S253 (IDC)
G00100606Courtesy of GENERAL MOTORS CORP.

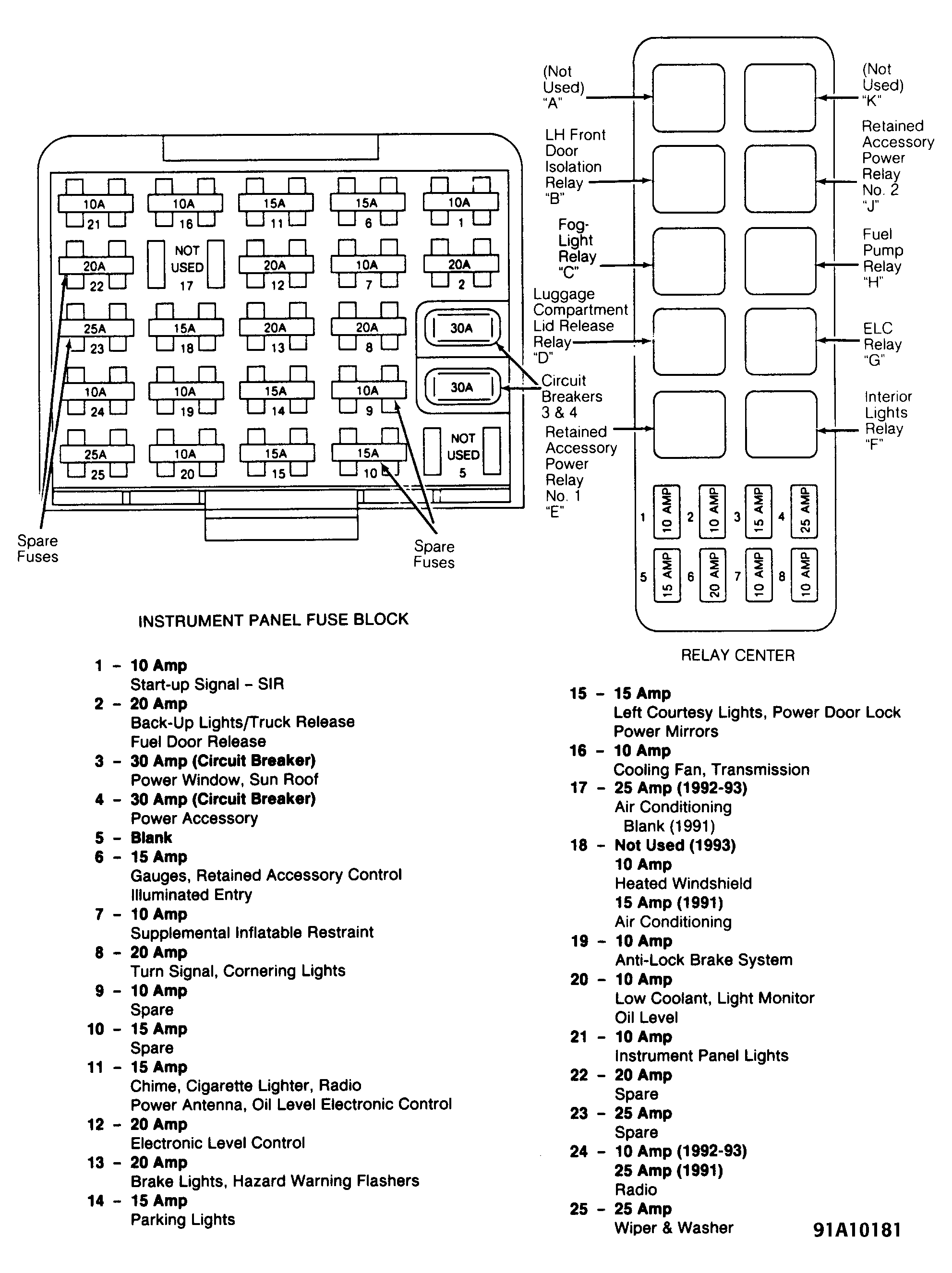

Fig 2: Identifying Fuse Block & Relay Center Components
G91A10181Courtesy of GENERAL MOTORS CORP.

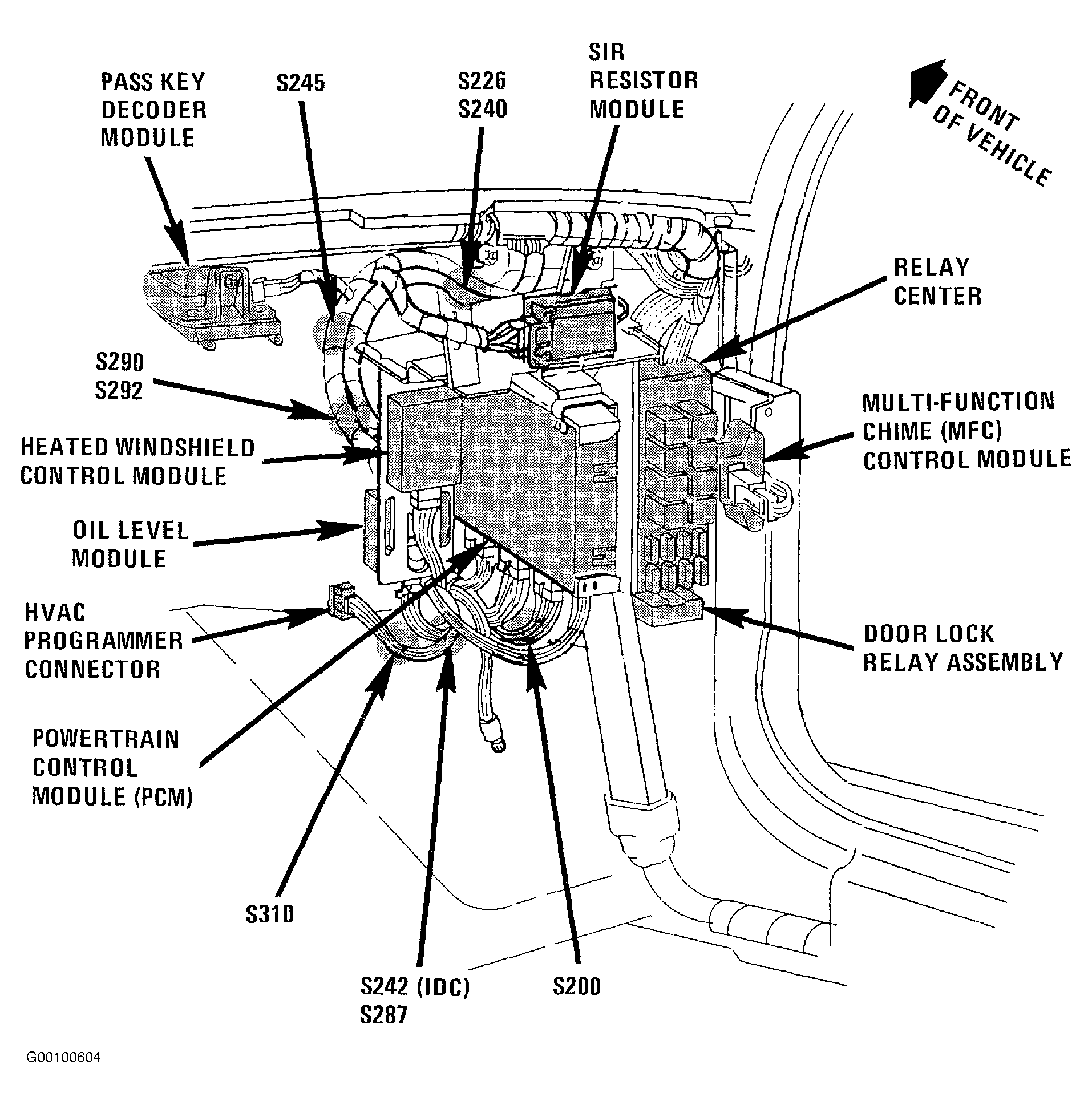

Fig 3: Locating Relay Center
G00100604Courtesy of GENERAL MOTORS CORP.

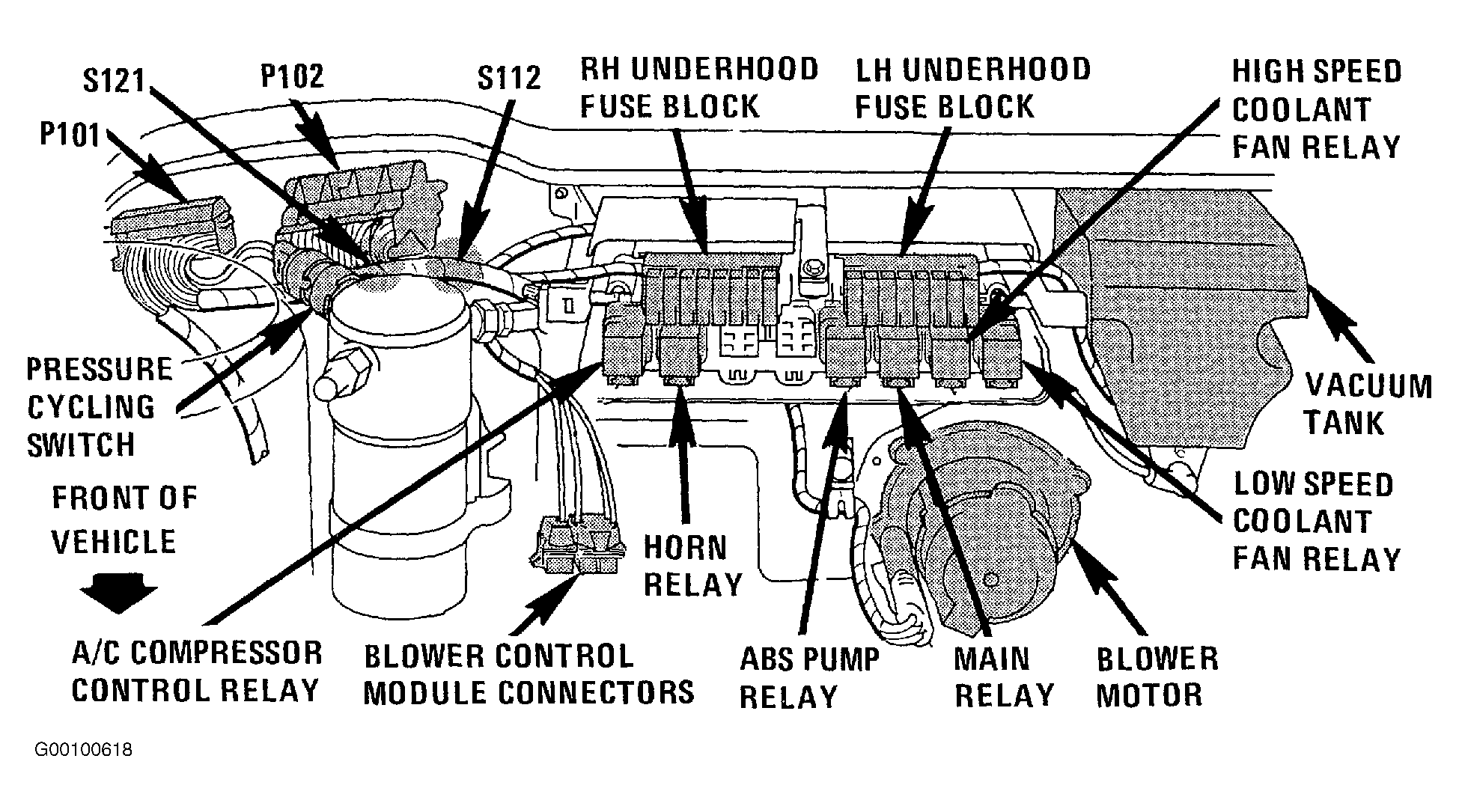

Fig 4: Locating Right Underhood Fuse Block
G00100618Courtesy of GENERAL MOTORS CORP.

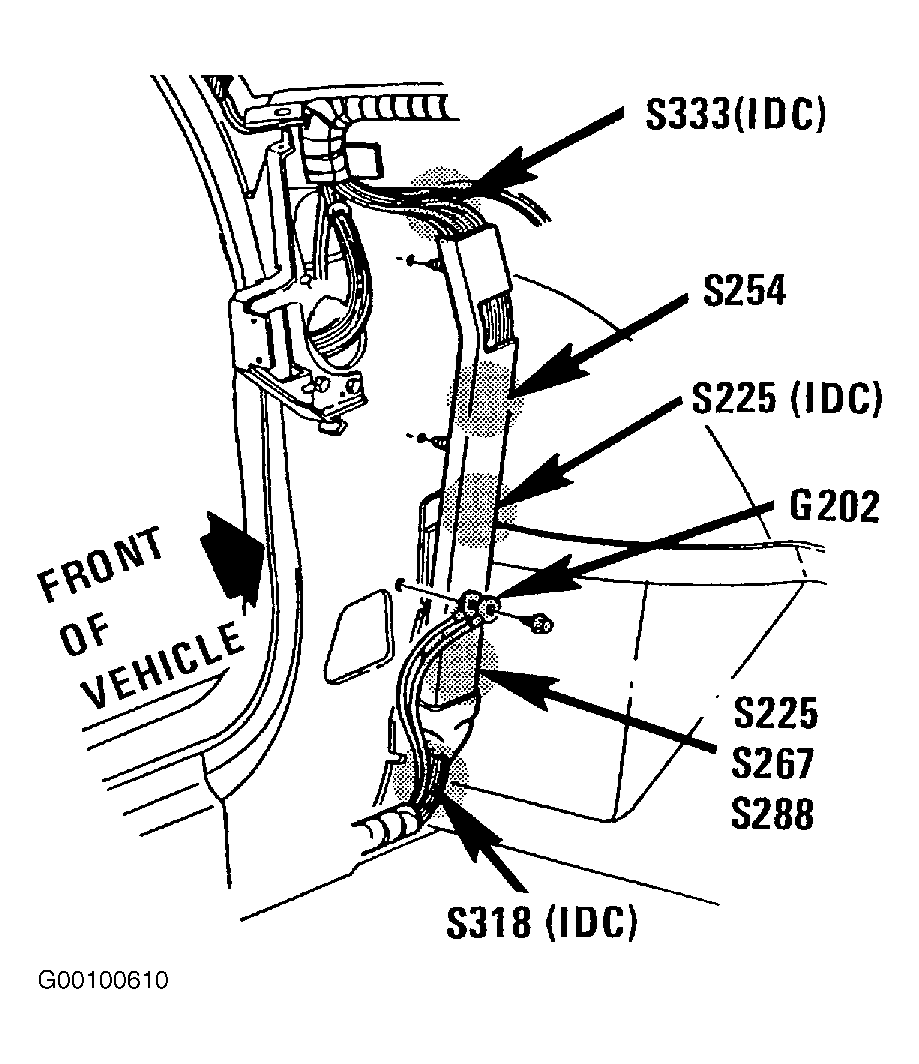

Fig 5: Locating Left Shroud Ground Point G202 & S225
G00100610Courtesy of GENERAL MOTORS CORP.

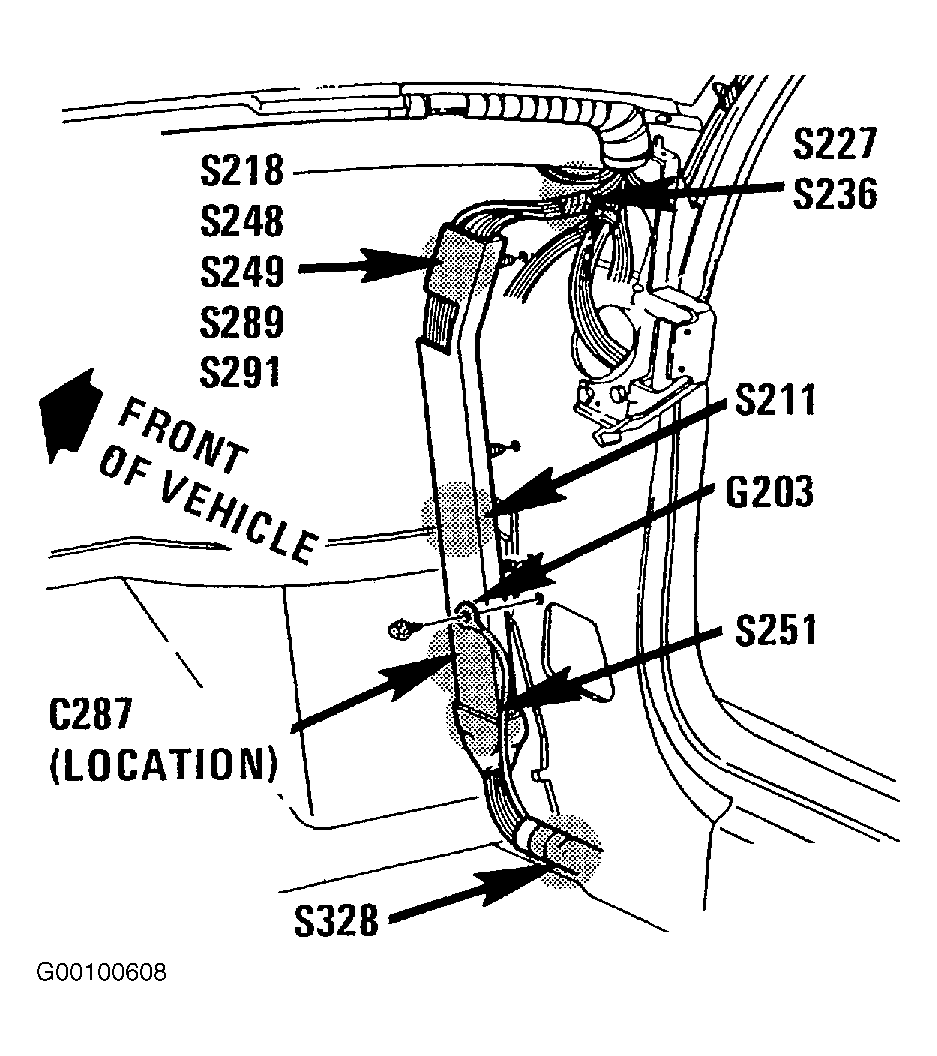

Fig 6: Locating G203, S218, S227 & S251
G00100608Courtesy of GENERAL MOTORS CORP.

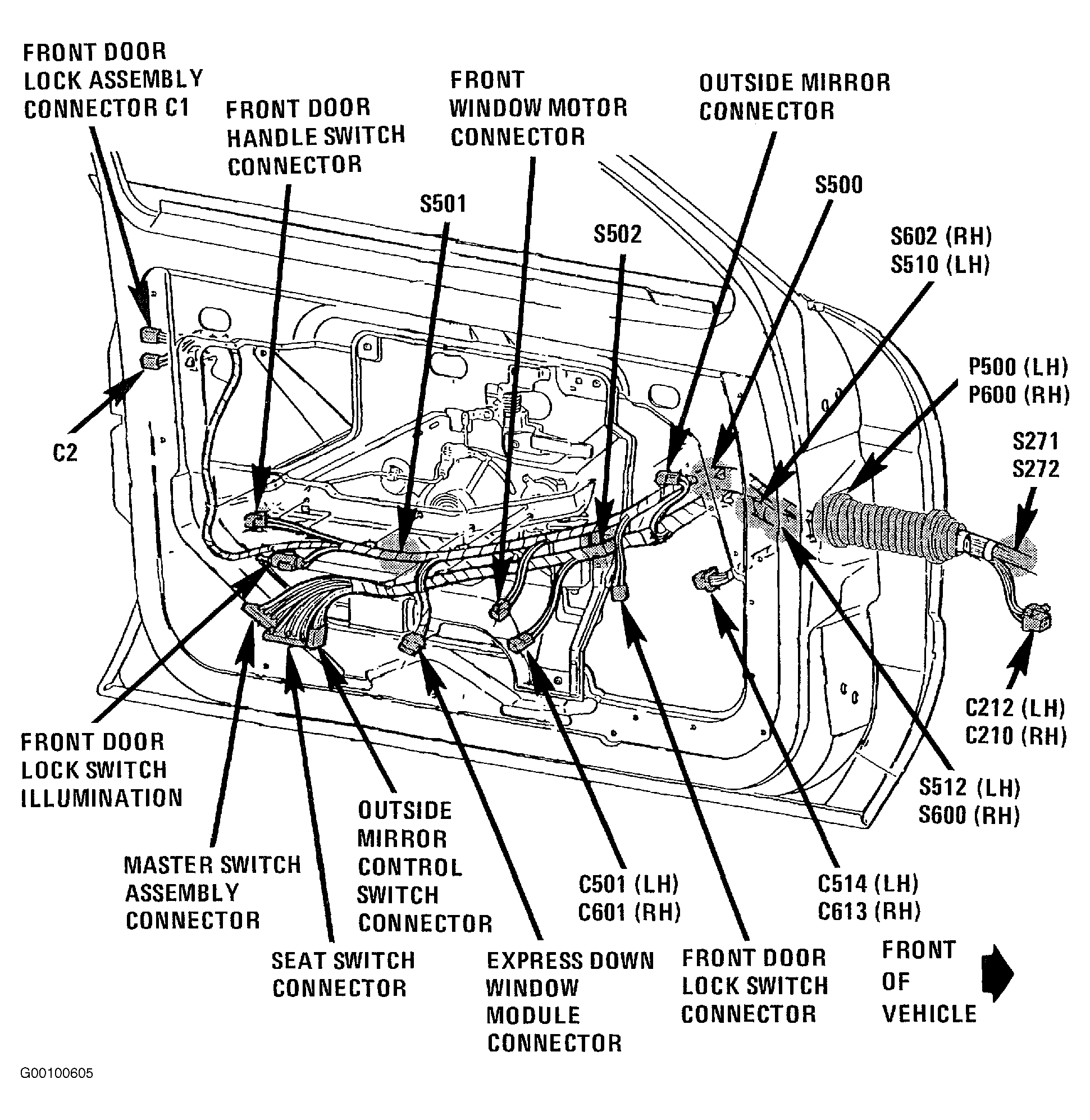

Fig 7: Locating/Identifying Front Door Wiring Harness Connectors, Splices & Grommets
G00100605Courtesy of GENERAL MOTORS CORP.

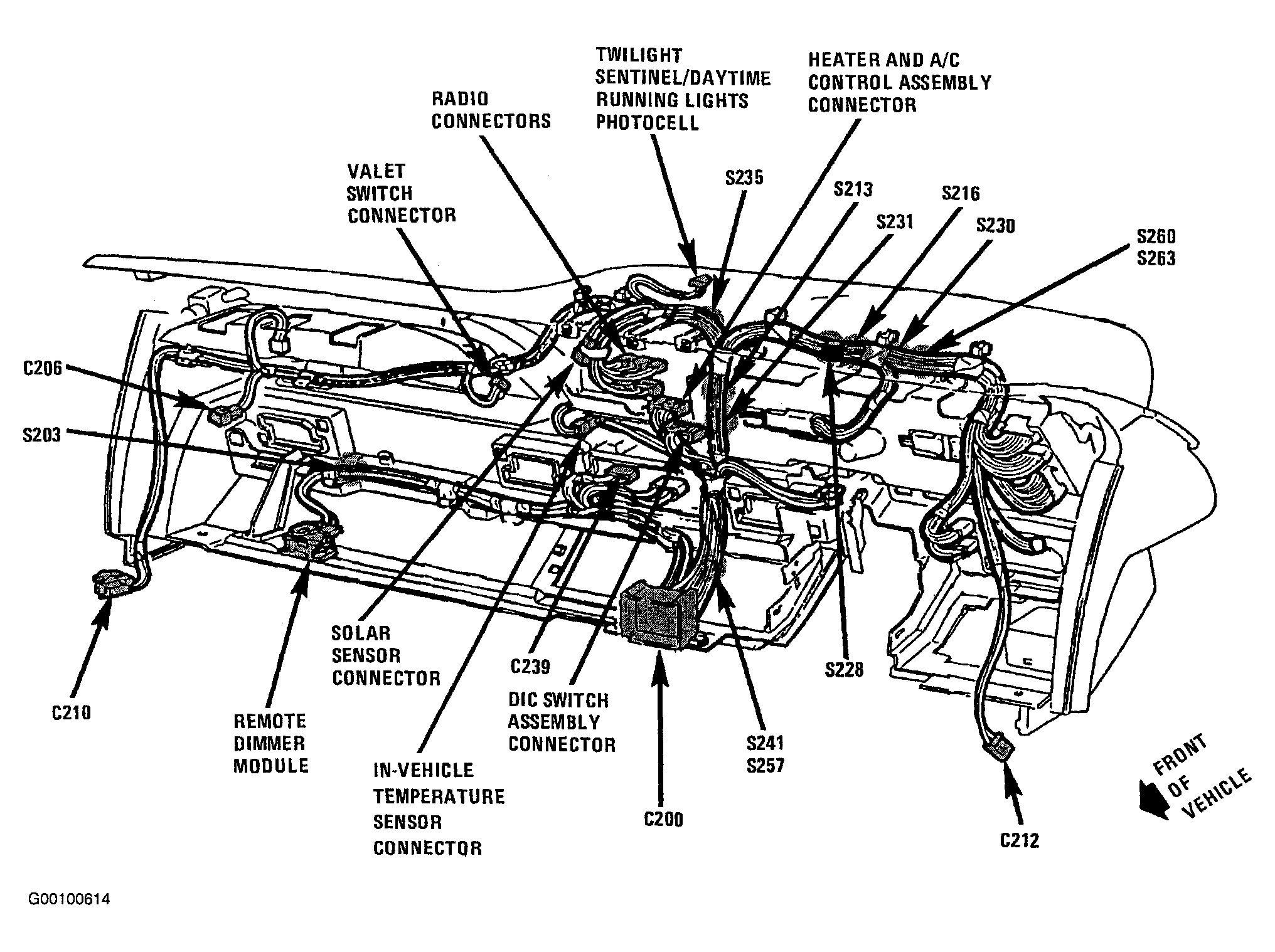

Fig 8: Locating S228
G00100614Courtesy of GENERAL MOTORS CORP.
