Airflow Mode Main Link Removal/Installation: Notes

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Detach the hood release lever from the lower panel. See HOOD LATCH AND RELEASE LEVER REMOVAL/INSTALLATION .
  3. Remove the front scuff plate. See FRONT SCUFF PLATE REMOVAL/INSTALLATION .
  4. Remove the front side trim. See FRONT SIDE TRIM REMOVAL/INSTALLATION .
  5. Remove the lower panel. See LOWER PANEL REMOVAL/INSTALLATION .
  6. Remove the shower duct (LH).
  7. Disconnect the airflow mode wire. See CLIMATE CONTROL UNIT REMOVAL .
  8. Remove the airflow mode rod (1).
  9. Remove the airflow mode main link.

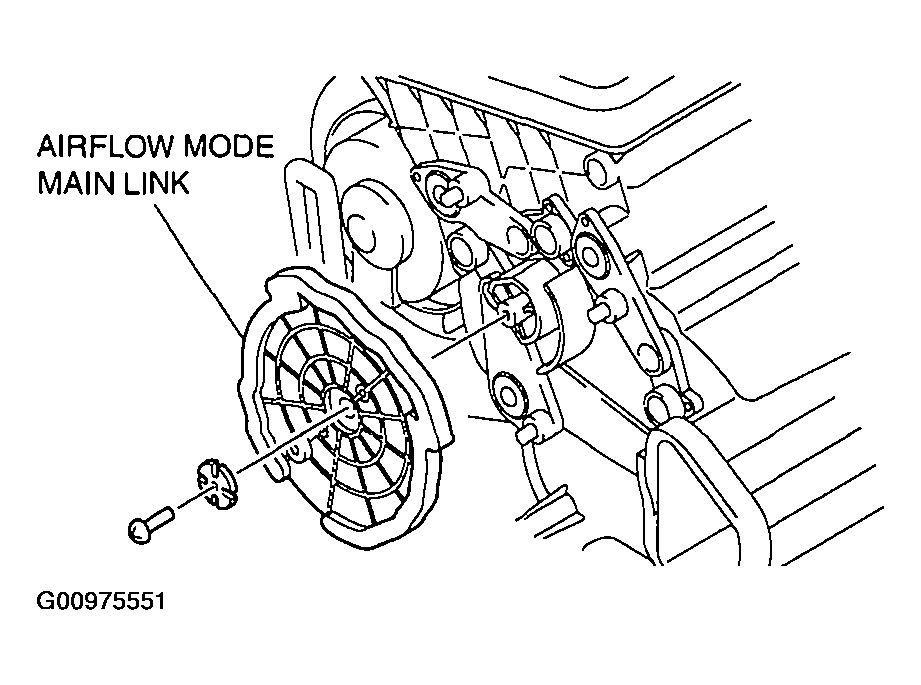

    Fig 1: Removing Airflow Mode Main Link
    G00975551Courtesy of MAZDA MOTORS CORP.
  10. Install in the reverse order of removal.
  11. Adjust the airflow mode wire. See CLIMATE CONTROL UNIT WIRE ADJUSTMENT .
