Antilock Brake System Component Views

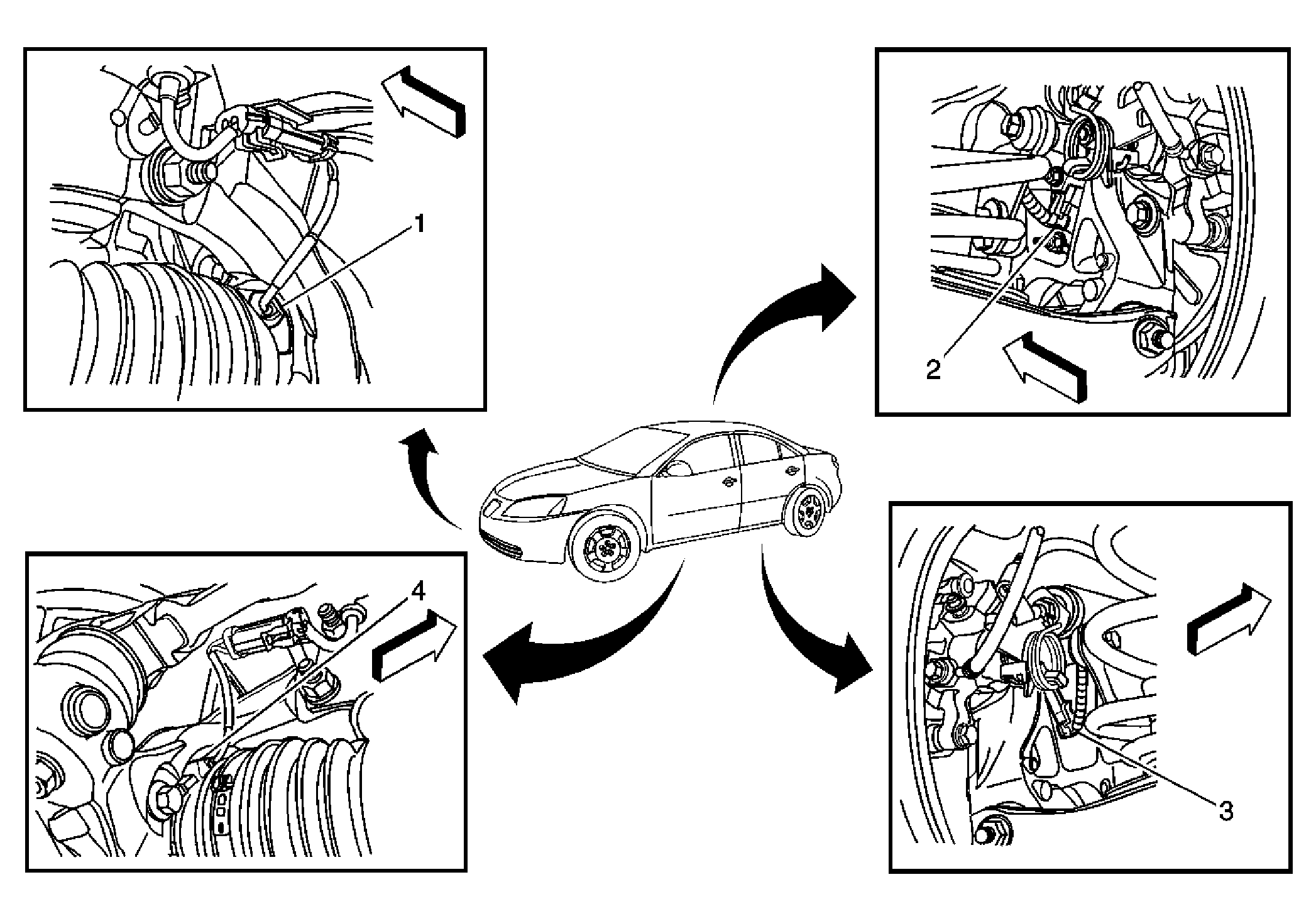

Fig 1: Locating Wheel Speed Sensors

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 1

Fig 2: Locating EBCM & PCM (Left Rear of Engine Compartment)

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 2

Callout	Component Name
1	Coolant Level Switch
2	Battery
3	Electronic Brake Control Module (EBCM)
4	C101
5	G103
6	Fuse Block - Underhood
7	Powertrain Control Module (PCM)
8	Powertrain Control Module (PCM), C3
9	Powertrain Control Module (PCM), C2
10	Powertrain Control Module (PCM), C1

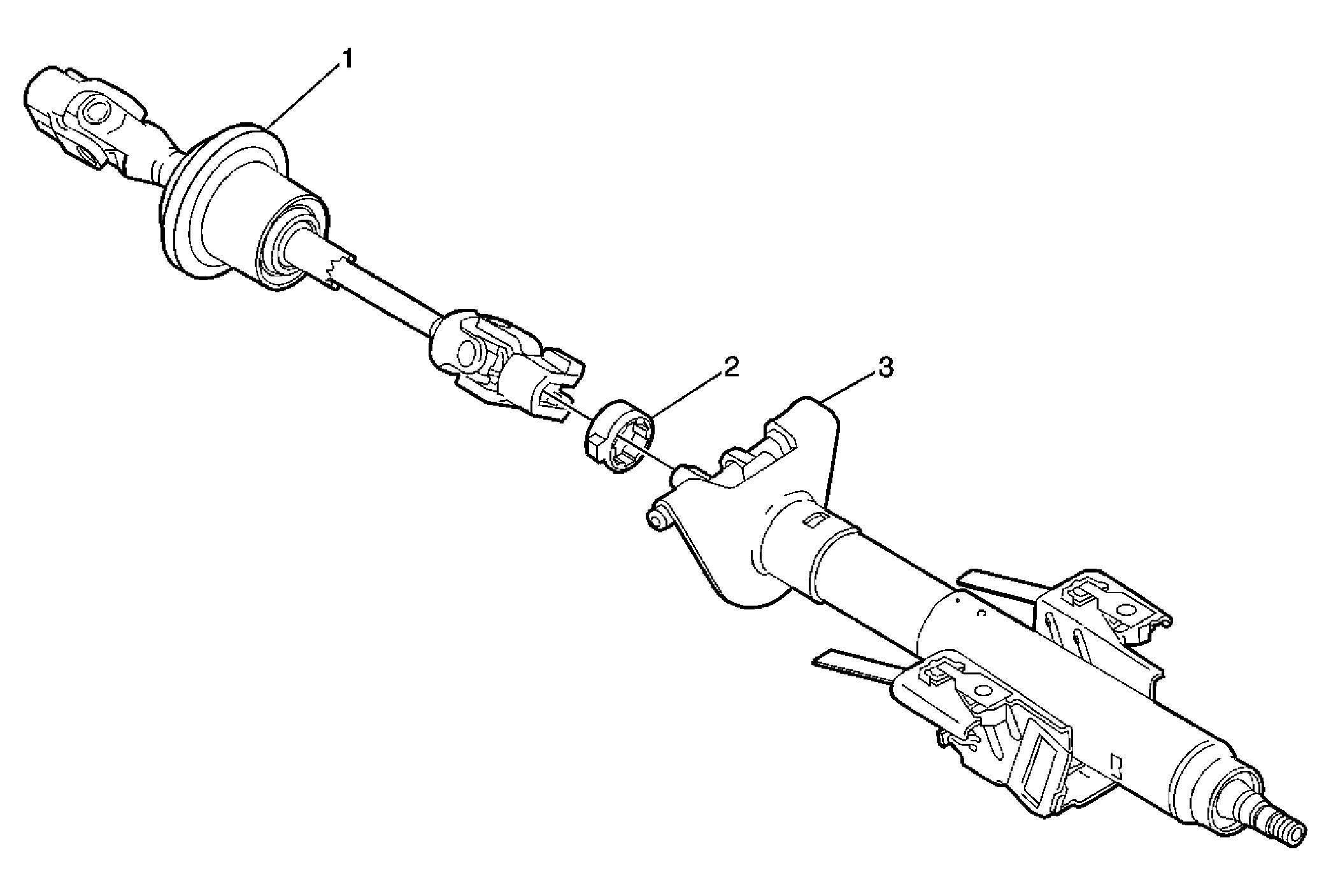

Fig 3: Locating Steering Wheel Position Sensor (Steering Column Assembly)

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 3

Callout	Component Name
1	Intermediate Steering Shaft
2	Steering Wheel Position Sensor (FX3)
3	Steering Column Assembly

Fig 4: Locating Traction Control Switch (Left Front of Floor Console)

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 4

Callout	Component Name
1	C214
2	Cigar Lighter
3	Traction Control Switch (NW7/NW9) or Auxiliary Power Outlet - Front (w/o NW7/NW9)

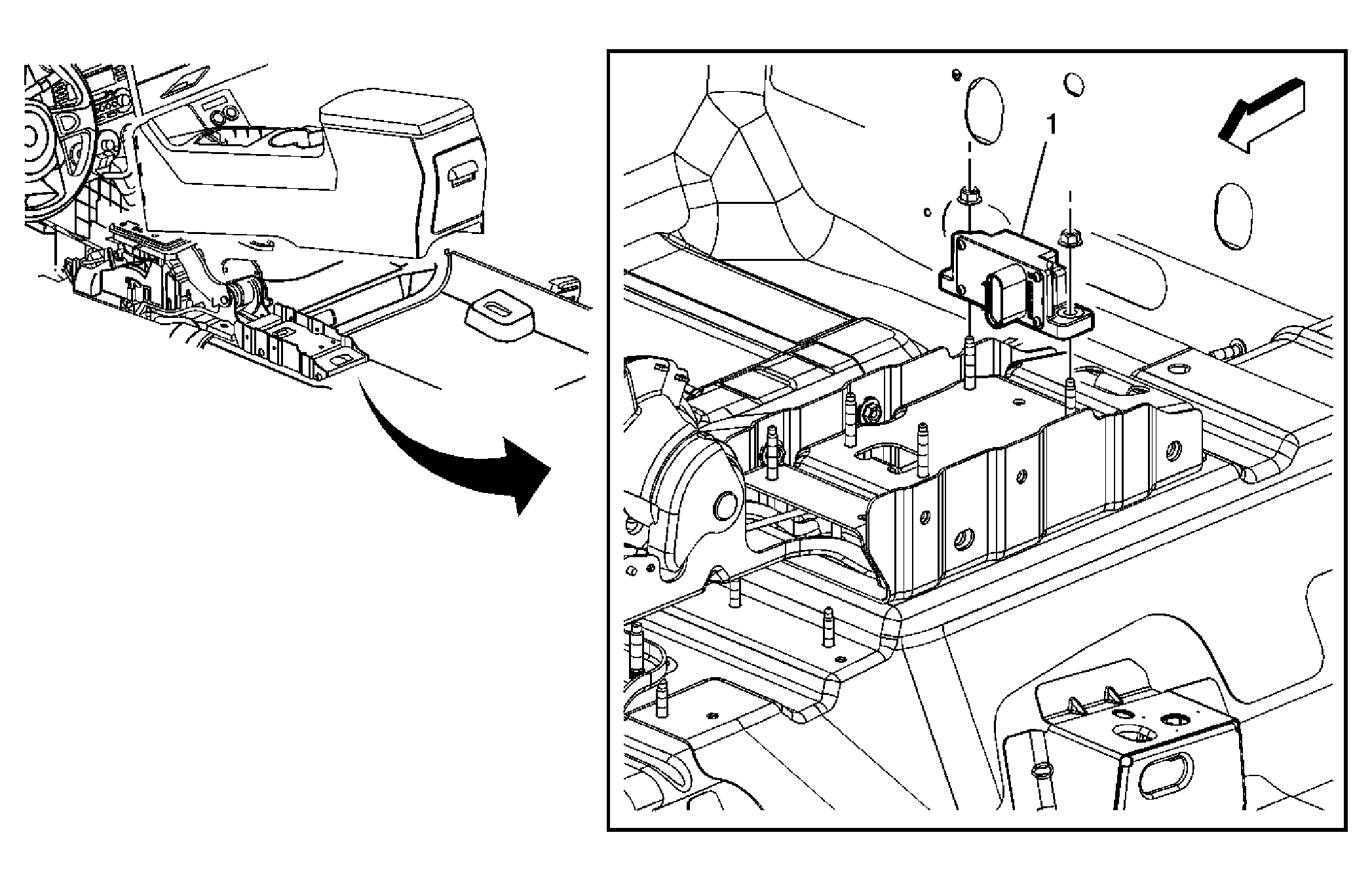

Fig 5: Locating Yaw Rate & Lateral Acceleration Sensor (Under Floor Console)

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 5

Callout	Component Name
1	Yaw Rate and Lateral Acceleration Sensor (FX3)
