Engine Electrical Component Views

Fig 1: Engine Electrical Components (Engine)

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 1

Callout	Component Name
1	Throttle Body
2	Camshaft Position (CMP) Sensor 1 (Intake)
3	Manual Transmission
4	Vehicle Speed Sensor (VSS)
5	Backup Lamp Switch
6	Crankshaft Position (CKP) Sensor
7	Engine Oil Pressure (EOP) Sensor
8	Starter
9	Knock Sensor Pigtail Connector
10	Generator
11	Fuel Injector Rail
12	Manifold Absolute Pressure (MAP) Sensor

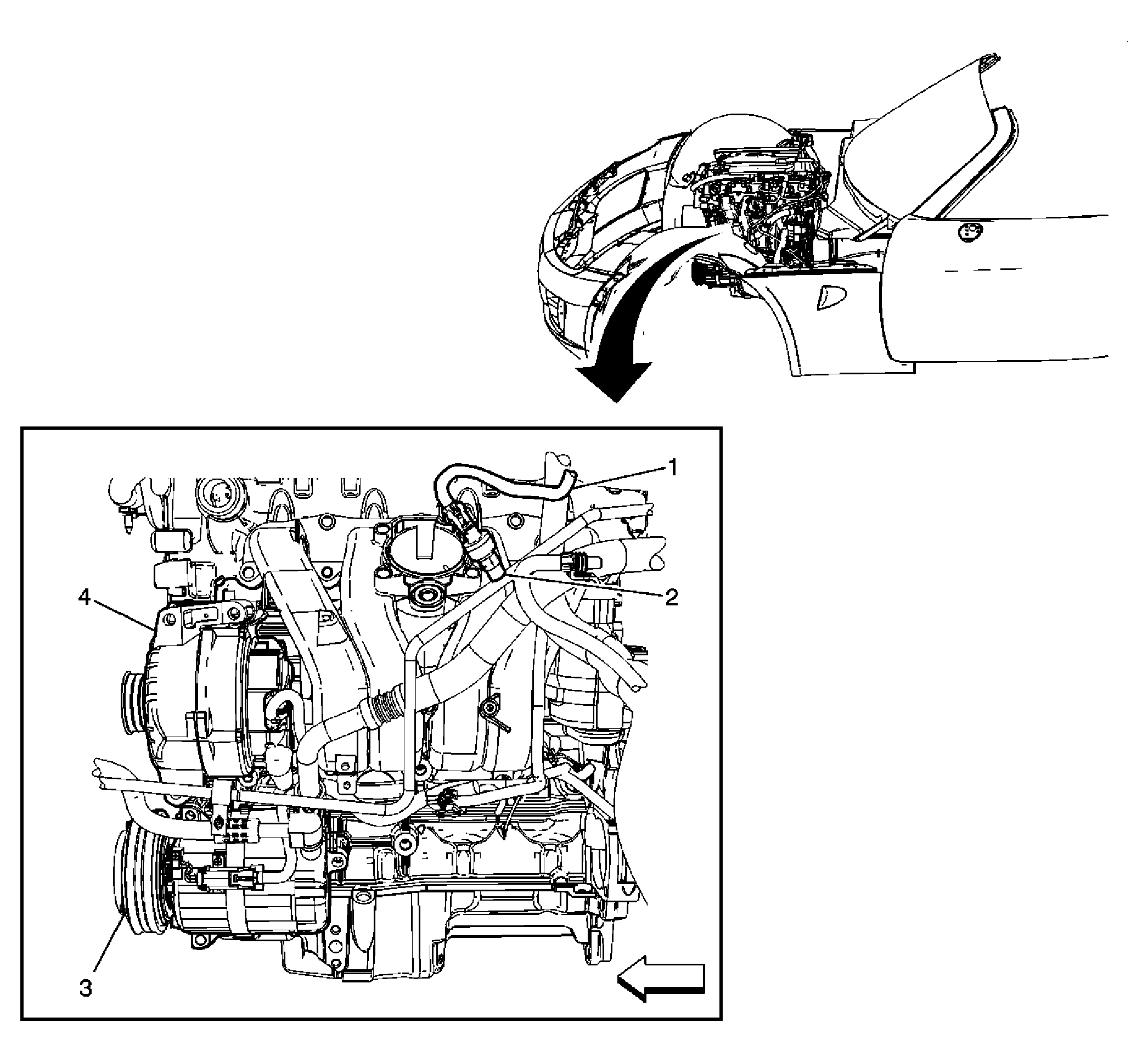

Fig 2: Engine Electrical Components (Engine Compartment - 1 of 2)

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 2

Callout	Component Name
1	Engine Harness
2	A/C Refrigerant Pressure Sensor (C60)
3	A/C Compressor Clutch (C60)
4	Generator

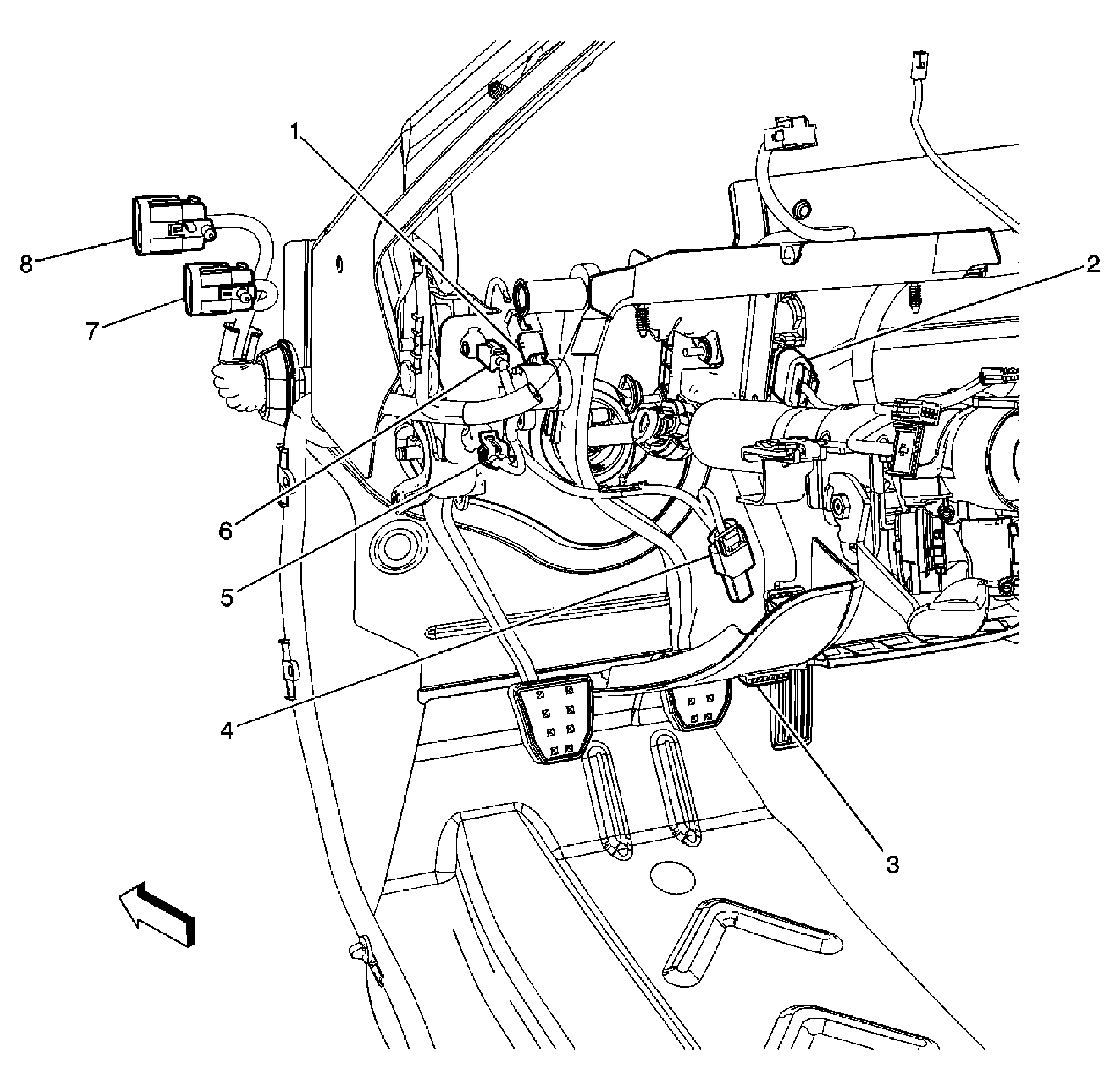

Fig 3: Engine Electrical Components (Left Side of I/P)

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 3

Callout	Component Name
1	Brake Pedal Position Sensor
2	Accelerator Pedal Position (APP) Sensor
3	Data Link Connector (DLC)
4	Data Link Connector (DLC) Resistor
5	Clutch Pedal Position (CPP) Switch
6	Clutch Start Switch
7	C165
8	C166

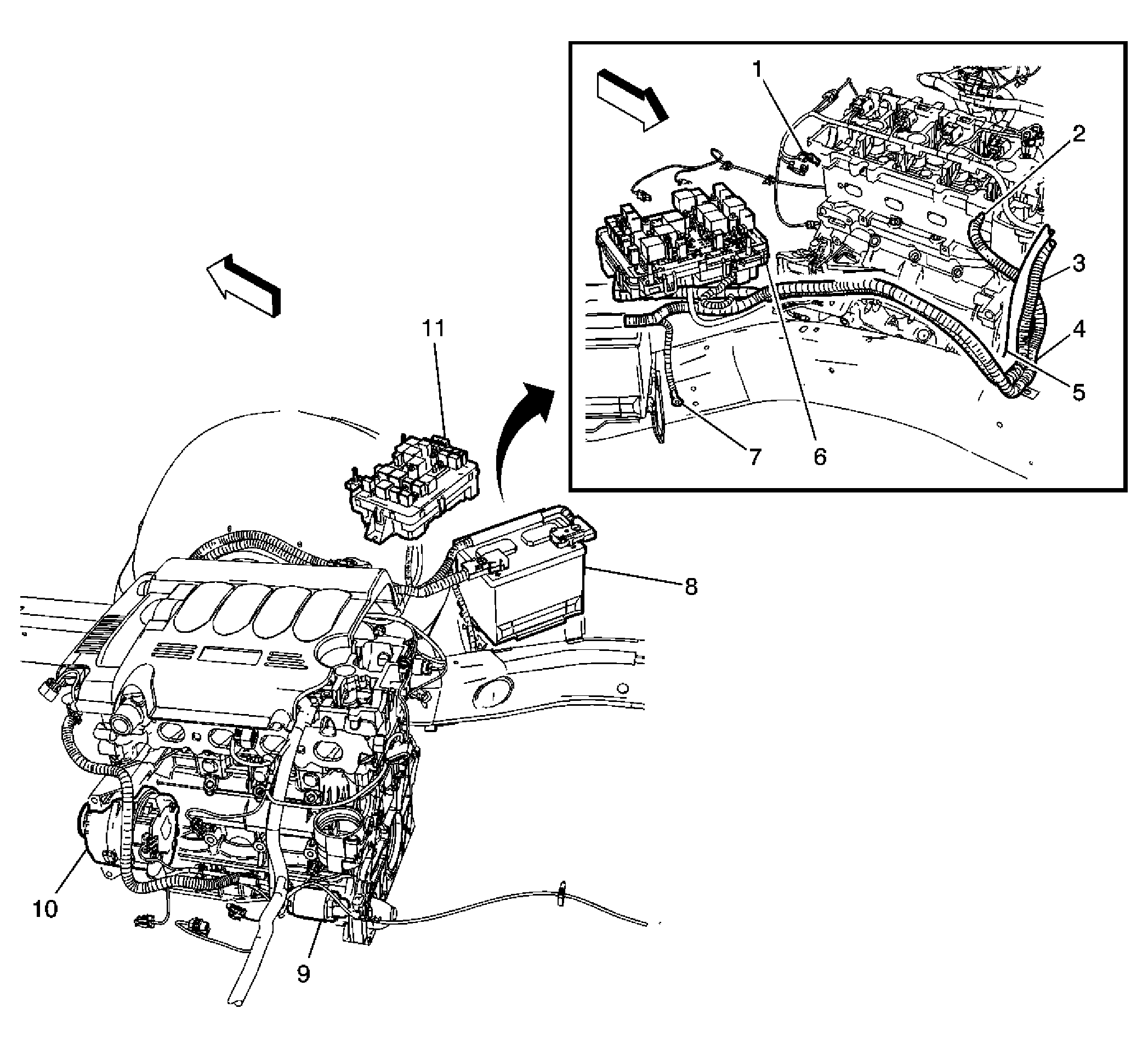

Fig 4: Engine Electrical Components (Engine Compartment - 2 of 2)

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 4
