Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

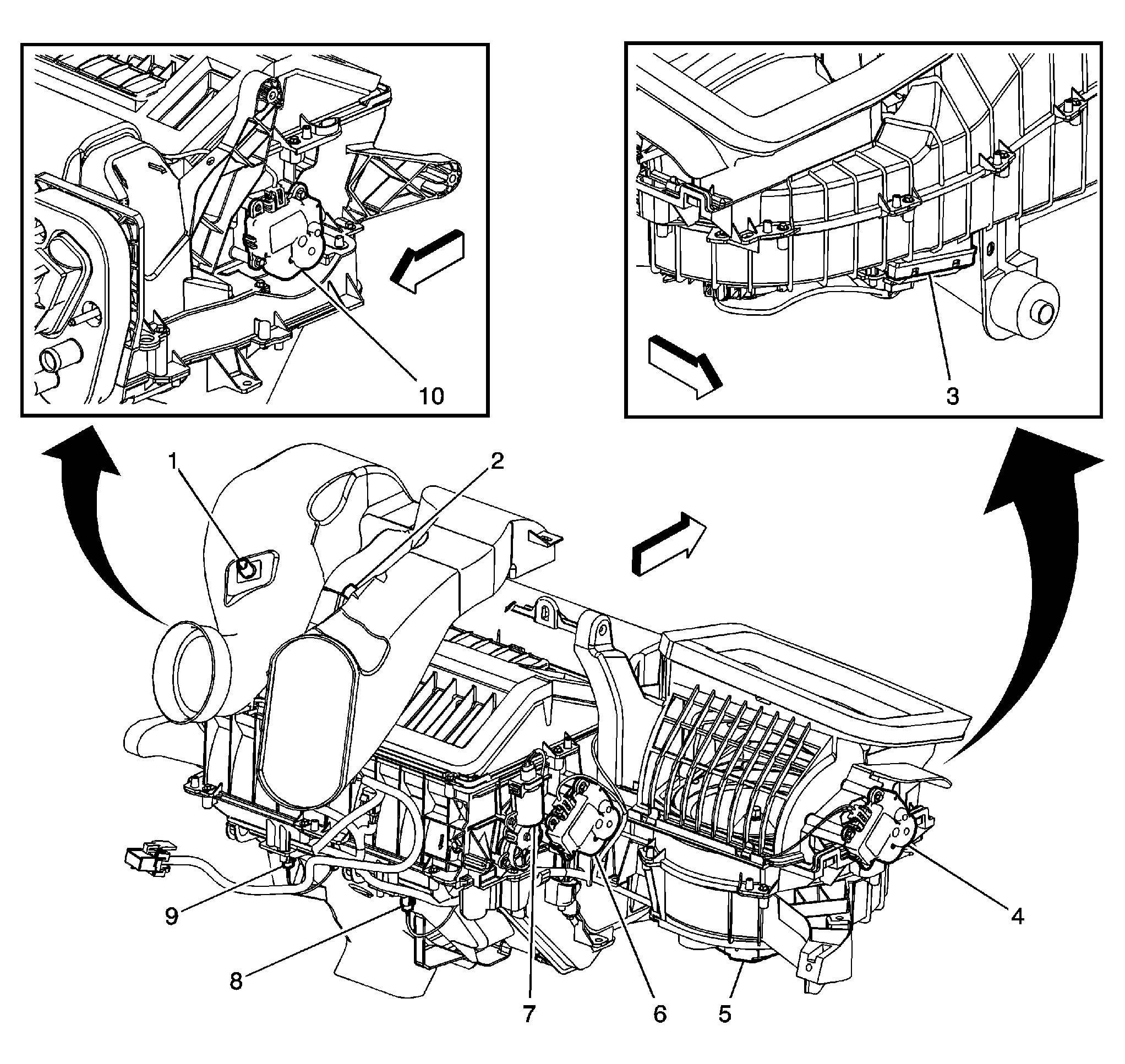

| Blower Motor Control Processor (3) | Lower right side HVAC module. See Figure. |

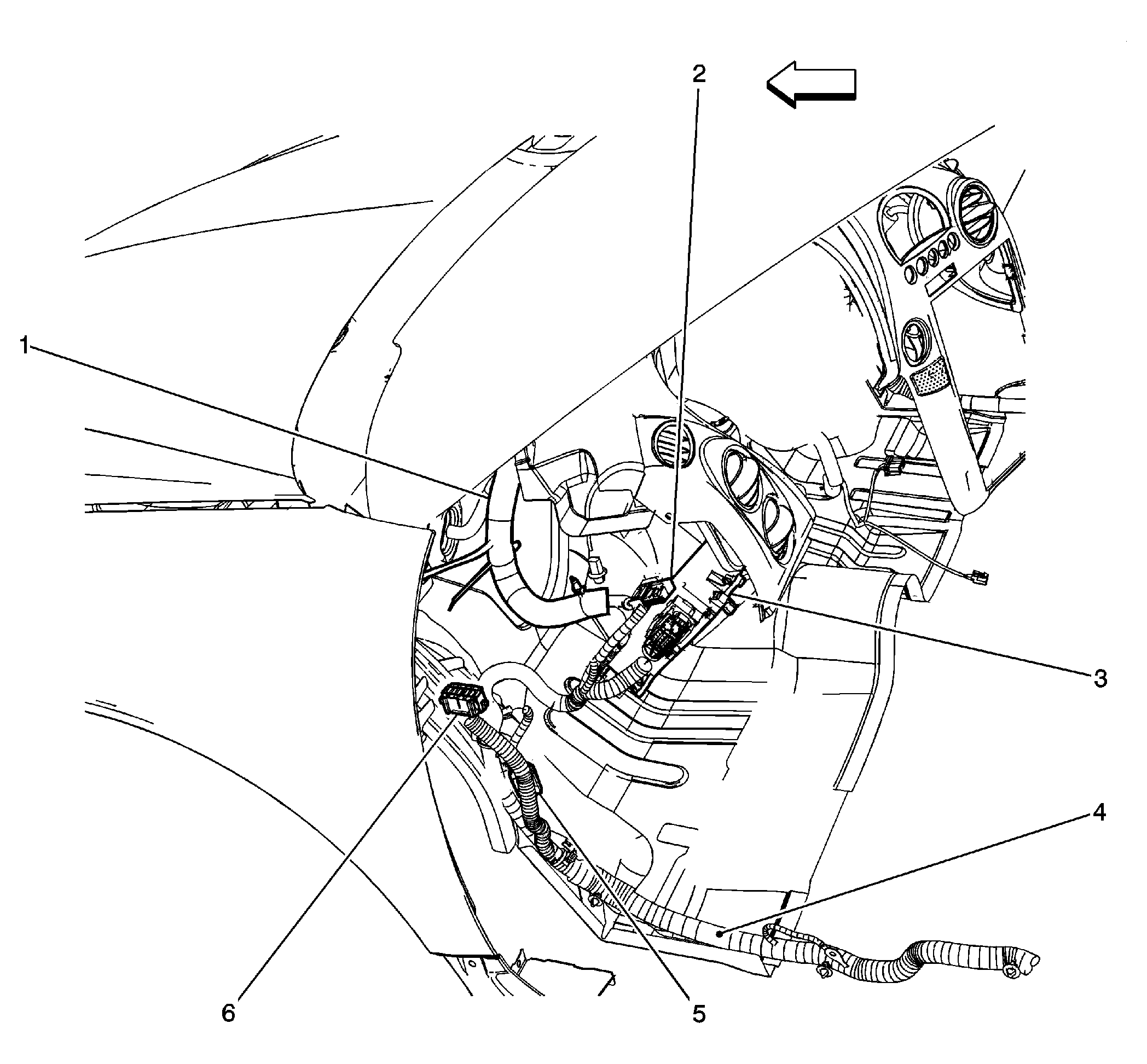

| Body Control Module (BCM) (3) | Behind left side of dash, left of steering column. See Figure. |

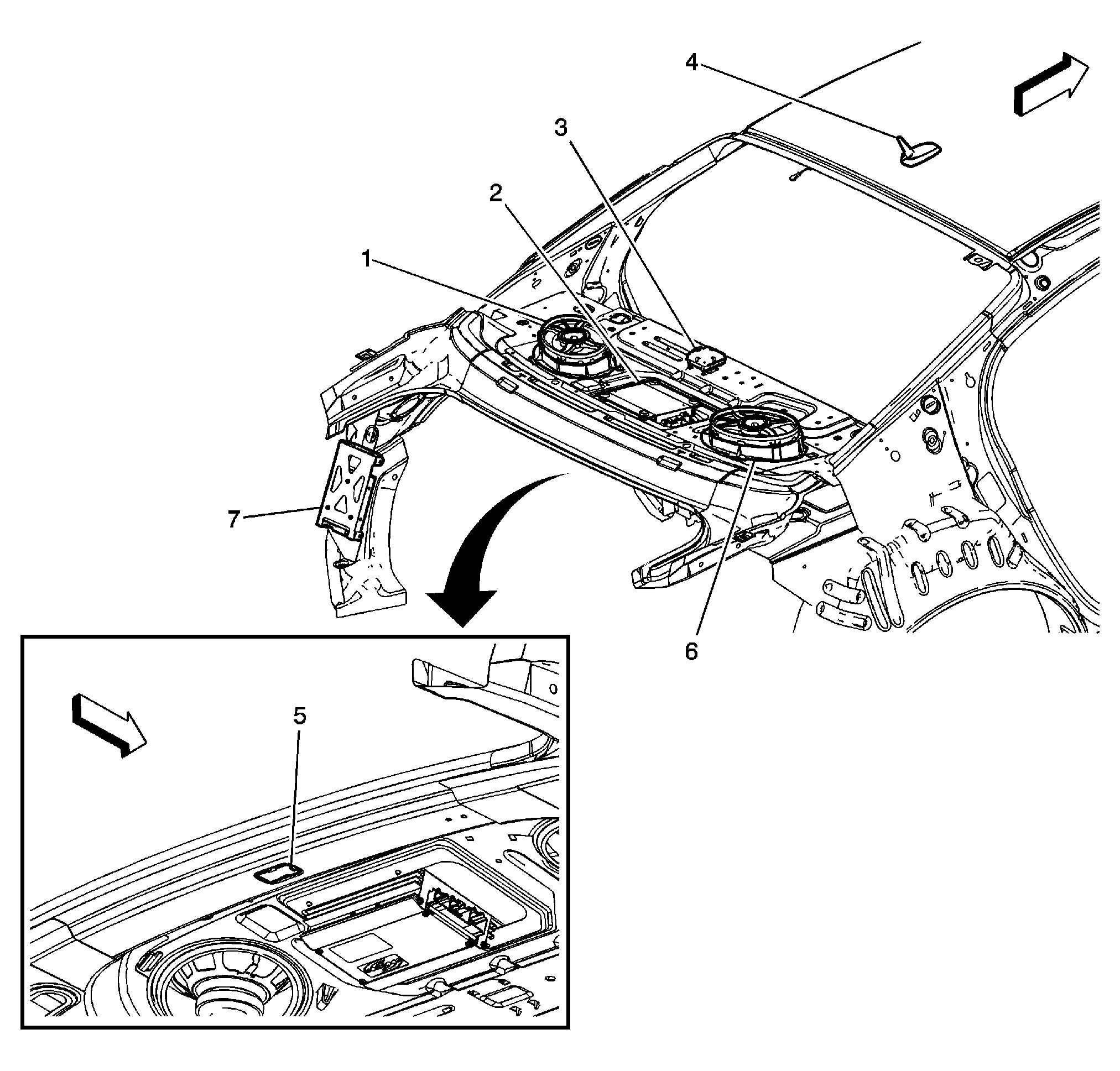

| Digital Radio Receiver (7) | Left side of rear compartment. See Figure. |
| Electronic Brake Control Module | Left side of engine compartment, part of brake pressure modulator valve. See Figure. |
| Electronic Compass Module | Top center of rear package shelf. See Figure. |
| HDM MODULE | In underhood fuse block. See Figure. |

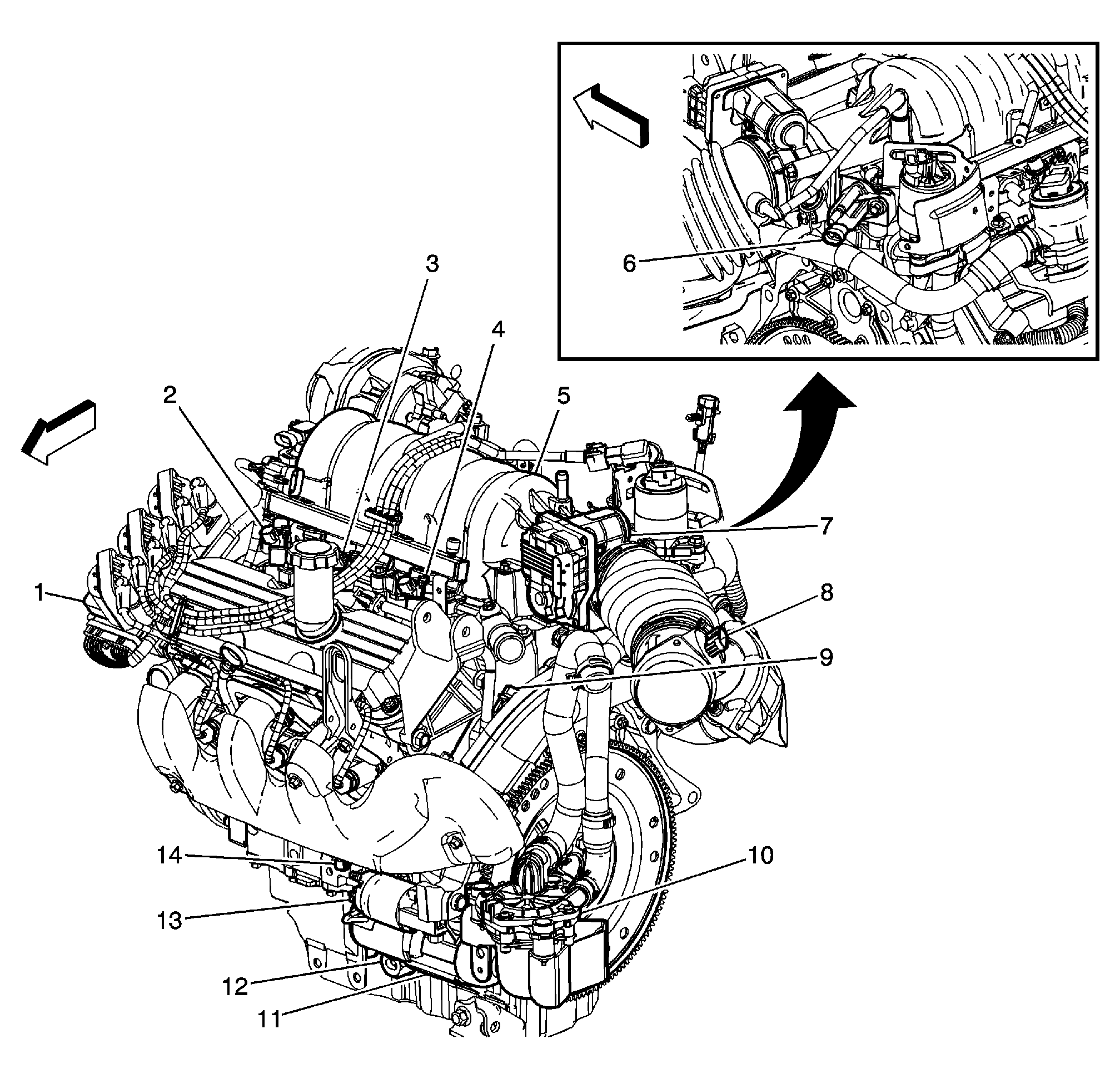

| Ignition Control Module (ICM) (1) | Top left front of engine. See Figure. |
| Inflatable Restraint Sensing & Diagnostic Module (SDM) | Under right front seat. See Figure. |
| Powertrain Control Module (PCM) (3.8L) | Left front side of engine compartment, in air cleaner assembly. See Figure. |
| Powertrain Control Module (5.3L) | Left side of engine compartment, inside air cleaner assembly. See Figure. |
| Radio Antenna Module | Center rear of roof. See Figure. |
| Theft Deterrent Exciter Module | Part of ignition key cylinder. See Figure. |
| Throttle Actuator Control (TAC) Module (3.8L) (7) | On throttle body. See Figure. |
| Throttle Actuator Control (TAC) Module (5.3L) | Top rear of engine. See Figure. |
| Transmission Control Module | Left side of engine compartment, inside air cleaner assembly. See Figure. |
| Vehicle Communications Interface Module (VCIM) (7) | In trunk, on left wheelwell. See Figure. |
