Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

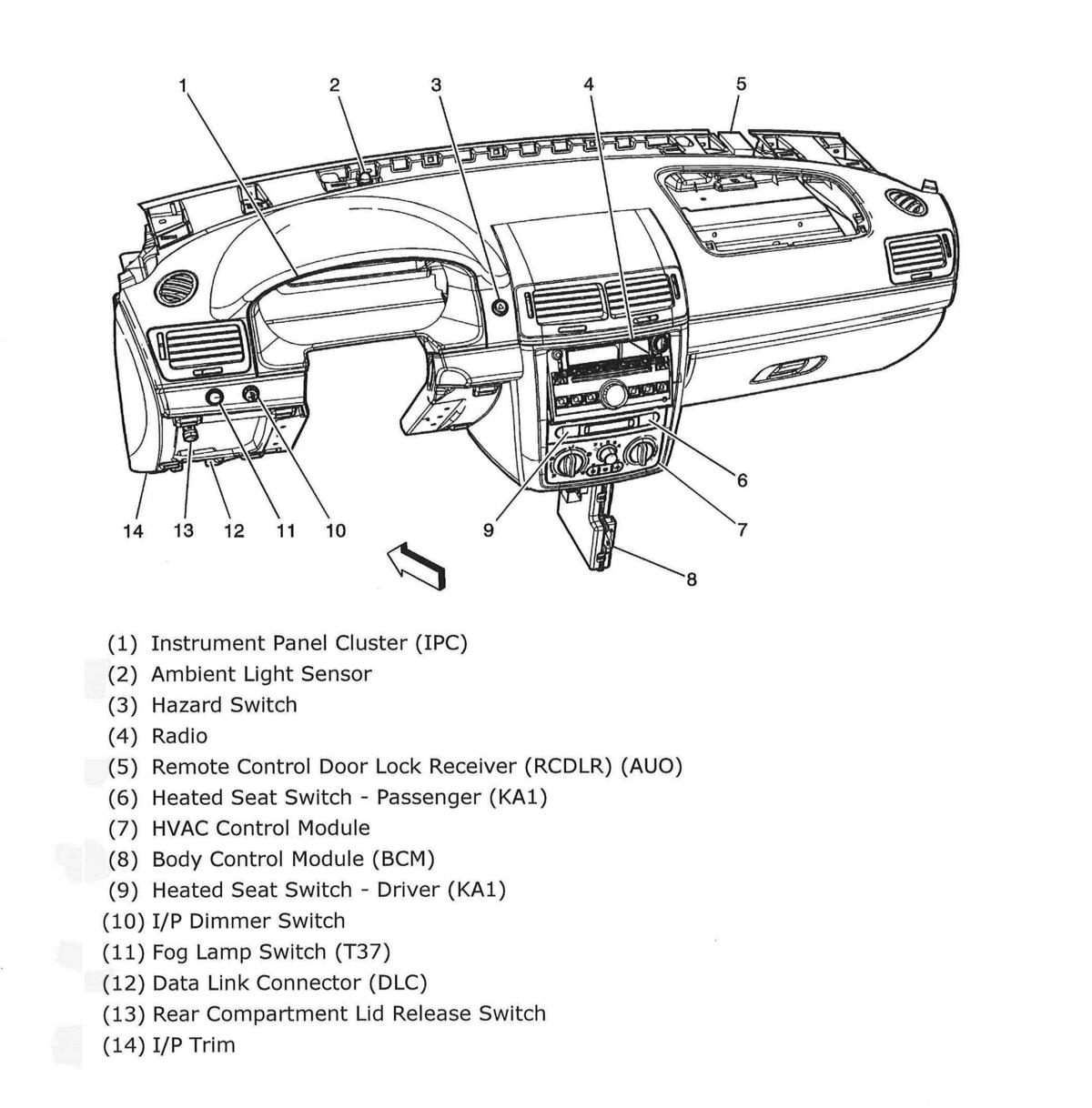

| Body Control Module | Under center of dash. See Figure. |

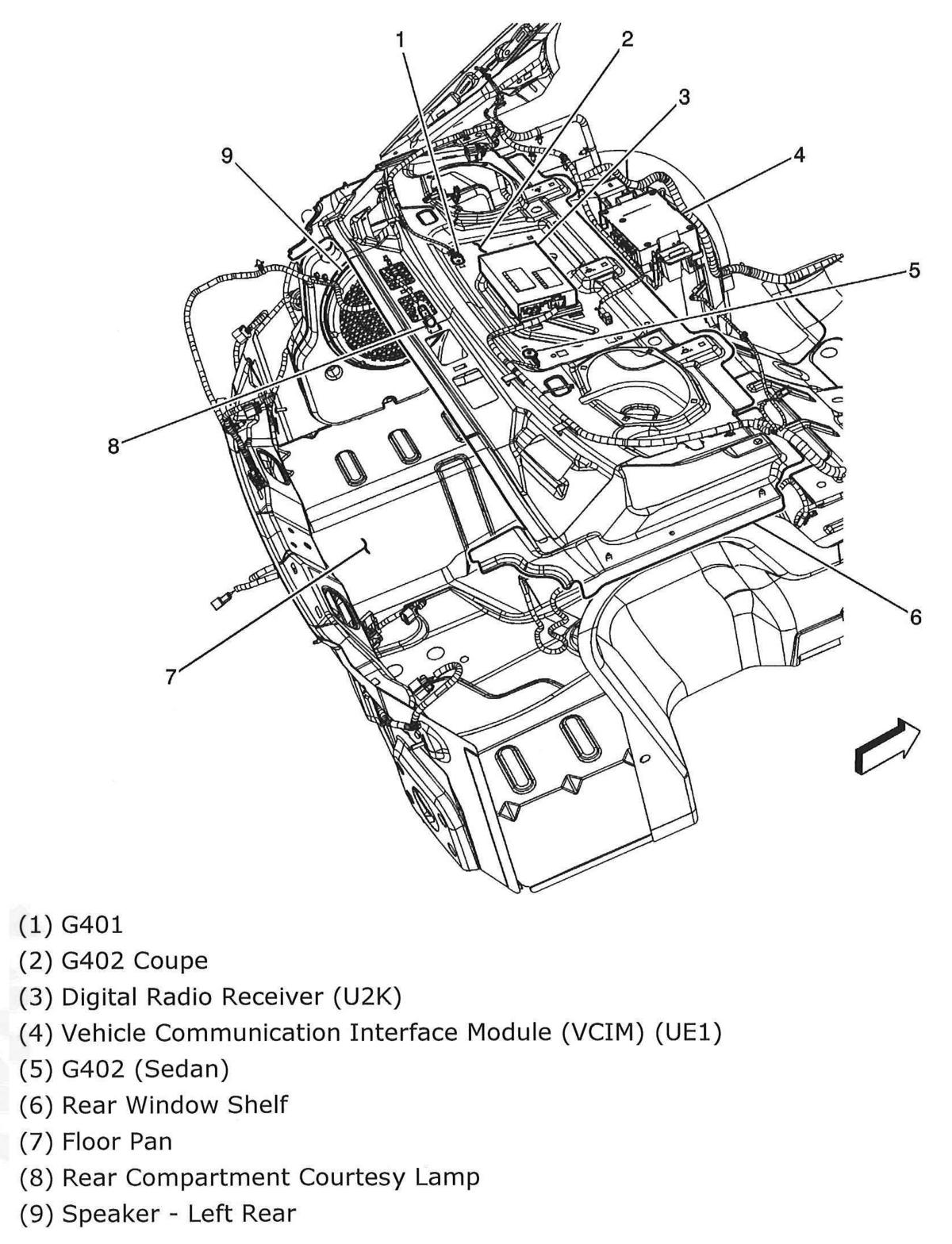

| Digital Radio Receiver | Center of rear shelf, under trim pad. See Figure. |

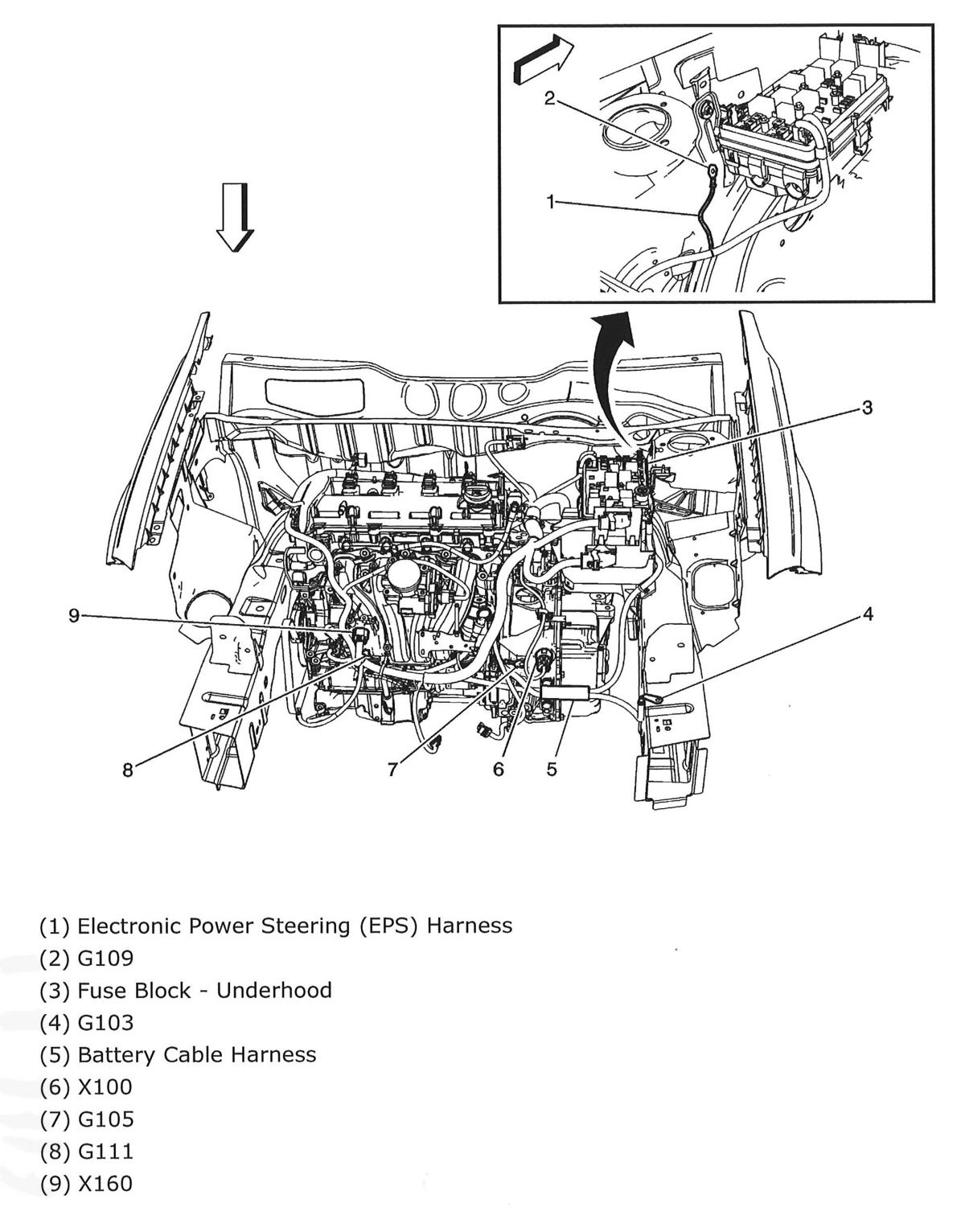

| Electronic Brake Control Module (EBCM) | Near underhood fuse block. See Figure. |
| Electronic Power Steering (EPS) Control Module | Under dash, near base of steering column. |

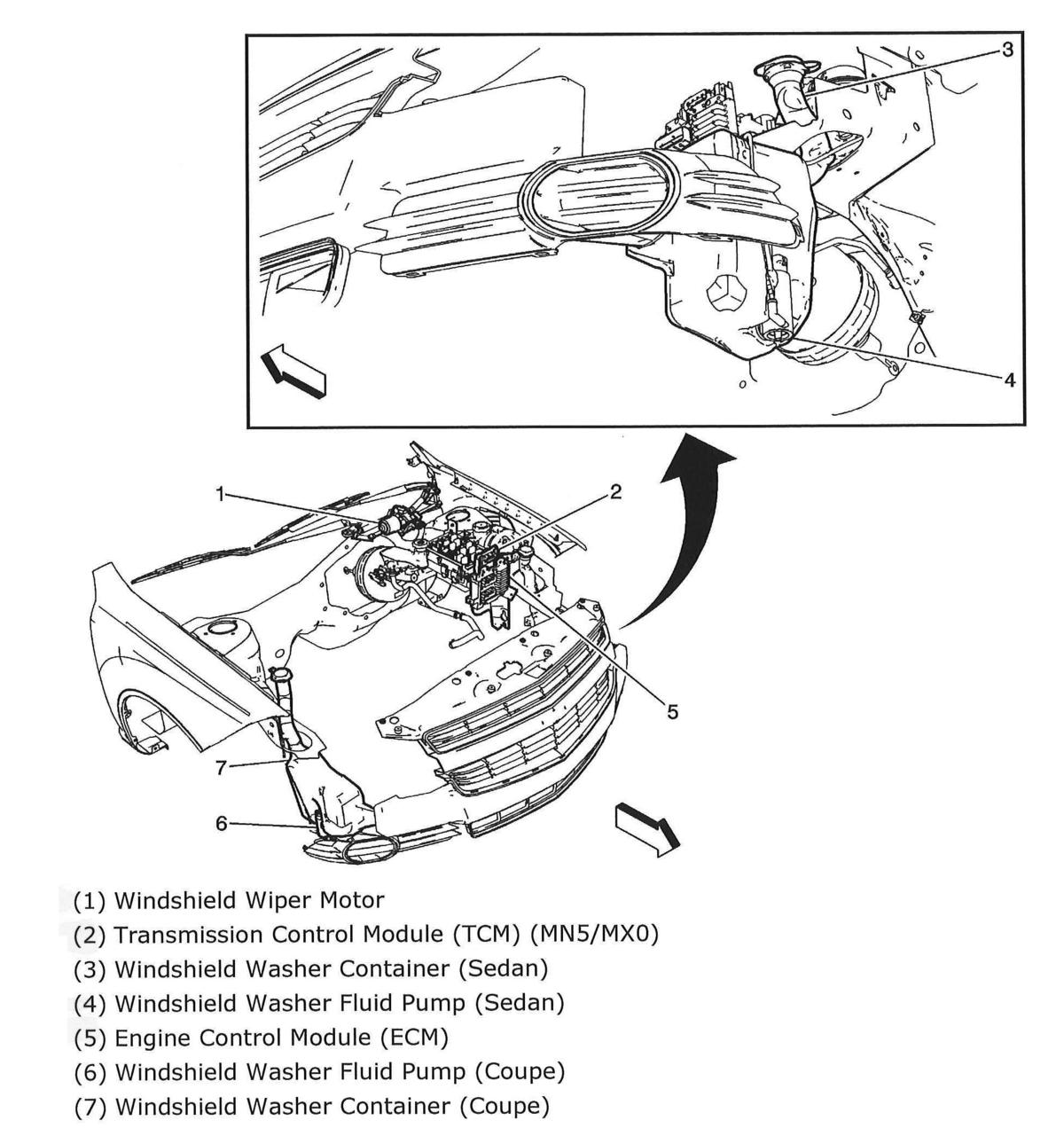

| Engine Control Module (ECM) | Left side of engine compartment. See Figure. |

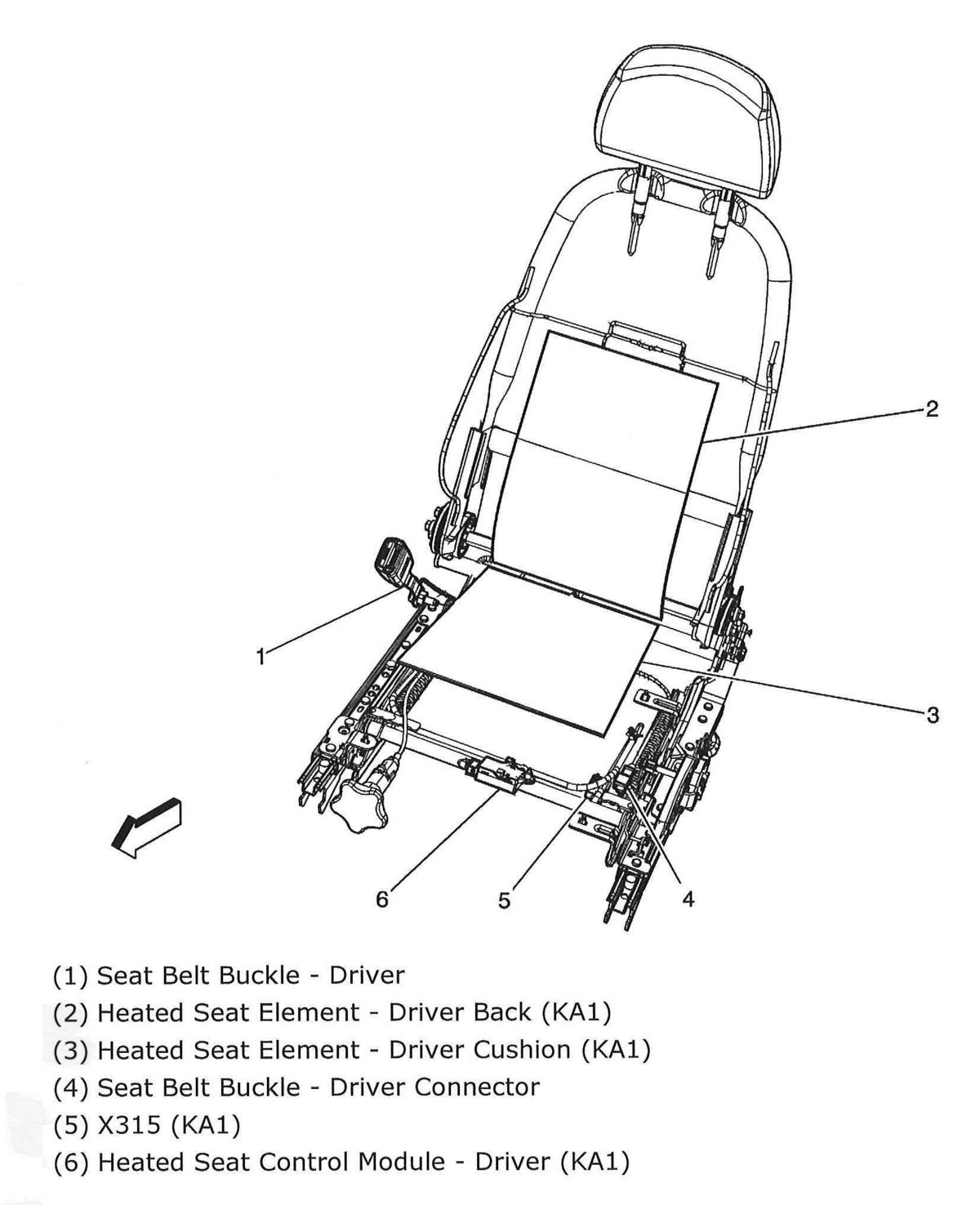

| Heated Seat Control Module (Driver) | Under front center of driver seat. See Figure. |

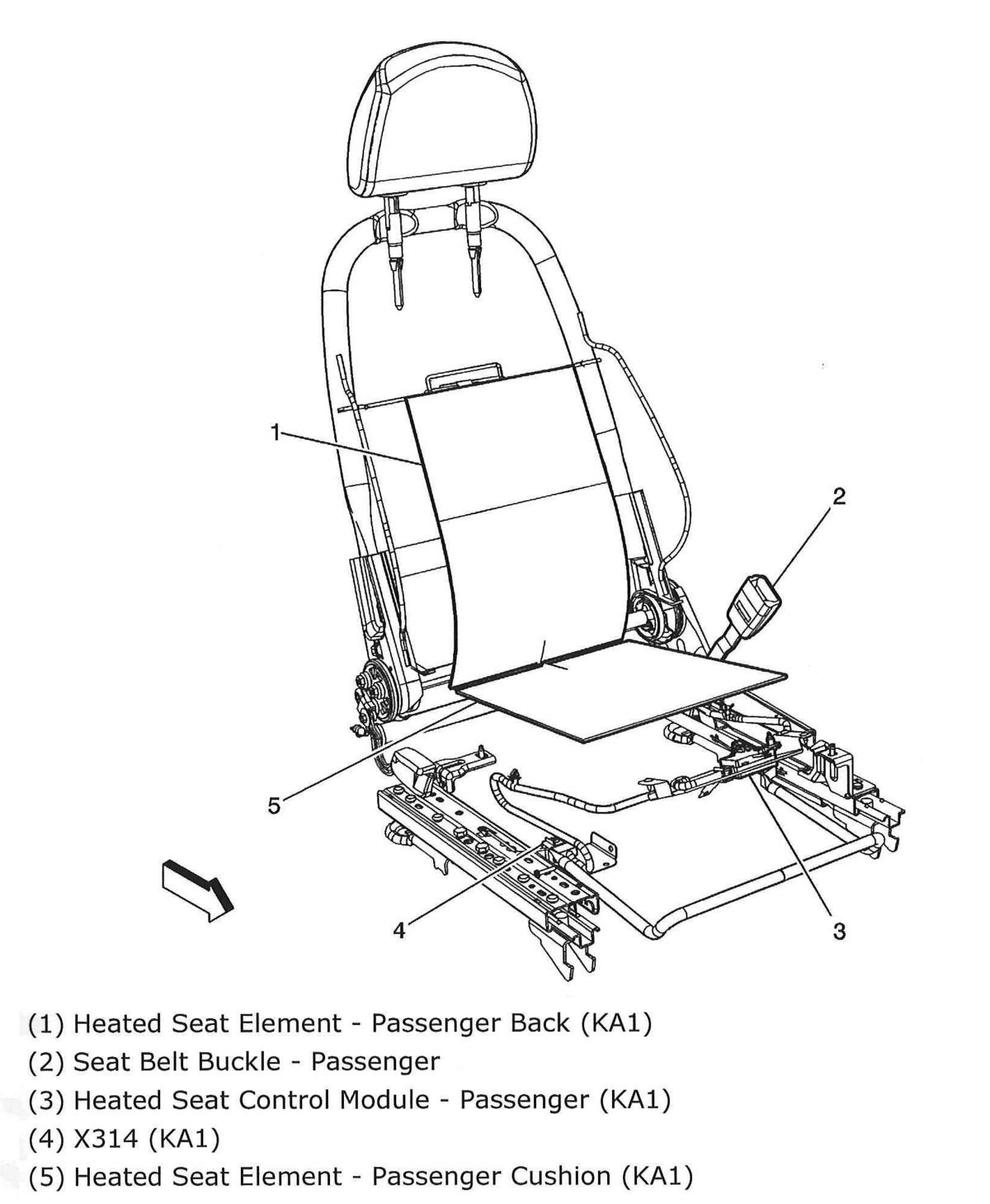

| Heated Seat Module (Passenger) | Under front center of front passenger's seat. See Figure. |

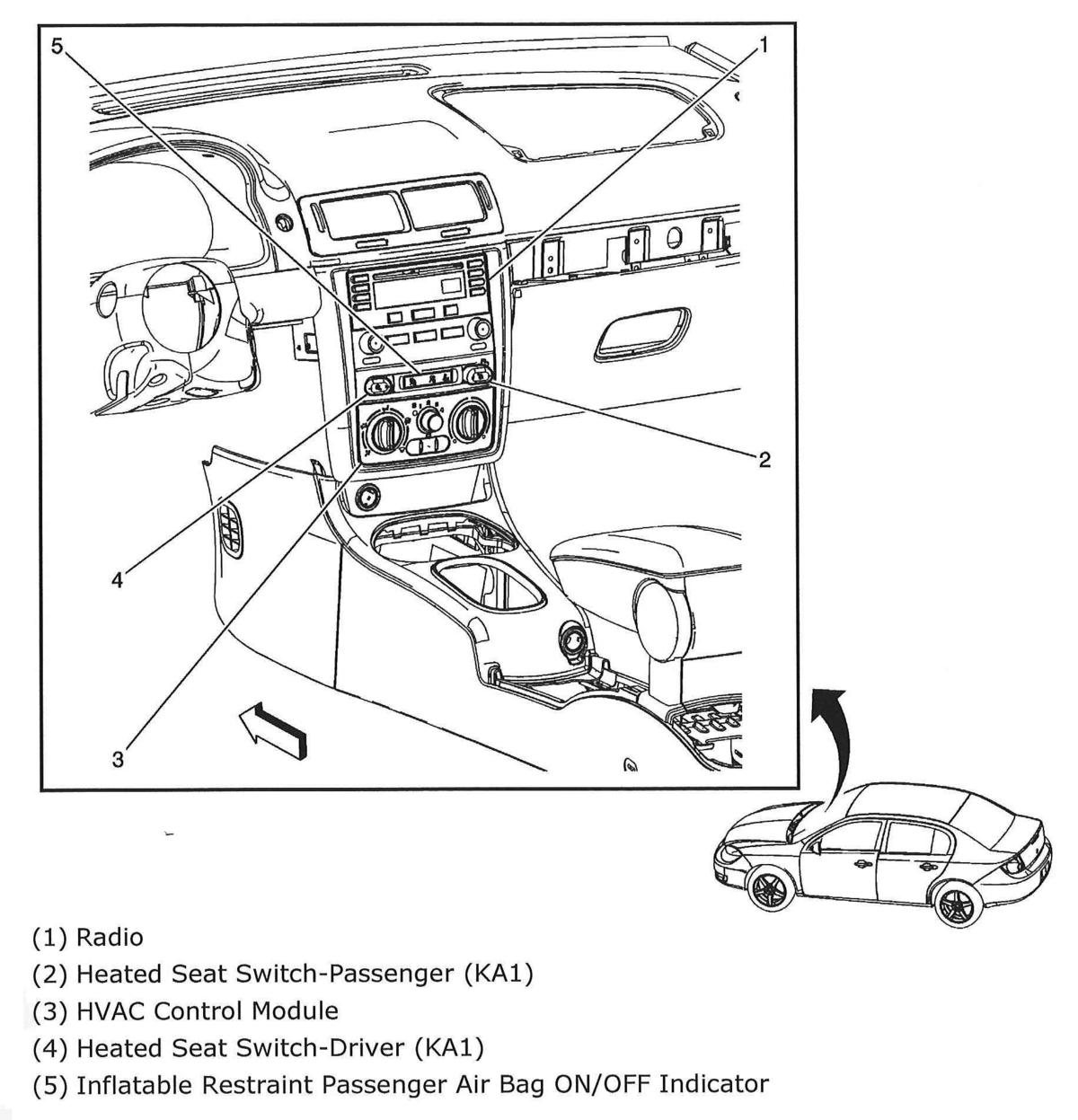

| HVAC Control Module | Center of dash, below radio. See Figure. |
| Ignition Coil Module 1 | Top of engine, under cover at cylinder No. 1. |
| Ignition Coil Module 2 | Top of engine, under cover at cylinder No. 2. |
| Ignition Coil Module 3 | Top of engine, under cover at cylinder No. 3. |
| Ignition Coil Module 4 | Top of engine, under cover at cylinder No. 4. |

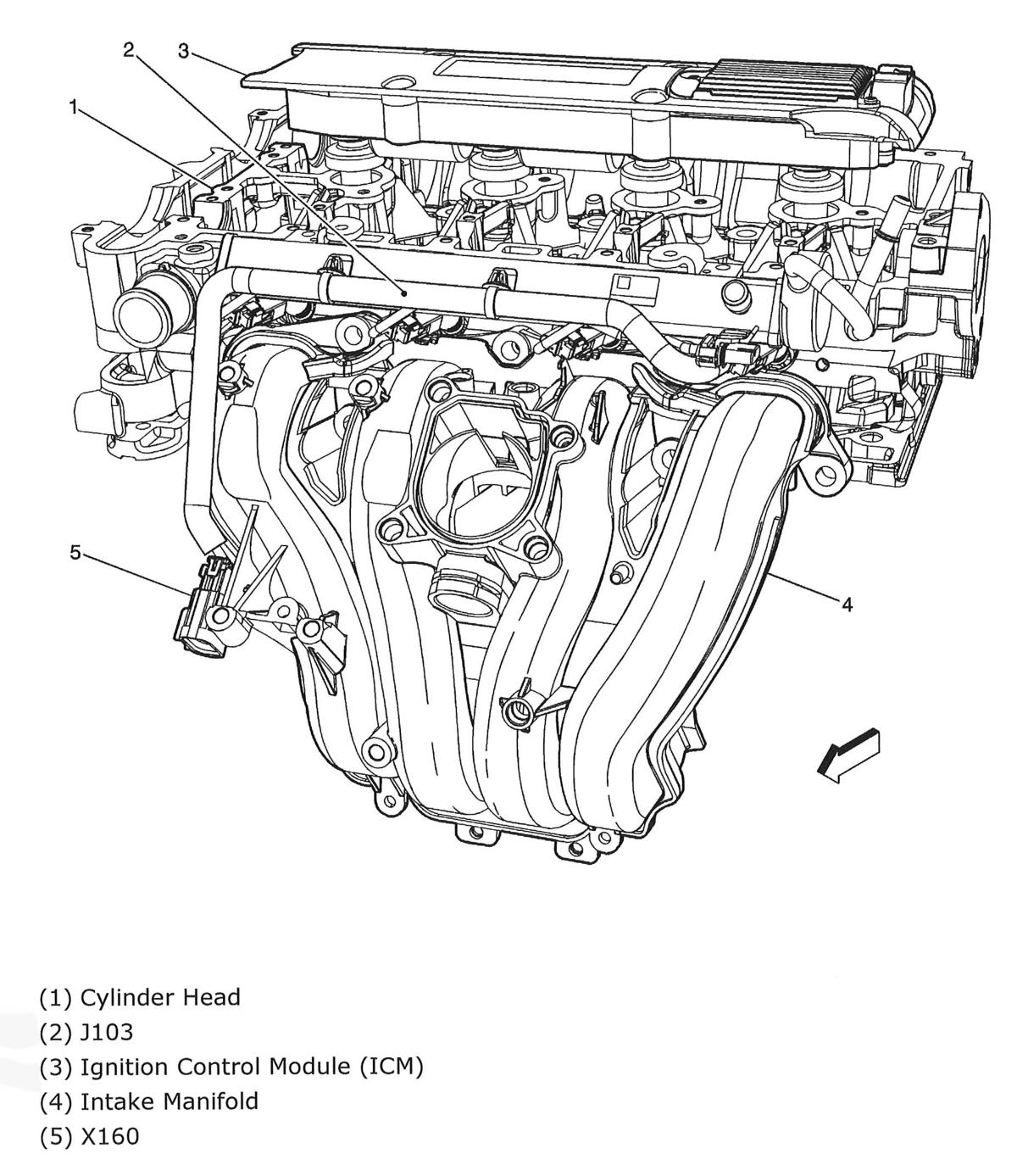

| Ignition Control Module | Top of engine. See Figure. |

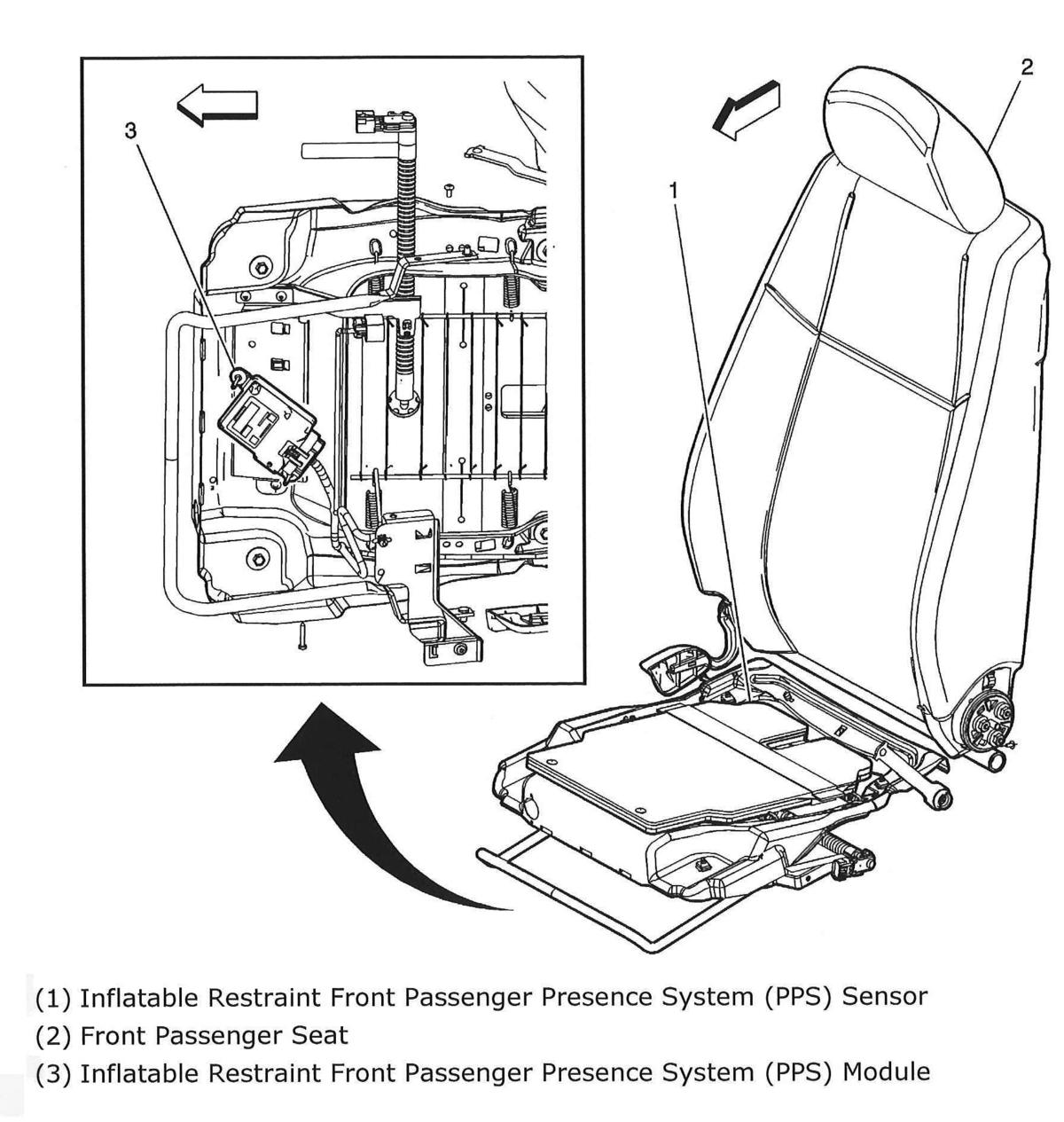

| Inflatable Restraint Front Passenger Presence System Module | Under passenger seat cushion. See Figure. |

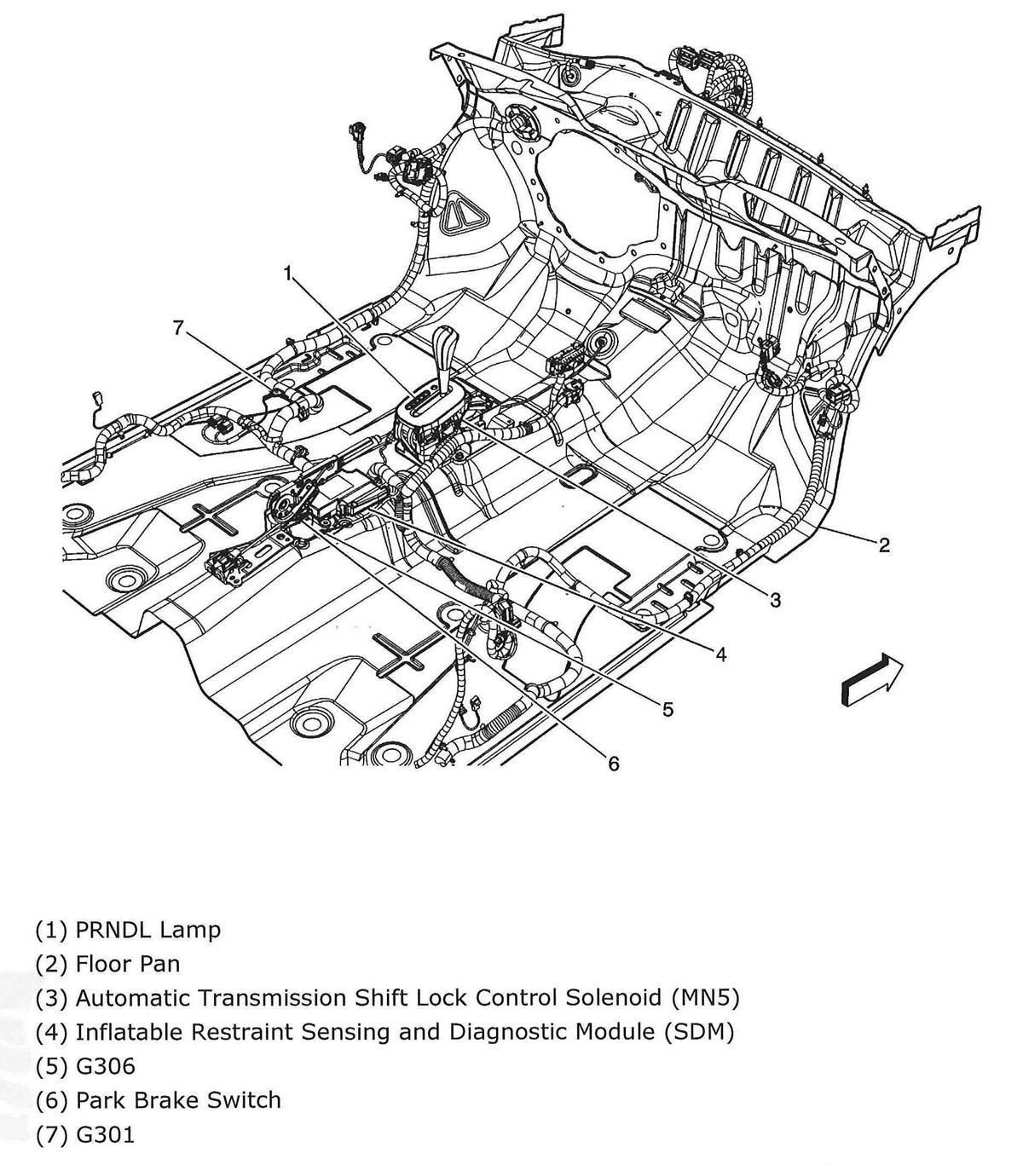

| Inflatable Restraint Sensing & Diagnostic Module | Under center console. See Figure. |
| Remote Control Door Lock Receiver | Under right dash trim panel. See Figure. |

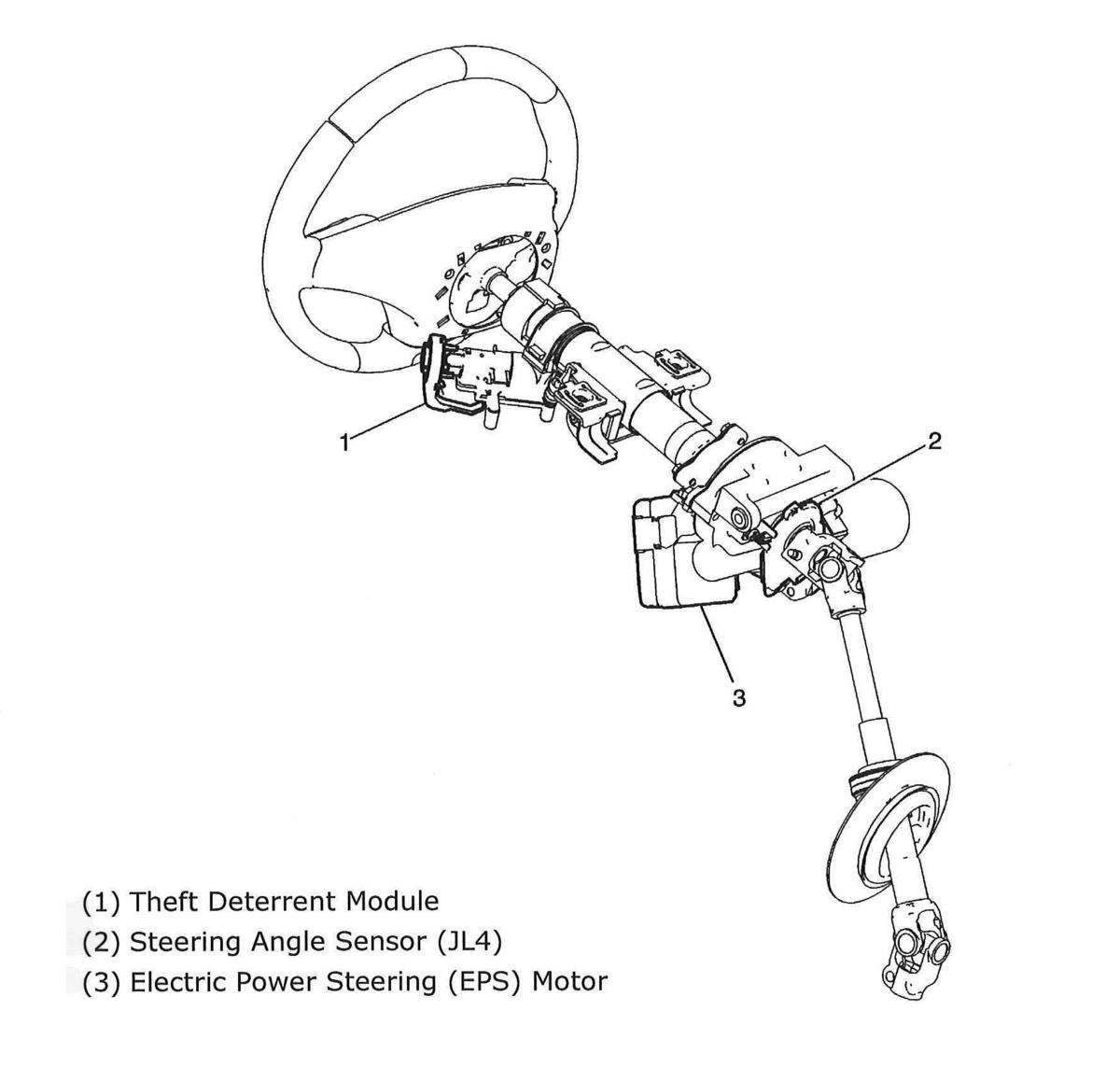

| Theft Deterrent Module | Steering column, near ignition switch. See Figure. |
| Throttle Actuator Control (TAC) Module | Intake manifold assembly. |
| Transmission Control Module (TCM) | Left rear of engine compartment. See Figure. |
| Vehicle Communication Interface Module (VCIM) | Under rear, shelf between speakers. See Figure. |
