Removing And Installing Shift And Selector Cables: Installation

The shift and selector cables are designed so that installation and adjustment are a single work step.

Preconditions for this are:

• Special tool 9619 must be fitted to fix the shift lever.
• The transmission must be in neutral.

1. Guide shift cables from the passenger compartment to the transmission through the rear wall and fasten on the transmission. See Fig 1 . At the same time, the shift cable end pieces and support brackets must audibly and perceptibly engage, and the cotter pin heads on retaining clip "A" must point downward.
   NOTE: Clean securing screw "F" with solvent naphtha, coat the first 10 threads with Loctite 270, and tighten the screw to 23 Nm (17 ft.lb).

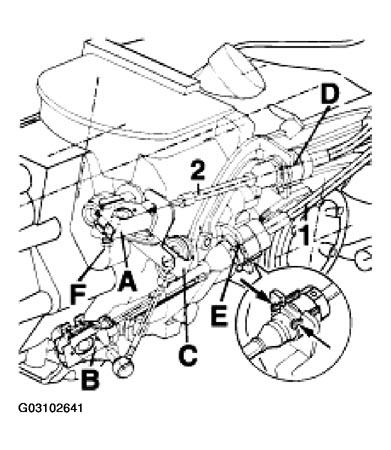

   Fig 1: Attaching Shift Cables Onto Transmission

   Courtesy of PORSCHE OF NORTH AMERICA, INC.
2. Fit locking piece in the rear wall.

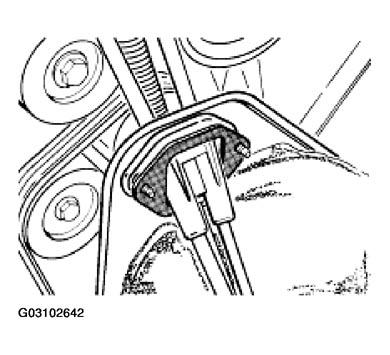

   Fig 2: Fitting Locking Piece In Rear Wall

   Courtesy of PORSCHE OF NORTH AMERICA, INC.
3. Route the shift and selector cables and B+ wire correctly, and fasten the parking brake lever support. Tightening torque of the fastening nuts: 10 Nm (7.5 ft.lb).

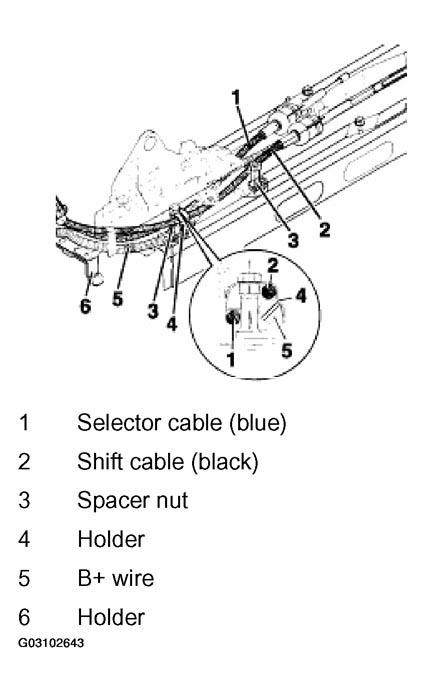

   Fig 3: Routing Shift And Selector Cables

   Courtesy of PORSCHE OF NORTH AMERICA, INC.
   NOTE:

   • Correct routing of the shift and selector cables is a prerequisite for precise shifting.
4. Fasten shift and selector cables on the shift console. See Fig 4 .
   • Fit support bracket sleeves (5) in the correct position. It must be possible to hear and feel them engage.
   • Engage shift and selector cables in the adjusters (3) without tension and close the adjusters.

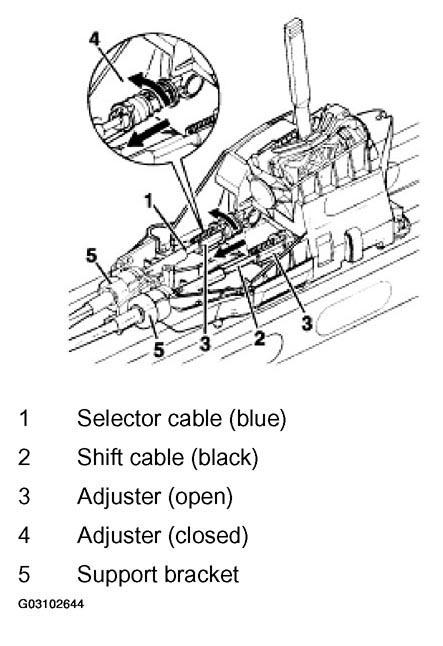

   Fig 4: Engaging Shift And Selector Cables In The Adjusters

   Courtesy of PORSCHE OF NORTH AMERICA, INC.
5. Remove special tool 9619 and shift through all gears as a test.
6. Clip in shift console cover.
7. Fit rear wall cover.
8. Adjust parking brake and install center console.
