Removing And Installing Shift Console: Installation

Preconditions for this are:

• Special tool 9619 must be fitted to fix the shift lever.
• The transmission must be in neutral.

1. Install the shift console and tighten the fastening nuts with 10 Nm (7.5 ft.lb).
   NOTE:

   • The shift and selector cables must not be excessively bent or kinked.
2. Fasten selector and shift cables on the shift console:
   • Fit support bracket sleeves (5) in the correct position. It must be possible to hear and feel them engage. See Fig 1 .
   • Engage shift and selector cables in the adjusters (3) without tension and close the adjusters. See Fig 1 .

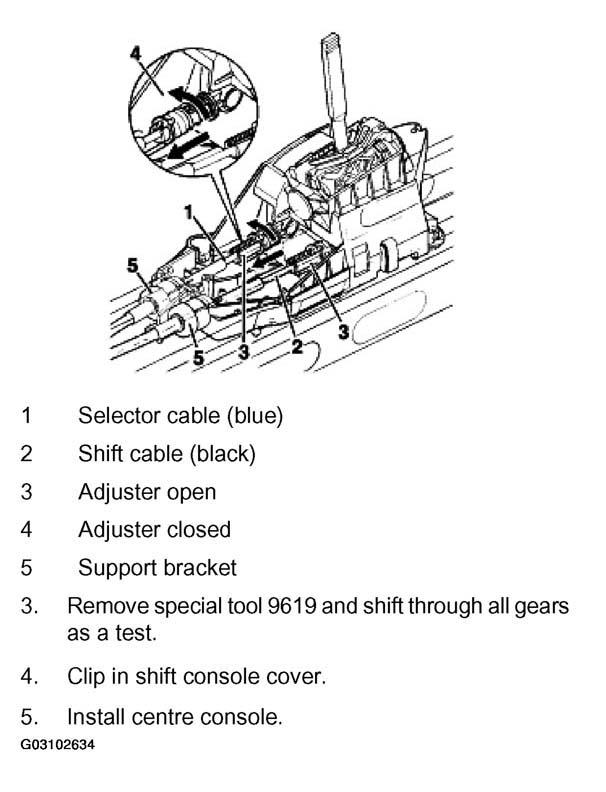

   Fig 1: Engaging Shift And Selector Cables In Adjusters

   Courtesy of PORSCHE OF NORTH AMERICA, INC.
