Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Auto. Performance Control (APC) Control Unit | On left side of engine compartment. |
| Burglar Alarm Control Unit (Conv.) | Under rear seat. |

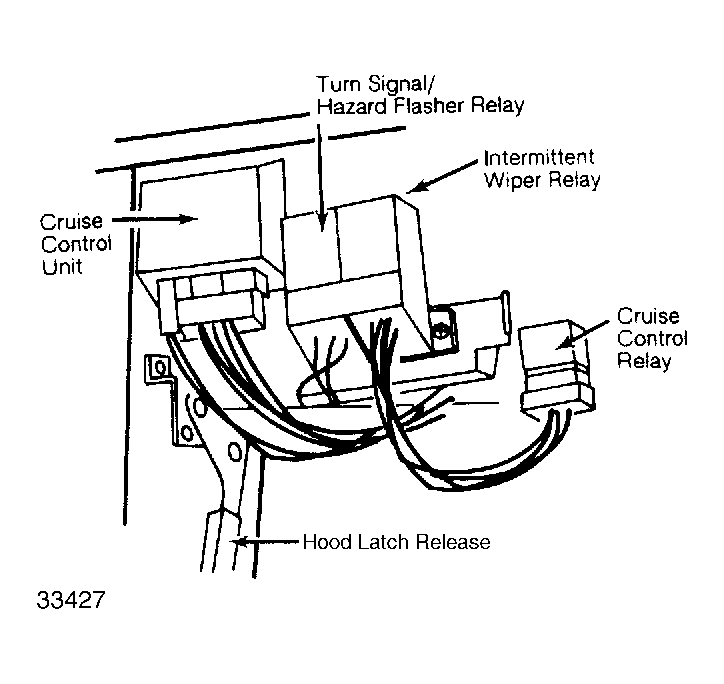

| Cruise Control Unit | Under left side of dash, behind knee bolster. See Figure . |
| EZK Ignition Control Unit (16 Valve Non-Turbo) | In front of left wheelwell, near ignition amplifier. |
| Ignition Amplifier | On cooling plate in front of left wheelwell. |
| Ignition Pulse Amplifier (w/Tach.) | On fuse/relay panel, position "D". See Figure . |

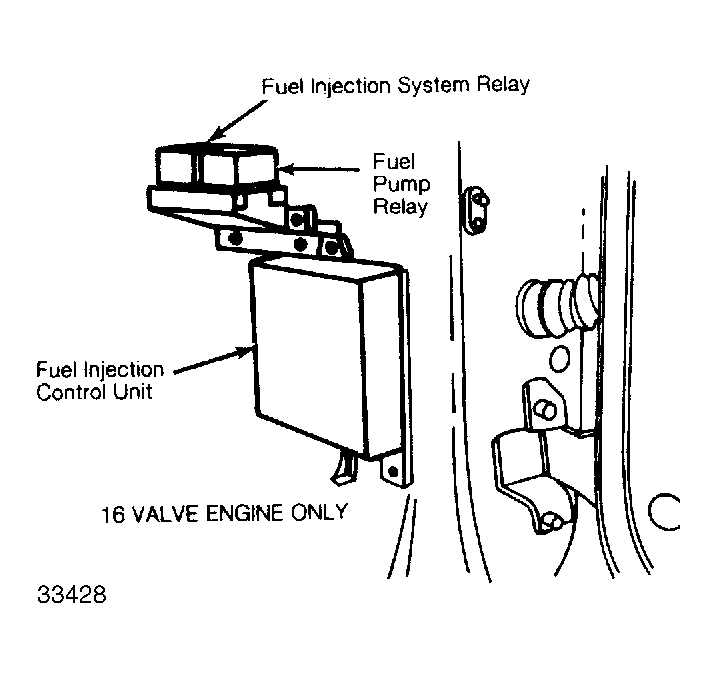

| Fuel Injection Control Unit (16 Valve) | Under right side of dash. See Figure . |
| Lambda Fuel Inject. Control Unit (8 Valve) | Under rear seat cushion. |
| Passive Seat Belt Control Unit | Under rear seat. |
| Power Door Lock Controller | Under right side of dash, behind knee bolster. |
| Upshift Relay/Controller | On fuse/relay panel, position "F". See Figure . |
