PSM Control Module Outputs, I-Bus

WARNING: This page is about a different car, the 2002 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

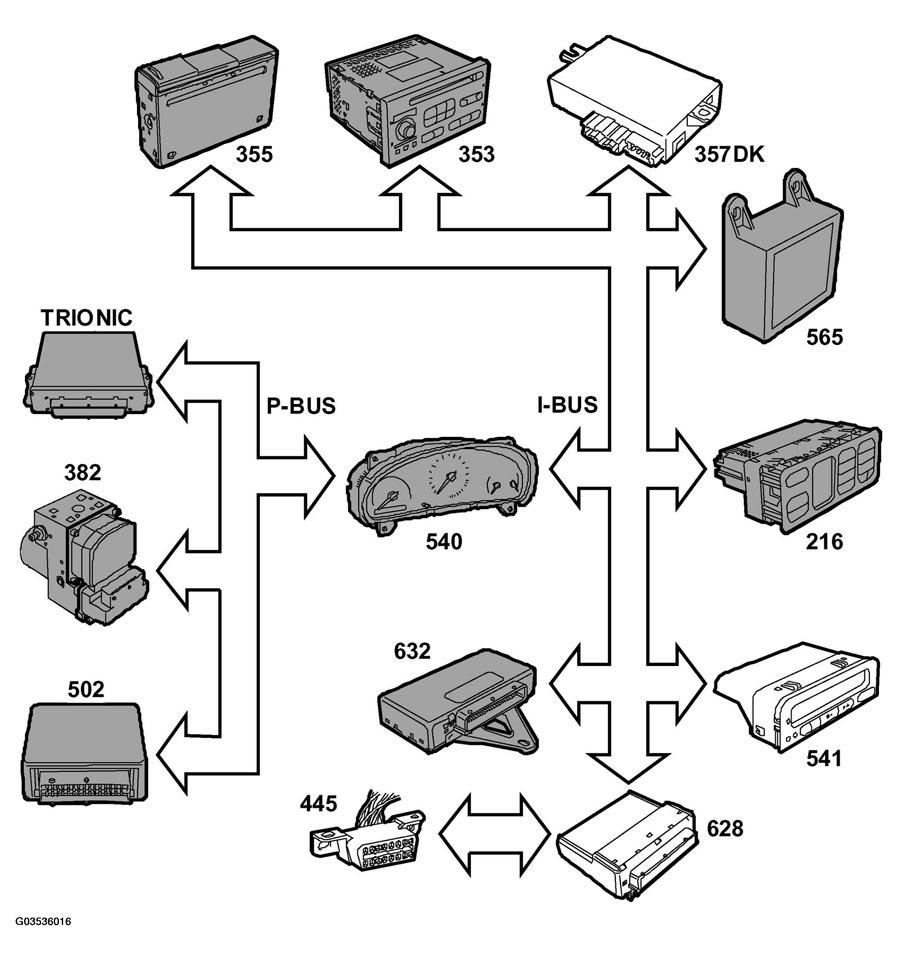

Fig 1: Identifying PSM Control Module Outputs, I-Bus

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Acoustic confirmation to SID (541).
Memory buttons 1-3 to PMM (611), see RECALLING MEMORY SETTING
Memory Store Button ON/OFF to PSM (611), see MEMORY RETRIEVAL
DIAGNOSTIC communication to DICE (628)

For further information on bus communication, see SYSTEM OVERVIEW .
