Removal & Installation (2.2L - VIN F)
WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

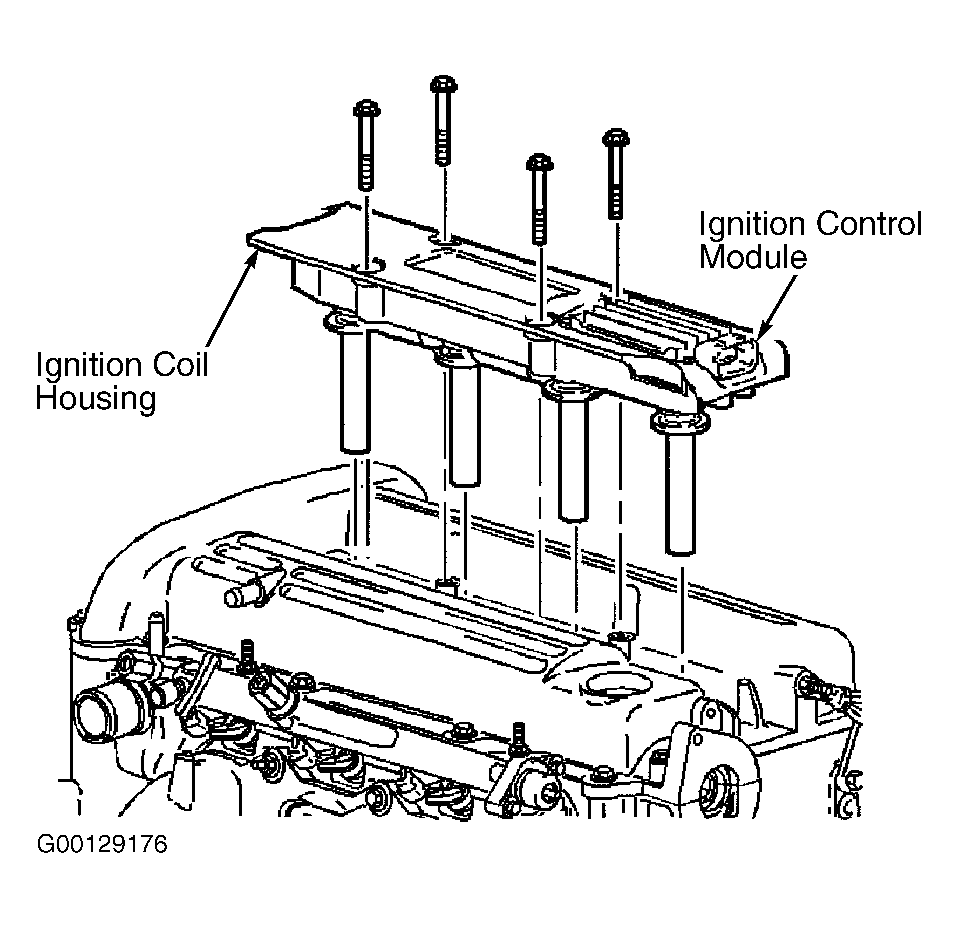

The Ignition Control Module (ICM) is located in a housing in the camshaft cover. See Figure. Turn ignition off. Disconnect negative battery cable. Remove the accelerator cable from the bracket. Remove the accelerator cable bracket bolt. Remove the accelerator cable bracket. Disconnect the ICM harness connector. Remove the ICM retaining screws. Remove the ICM from the ignition coil housing. To install, reverse removal procedure. Tighten retaining screws to specification. See TORQUE SPECIFICATIONS .
