Removal & Installation

WARNING: This page is about a different car, the 2002 Subaru Outback and 2002 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect battery ground cable.
  2. Remove instrument panel front cover (A). See Fig 1 .
    NOTE: Before removing screws, apply a few turns of butyl tape to the tip of the service tool. This prevents the screw from falling during removal. See Fig 2
  3. Remove retaining screws (B). Detach center panel (C) while disconnecting connector.
  4. Remove 2 screws.
  5. Remove radio and security control module together while disconnecting connector. For radio removal procedure, see Figure .
  6. Install in reverse order of removal procedure.
    NOTE: Tighten bolts securely so that they do not come loose.

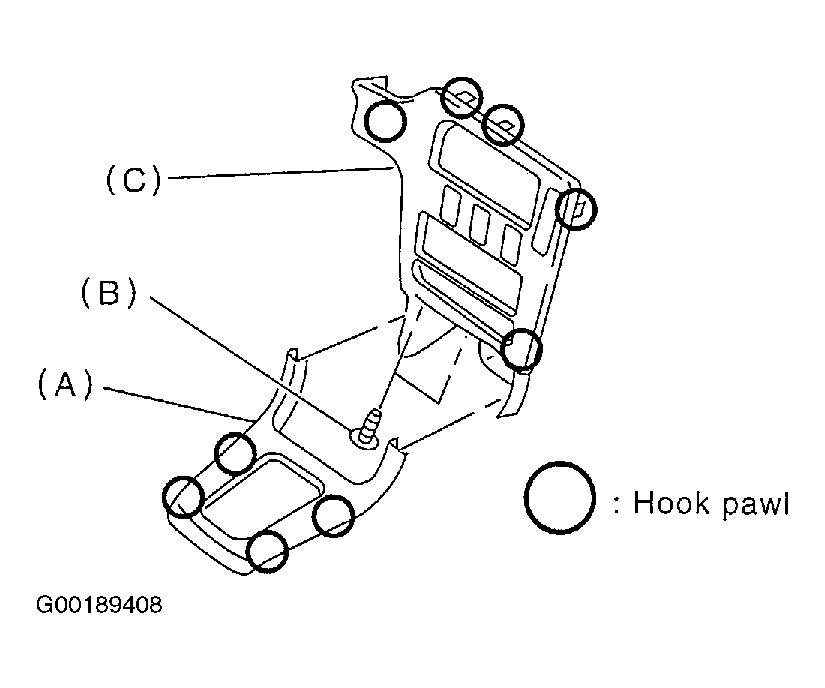

Fig 1: Removing Security Control Module (1 Of 2)
G00189408Courtesy of SUBARU OF AMERICA, INC.

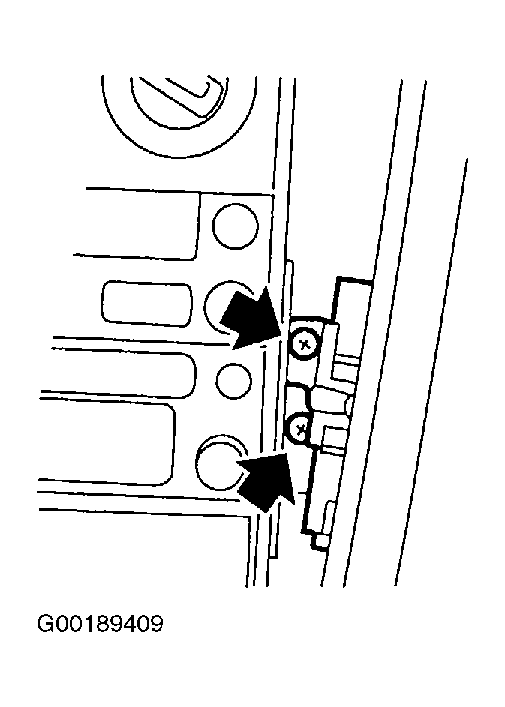

Fig 2: Removing Security Control Module (2 Of 2)
G00189409Courtesy of SUBARU OF AMERICA, INC.
