Transmission Control Device: Installation

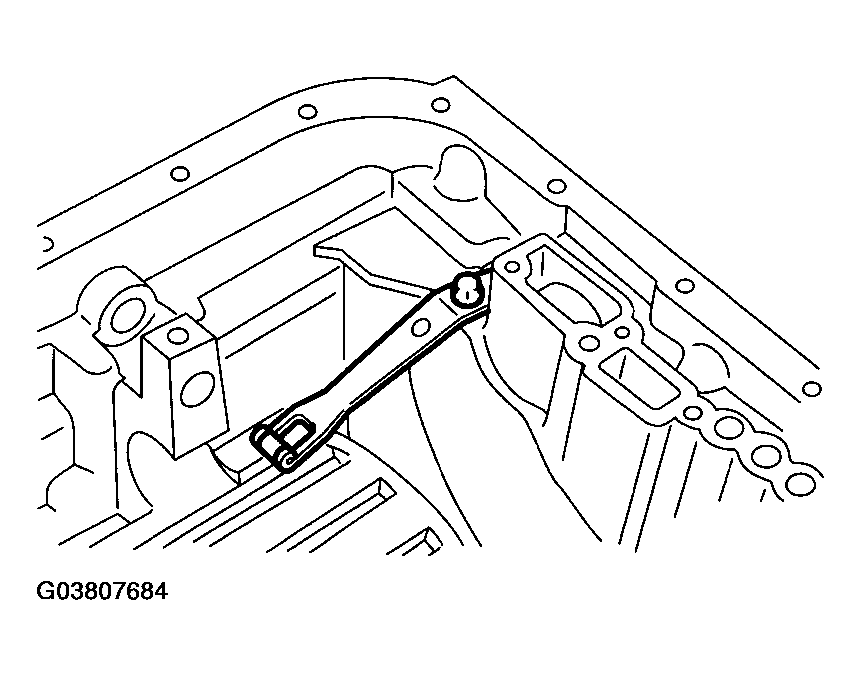

Install detention spring to transmission case.
Tightening torque:

6 N.m (0.6 kgf-m, 4.4 ft-lb)

Fig 1: Installing Detention Spring To Transmission Case
Courtesy of SUBARU OF AMERICA, INC.

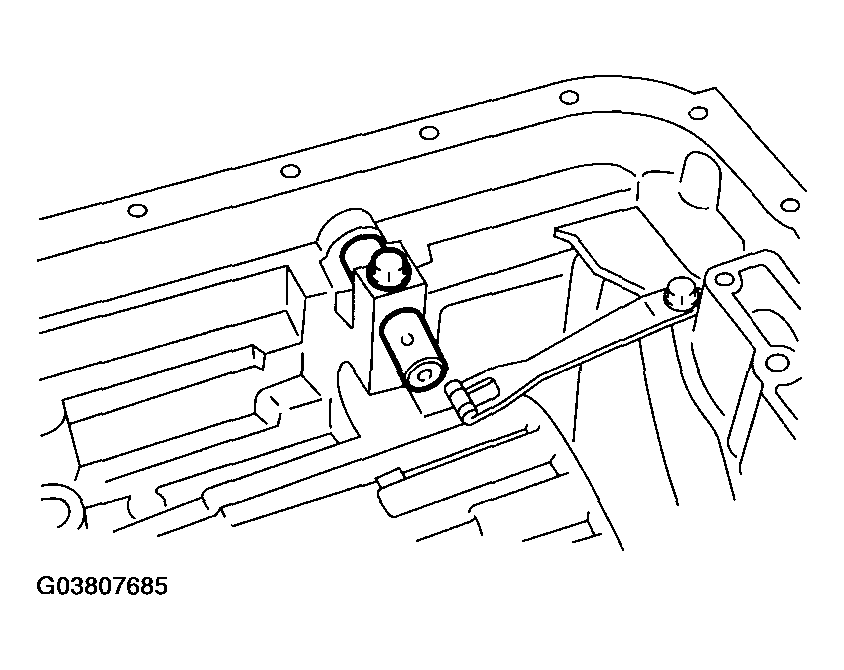

Insert range select lever, and tighten bolt.
Tightening torque:

6 N.m (0.6 kgf-m, 4.4 ft-lb)

Fig 2: Inserting Range Select Lever
Courtesy of SUBARU OF AMERICA, INC.

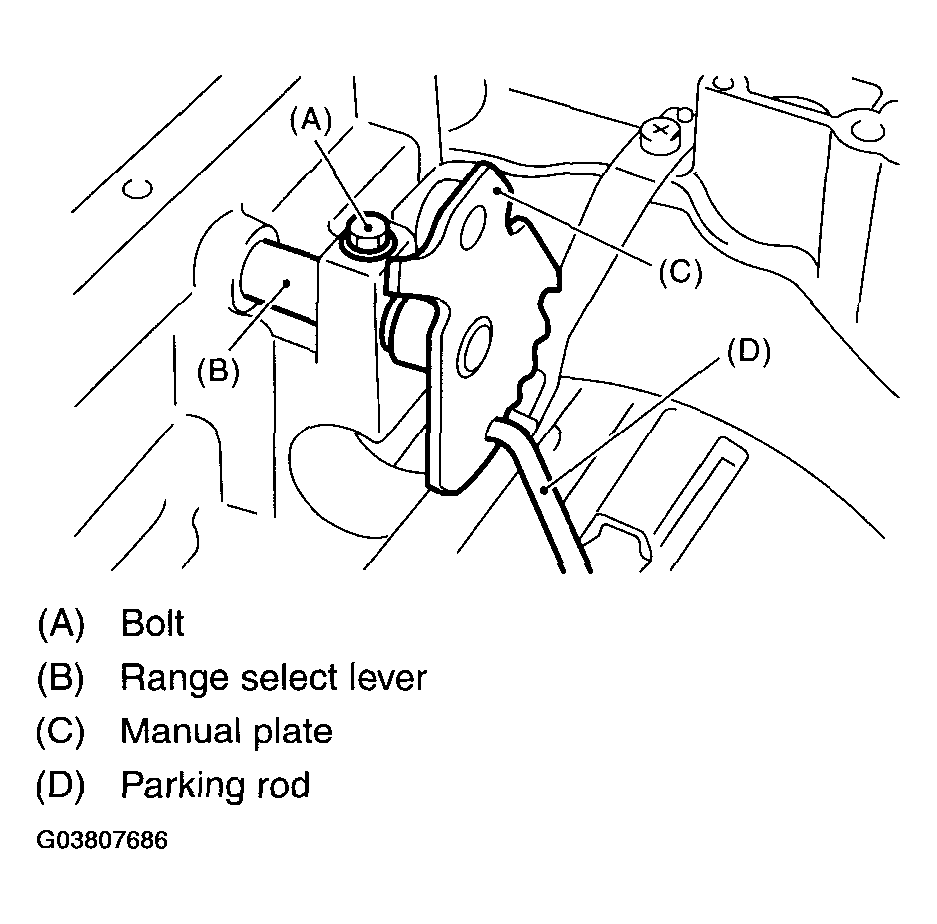

Insert manual plate and parking rod.

Fig 3: Inserting Manual Plate And Parking Rod
Courtesy of SUBARU OF AMERICA, INC.

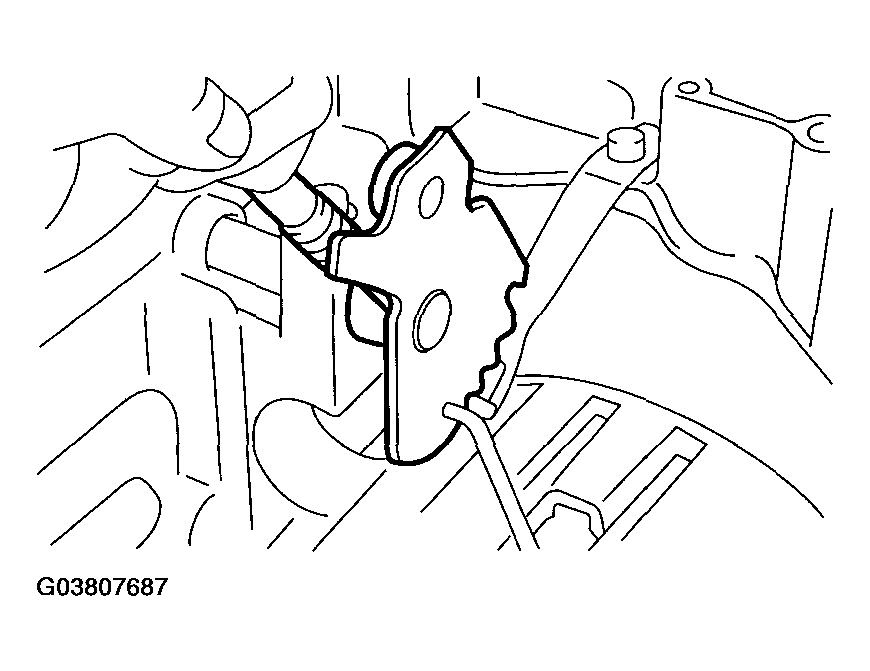

Insert spring pin to manual plate.

Fig 4: Inserting Spring Pin To Manual Plate
Courtesy of SUBARU OF AMERICA, INC.
Install control valve assembly and oil pan. < Ref. to INSTALLATION , Control Valve Body. >
Turn over the transmission case to its original position.
Install pitching stopper bracket.
Tightening torque:

41 N.m (4.2 kgf-m, 30.4 ft-lb)
Install inhibitor switch and adjust the inhibitor switch. < Ref. to INHIBITOR SWITCH . >

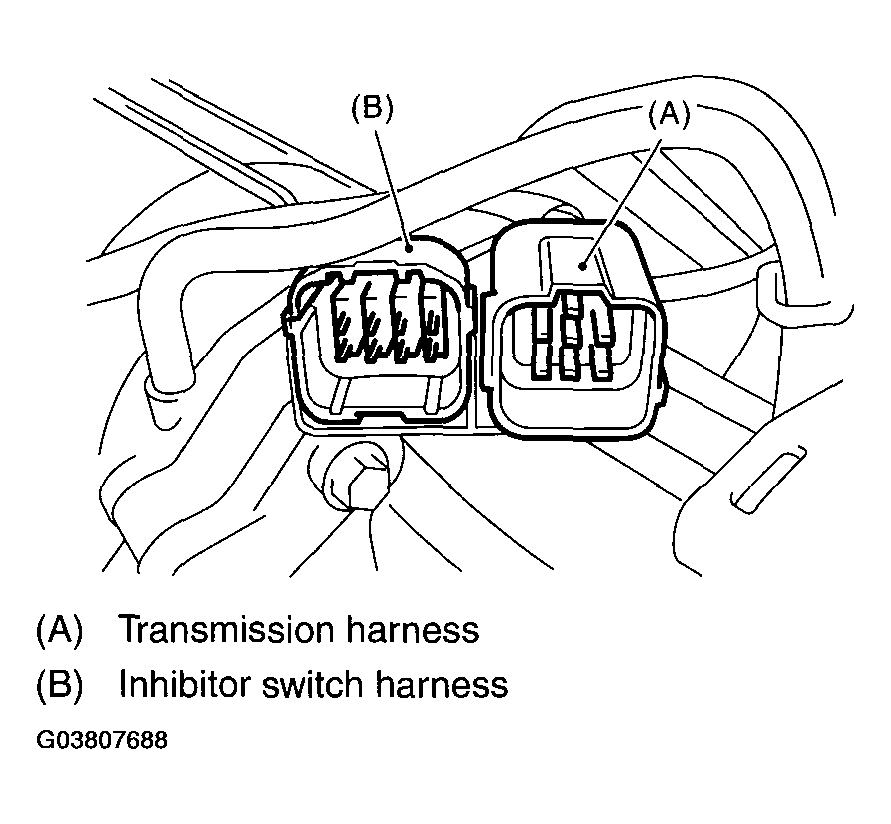

Insert inhibitor switch and transmission connector into stay.

Fig 5: Inserting Inhibitor Switch And Transmission Connector Into Stay
Courtesy of SUBARU OF AMERICA, INC.
Install air breather hose. < Ref. to INSTALLATION , Air Breather Hose. >

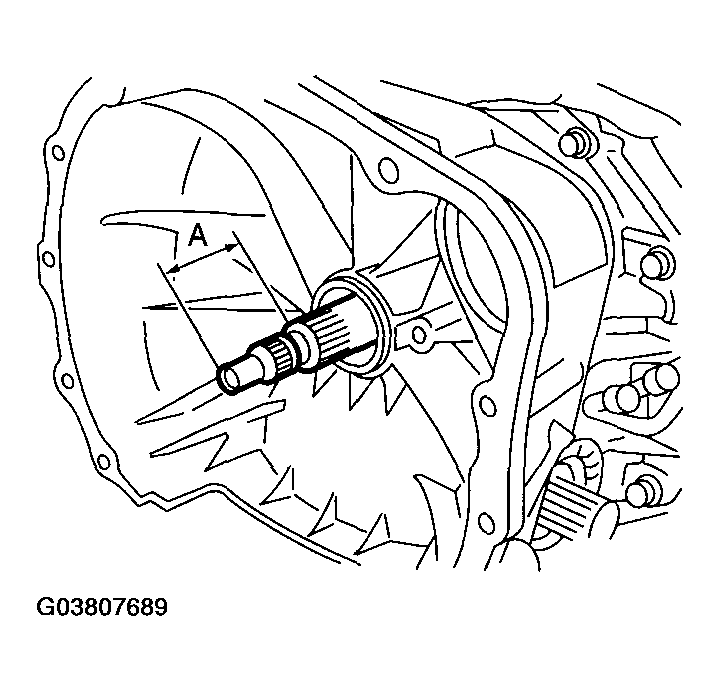

Insert the input shaft while turning lightly by hand and verify the protrusion amount.
Normal protrusion A:

50 - 55 mm (1.97 - 2.17 in)

Fig 6: Identifying Normal Protrusion A
Courtesy of SUBARU OF AMERICA, INC.
Install the torque converter clutch assembly. < Ref. to INSTALLATION , Torque Converter Clutch Assembly. >
Install the transmission assembly to the vehicle. < Ref. to INSTALLATION , Automatic Transmission Assembly. >
