Front Axle: Assembly

1. Assemble the front hub unit bearing. Refer to ASSEMBLY , Front Hub Unit Bearing.
2. Install the front axle housing (a) and front hub unit bearing (c) to the disc brake cover (b) as shown in the figure, and tighten the bolt.

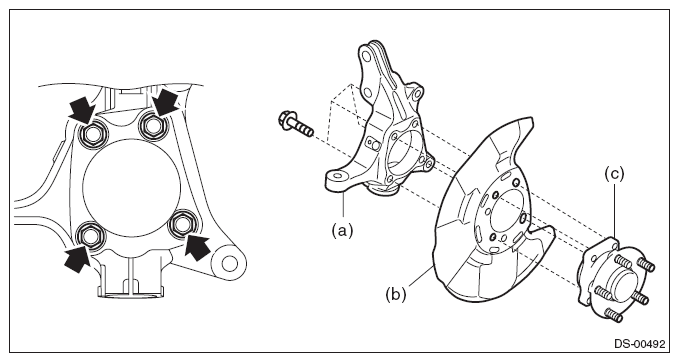

Fig 1: Locating Front Axle Housing Bolts

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

65 N.m (6.63 kgf-m, 47.9 ft-lb)

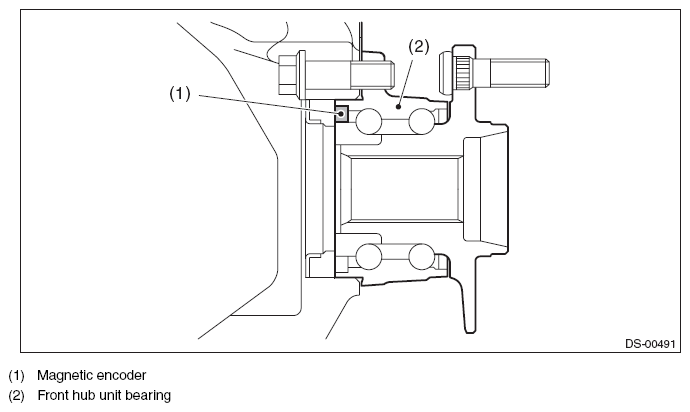

Fig 2: Identifying Front Hub Unit Bearing And Magnetic Encoder

Courtesy of SUBARU OF AMERICA, INC.
