Fluid Pressure Control Cable
- Ensure accelerator cable is adjusted correctly. Accelerator cable should not have any end play at throttle body with accelerator at idle position and engine off.

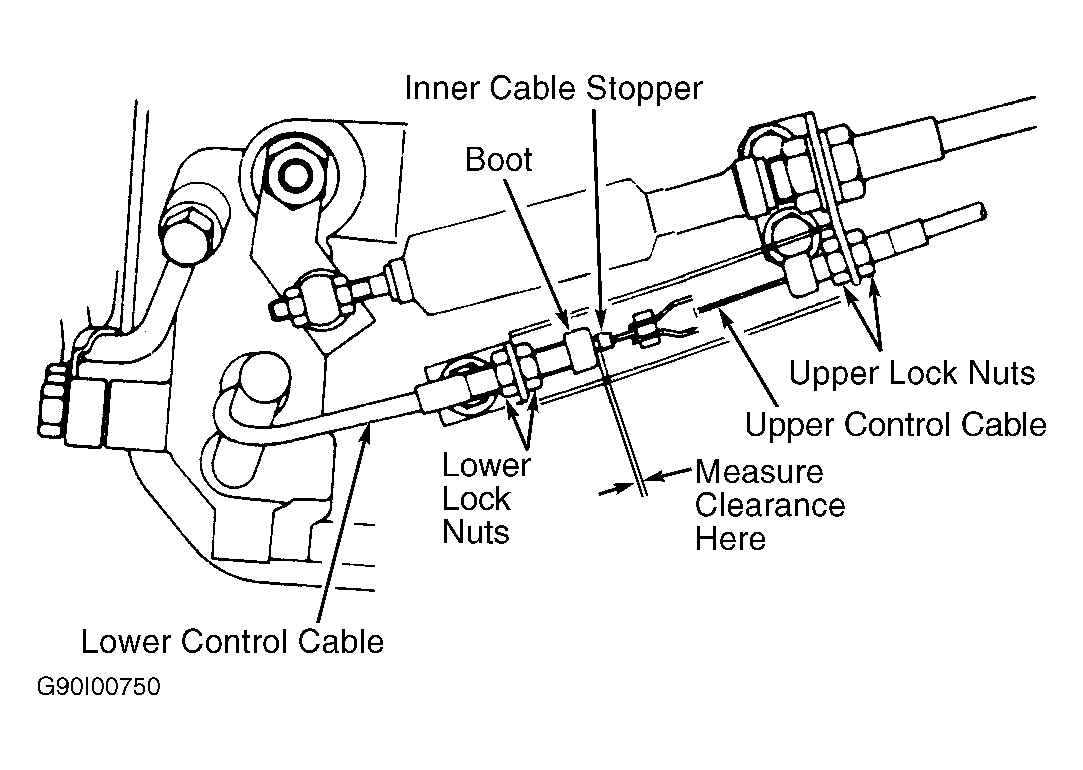

- Warm engine to normal operating temperature. Accelerator must be in idle position. Remove fluid pressure cable cover. Check boot-to-inner cable stopper clearance. See Fig 1 .
- If clearance is greater than .02" (.5 mm), loosen upper lock nuts and adjust fluid pressure cable length. If necessary, use lower lock nuts to change cable length. See Fig 1 . Tighten all lock nuts.
