Control Units

CONTROL UNITS LOCATION

Component Location

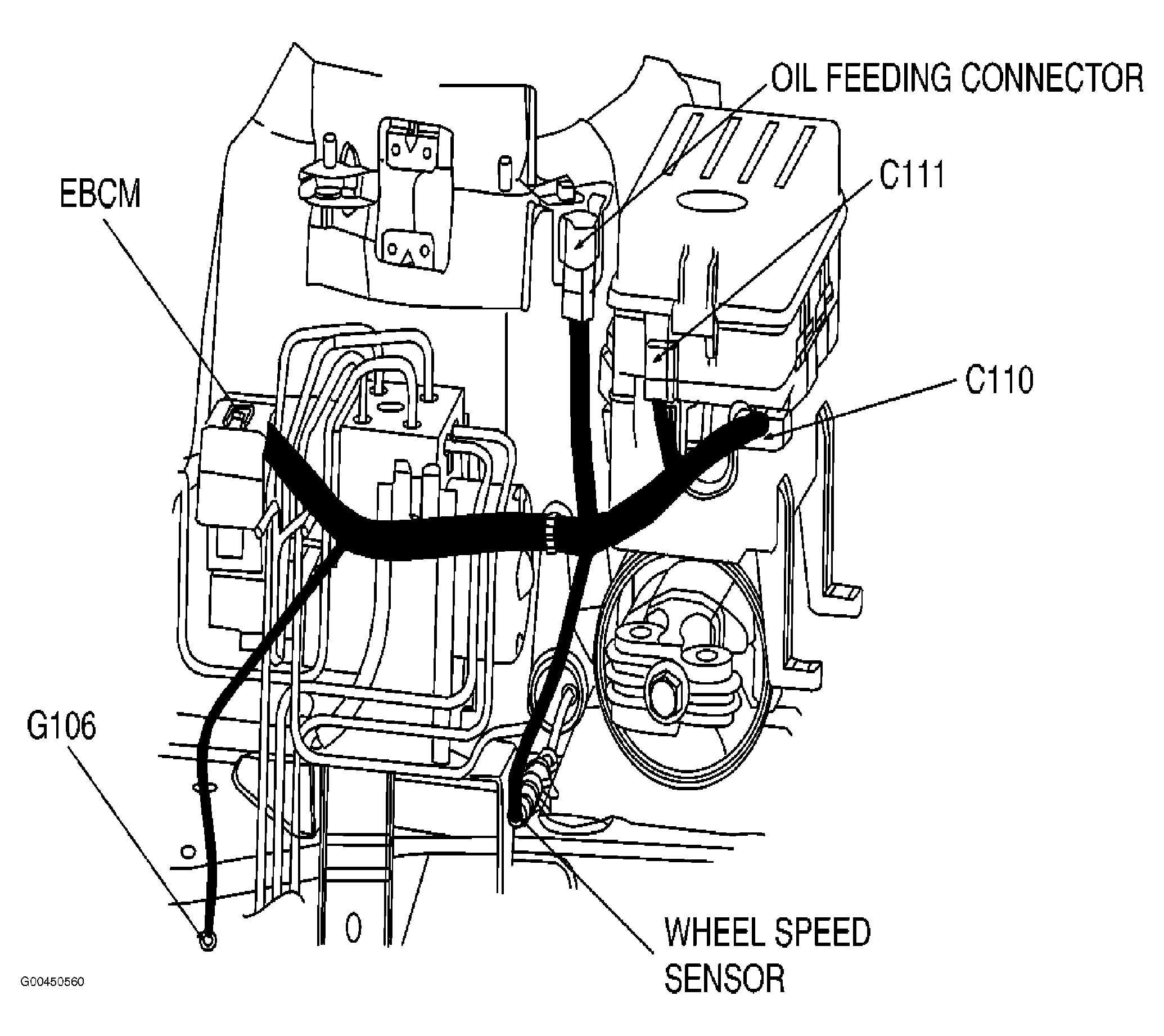

EBCM Left rear corner of engine compartment. See Figure.

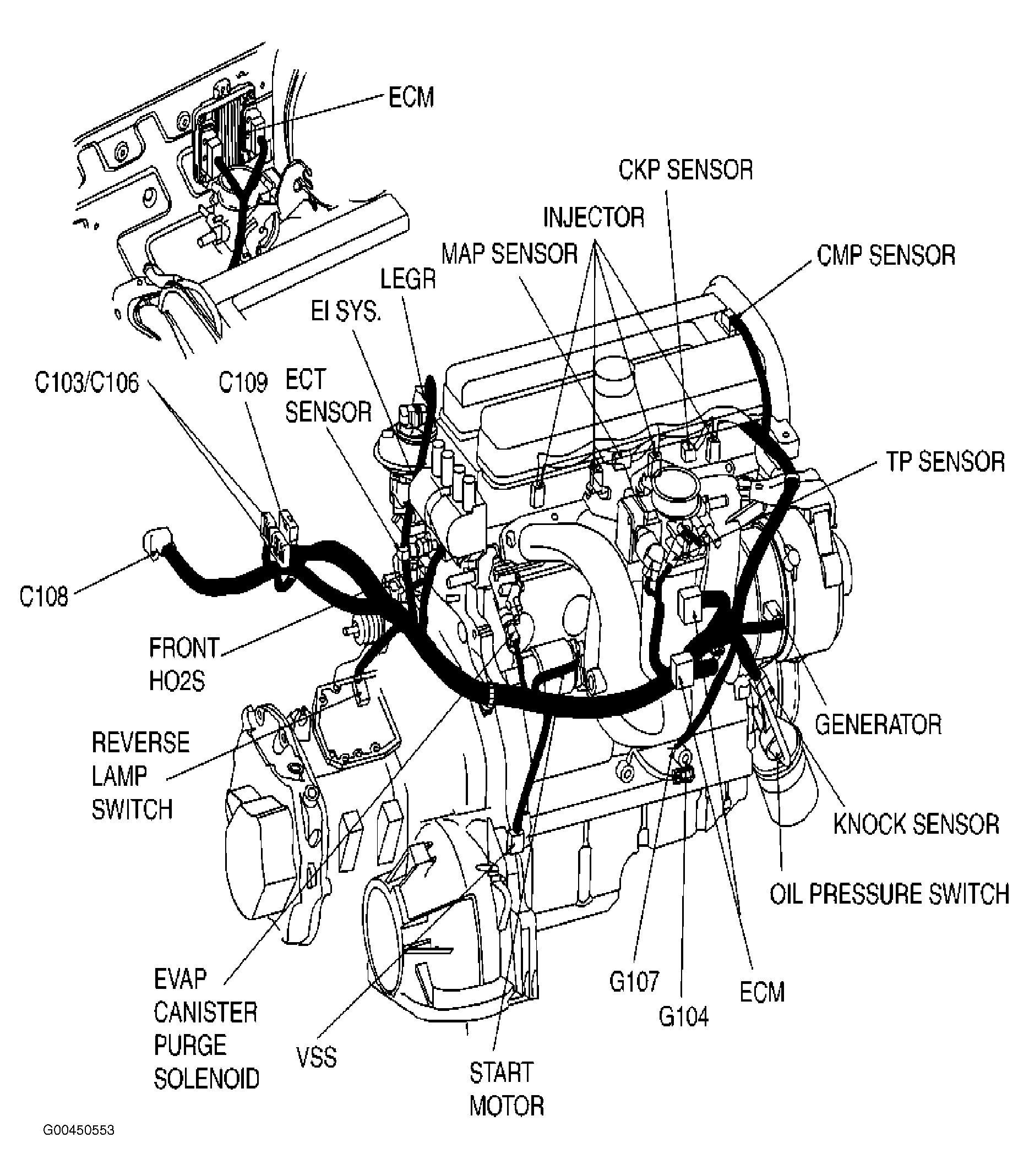

ECM Center rear of engine compartment. See Figure.

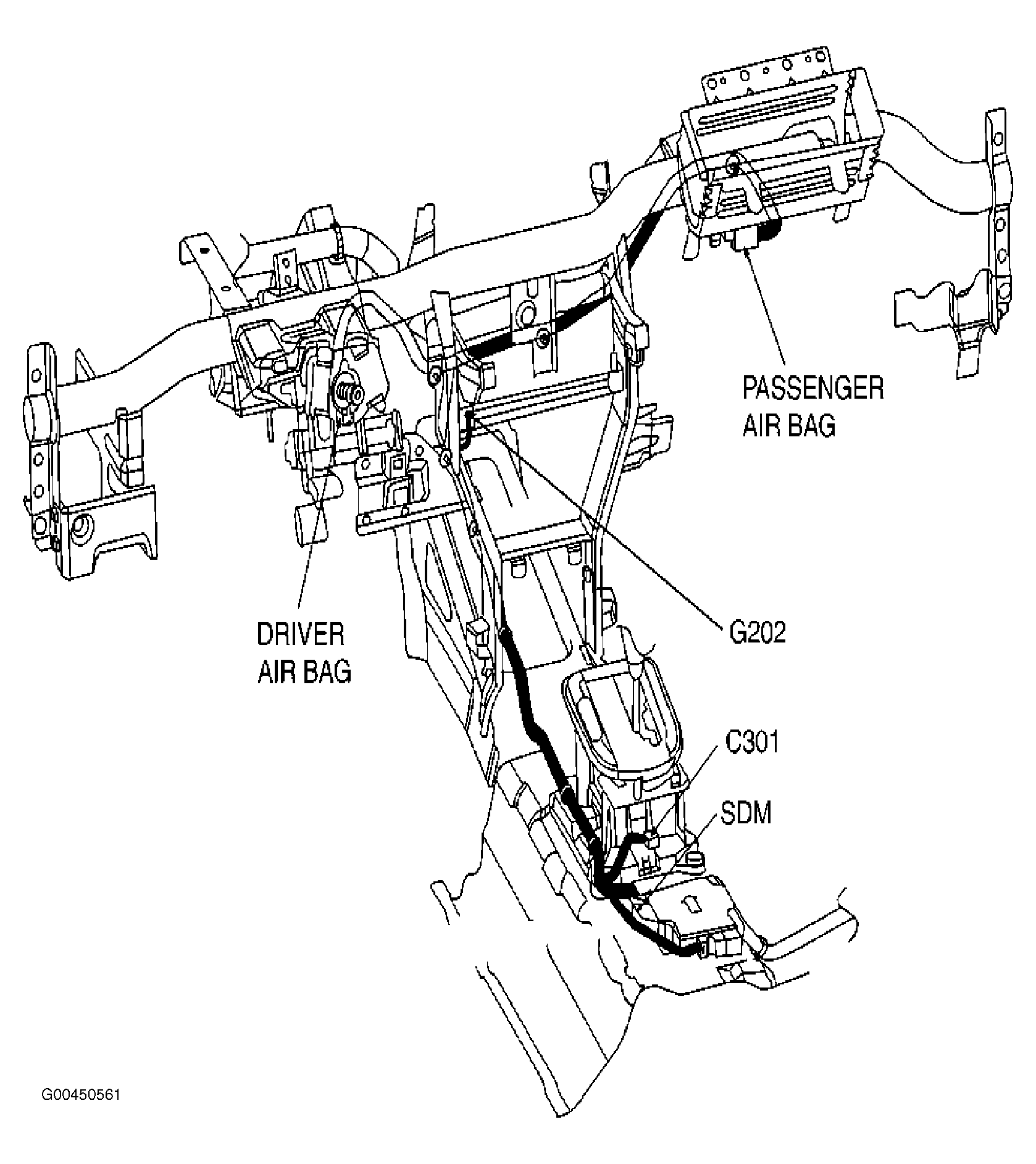

SDM Under rear of center console. See Figure.

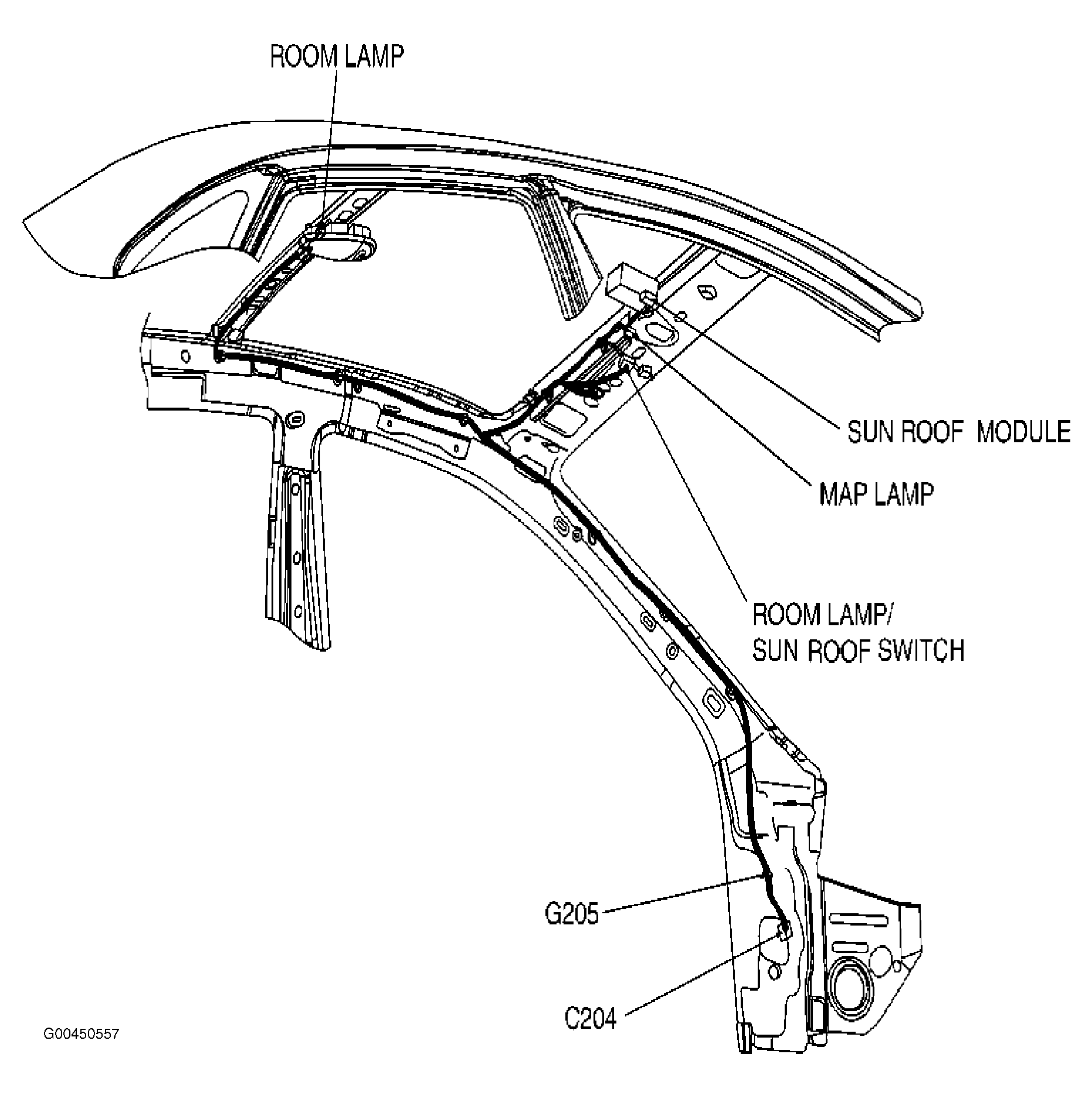

Sun Roof Module Center front of sun roof. See Figure.

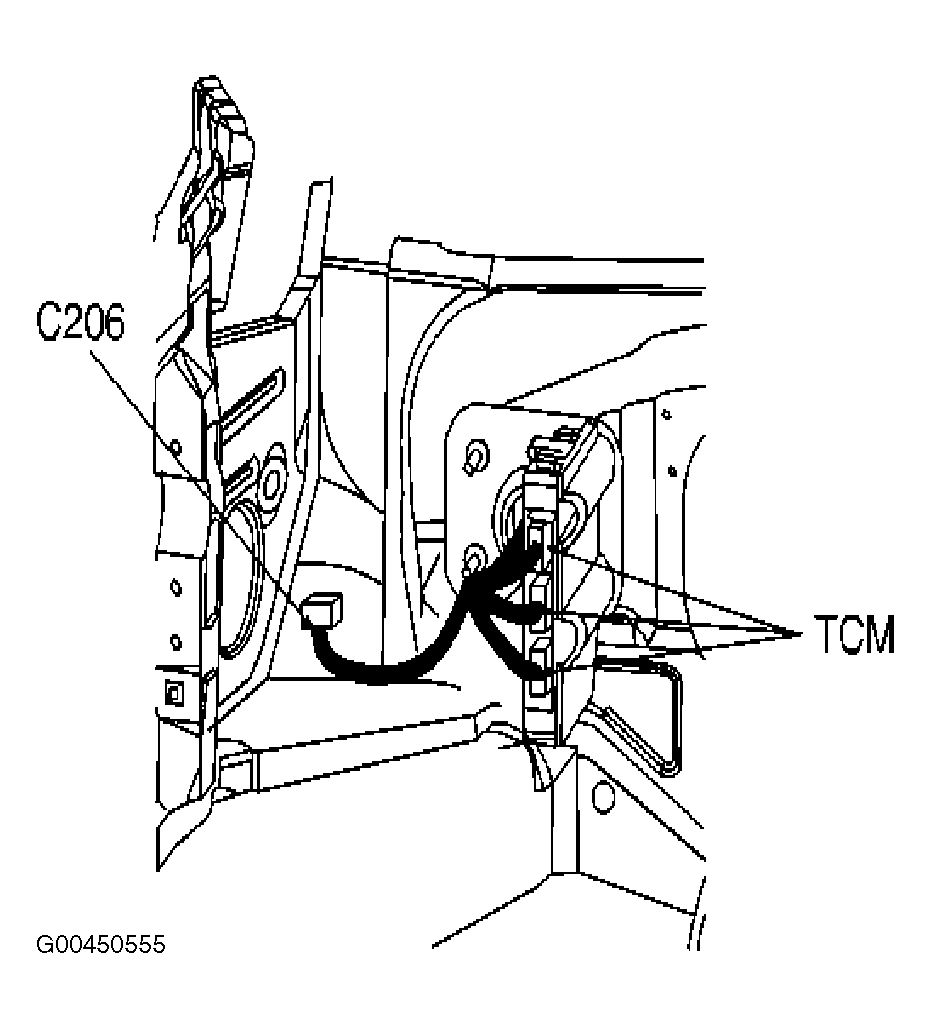

TCM (Transmission Control Module) Under left side of dash. See Figure.

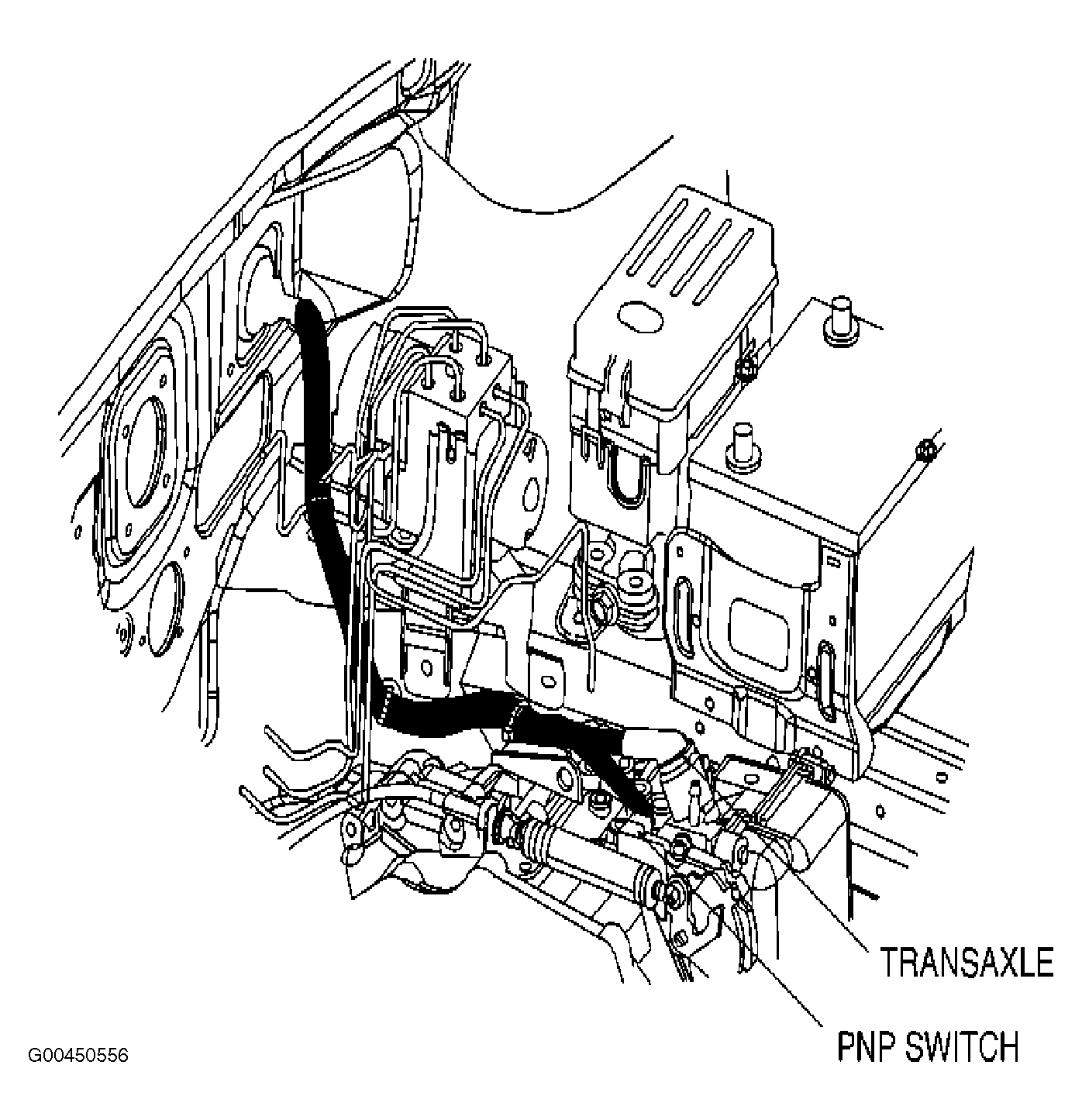

Transaxle Top of transaxle. See Figure.
