Control Units

CONTROL UNITS

Component Component Location

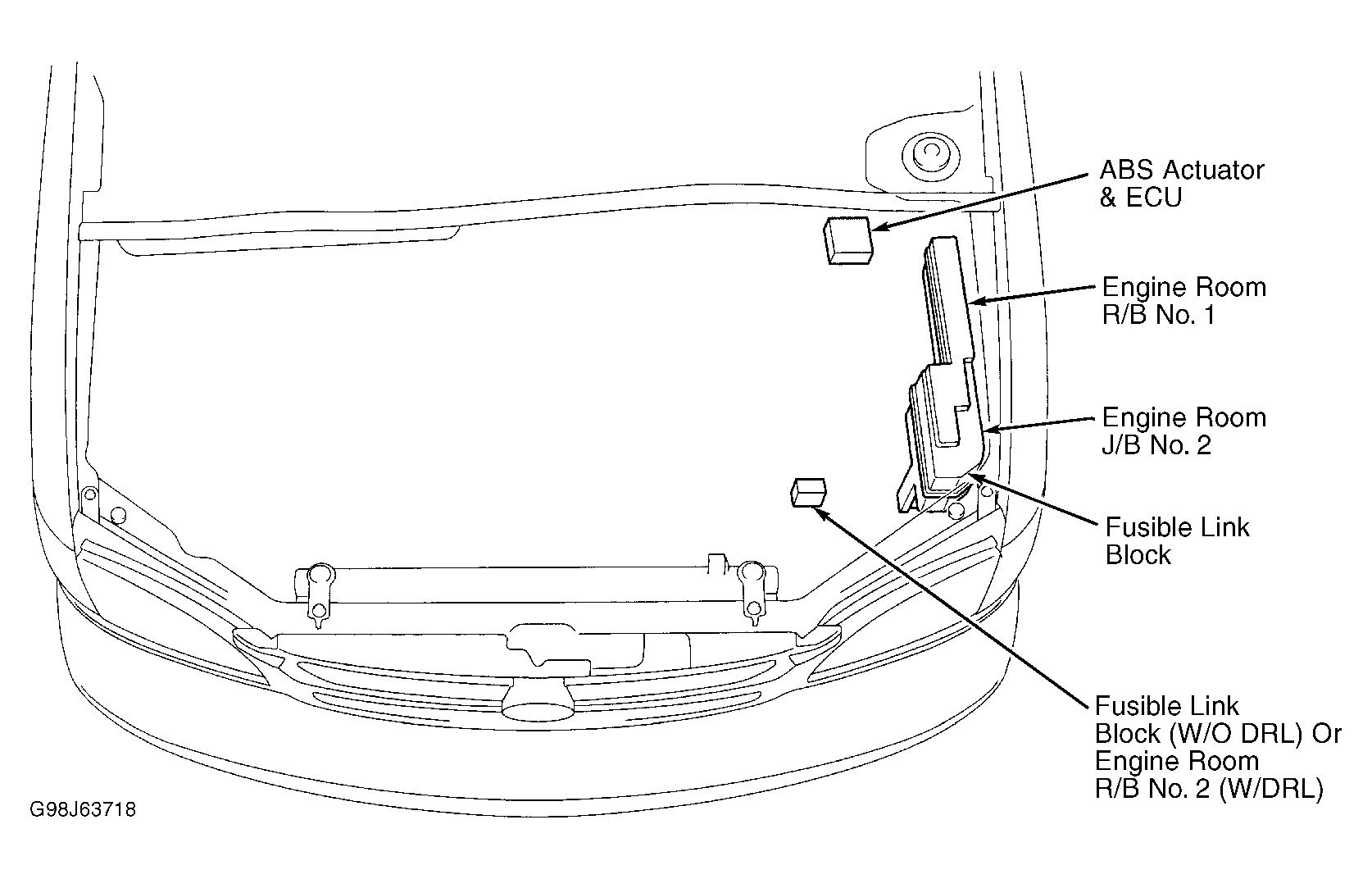

ABS Actuator & ECU On left rear of engine compartment. See Figure.

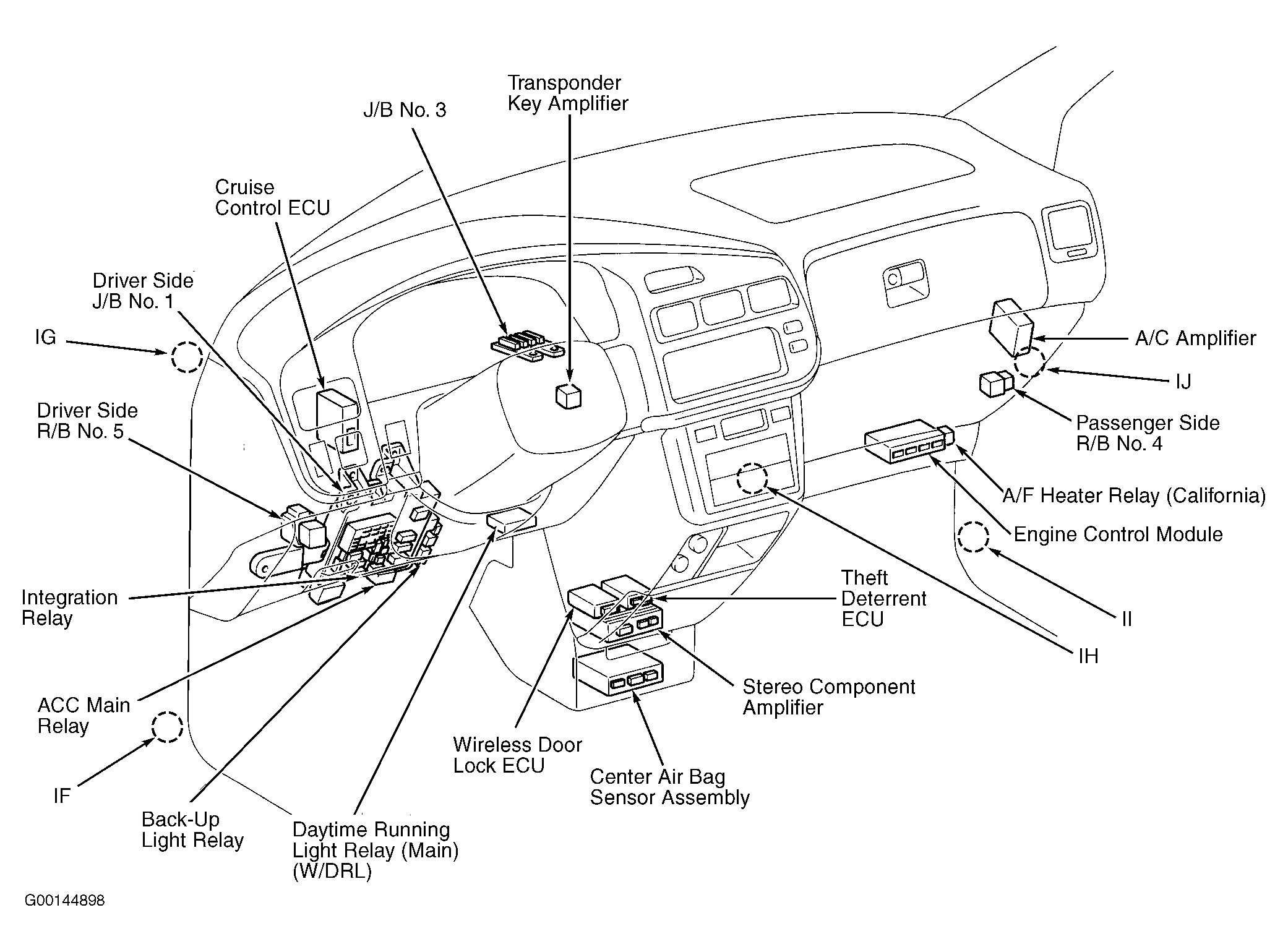

A/C Amplifier Behind right side of dash, above kick panel. See Figure.
Center Air Bag Sensor Assembly Below center of dash. See Figure.
Cruise Control ECU Behind left side of dash. See Figure.
Engine Control Module Behind right side of dash. See Figure.

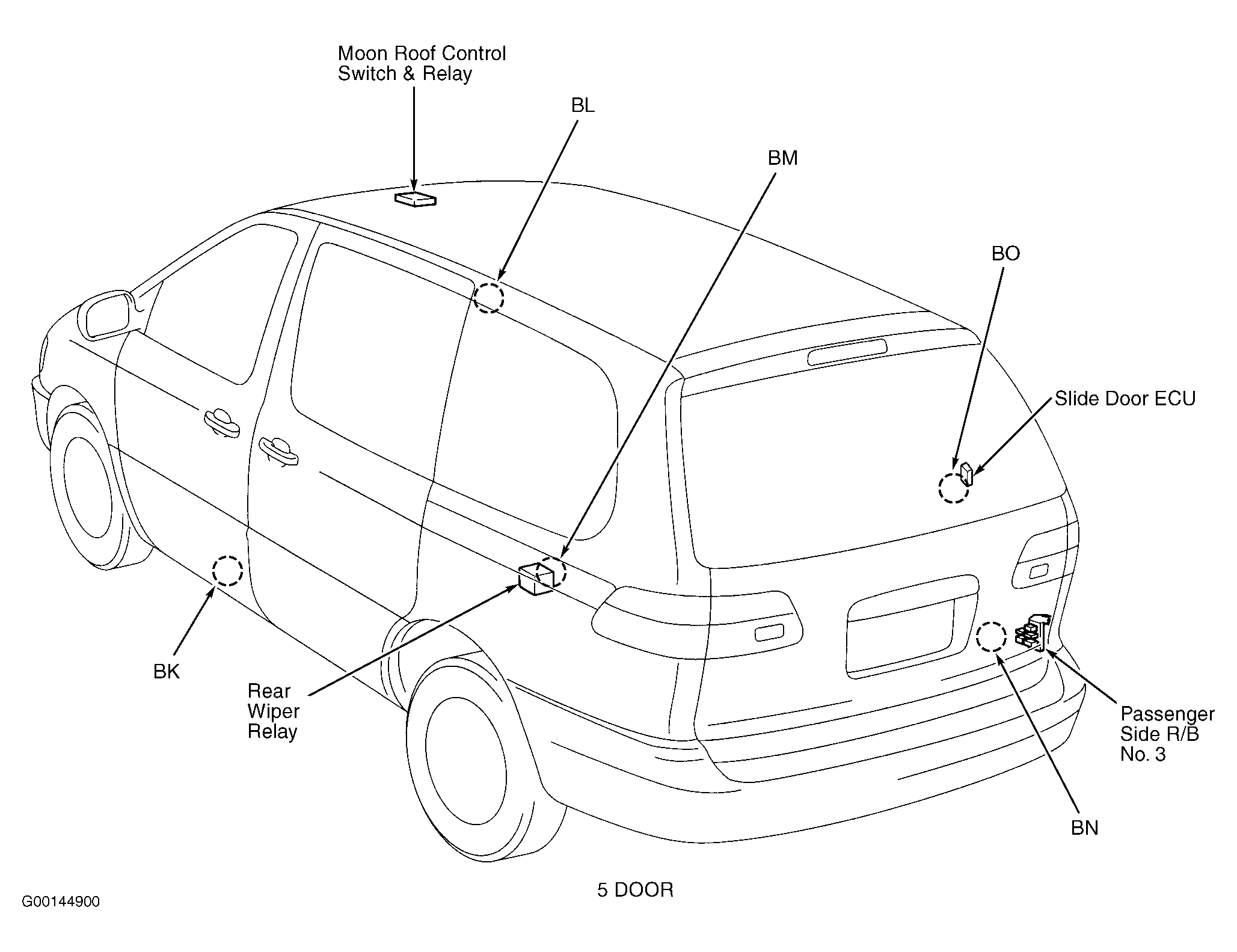

Slide Door ECU On right rear corner of vehicle. See Figure.
Stereo Component Amplifier Behind center of dash. See Figure.
Theft Deterrent ECU Below center of dash. See Figure.
Transponder Key Amplifier Behind left side of dash. See Figure.
Wireless Door Lock ECU Behind center of dash. See Figure.
