Section 374 (Air Conditioning System): Condenser: Installation

WARNING: This page is about a different car, the 2002 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL CONDENSER
1. Push the radiator toward engine.
2. Install the condenser with 2 nuts.

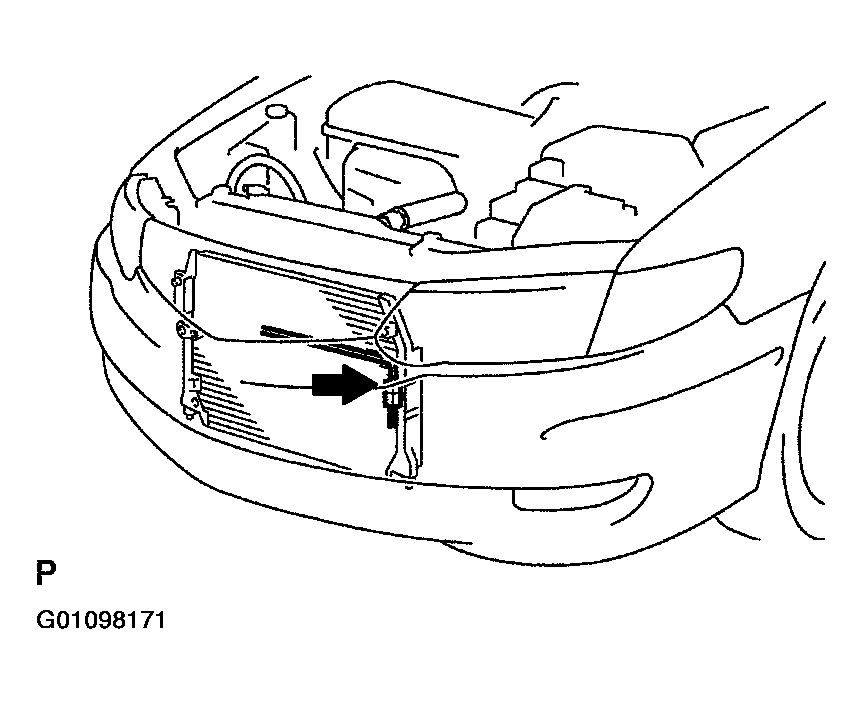

  Fig 1: Installation (1 Of 5)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  If condenser is replaced add compressor oil to the condenser.

  Add 40 cc (1.4 fl.oz.)

  Compressor oil: ND-OIL8 or equivalent
3. Install the 2 upper radiator supports with the 2 bolts.

  Fig 2: Installation (2 Of 5)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the relay block No. 3 with the 2 bolts.

  Fig 3: Installation (3 Of 5)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ELECTRIC COOLING FANS
CONNECT DISCHARGE HOSE
1. Lubricate a new O-ring with compressor oil and install them to the hose.
  Compressor oil: ND-OIL 8 or equivalent
2. Connect the discharge hose to the condenser with the bolt.
  Torque: 10 N.m (100 kgf.Cm, 7 ft.lbf)
3. Connect the hose clamp with the nut.

  Fig 4: Installation (4 Of 5)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL LIQUID TUBE
1. Lubricate a new O-rings with compressor oil and install them to the tubes.
  Compressor oil: ND-OIL 8 or equivalent
2. Install the liquid tube and tighten the nut.
  Torque: 14 N.m (140 kgf.Cm, 10 ft.lbf)

  Fig 5: Installation (5 Of 5)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL RECEIVER. SEE INSTALLATION .
CHARGE SYSTEM WITH REFRIGERANT
1. Evacuate air from refrigeration system.
2. Charge system with refrigerant.
Specified amount: 800 +/- 50 g (28.22 +/- 1.76 oz.)
INSPECT FOR LEAKAGE OF REFRIGERANT
Using a gas leak detector, check for leakage of refrigerant.

If there is leakage, check the tightening torque at the joints.
