Inspection Procedure

  1. CHECK SMART DOOR LOCK AND UNLOCK OPERATION
    1. Check that the smart door lock and unlock function operates normally.

      OK: Smart door lock and unlock function operates normally.

    1. NG: OTHER PROBLEM (See  PROBLEM SYMPTOMS TABLE   )
    2. OK: GO TO NEXT STEP
  2. READ DATA LIST (BACK DOOR LOCK SWITCH)
    1. Connect the hand-held tester (with CAN VIM) to the DLC3.
    2. Turn the power switch from OFF to ON (IG) and press the hand-held tester main switch ON.
    3. Select the item below in the DATA LIST and read the displays on the hand-held tester.

      Smart key ECU:

      DATA LIST (SMART KEY ECU)

      Item Measurement/Display (Range) Normal Condition Diagnostic Note
      TR/B-DOOR LOCK Trunk/Back-door lock switch/ON or OFF ON: Back door lock switch is pushed OFF: Back door lock switch is not pushed

      OK: ON (back door lock is pushed) appears on the screen.

    1. NG: Go to STEP3
    2. OK: GO TO NEXT STEP

      Go to STEP  5

  3. INSPECT BACK DOOR LOCK SWITCH (See  INSPECTION   )
    1. NG: REPLACE BACK DOOR LOCK
    2. OK: GO TO NEXT STEP
  4. CHECK WIRE HARNESS (SMART KEY ECU ASSY - BACK DOOR LOCK SWITCH AND BODY GROUND)
    1. Disconnect the S11 ECU connector.
    2. Disconnect the L4 switch connector.
    3. Measure the resistance of the wire harness side connectors.

      Standard:

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Specified Condition
      S11-8 (TSW6)-L4-3 Below 1 Ω
      L4-4 - Body ground Below 1 Ω

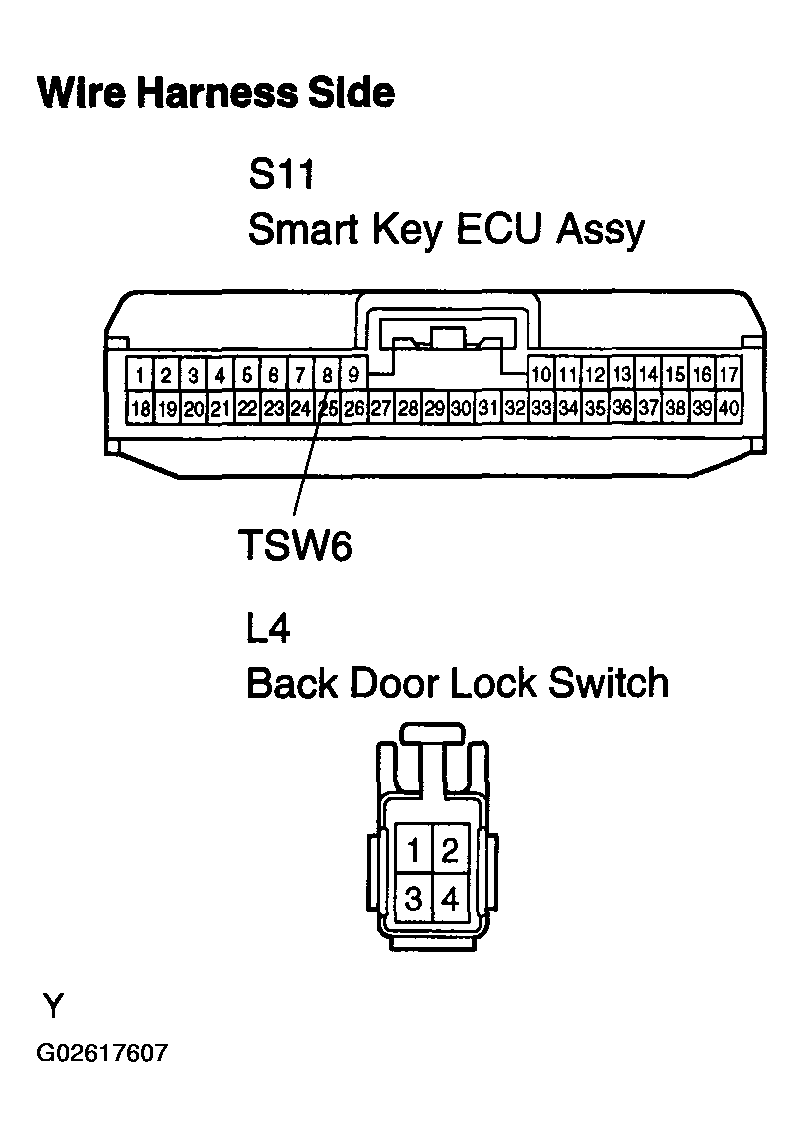

      Fig 1: Identifying Wire Harness (Smart Key ECU Assembly - Back Door Lock Switch And Body Ground)
      G02617607Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
    2. OK: GO TO NEXT STEP
  5. INSPECT ELECTRICAL KEY ANTENNA (REAR) (See  INSPECTION   )
    1. NG: REPLACE ELECTRICAL KEY ANTENNA (REAR)
    2. OK: GO TO NEXT STEP
  6. CHECK WIRE HARNESS (LUGGAGE ELECTRICAL KEY OSCILLATOR (OUTER) - ELECTRICAL KEY ANTENNA (REAR))
    1. Disconnect the L7 oscillator connector.
    2. Disconnect the E10 ECU connector.
    3. Measure the resistance of the wire harness side connectors.

      Standard:

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Specified Condition
      L7-6 (ANT1)-E10-2 (ANT1) Below 1 Ω
      L7-7 (ANT2)-E10-1 (ANT2) Below 1 Ω

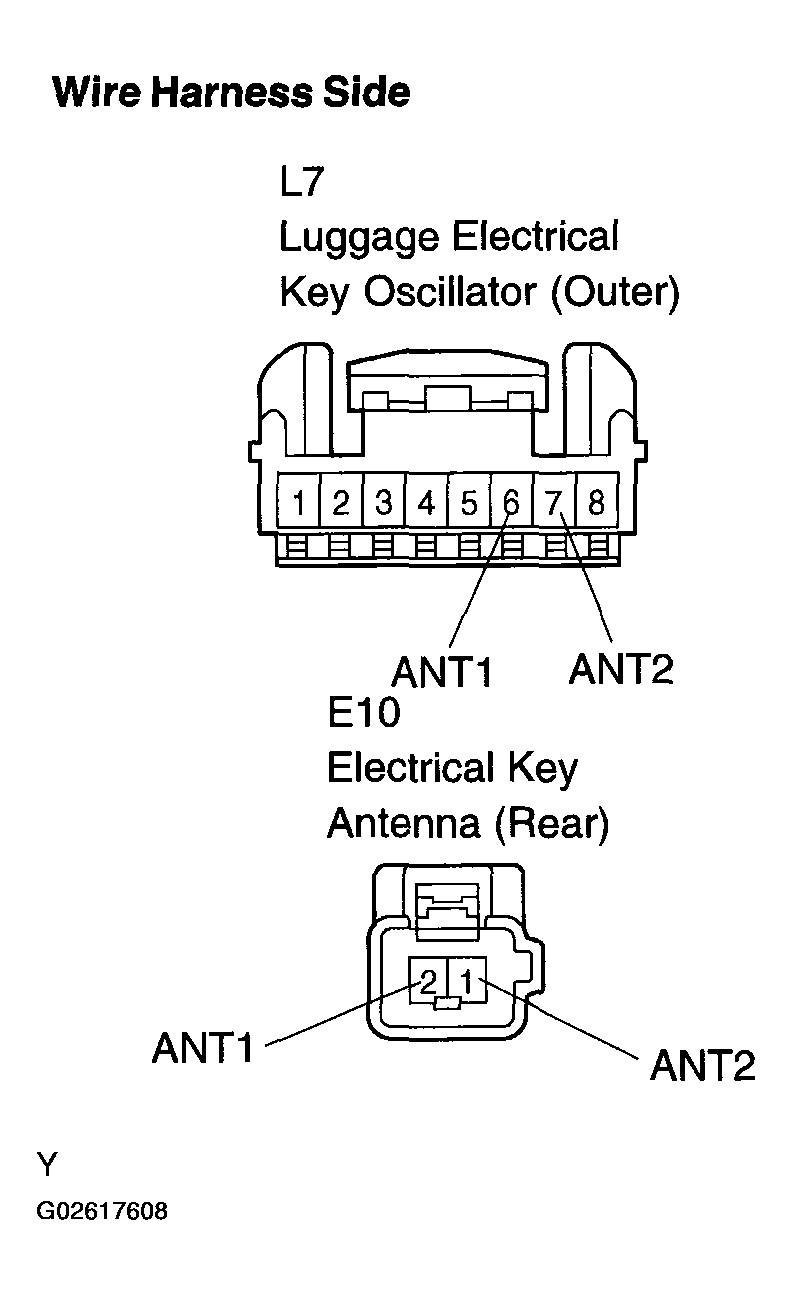

      Fig 2: Identifying Wire Harness (Luggage Electrical Key Oscillator (Outer) - Electrical Key Antenna (Rear))
      G02617608Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
    2. OK: GO TO NEXT STEP
  7. CHECK WIRE HARNESS (LUGGAGE ELECTRICAL KEY OSCILLATOR (OUTER) - BODY GROUND)
    1. Disconnect the L7 oscillator connector.
    2. Measure the resistance and voltage of the wire harness side connector.

      Standard:

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Specified Condition
      L7-1 (+B) - Body ground 10 to 14V
      L7-8 (GND) - Body ground Below 1 Ω
      Fig 3: Identifying Wire Harness (Luggage Electrical Key Oscillator (Outer) - Body Ground)
      G02617609Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
    2. OK: GO TO NEXT STEP
  8. PERFORM ACTIVE TEST (LUGGAGE ELECTRICAL KEY OSCILLATOR (OUTER))
    1. Connect the hand-held tester (with CAN VIM) to the DLC3.
    2. Turn the power switch from OFF to ON (IG) and press the hand-held tester main switch ON.
    3. Select the item below in the ACTIVE TEST and then check that the oscillator (outer) operates.

      Smart key ECU:

      ACTIVE TEST (SMART KEY ECU)

      Item Test Details Diagnostic Note
      BDOOR TRNSMTTR Back door outer transmitter ON/OFF

      OK: When smart key is brought close to back door, oscillator (outer) is turned ON and indicator on smart key illuminates.

    1. NG: Go to STEP9
    2. OK: GO TO NEXT STEP

      REPLACE SMART KEY ECU ASSY

  9. CHECK LUGGAGE ELECTRICAL KEY OSCILLATOR (OUTER)
    1. Remove the oscillator.
    2. Measure the frequency of the connector.

      Standard:

      Fig 4: Tester Connection Specified Condition Chart
      G02617610Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Fig 5: Identifying Luggage Electrical Key Oscillator (Outer)
      G02617611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPLACE LUGGAGE ELECTRICAL KEY OSCILLATOR (OUTER)
    2. OK: GO TO NEXT STEP
  10. CHECK WIRE HARNESS (SMART KEY ECU ASSY - LUGGAGE ELECTRICAL KEY OSCILLATOR (OUTER))
    1. Disconnect the S11 ECU connector.
    2. Disconnect the L7 oscillator connector.
    3. Measure the resistance of the wire harness side connectors.

      Standard:

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Specified Condition
      S11-39 (CLG8) - L7-4 (CLG) Below 1 Ω

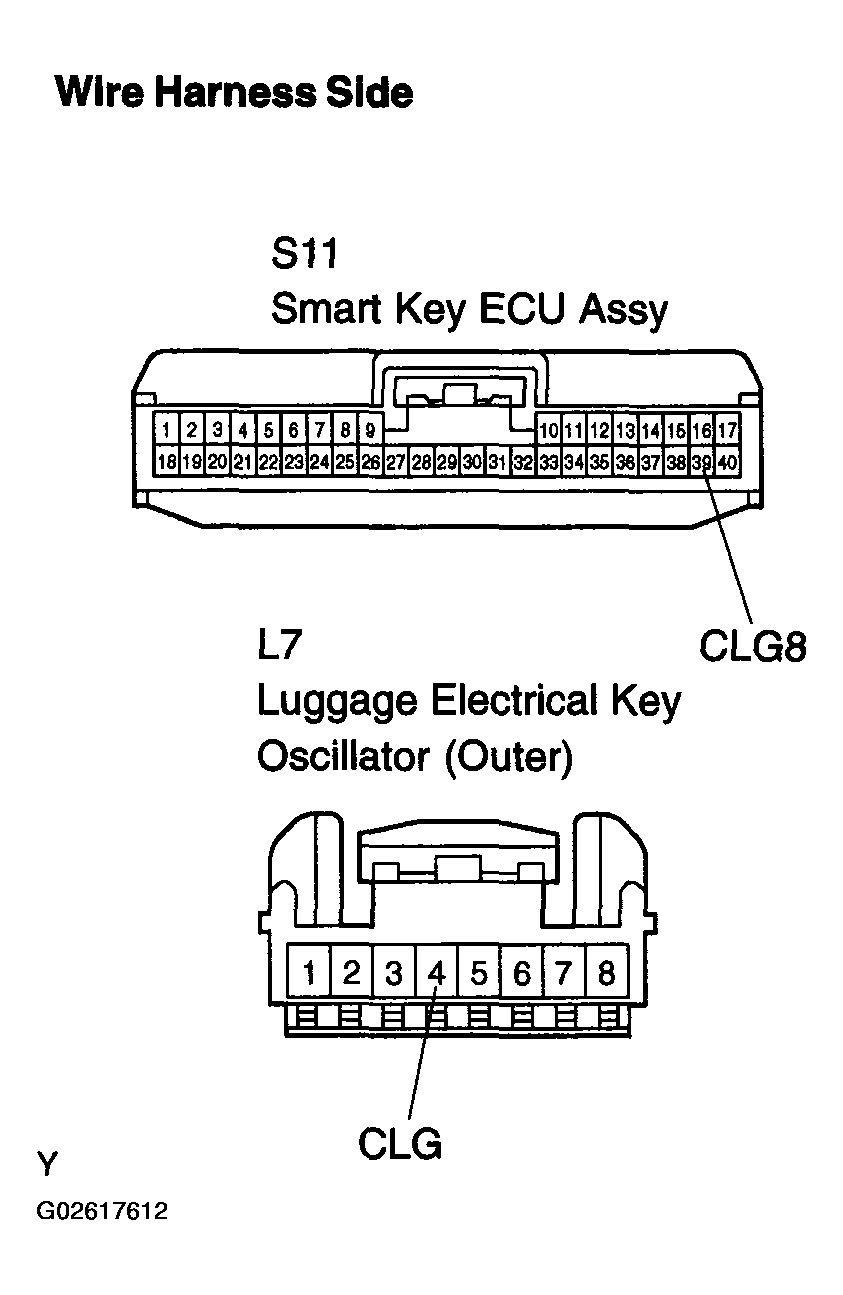

      Fig 6: Identifying Wire Harness (Smart Key ECU Assembly - Luggage Electrical Key Oscillator (Outer))
      G02617612Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
    2. OK: GO TO NEXT STEP

      REPLACE SMART KEY ECU ASSY
