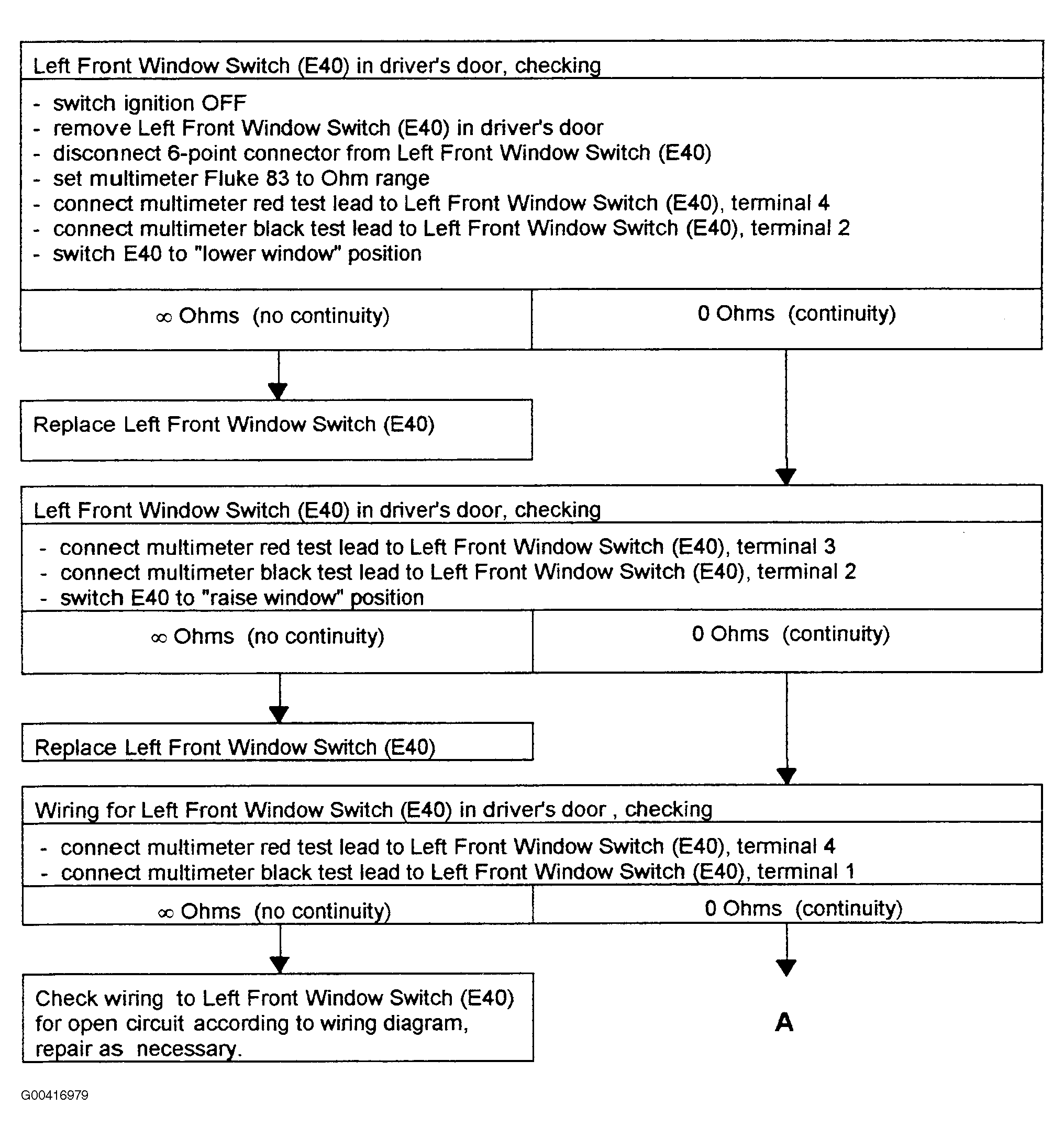

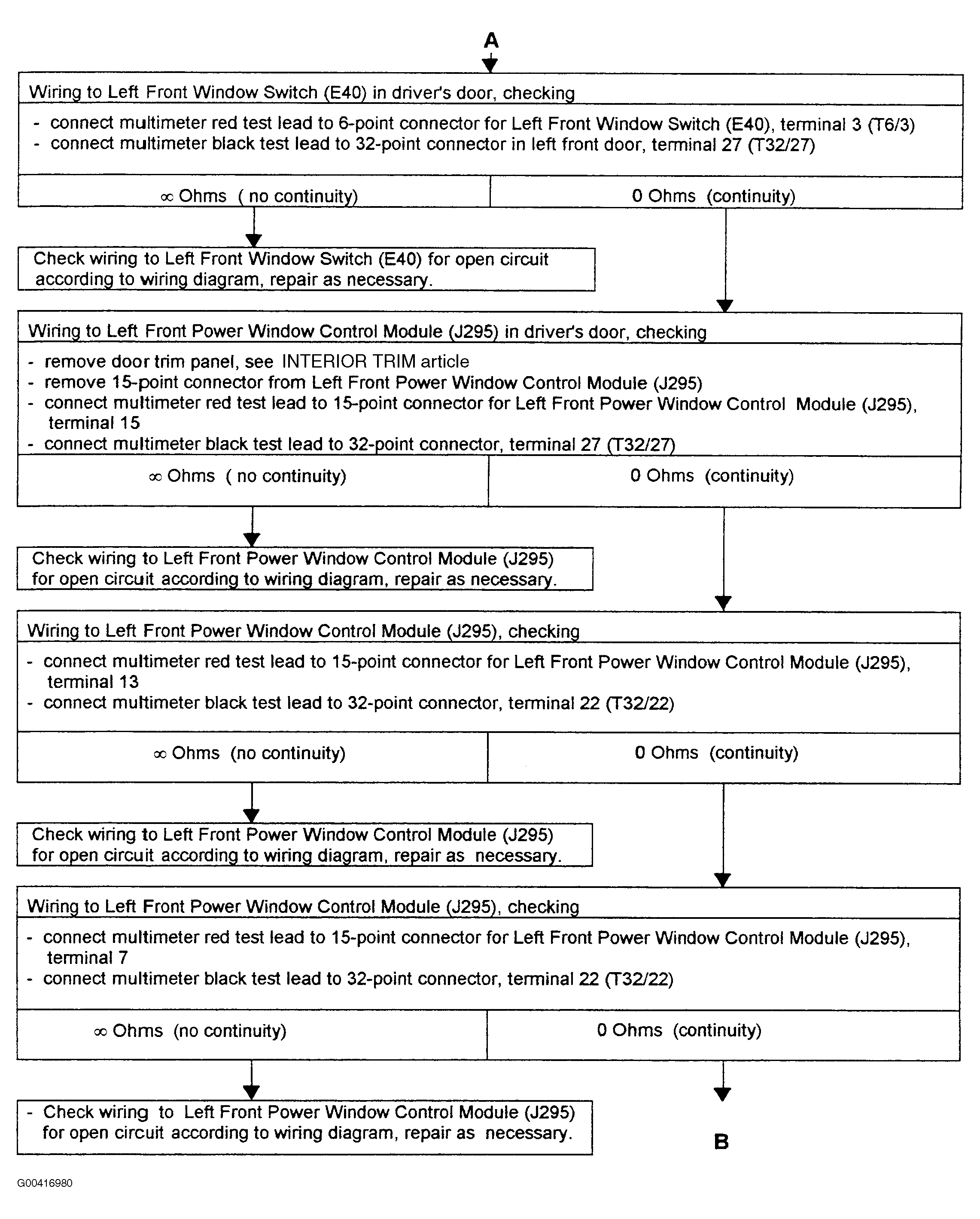

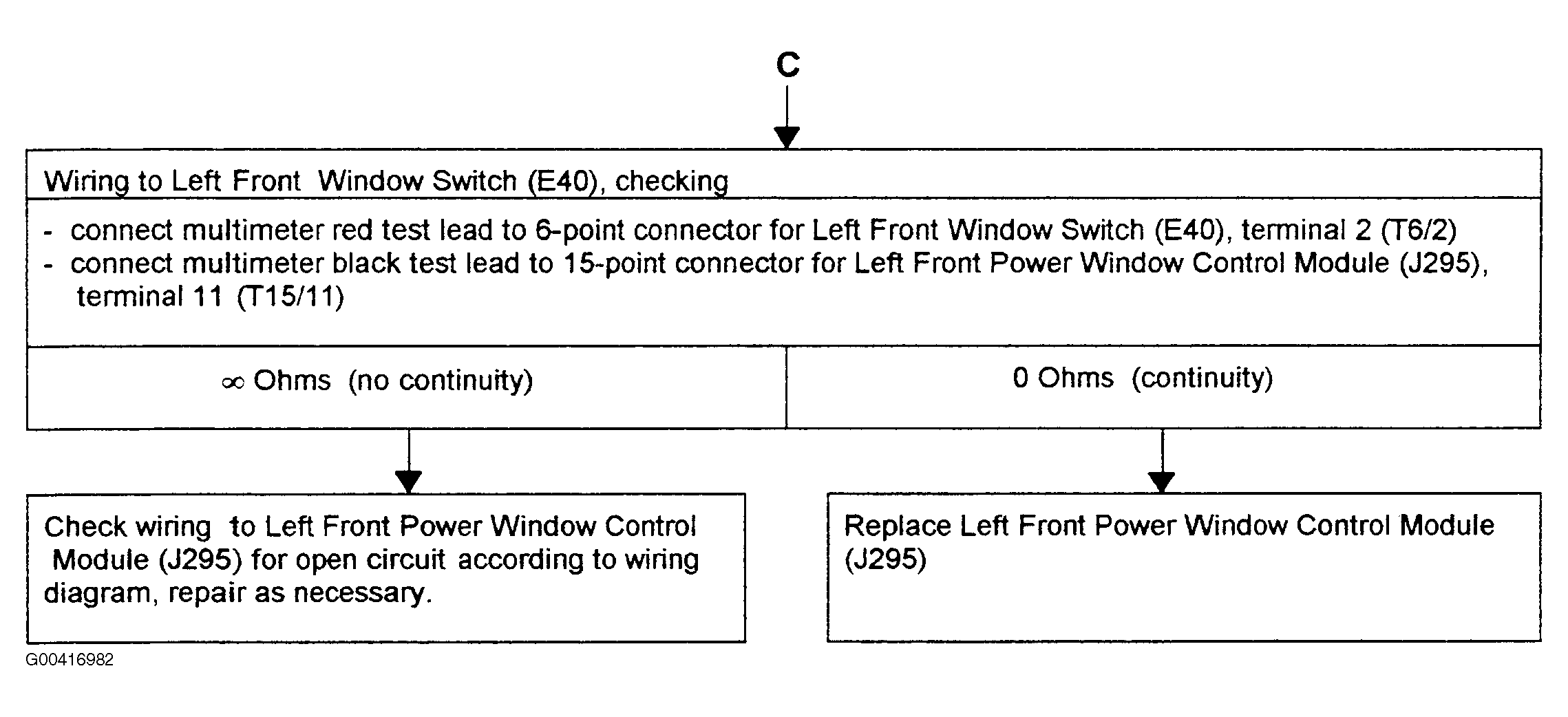

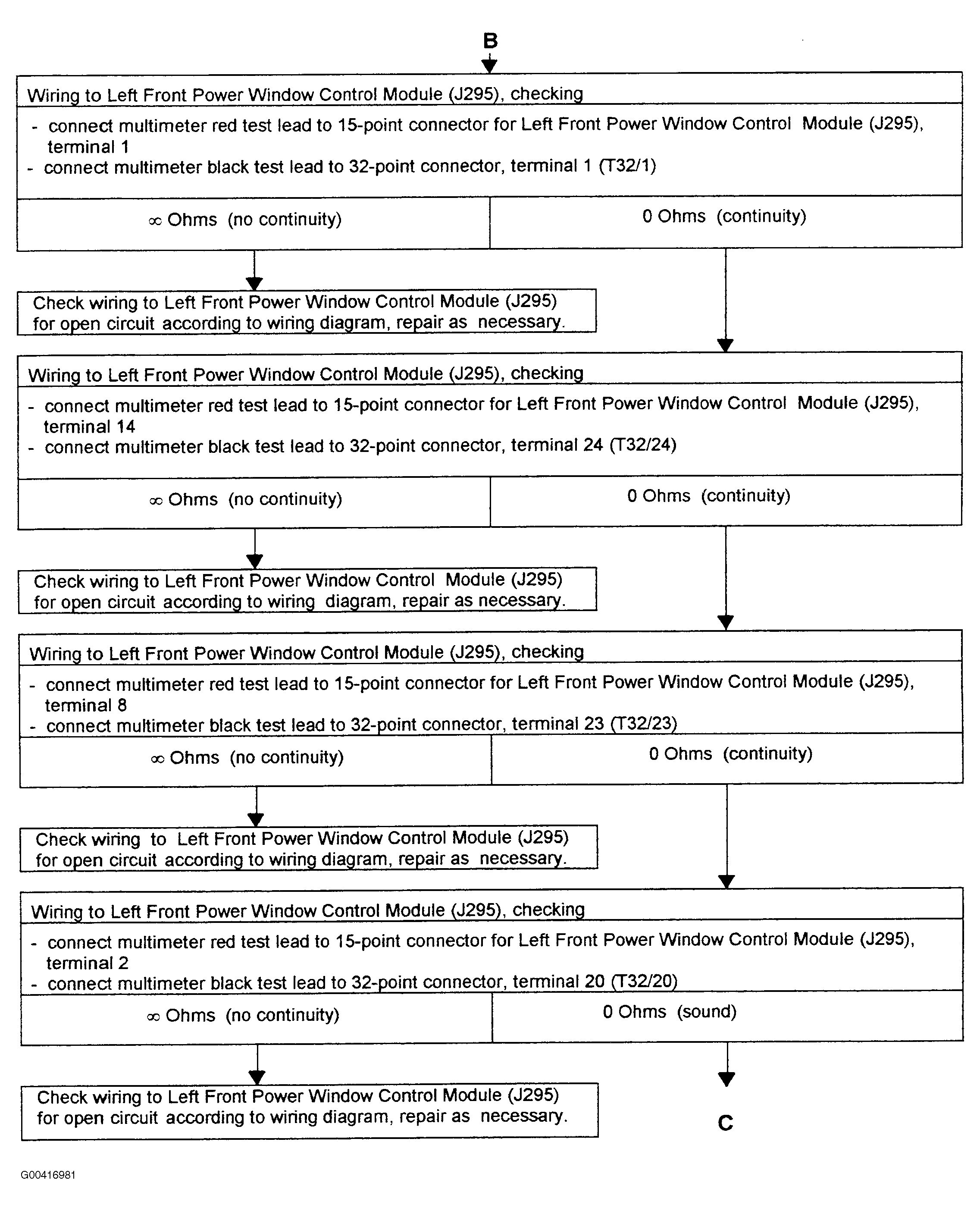

Power Window, Left Front Checking
Test conditions:
- Battery voltage OK
- Circuit breaker S43 OK
- Fuse S14 (10A) on fuse/relay panel OK
- Power window mechanically OK
- Power windows in other doors work OK
- Troubleshooting (Power Windows, Left & Right Front Checking ) completed but problem was not corrected.
NOTE:
- Use connector Test Kit VW 1594 to make all necessary electrical connections.
- For terminal designation of 32-point connector in A-pillar left or right, see COMPONENT LOCATIONS .
