Power Window, Right Front Checking

Test conditions:

Battery voltage OK
Circuit breaker S 43 OK
Fuse S 14 (10A) on fuse/relay panel OK
Power window mechanically OK
All other power windows OK
Troubleshooting (POWER WINDOWS, LEFT & RIGHT FRONT CHECKING ) completed, but problem was not corrected.

NOTE:

Use connector Test Kit VW 1594 to make all necessary electrical connections.
For terminal designation of 32-point connector in A-pillar left or right, see COMPONENT LOCATIONS .

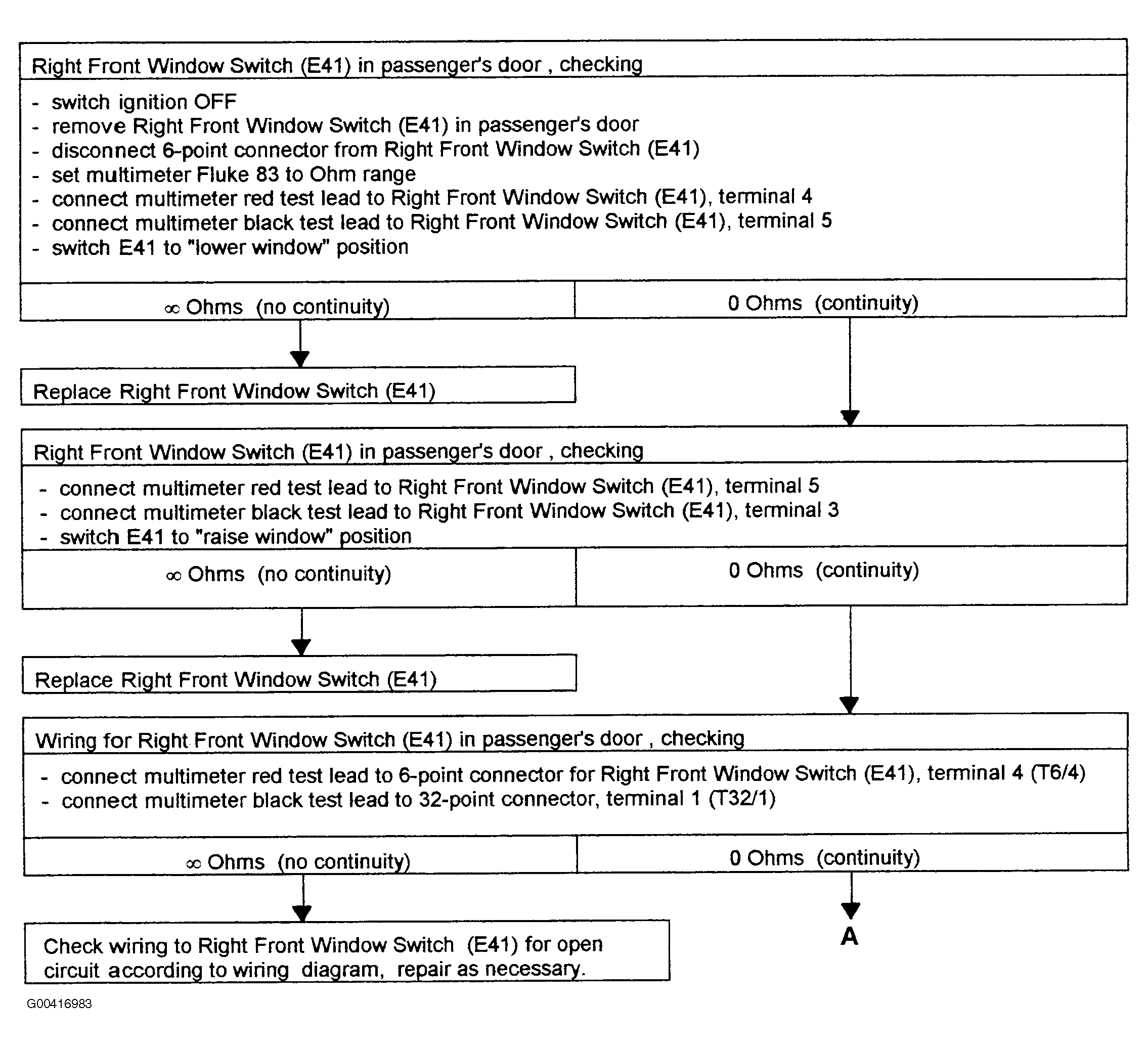

Fig 1: Right Front Power Window Troubleshooting (1 Of 5)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

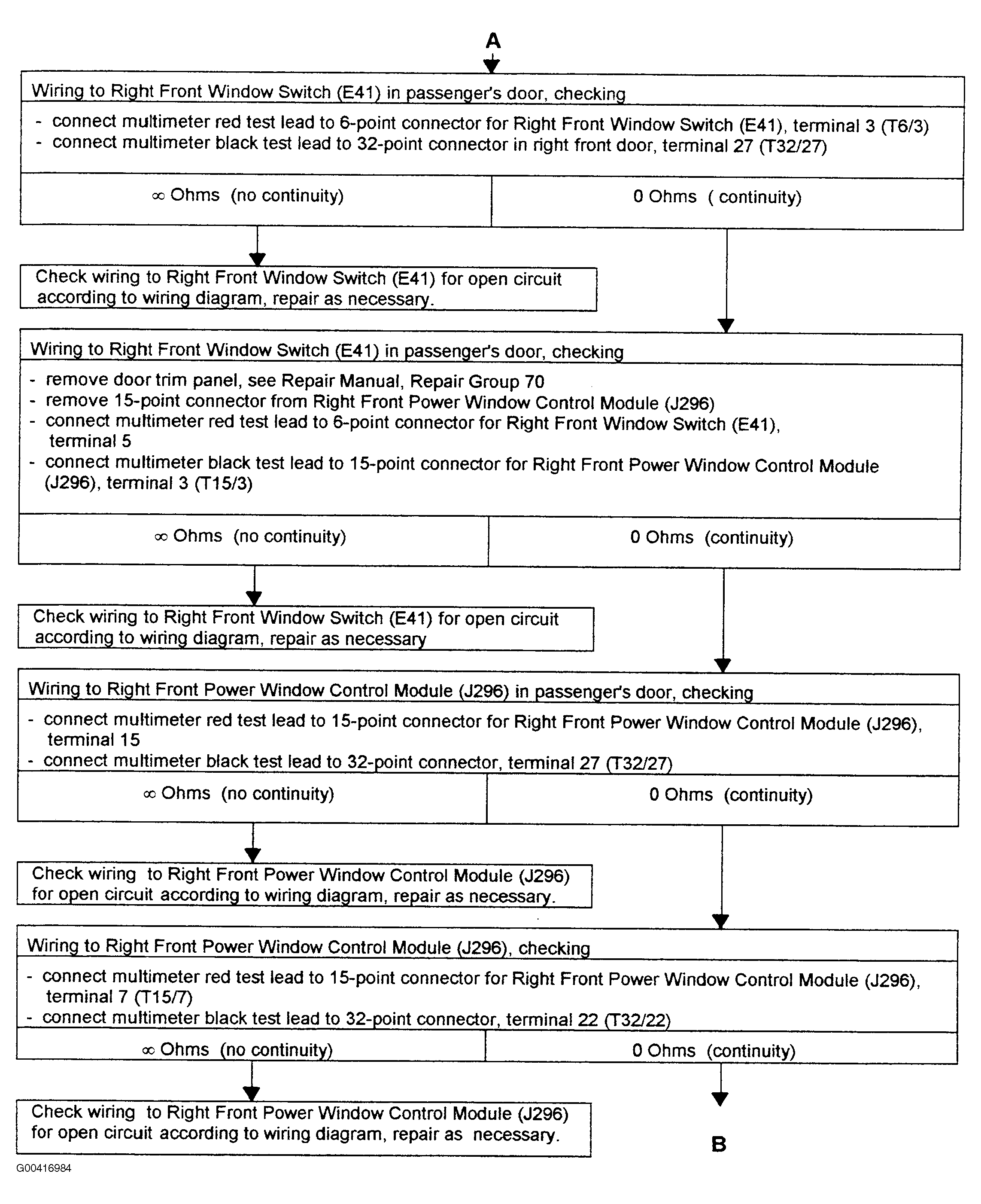

Fig 2: Right Front Power Window Troubleshooting (2 Of 5)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

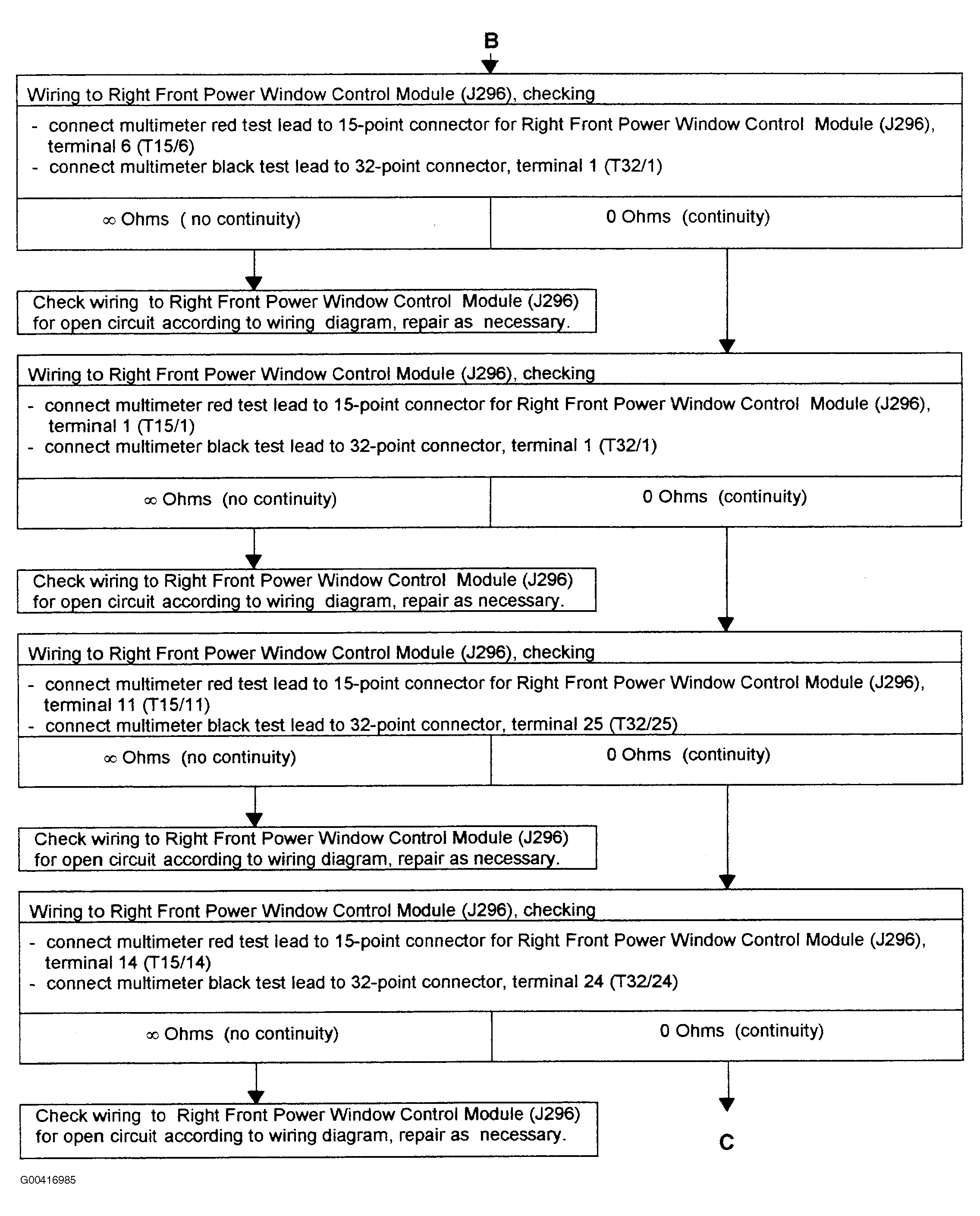

Fig 3: Right Front Power Window Troubleshooting (3 Of 5)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

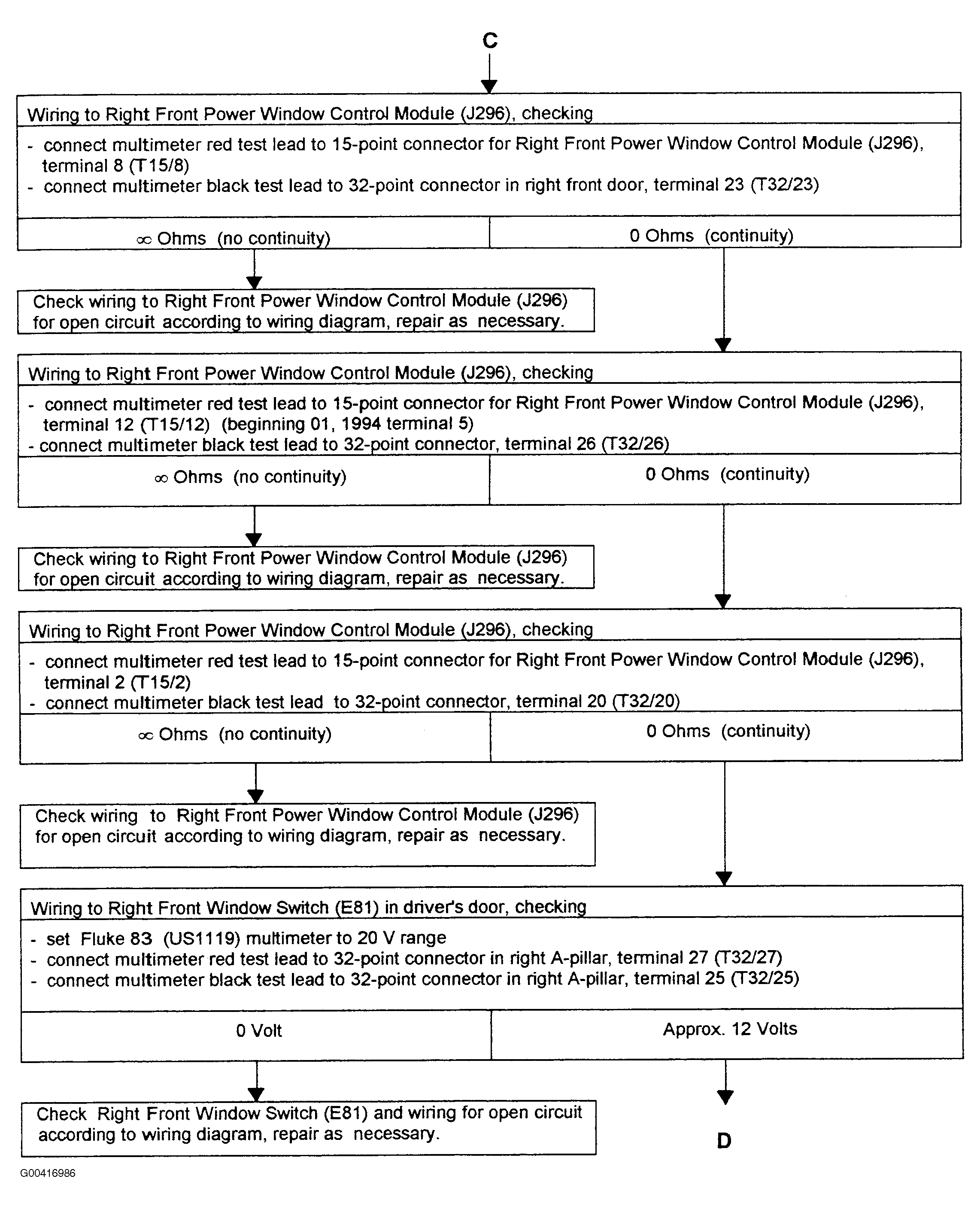

Fig 4: Right Front Power Window Troubleshooting (4 Of 5)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

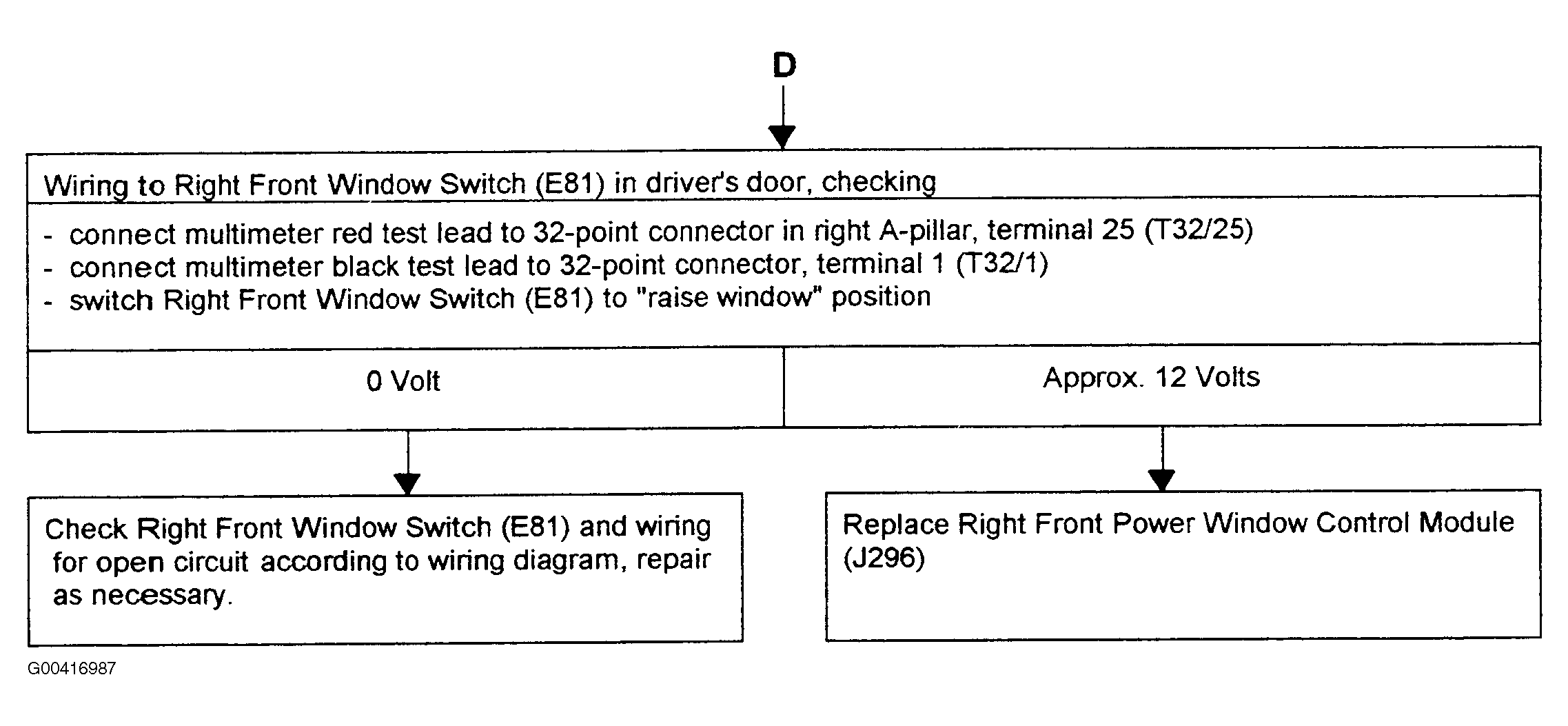

Fig 5: Right Front Power Window Troubleshooting (5 Of 5)

Courtesy of VOLKSWAGEN UNITED STATES, INC.
