Front Axle Differential Lock, Removing

Special tools and workshop equipment required

• Socket And Extended Bit :T10107A
• Torque Wrench 1331 5-50Nm :VAG1331

-- Turn off the ignition.

The right drive axle must be removed later in the procedure.

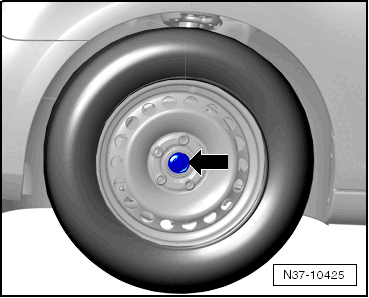

-- With the vehicle still standing on its wheels, loosen the front collar bolt -arrow- a maximum of 90°. Otherwise the wheel bearing will be damaged. Refer to DRIVE AXLE, REMOVING AND INSTALLING .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the noise insulation. Refer to NOISE INSULATION .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- If available, remove drive axle heat shield -arrows-. Refer to DRIVE AXLE .

-- Remove the right drive axle. Refer to DRIVE AXLE, REMOVING AND INSTALLING .

-- Remove the front exhaust pipe from the engine and tie it up. Refer to OVERVIEW - MUFFLER .

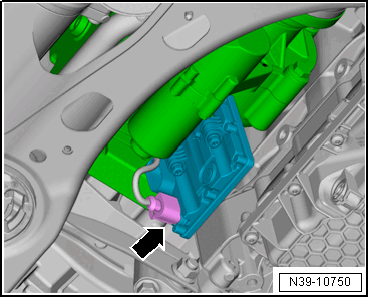

-- Remove connector -arrow- from Axle Differential Lock Control Module -J647-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connector -1- from the Oil Level Thermal Sensor -G266-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the pendulum support from the transmission. Refer to OVERVIEW - SUBFRAME MOUNT .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install two bolts into the flange and counterhold the flange shaft with a tire iron to remove the right flange shaft bolt with a Socket.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the upper bolts -arrows- that attach the front axle differential lock to the manual transmission.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the lower bolts -arrows- that attach the front axle differential lock to the manual transmission.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Push the engine/transmission to the front a little bit (a second technician is needed).

-- Carefully push the front axle differential lock off the manual transmission and remove it.

• Prevent connectors -arrow- from becoming damaged (illustrated here with front axle differential lock installed).

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Note the transportation of the front axle differential lock. Refer to FRONT AXLE DIFFERENTIAL LOCK, TRANSPORTING .
