Assembly Mounts, Checking And Adjusting

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Risk of injury due to overloading the engine support.

Improper handling can lead to damage of the tool and to injury.

- Never loosen or remove the engine and transmission mount at the same time.

Engine Mount

-- Loosen the coolant expansion tank and move to the side. Refer to Coolant Expansion Tank, Removing and Installing .

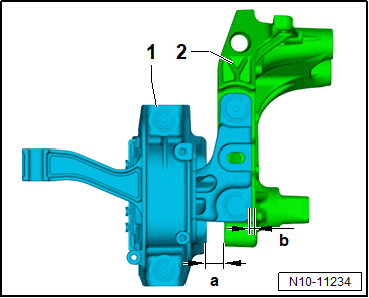

-- Determine the dimension -a- in between the engine mount -1- and the engine support -2-.

Fig 1: Engine Mount Adjustment

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Requirement

The engine mount -1- and the engine support -2- must be parallel to each other. Refer to Check and Adjustment Values .

If the Check and Adjustment Values are Not Reached:

-- Support the engine in the installation position. Refer to Engine, Supporting in Installation Position .

-- Remove the engine mount bolts -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Screw in the new bolts -arrows- by hand.

-- Align the engine mount. Refer to Check and Adjustment Values .

-- Tighten the bolts on the engine mount.

Continuation

Transmission Mount

Engine Compartment Battery

-- Remove the battery tray. Refer to BATTERY TRAY, REMOVING AND INSTALLING .

Luggage Compartment Battery

-- Remove the air filter housing mount.

Continuation for All Vehicles

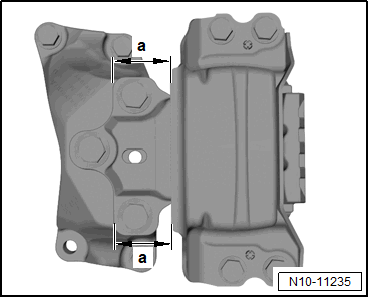

-- Determine the dimensions -a-.

Fig 2: Transmission Mount, Adjustment

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Requirement

The support arm edges and the transmission support must be parallel to each other. Refer to Check and Adjustment Values .

If the Check and Adjustment Values are Not Reached:

-- Support the engine in the installation position. Refer to Engine, Supporting in Installation Position .

Vehicles with Two Transmission Bolted Connections

-- Remove the bolts -arrows-.

Fig 3: Identifying Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Screw in the new bolts -arrows- by hand.

Vehicles with Three Transmission Bolted Connections

-- Remove the bolts -arrows-.

Fig 4: Identifying Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Screw in the new bolts -arrows- by hand.

Continuation for All Vehicles

-- Align the transmission mount. Refer to Check and Adjustment Values .

-- Tighten the transmission mount bolts.

Continuation

Tightening Specifications

Refer to Overview - Assembly Mounts .
