Engine Mount, Removing And Installing: Notes
WARNING: This page is about a different car, the 2021 Volkswagen Tiguan, 2020 Volkswagen Tiguan, 2019 Volkswagen Tiguan, and 2018 Volkswagen Tiguan. However, it is still accessible from the selected car via links, so may be relevant.

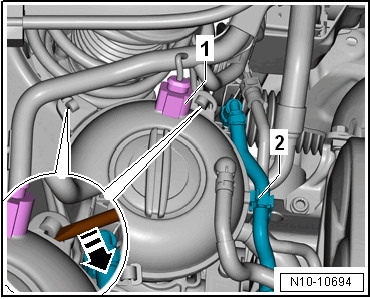

-- Disconnect the connector -1-.
-- Free up the hoses -2-.
-- Release the retainers with a screwdriver in direction of -arrow- and move the coolant expansion tank to the side.
-- Support the engine in the installation position. Refer to ENGINE, SUPPORTING IN INSTALLATION POSITION .
-- Slightly pretension the engine/transmission assembly with the spindle, do not lift.
-- Remove the bolts -arrows- and engine mount -1-.
