Torque Specifications

TORQUE SPECIFICATIONS

Application Ft. Lbs. (N.m)
EGR Valve Pipe 37 (50)
Fuel Pump Collar 30 (41)
Fuel Pump Nut (1) 29 (40)
Fuel Level Sensor Nut (1) 22 (30)
Knock Sensor 15 (20)
INCH Lbs.
Fuel Rail Bolt 84 (10)

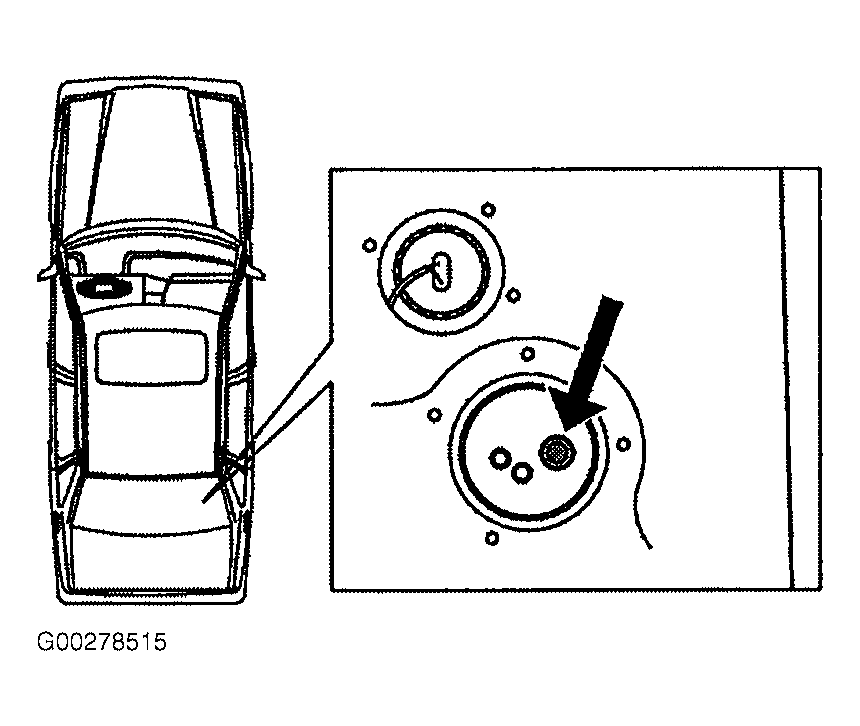

(1) See Figure
.
