With Navigation
WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.
SRS components are located in this area Review the SRS component locations (see COMPONENT LOCATION INDEX ), and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or service
NOTE:
- Put on gloves to protect your hands
- Take care not to scratch the dashboard and related parts
- Lay a shop towel under the parts when working on them to protect the face panel from scratches or other damage
- Eject all the discs before removing the audio-navigation unit to prevent damaging the CD/DVD player's load mechanism
- Discharge static electricity from your body before and during the work
- Remove the audio-navigation unit (see AUDIO-NAVIGATION UNIT REMOVAL/INSTALLATION )

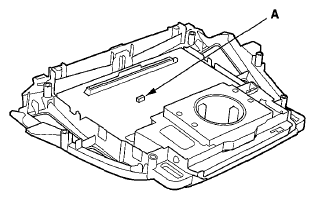

- Remove the interface dial (see HFL-NAVIGATION MICROPHONE REMOVAL/INSTALLATION ) Do not touch the terminal connector (A) of the audio-navigation switch panel with your bare hands (If you have touched it, wipe it off thoroughly)
- Install the audio-navigation switch panel in the reverse order of removal
