Electrical Component Locator: Grounds

GROUNDS LOCATION

Component Location

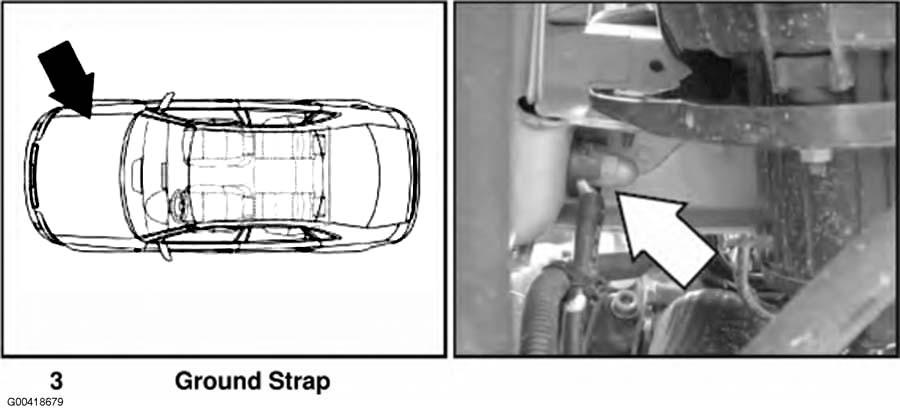

G3 Right side of engine compartment. See Figure.
G11 Right rear of engine compartment. See Figure.
G12 Left rear of engine compartment. See Figure.

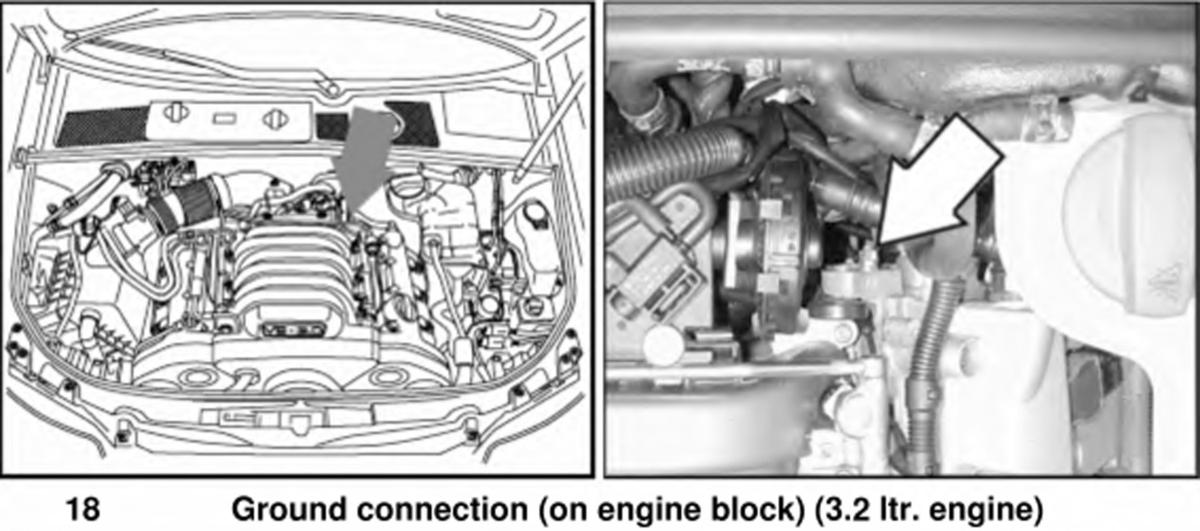

G18 Left rear of engine. See Figure.

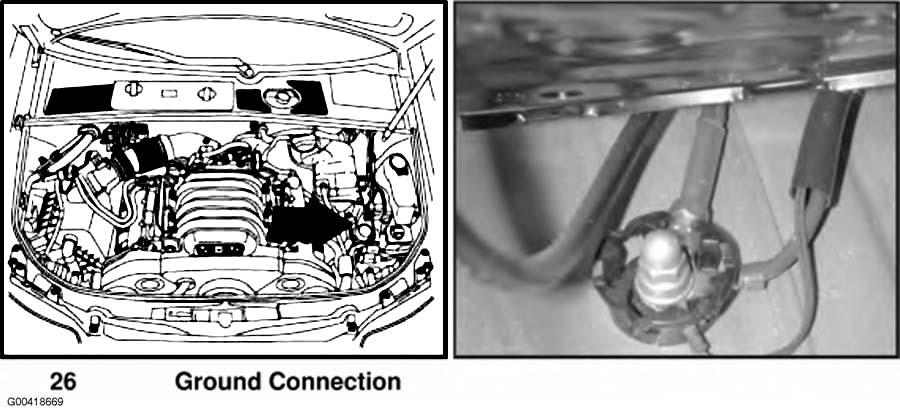

G26 Left side of engine compartment. See Figure.

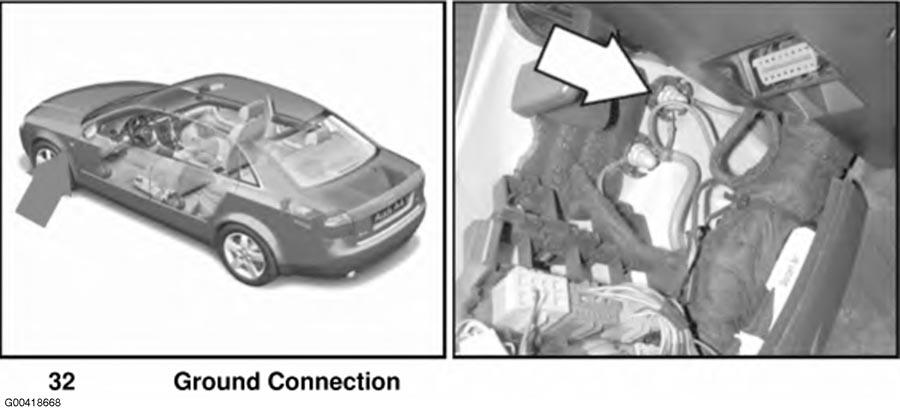

G32 Left kick panel. See Figure.

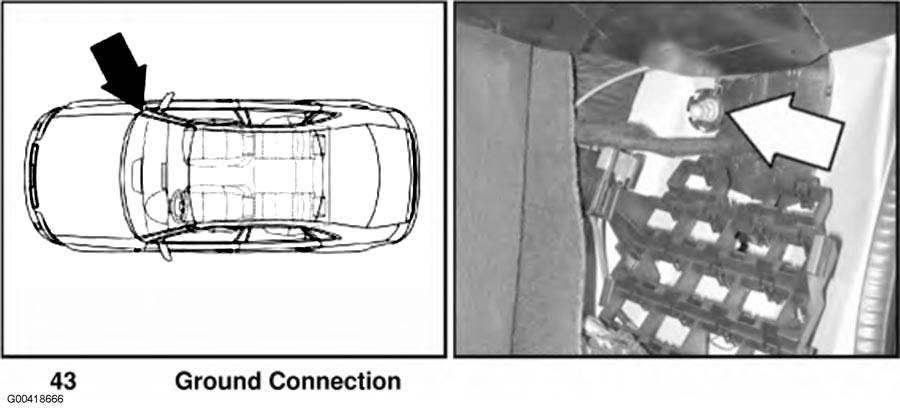

G43 Above right kick panel. See Figure.

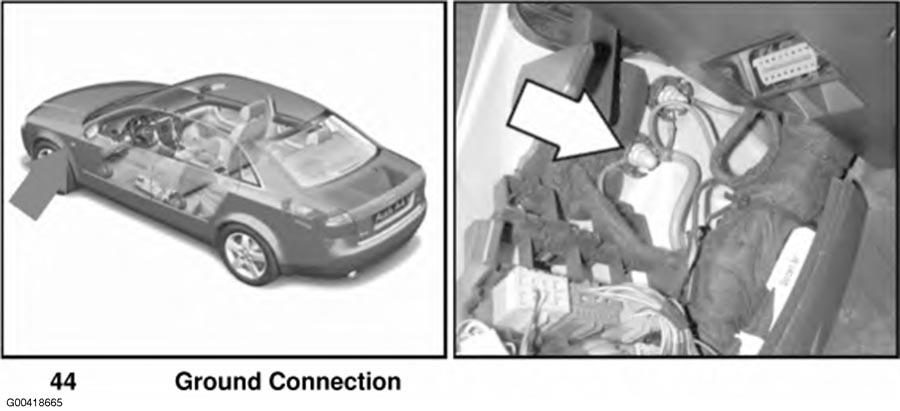

G44 Above left kick panel. See Figure.

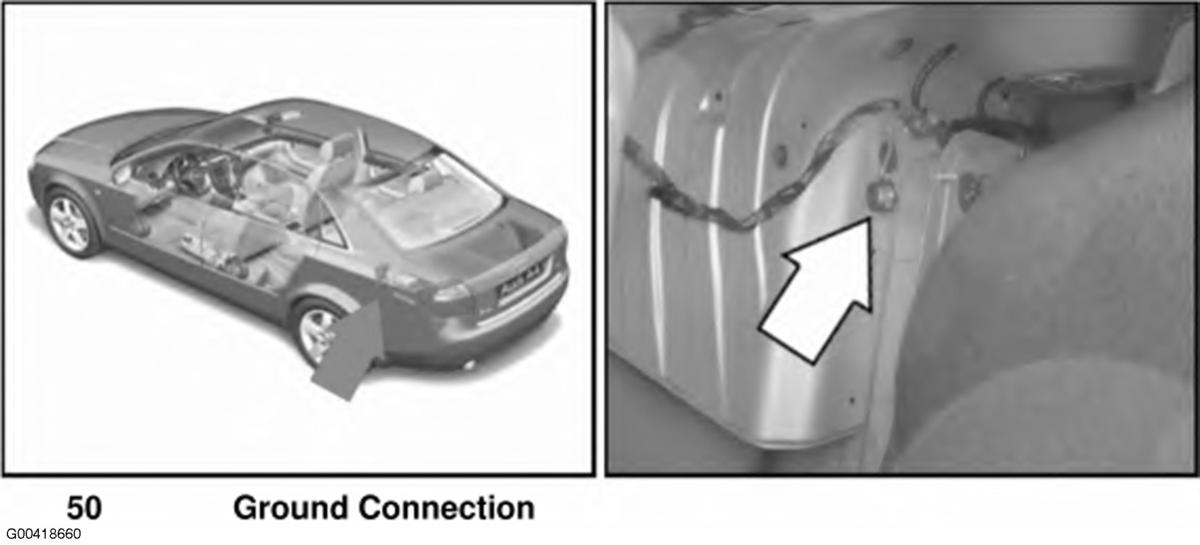

G50 Left side of luggage compartment. See Figure.
G73 Rear of roof. See Figure.

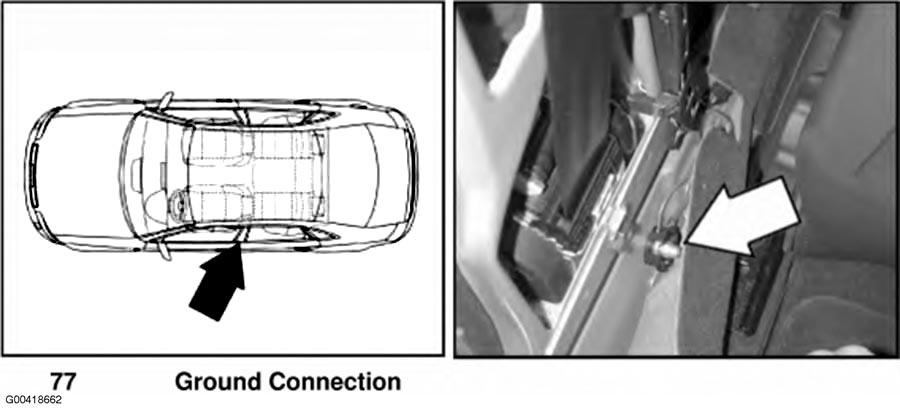

G77 Left "B" pillar. See Figure.

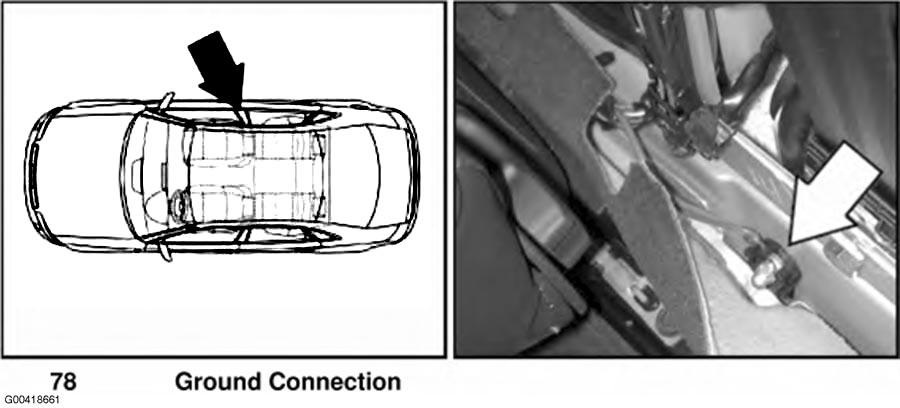

G78 Right "B" pillar. See Figure.

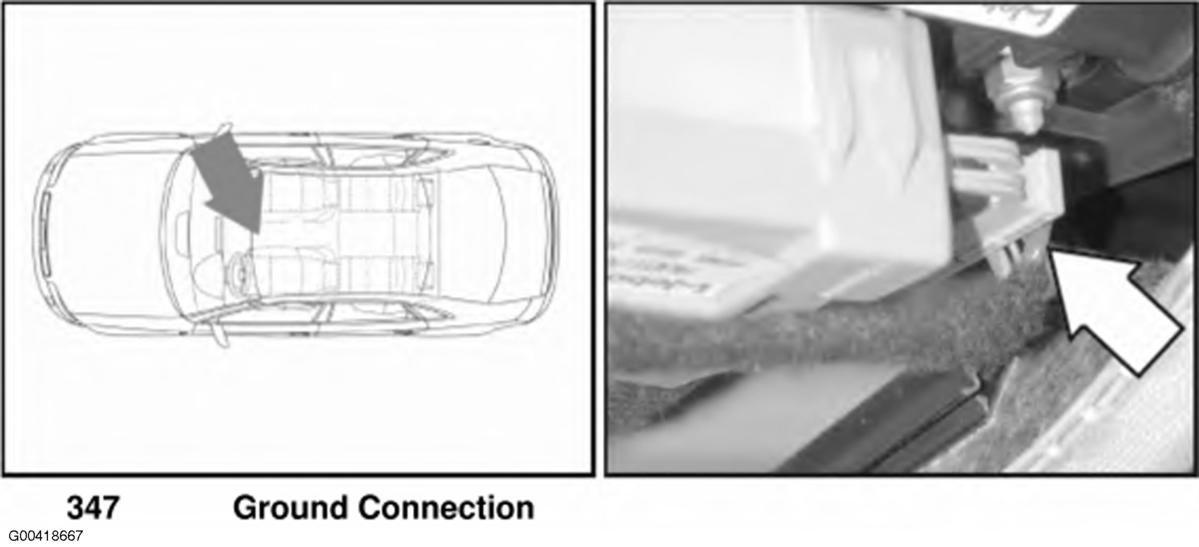

G347 Front of center console. See Figure.

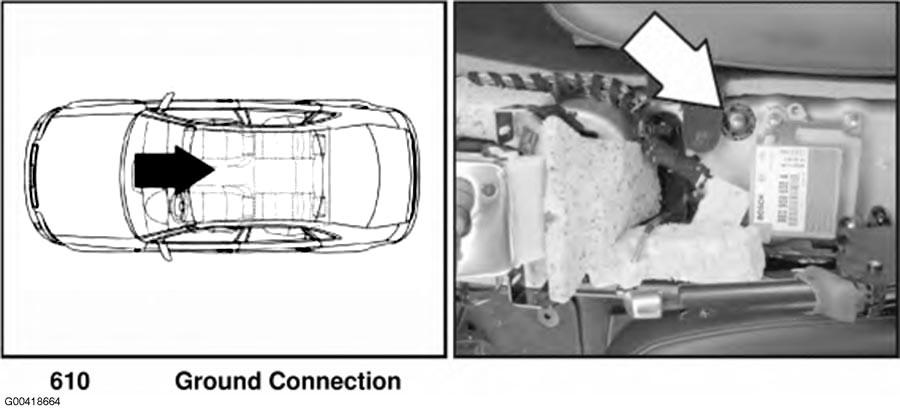

G610 Under front of center console. See Figure.
