Overview Of Control Modules In Middle Part Of Vehicle

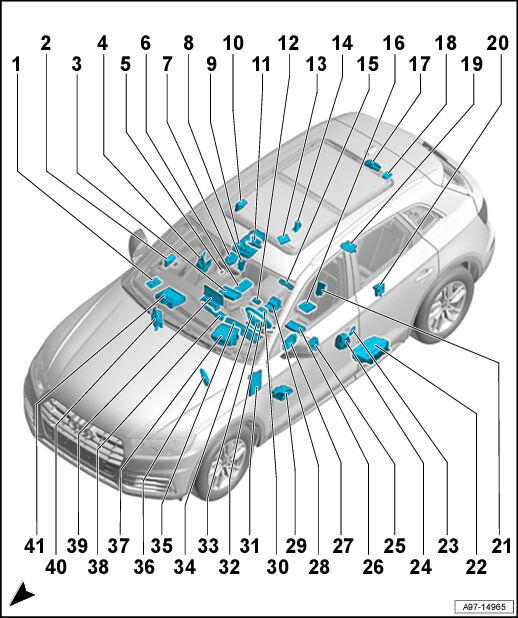

Fig 1: Identifying Control Modules In Middle Part Of Vehicle

Courtesy of AUDI OF AMERICA, LLC

1 - Chip Card Reader Control Module -J676-
- Component location left-hand drive vehicles CHIP CARD READER CONTROL MODULE -J676- COMPONENT LOCATION AND CONNECTOR END VIEW
1 - Android Operating System Control Module -J1243-
- Component location left-hand drive vehicles ANDROID OPERATING SYSTEM CONTROL MODULE -J1243- COMPONENT LOCATION AND CONNECTOR END VIEW
2 - Front Passenger's Door Control Module -J387-
- Component location left-hand drive vehicles FRONT PASSENGER'S DOOR CONTROL MODULE -J387- COMPONENT LOCATION AND CONNECTOR END VIEW
- Pin Arrangements Pin Arrangements Front Passenger's Door Control Module -J387-
3 - Seat Occupied Recognition Control Module -J706-
- Component Location SEAT OCCUPIED RECOGNITION CONTROL MODULE -J706- COMPONENT LOCATION AND CONNECTOR END VIEW
- Pin Arrangements Pin Arrangements Seat Occupied Recognition Control Module -J706-
4 - Right Front Seat Belt Tensioner Control Module -J855-
- Component Location FRONT SEAT BELT TENSIONER CONTROL MODULE -J854- / -J855- COMPONENT LOCATION AND CONNECTOR END VIEW
- Pin Arrangements Pin Arrangements, Front Seat Belt Tensioner Control Module -J854-/-J855-
5 - Automatic High Beam Assist Control Module -J844-
- Component Location AUTOMATIC HIGH BEAM ASSIST CONTROL MODULE -J844- COMPONENT LOCATION AND CONNECTOR END VIEW
- Pin Arrangements Pin Arrangements Automatic High Beam Assist Control Module -J844-
6 - Mobile Device Charger 1 -J1146-
- Component Location MOBILE DEVICE CHARGER 1 -J1146- COMPONENT LOCATION AND CONNECTOR END VIEW
- Pin Arrangements Pin Arrangements Mobile Device Charger 1 -J1146-
7 - Driver assistance systems front camera -R242-
- Component Location DRIVER ASSISTANCE SYSTEMS FRONT CAMERA -R242- COMPONENT LOCATION AND CONNECTOR END VIEW
- Pin Arrangements Pin Arrangements Driver Assistance Systems Front Camera -R242-
8 - Front Multicontour Seat Control Module Front Passenger's Side -J872- / Front Multicontour Seat Control Module Driver's Side -J873-
- Component Location FRONT MULTICONTOUR SEAT CONTROL MODULE DRIVER'S SIDE -J873- / FRONT MULTICONTOUR SEAT CONTROL MODULE FRONT PASSENGER'S SIDE -J872- COMPONENT LOCATION AND CONNECTOR END VIEW
9 - Roof Electronics Control Module -J528-
- Component Location ROOF ELECTRONICS CONTROL MODULE -J528- COMPONENT LOCATION AND CONNECTOR END VIEW
- Pin Arrangements Pin Arrangements Roof Electronics Control Module -J528-
10 - Rear Front Passenger's Door Control Module -J927-
- Component location left-hand drive vehicles REAR FRONT PASSENGER'S DOOR CONTROL MODULE -J927- COMPONENT LOCATION AND CONNECTOR END VIEW
- Pin Arrangements Pin Arrangements Rear Front Passenger's Door Control Module -J927-
11 - Sunroof Motor -V1-
- Component location not for China and Sportback Power Sunroof Control Module -J245- / Sunroof Blind Motor -V260- / Sunroof Motor -V1-, NOT FOR CHINA AND SPORTBACK
- Component location for China and Sportback (deviating installation position) Power Sunroof Control Module -J245- / Sunroof Blind Motor -V260- / Sunroof Motor -V1-, FOR CHINA AND SPORTBACK
12 - Close Range Communication Control Module 2 -J1170-
- Component Location CLOSE RANGE COMMUNICATION CONTROL MODULE 2 -J1170- COMPONENT LOCATION AND CONNECTOR END VIEW
- Pin Arrangements Pin Arrangements Close Range Communication Control Module 2 -J1170-
13 - Fuel Pump (FP) Control Module -J538-
- Component Location FUEL PUMP (FP) CONTROL MODULE -J538- COMPONENT LOCATION AND CONNECTOR END VIEW
- Pin Arrangements Pin Arrangements Fuel Pump (FP) Control Module -J538-
14 - Fuel Tank Lead Detection Control Module -J909-
- Component Location FUEL TANK LEAD DETECTION CONTROL MODULE -J909- COMPONENT LOCATION AND CONNECTOR END VIEW
- Pin Arrangements Pin Arrangements Fuel Tank Lead Detection Control Module -J909-
15 - Rear A/C Control Head (Climatronic) -E265-
- Component Location REAR A/C CONTROL HEAD (CLIMATRONIC) -E265- COMPONENT LOCATION AND CONNECTOR END VIEW
- Pin Arrangements Pin Arrangements Rear A/C Control Head (Climatronic) -E265-
16 - Control module for emergency call module and communication unit -J949-
- Component Location through June 2020 Control module for emergency call module and communication unit -J949-, THROUGH JUNE 2020
- Component Location, from June 2020 Control module for emergency call module and communication unit -J949-, FROM JUNE 2020
- Pin Arrangements through June 2020 Pin Arrangements Control Module For Emergency Call Module And Communication Unit -J949-, Through June 2020
- Pin Arrangements from June 2020 Pin Arrangements Control Module For Emergency Call Module And Communication Unit -J949-, From June 2020
17 - Power Sunroof Control Module -J245-
- Component location not for China and Sportback Power Sunroof Control Module -J245- / Sunroof Blind Motor -V260- / Sunroof Motor -V1-, NOT FOR CHINA AND SPORTBACK
- Component location for China and Sportback (deviating installation position) Power Sunroof Control Module -J245- / Sunroof Blind Motor -V260- / Sunroof Motor -V1-, FOR CHINA AND SPORTBACK
- Component location not for China and Sportback Pin Arrangements Power Sunroof Control Module -J245-
- Pin Arrangements China and Sportback Pin Arrangements Power Sunroof Control Module -J245-
18 - Sunroof Blind Motor -V260-
- Component location not for China and Sportback Power Sunroof Control Module -J245- / Sunroof Blind Motor -V260- / Sunroof Motor -V1-, NOT FOR CHINA AND SPORTBACK
- Component location for China and Sportback (deviating installation position) Power Sunroof Control Module -J245- / Sunroof Blind Motor -V260- / Sunroof Motor -V1-, FOR CHINA AND SPORTBACK
19 - Data Bus On Board Diagnostic Interface -J533-
- Component Location without Emergency Call Function (IW0), through June 2020 Data Bus On Board Diagnostic Interface -J533-, WITHOUT EMERGENCY CALL FUNCTION (IW0), THROUGH JUNE 2020
- Component Location with Emergency Call Function (IW1, IW3) and Connect Plus (IV0), through June 2020 Data Bus On Board Diagnostic Interface -J533-, WITH EMERGENCY CALL FUNCTION (IW1, IW3) AND CONNECT PLUS (IV0), THROUGH JUNE 2020
- Component Location with Emergency Call Function (IW1, IW3) and Connect Plus (IV1, IV2, IV3, IV4, IV5, IV6, IV7, V8, IV9, JE0, JE1, JE2, JE3, JE4, JE5), through June 2020 Data Bus On Board Diagnostic Interface -J533-, WITH EMERGENCY CALL FUNCTION (IW1, IW3) AND CONNECT PLUS (IV1, IV2, IV3, IV4, IV5, IV6, IV7, IV8, IV9, JE0, JE1, JE2, JE3, JE4, JE5), THROUGH JUNE 2020
- Component Location, from June 2020 Data Bus On Board Diagnostic Interface -J533-, FROM JUNE 2020
- Pin arrangement without Emergency Call Function (IW0), through June 2020 Pin Arrangements Data Bus On Board Diagnostic Interface -J533-
- Pin arrangement with Emergency Call Function (IW1, IW3) and Connect Plus (IV0), through June 2020 Pin Arrangements Data Bus On Board Diagnostic Interface -J533-
- Component Location with Emergency Call Function (IW1, IW3) and Connect Plus (IV1, V2, IV3, IV4, IV5, IV6, IV7, IV8, IV9, JE0, JE1, JE2, JE3, JE4, JE5), through June 2020 Pin Arrangements Data Bus On Board Diagnostic Interface -J533-
- Pin Arrangements from June 2020 Pin Arrangements Data Bus On Board Diagnostic Interface -J533-
20 - Rear Door Control Module, Driver's Side -J926-
- Component location left-hand drive vehicles REAR DOOR CONTROL MODULE, DRIVER'S SIDE -J926- COMPONENT LOCATION AND CONNECTOR END VIEW
- Pin Arrangements Pin Arrangements Rear Door Control Module, Driver's Side -J926-
21 - Front Multicontour Seat Control Module Driver's Side -J873- / Front Multicontour Seat Control Module Front Passenger's Side -J872-
- Component Location FRONT MULTICONTOUR SEAT CONTROL MODULE DRIVER'S SIDE -J873- / FRONT MULTICONTOUR SEAT CONTROL MODULE FRONT PASSENGER'S SIDE -J872- COMPONENT LOCATION AND CONNECTOR END VIEW
22 - Electric Drive Power and Control Electronics -JX1-
- Component Location ELECTRIC DRIVE POWER AND CONTROL ELECTRONICS -JX1- COMPONENT LOCATION AND CONNECTOR END VIEW
- Pin Arrangements Pin Arrangements Electric Drive Power and Control Electronics -JX1-
23 - Close Range Communication Control Module -J1169-
- Component Location CLOSE RANGE COMMUNICATION CONTROL MODULE -J1169- COMPONENT LOCATION AND CONNECTOR END VIEW
- Pin Arrangements Pin Arrangements Close Range Communication Control Module -J1169-
24 - Left Front Seat Belt Tensioner Control Module -J854-
- Component Location FRONT SEAT BELT TENSIONER CONTROL MODULE -J854- / -J855- COMPONENT LOCATION AND CONNECTOR END VIEW
- Pin Arrangements Pin Arrangements, Front Seat Belt Tensioner Control Module -J854-/-J855-
25 - Driver's Door Control Module -J386-
- Component location left-hand drive vehicles DRIVER'S DOOR CONTROL MODULE -J386- COMPONENT LOCATION AND CONNECTOR END VIEW
- Pin Arrangements Pin Arrangements Driver's Door Control Module -J386-
26 - Memory Seat/Steering Column Adjustment Control Module -J136- / Passenger Memory Seat Control Module -J521-
- Component Location MEMORY SEAT/STEERING COLUMN ADJUSTMENT CONTROL MODULE -J136- / PASSENGER MEMORY SEAT CONTROL MODULE -J521- COMPONENT LOCATION AND CONNECTOR END VIEW
- Pin Arrangements Pin Arrangements Memory Seat/Steering Column Adjustment Control Module -J136-
27 - NOX Sensor 3 Control Module -J1183- / -GX50-
- Component Location for vehicles with engine code DEZB, DEZE, DFBA, DTPA, DTNA, DTNB NOX Sensor 3 Control Module -J1183- / -GX50-, FOR ENGINE CODES DEZB, DEZE, DFBA, DTPA, DTNA, DTNB
- Component Location for vehicles with engine codes DMGA, DMKC NOX Sensor 3 Control Module -J1183- / -GX50-, FOR ENGINE CODES DMGA, DMKC
- Pin Arrangements for vehicles with engine code DEZB, DEZE, DFBA, DTPA, DTNA, DTNB Pin Arrangements NOX Sensor 3 Control Module -J1183- / -GX50-
- Pin arrangements for vehicles with engine code DMGA, DMKC Pin Arrangements NOX Sensor 3 Control Module -J1183- / -GX50-
27 - NOX Sensor 2 Control Module -J881- / -GX46-
- Component Location for vehicles with engine codes DCPC, DCPE, DESA, DETA, DETB, DEUA, DEUB, DEWA, DEWB NOX Sensor 2 Control Module -J881- / -GX46-, FOR ENGINE CODES DCPC, DCPE, DESA, DETB, DEUA, DEUB, DEWA, DEWB, THROUGH MAY 2020, FOR ENGINE CODES DEZB, DEZE, DFBA, DTPA, DTNA, DTNB
- Component Location through May 2020, for vehicles with engine code DEZB, DEZE, DFBA, DTPA, DTNA, DTNB NOX Sensor 2 Control Module -J881- / -GX46-, FOR ENGINE CODES DCPC, DCPE, DESA, DETB, DEUA, DEUB, DEWA, DEWB, THROUGH MAY 2020, FOR ENGINE CODES DEZB, DEZE, DFBA, DTPA, DTNA, DTNB
- Component Location for all other vehicles on transmission -36- NOX Sensor 2 Control Module -J881- / -GX46-
- Pin Arrangements Pin Arrangements NOX Sensor 2 Control Module -J881- / -GX46-
28 - Drivetrain control module -J775-
- Component Location DRIVETRAIN CONTROL MODULE -J775- COMPONENT LOCATION AND CONNECTOR END VIEW
- Pin Arrangements Pin Arrangements Drivetrain Control Module -J775-
29 - Active Steering Control Module -J792-
- Component location left-hand drive vehicles ACTIVE STEERING CONTROL MODULE -J792- COMPONENT LOCATION AND CONNECTOR END VIEW
- Pin Arrangements Pin Arrangements Active Steering Control Module -J792-
30 - Airbag Control Module -J234-
- Component Location AIRBAG CONTROL MODULE -J234- COMPONENT LOCATION AND CONNECTOR END VIEW
31 - Vehicle Electrical System Control Module -J519-
- Component Location VEHICLE ELECTRICAL SYSTEM CONTROL MODULE -J519- COMPONENT LOCATION AND CONNECTOR END VIEW
- Pin Arrangements Pin Arrangements Vehicle Electrical System Control Module -J519-
32 - Steering wheel touch recognition control module -J1158-
- Component Location STEERING WHEEL TOUCH RECOGNITION CONTROL MODULE -J1158- COMPONENT LOCATION AND CONNECTOR END VIEW
- Pin Arrangements Pin Arrangements Steering Wheel Touch Recognition Control Module -J1158-
33 - Steering Column Electronic Systems Control Module -J527-
- Component location left-hand drive vehicles STEERING COLUMN ELECTRONIC SYSTEMS CONTROL MODULE -J527- COMPONENT LOCATION AND CONNECTOR END VIEW
- Pin Arrangements Pin Arrangements Steering Column Electronic Systems Control Module -J527-
33 - Electronic Steering Column Lock Control Module -J764-
- Component location left-hand drive vehicles ELECTRONIC STEERING COLUMN LOCK CONTROL MODULE -J764- COMPONENT LOCATION AND CONNECTOR END VIEW
- Pin Arrangements Pin Arrangements Electronic Steering Column Lock Control Module -J764-
33 - Power Adjustable Steering Column Control Module -J866-
- Component location left-hand drive vehicles POWER ADJUSTABLE STEERING COLUMN CONTROL MODULE -J866- COMPONENT LOCATION AND CONNECTOR END VIEW
- Pin Arrangements Pin Arrangements Power Adjustable Steering Column Control Module -J866-
34 - Multi-function Steering Wheel Control Module -J453-
- Component location left-hand drive vehicles MULTI-FUNCTION STEERING WHEEL CONTROL MODULE -J453- COMPONENT LOCATION AND CONNECTOR END VIEW
- Pin Arrangements Pin Arrangements Multi-function Steering Wheel Control Module -J453-
35 - Instrument Cluster Control Module -J285-
- Component location left-hand drive vehicles without virtual cockpit (9S5), (9S7) Instrument Cluster Control Module -J285-, WITHOUT VIRTUAL COCKPIT, (9S5), (9S7)
- Component location left-hand drive vehicles with virtual cockpit (9S8), through June 2020 Instrument Cluster Control Module -J285-, WITH VIRTUAL COCKPIT (9S8), THROUGH JUNE 2020
- Component location left-hand drive vehicles with virtual cockpit (9S8), (9S9) from June 2020 Instrument Cluster Control Module -J285-, WITH VIRTUAL COCKPIT, (9S8), (9S9) FROM JUNE 2020
- Pin arrangement, without virtual cockpit, (9S5), (9S7), with virtual cockpit, (9S8), through June 2020 Pin Arrangements Instrument Cluster Control Module -J285-
- Pin arrangement, with virtual cockpit, (9S8), (9S9) from June 2020 Pin Arrangements Instrument Cluster Control Module -J285-
36 - NOX Sensor 2 Control Module -J881- / -GX46-
- Component Location from June 2020, for vehicles with engine codes DEZB, DEZE, DFBA, DTPA, DTNA, DTNB NOX Sensor 2 Control Module -J881- / -GX46-, FROM JUNE 2020, FOR VEHICLES WITH ENGINE CODE DEZB, DEZE, DFBA, DTPA, DTNA, DTNB
- Component Location for vehicles with engine codes DMGA, DMKC NOX Sensor 2 Control Module -J881- / -GX46-, FOR ENGINE CODES DMGA, DMKC
- Pin Arrangements from June 2020, for vehicles with engine code DEZB, DEZE, DFBA, DTPA, DTNA, DTNB Pin Arrangements NOX Sensor 2 Control Module -J881- / -GX46-, From June 2020
- Pin arrangements for vehicles with engine code DMGA, DMKC Pin Arrangements NOX Sensor 2 Control Module -J881- / -GX46-
37 - Windshield Projection Head Up Display Control Module -J898-
- Component location left-hand drive vehicles WINDSHIELD PROJECTION HEAD UP DISPLAY CONTROL MODULE -J898- COMPONENT LOCATION AND CONNECTOR END VIEW
- Pin Arrangements Pin Arrangements Windshield Projection Head Up Display Control Module -J898-
38 - A/C Control Head (A/C, Climatronic) -E87-
- Component Location A/C CONTROL HEAD (A/C, CLIMATRONIC) -E87- COMPONENT LOCATION AND CONNECTOR END VIEW
- Pin arrangements (9AK) Pin Arrangements A/C Control Head (A/C, Climatronic) -E87- (9AK)
- Pin arrangements (9AQ) Pin Arrangements A/C Control Head (A/C, Climatronic) -E87- (9AQ)
39 - Front Information Display Control Head -J685-
- Component Location FRONT INFORMATION DISPLAY CONTROL HEAD -J685- COMPONENT LOCATION AND CONNECTOR END VIEW
40 - Fresh Air Blower Control Module -J126-
- Component location left-hand drive vehicles FRESH AIR BLOWER CONTROL MODULE -J126- COMPONENT LOCATION AND CONNECTOR END VIEW
- Pin Arrangements Pin Arrangements Fresh Air Blower Control Module -J126-
41 - Control Module for Information Electronics 1 -J794-
- Component location left-hand drive vehicles, MMI Radio (I8E), (I8S), through June 2020 Control Module for Information Electronics 1 -J794-, MMI RADIO (I8E), (I8S), THROUGH JUNE 2020
- Component location left-hand drive vehicles, MMI Navigation plus (I8H), through June 2020 Control Module for Information Electronics 1 -J794-, MMI NAVIGATION PLUS, (I8H), THROUGH JUNE 2020
- Component location left-hand drive vehicles, MMI (Information Electronics 1), from June 2020 Control Module for Information Electronics 1 -J794-, MMI (INFORMATION ELECTRONICS 1), FROM JUNE 2020
- Component location right-hand drive vehicles mirror-inverted
