Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | |
|---|---|---|

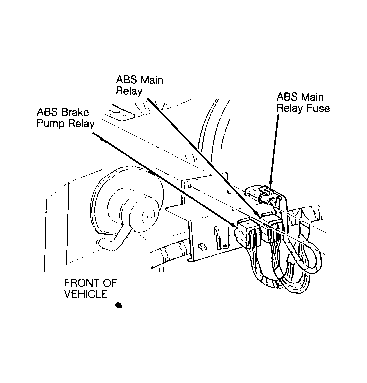

| ABS Main Relay Fuse | In engine compartment, on center of dash. See Figure . | |
| Circuit Breakers | On fuse block. | |
| Fuse Block | In glove box. See Figure . | |
| Fusible Links | On junction block, on right fender panel. | |
| In-Line Fuse | ||
| ABS Control Module Fuse "A" | Behind instrument cluster, right of steering column. See Figure . | |
| Brake Pump Relay Fuse | In engine compartment, on center of firewall. | |
| Rear Window Defogger Fuse | On center front of trunk, below rear shelf. | |
| Relay Centers | ||
| Interior Relay Center | Behind right side of dash, below glove box. See Figure . | |
| Micro-Relay Center | Center of trunk, below rear shelf. | |
| Underhood Relay Center | ||

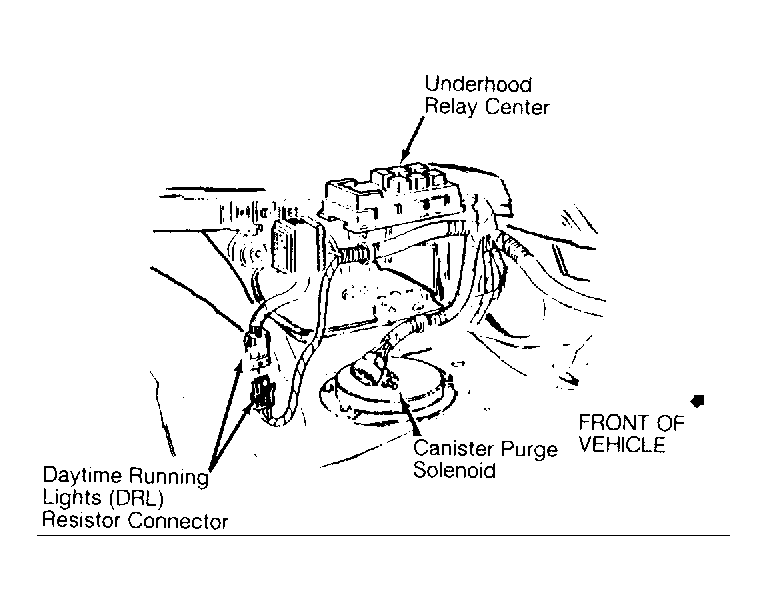

| Component Location | On left front of engine compartment, behind headlight assembly. See Figure . | |
| View of Component | On left front of engine compartment, behind headlight assembly. See Figure . | |
