Front View Driver Information Camera Bracket Replacement

WARNING: This page is about a different car, the 2016 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

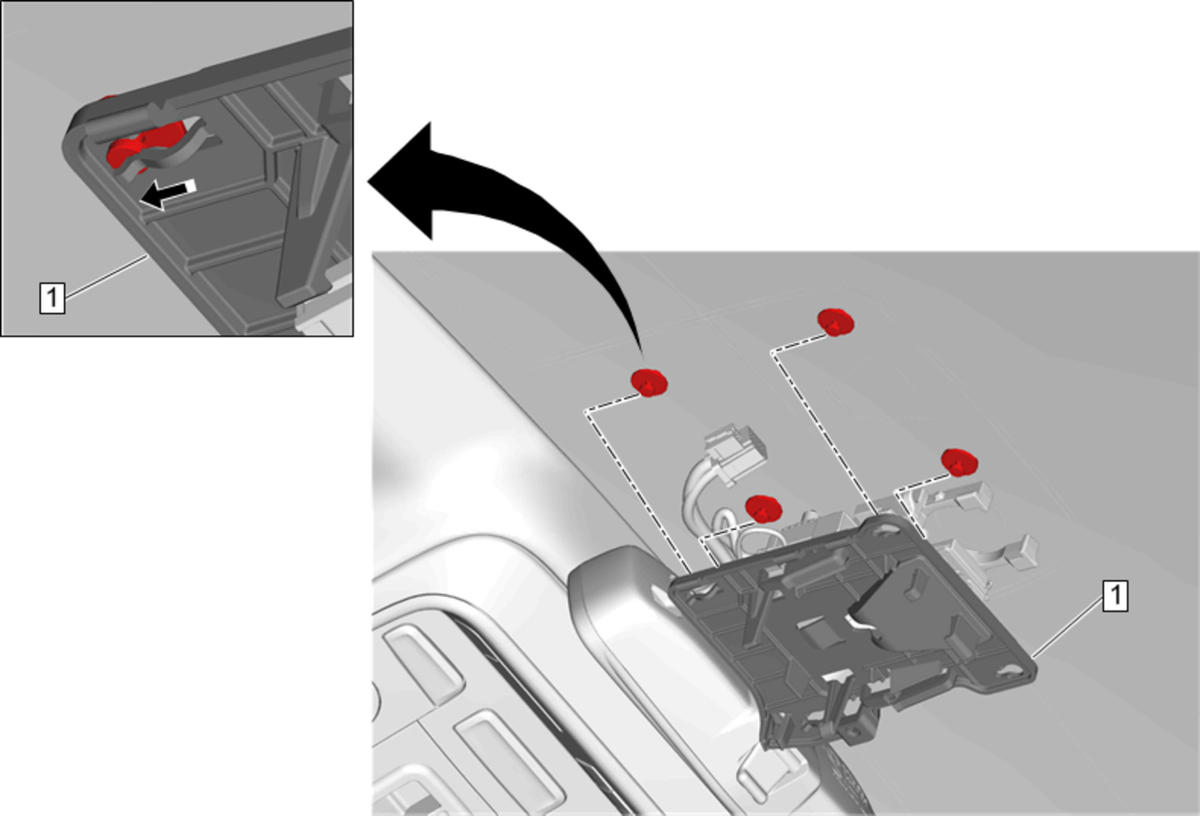

Fig 1: Front View Driver Information Camera Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front View Camera Replacement (With UFL) , Front View Camera Replacement (With UGN) and Front View Camera Replacement (With UQT) .
1	Front View Driver Information Camera Bracket Procedure Disconnect the electrical connector. Depress the clip fingers and push outward to remove the rearview camera from the applique. NOTE: Do Not remove or service the sensor farm pins.

Callout

Component Name

Preliminary Procedure
Front View Camera Replacement (With UFL) , Front View Camera Replacement (With UGN) and Front View Camera Replacement (With UQT) .

Front View Driver Information Camera Bracket

Procedure

Disconnect the electrical connector.
Depress the clip fingers and push outward to remove the rearview camera from the applique.

NOTE: Do Not remove or service the sensor farm pins.
