Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| Automatic Transfer Case Shift Control Module | Behind left kick panel. |
| Body Control Module (BCM) | Above radio. |

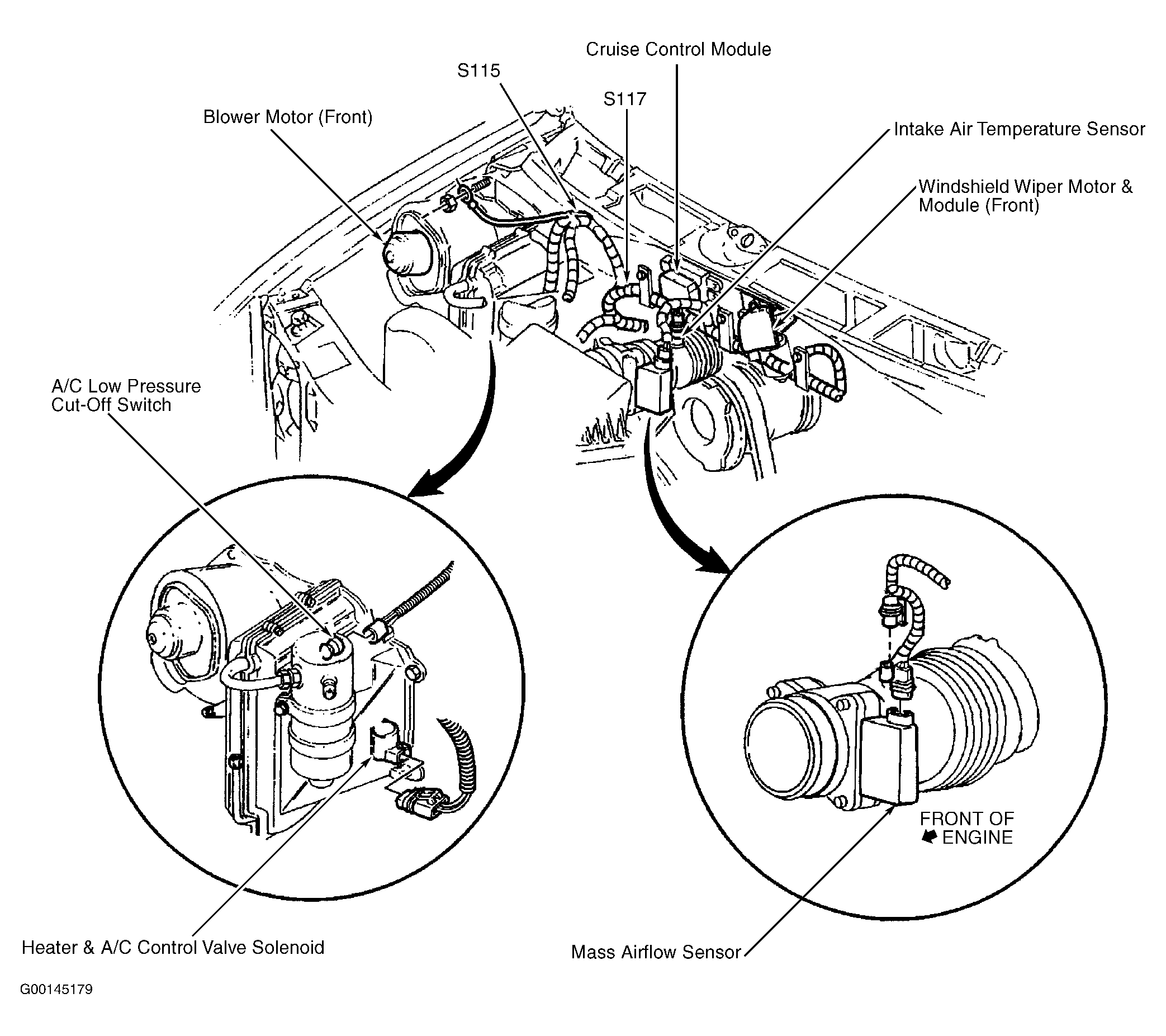

| Cruise Control Module | Center front of firewall, left of windshield wiper module. See Figure. |
| Electronic Brake Control Module (EBCM) | On left front side of frame, left of transmission. |

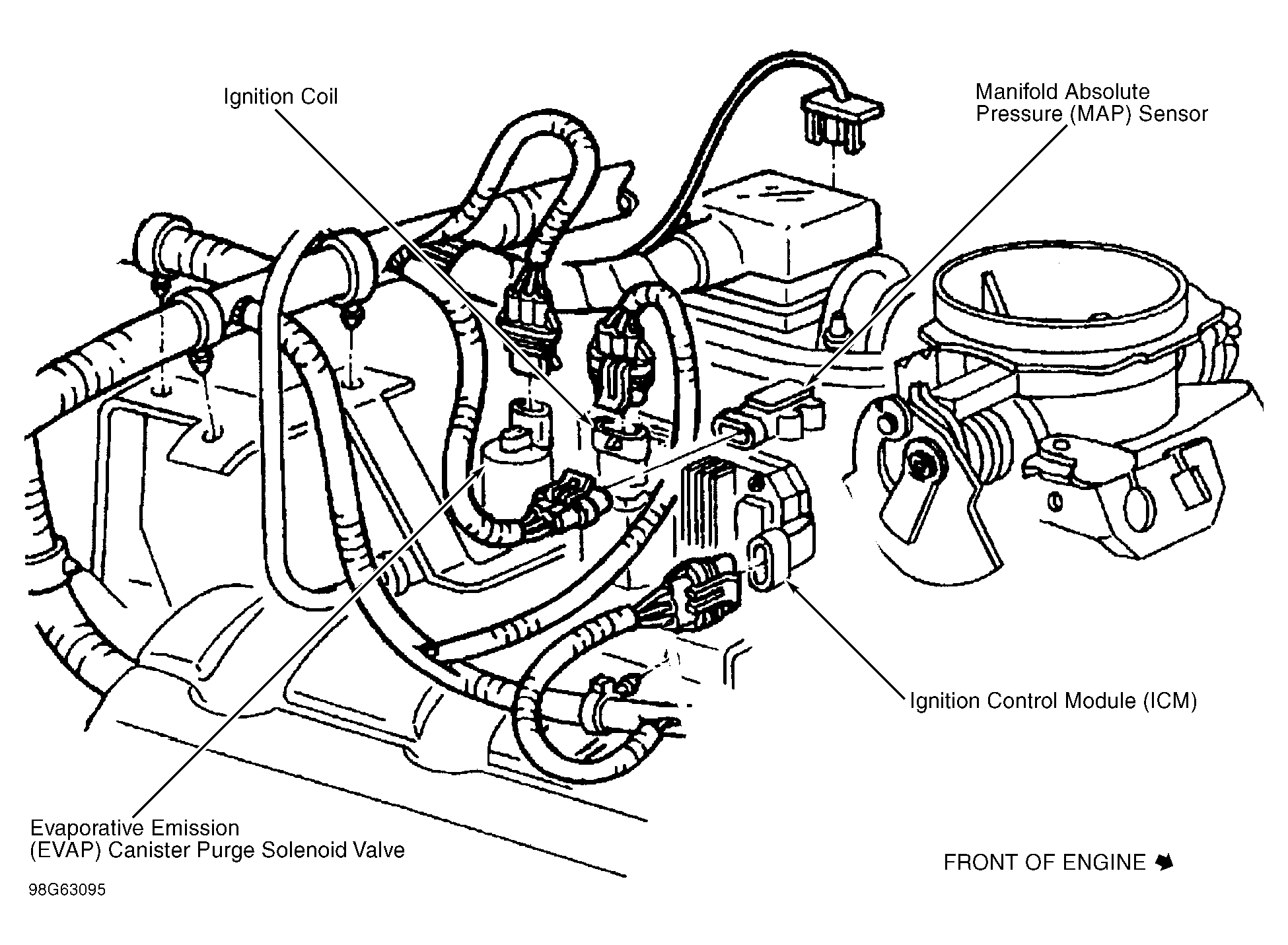

| Ignition Control Module (ICM) | Top of engine, front of coil. See Figure. |
| Rear Radio Control Module | On left side of vehicle, behind "B" pillar. |
| Remote Control Door Lock Receiver | Behind air duct, right of instrument cluster. |
| Supplemental Inflatable Restraint Sensing & Diagnostic Module | Under driver's seat. |
| Vehicle Control Module (VCM) | Left side of engine compartment. |
