Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

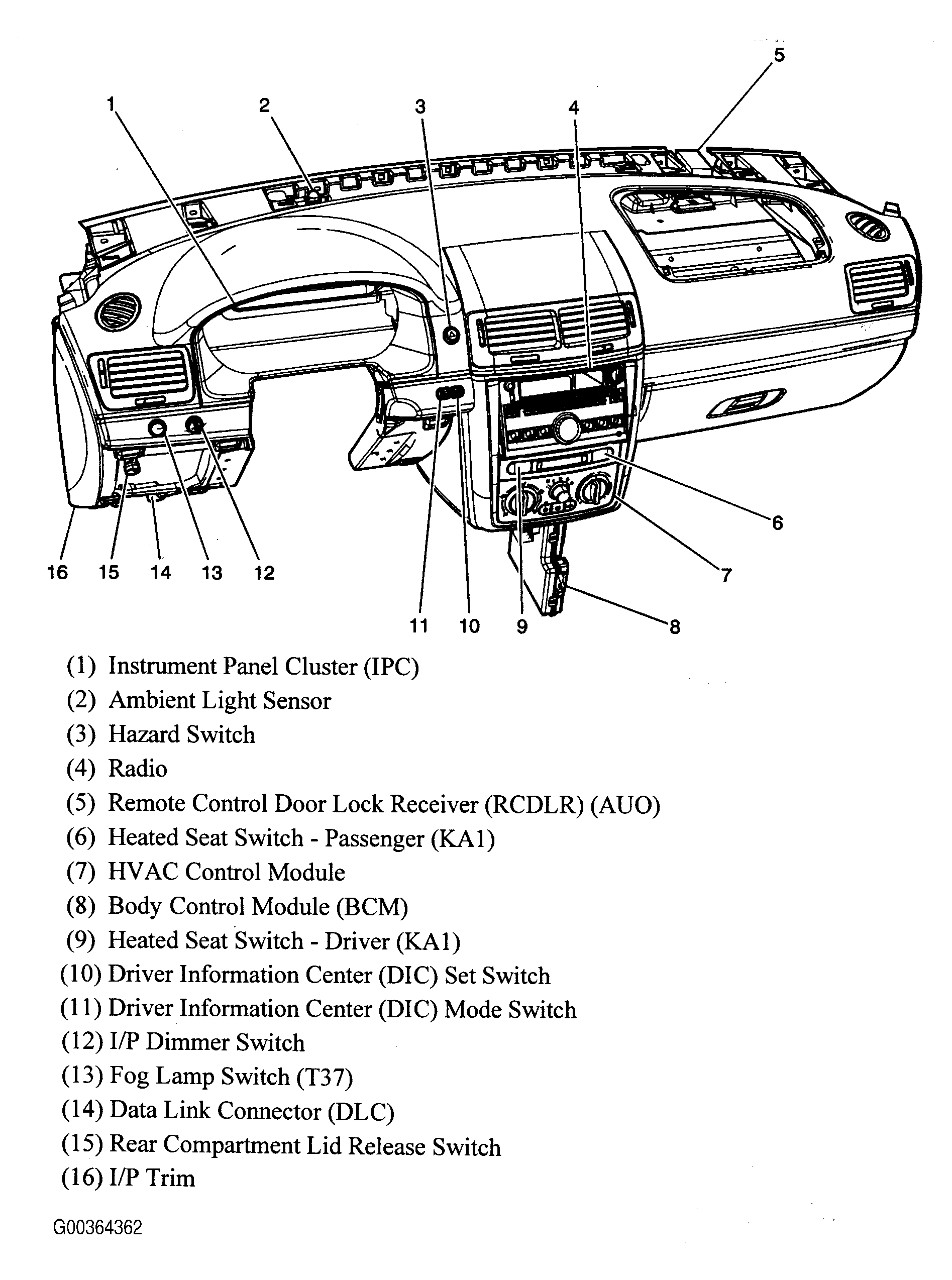

| Body Control Module (BCM) | Under center dash, below radio, on right side of center console. See Figure. |

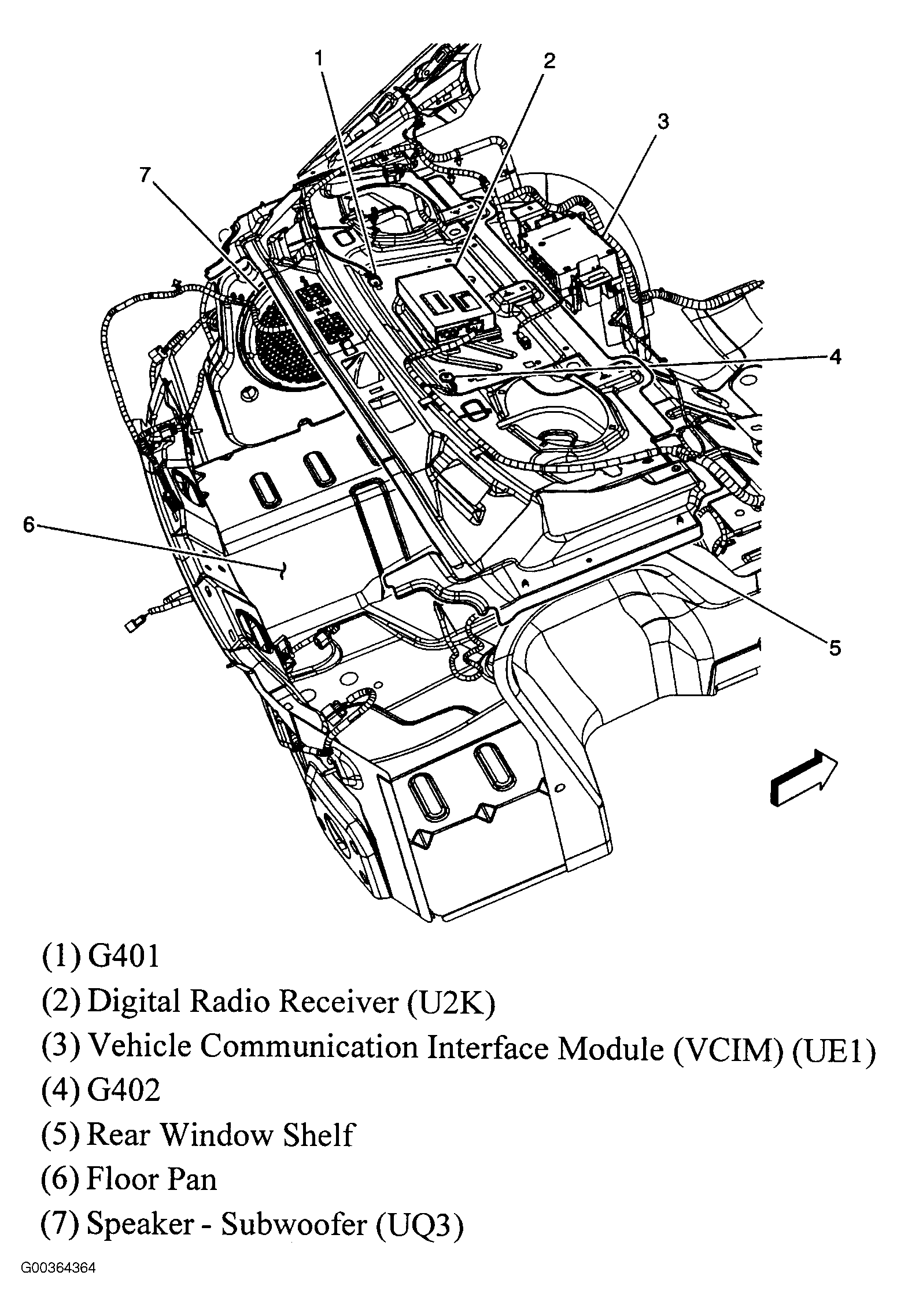

| Digital Radio Receiver | Under rear shelf trim pad, in center of rear shelf. See Figure. |

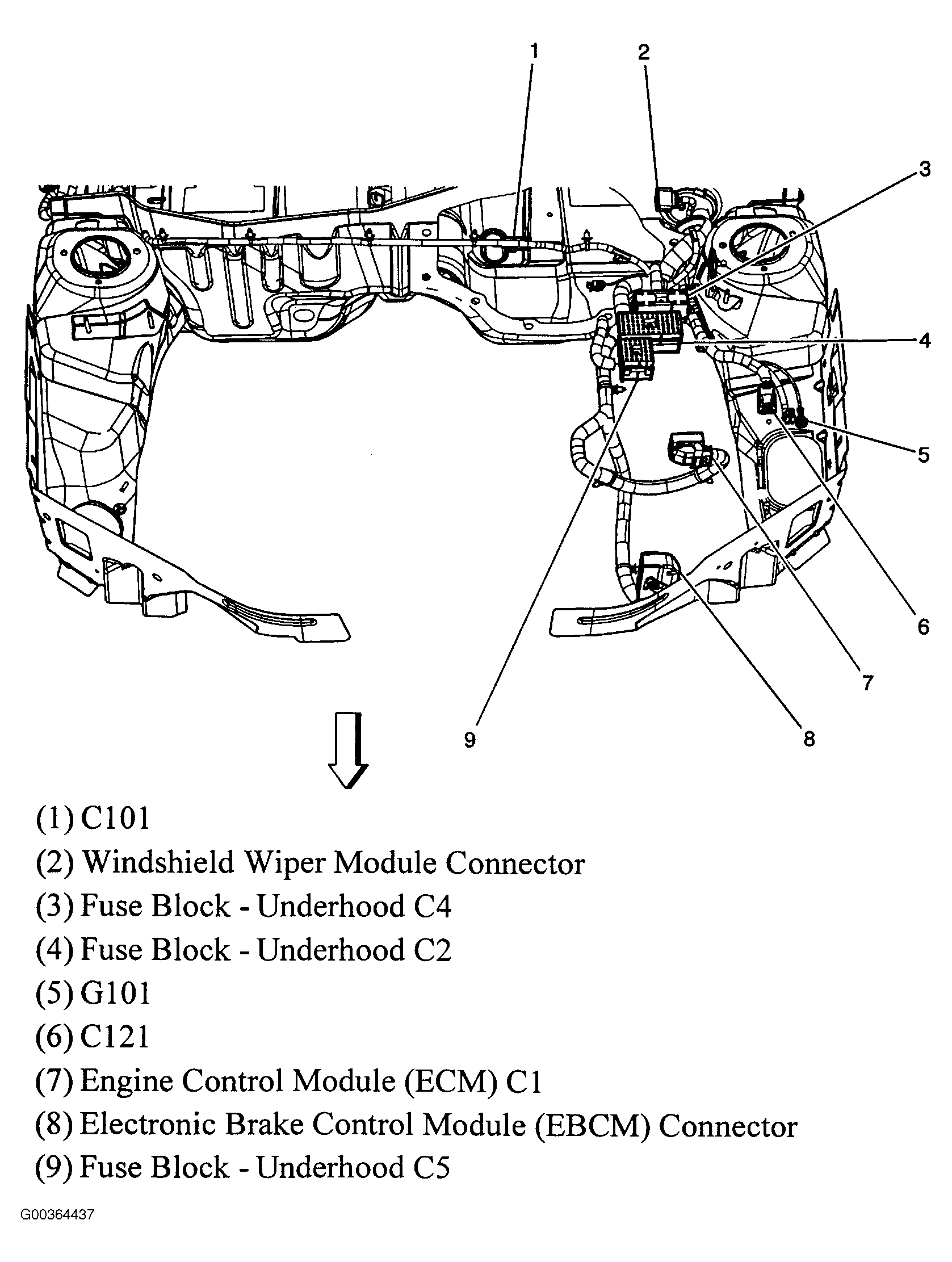

| Electronic Brake Control Module (EBCM) | Left side of engine compartment, in front of engine control module (ECM). See Figure. |
| Electronic Power Steering (EPS) Control Module | Under dash, near base of steering column. See Figure. |
| Engine Control Module (ECM) | Left side of engine compartment, in front of underhood fuse block. See Figure. |

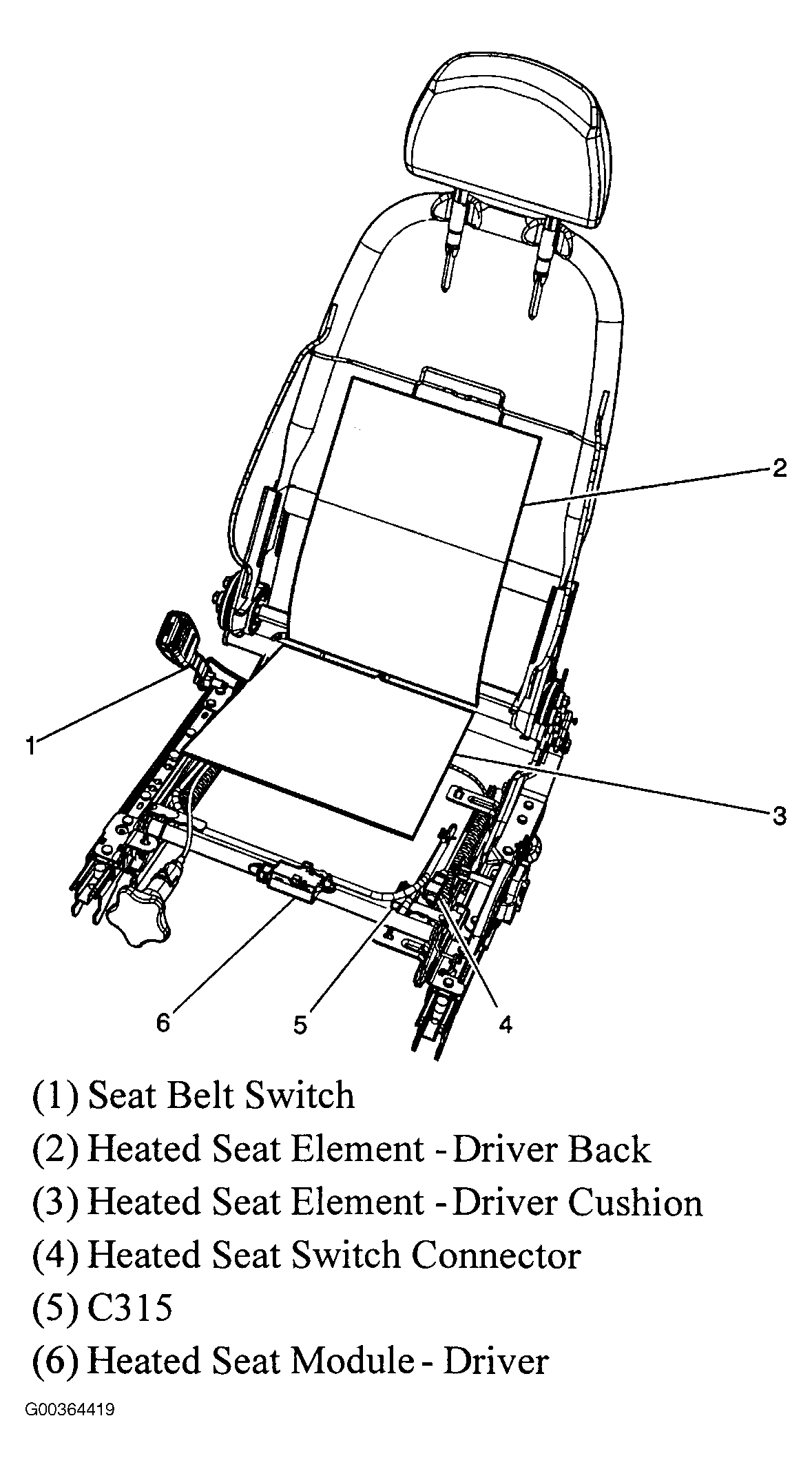

| Heated Seat Module - Driver | Under front center of driver seat. See Figure. |
| Heated Seat Module - Passenger | Under front center of front passenger's seat. See Figure. |
| HVAC Control Module | Center of dash, below radio. See Figure. |
| Ignition Coil/Module 1 | On top of engine, under cover at cylinder No. 1. |
| Ignition Coil/Module 2 | On top of engine, under cover at cylinder No. 2. |
| Ignition Coil/Module 3 | On top of engine, under cover at cylinder No. 3. |
| Ignition Coil/Module 4 | On top of engine, under cover at cylinder No. 4. |

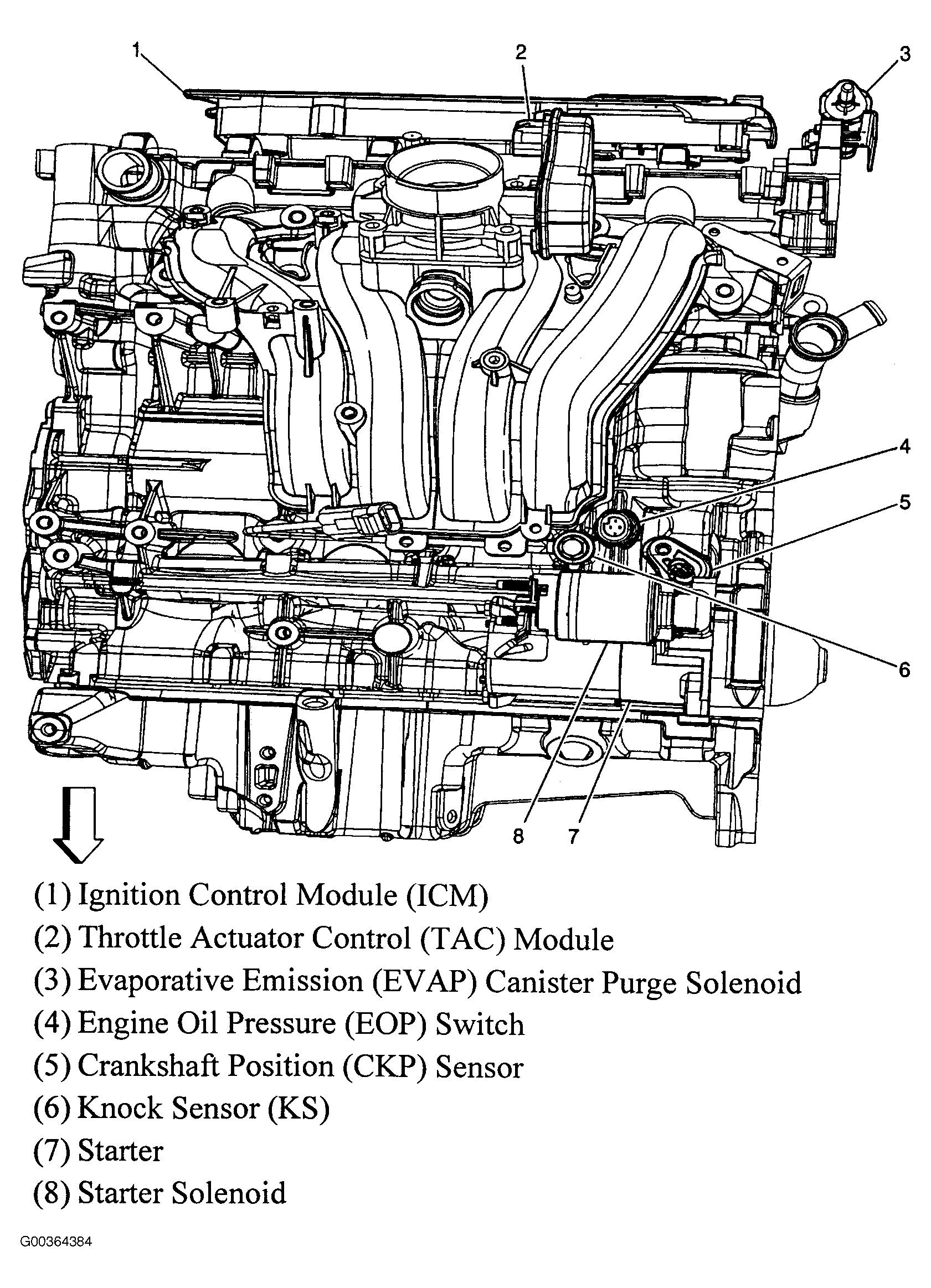

| Ignition Control Module (ICM) | On top of engine, next to oil fill cap. See Figure. |
| Inflatable Restraint Instrument Panel (Dash) Module | On right side of dash, above glove compartment. |
| Inflatable Restraint Roof Rail Module - Left | Above front & rear door rails behind headliner. |
| Inflatable Restraint Roof Rail Module - Right | Above front & rear door rails behind headliner. |
| Inflatable Restraint Sensing & Diagnostic Module (SDM) | Under center console, behind emergency brake. See Figure. |

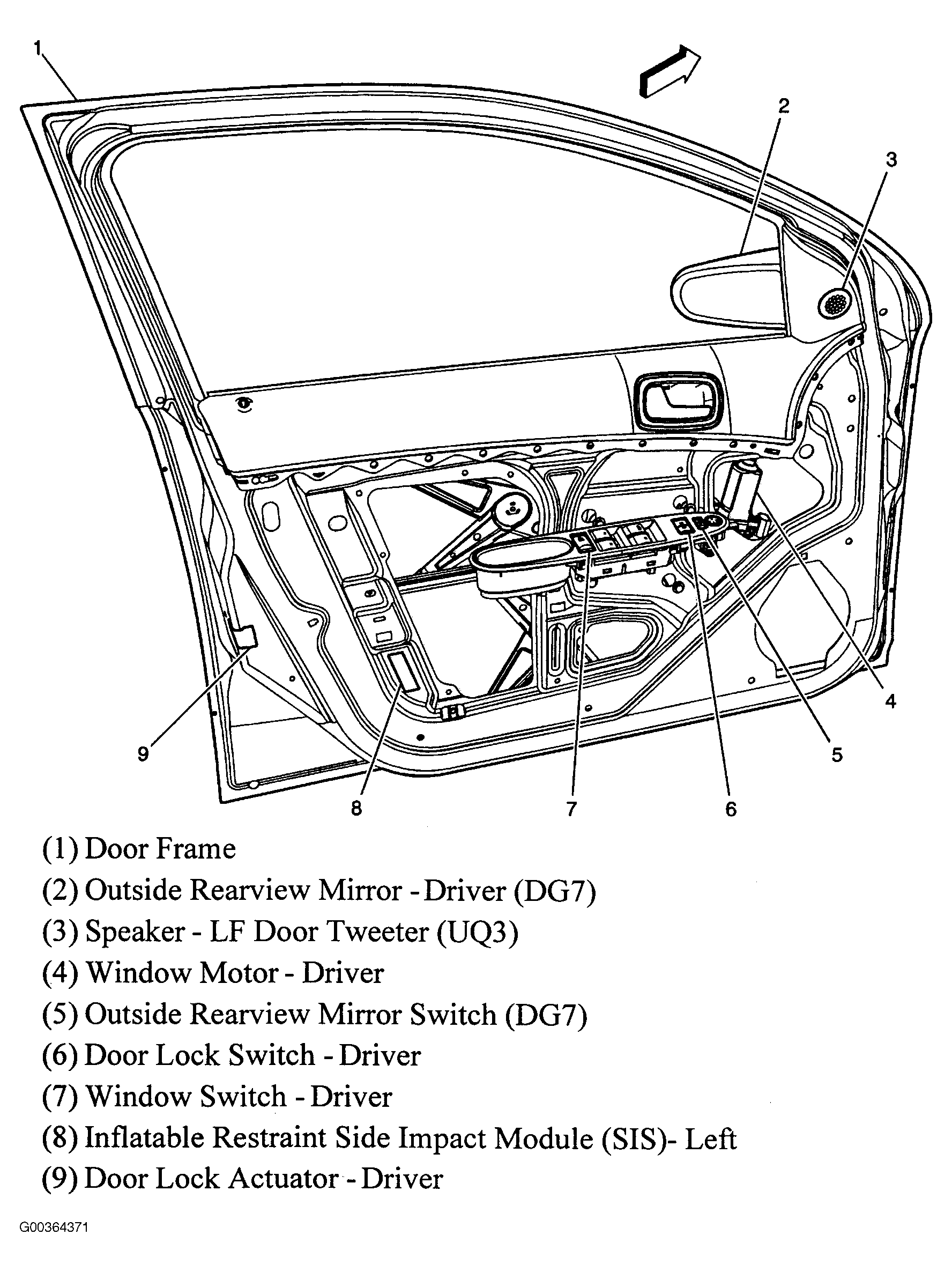

| Inflatable Restraint Side Impact Module (SIS) - Left | In left side of driver's seat back. See Figure. |

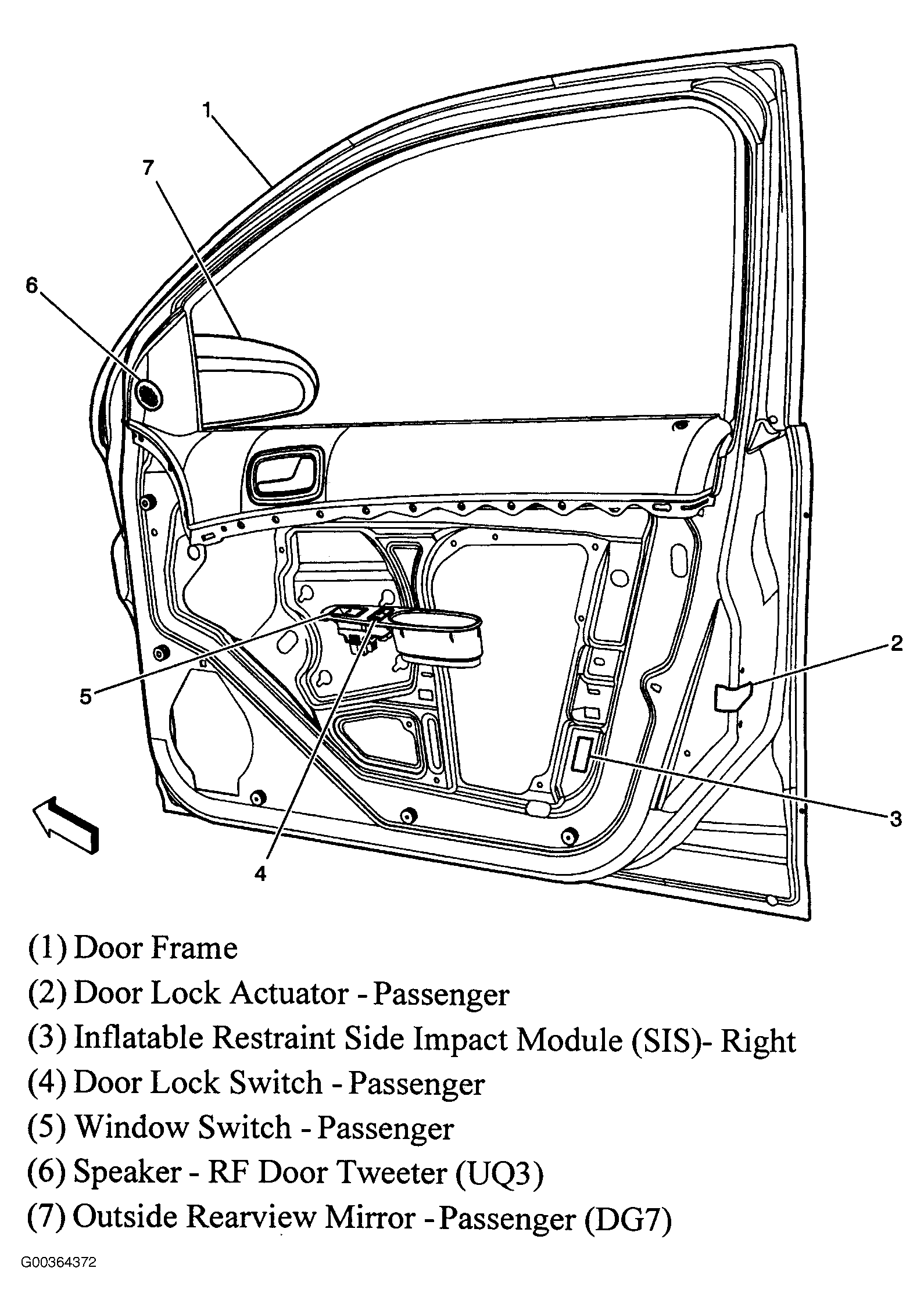

| Inflatable Restraint Side Impact Module (SIS) - Right | In right side of passenger's seat back. See Figure. |

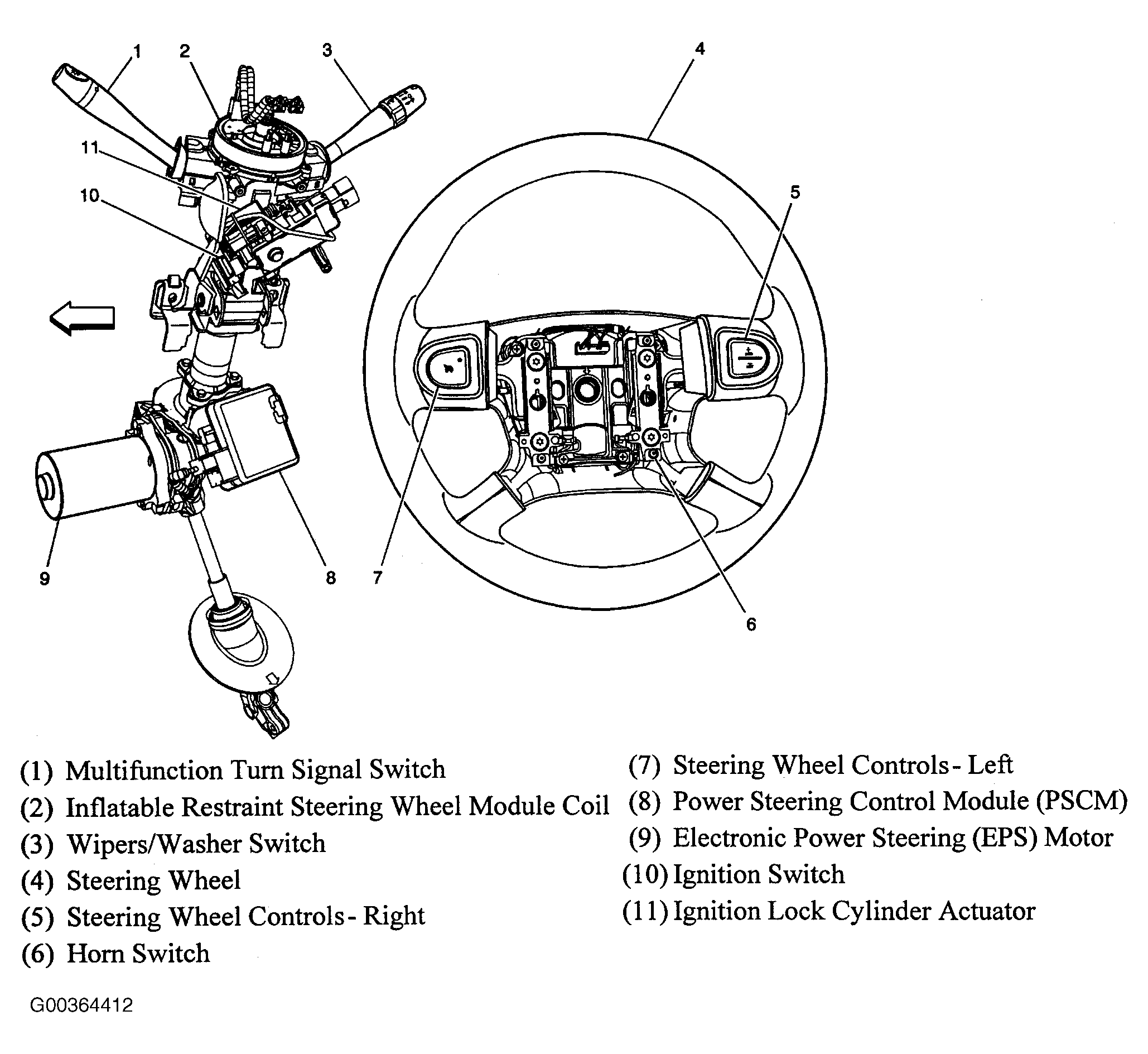

| Inflatable Restraint Steering Wheel Module Coil | On steering column, behind steering wheel. See Figure. |

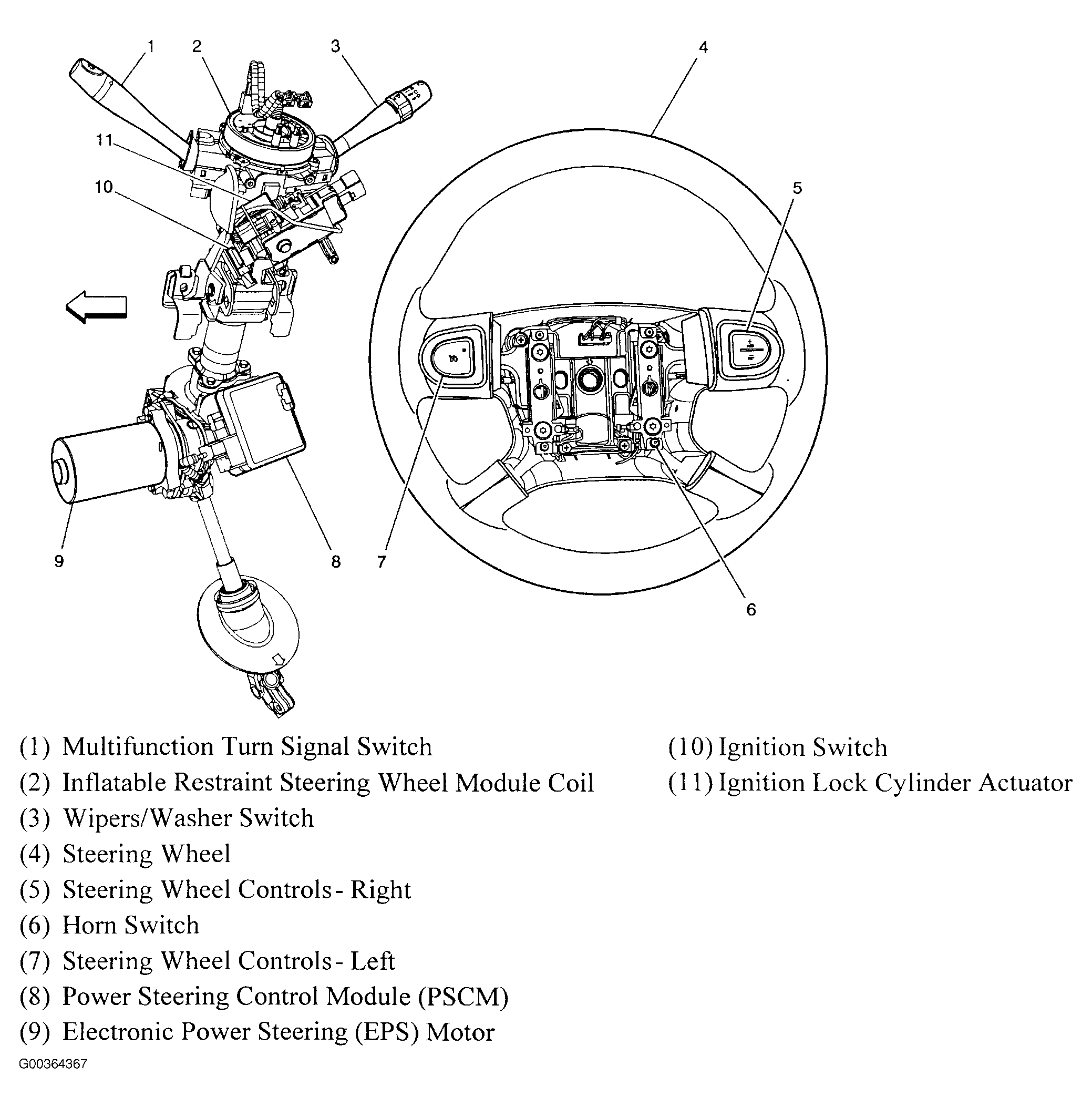

| Power Steering Control Module (PSCM) | In lower left of dash, attached to steering column. See Figure. |
| Powertrain Control Module (PCM) | Left side of engine compartment, near coolant over flow container. See Figure. |
| Remote Control Door Lock Receiver (RCDLR) | Under right dash trim panel, above passenger's inflator module. See Figure. |
| Sunroof Module Assembly | Center front of headliner, between sun visors. See Figure. |

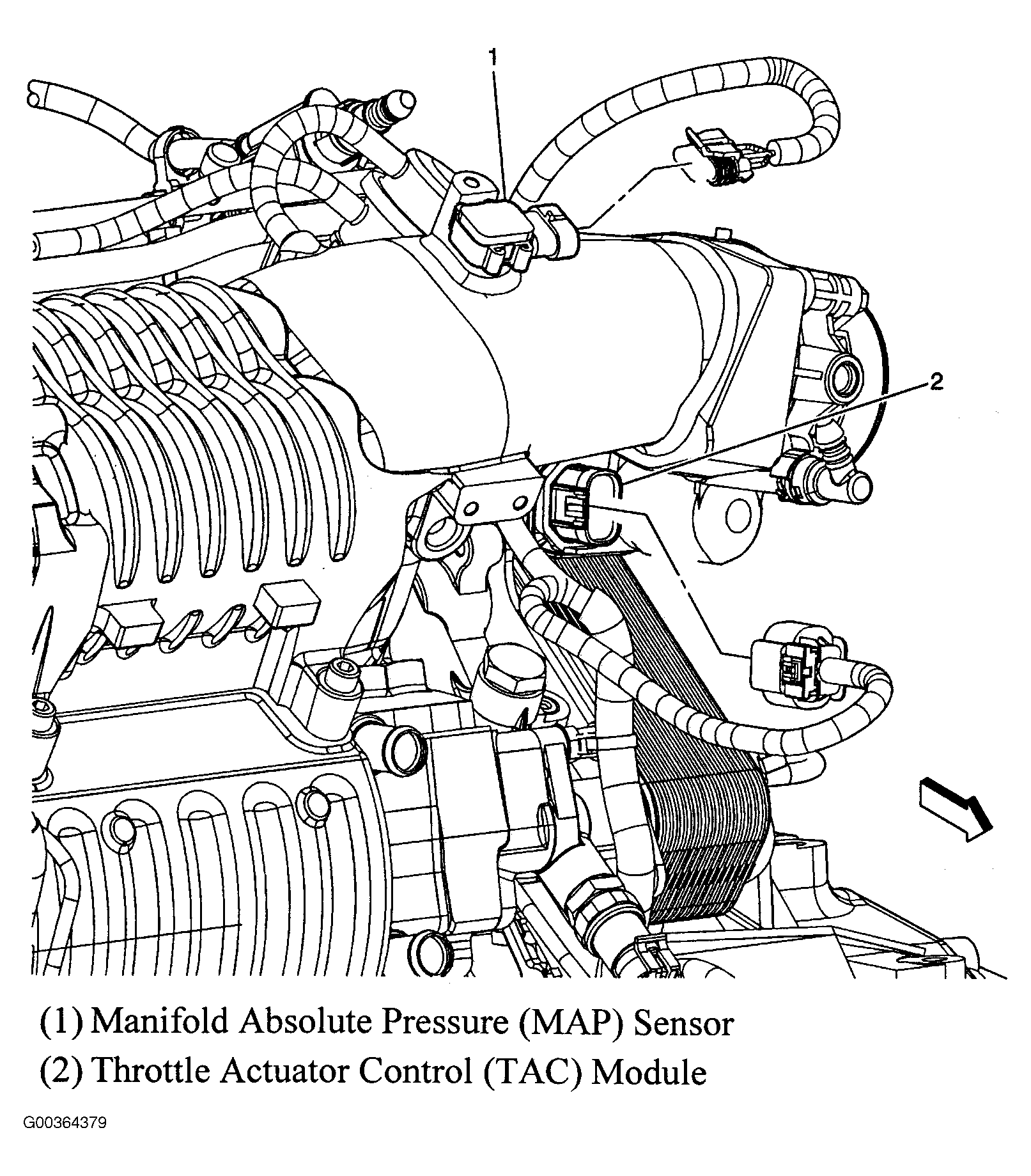

| Throttle Actuator Control (TAC) Module (2.0L) | Left side of engine compartment, on upper intake manifold. See Figure. |
| Throttle Actuator Control (TAC) Module (2.2L) | Top of engine. See Figure. |
| Transmission Control Module (TCM) | In left rear of engine compartment, behind powertrain control module (PCM)/ECM. See Figure. |
| Vehicle Communication Interface Module (VCIM) | Under rear, self between speakers. See Figure. |
| Windshield Wiper Module Connector | Left rear of engine compartment. See Figure. |
