Gear Shift Cable - Column: Removal

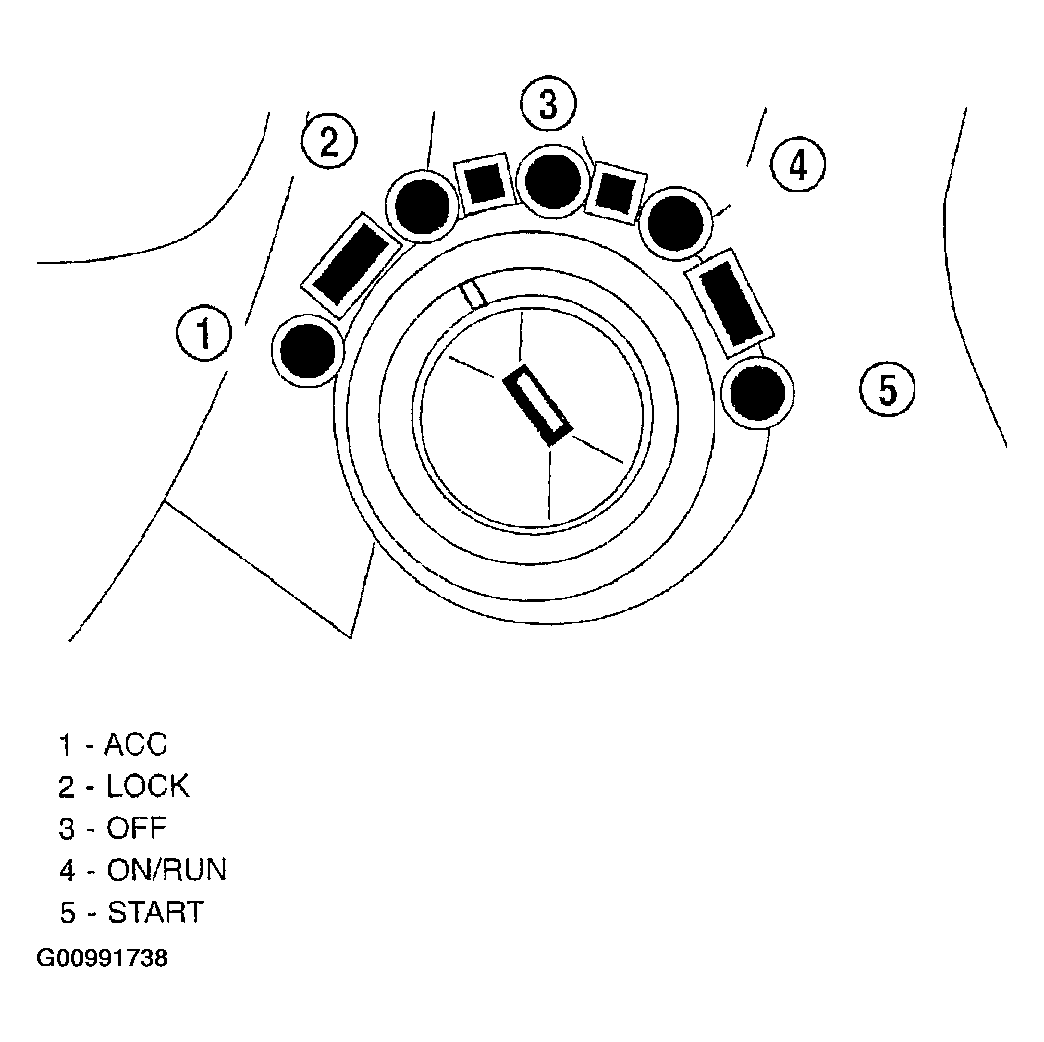

Place vehicle in park, and turn ignition key to the "LOCK" position. See Fig 1.

Fig 1: Identifying Ignition Key/Switch Positions
Courtesy of DAIMLERCHRYSLER CORP.

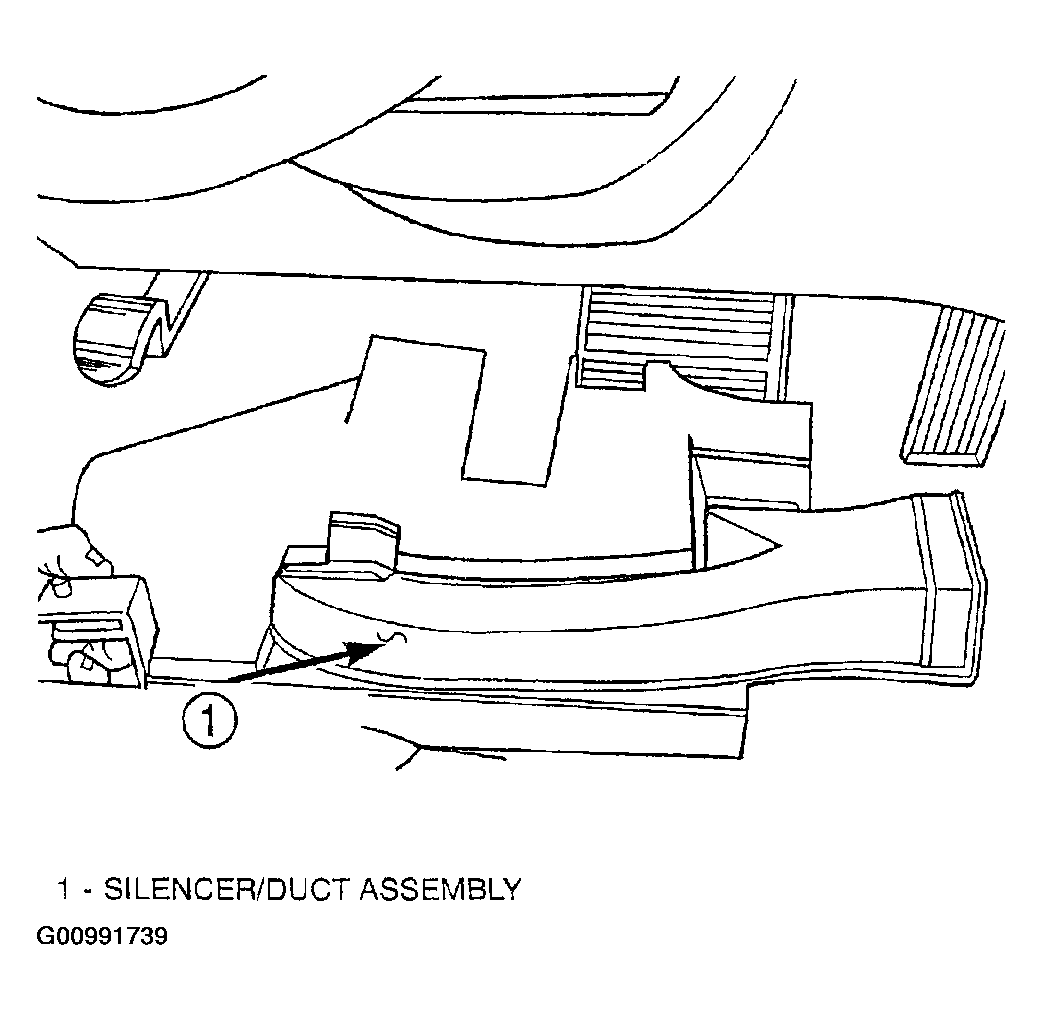

Remove under panel silencer/duct assembly. See Fig 2.

Fig 2: Removing Panel
Courtesy of DAIMLERCHRYSLER CORP.

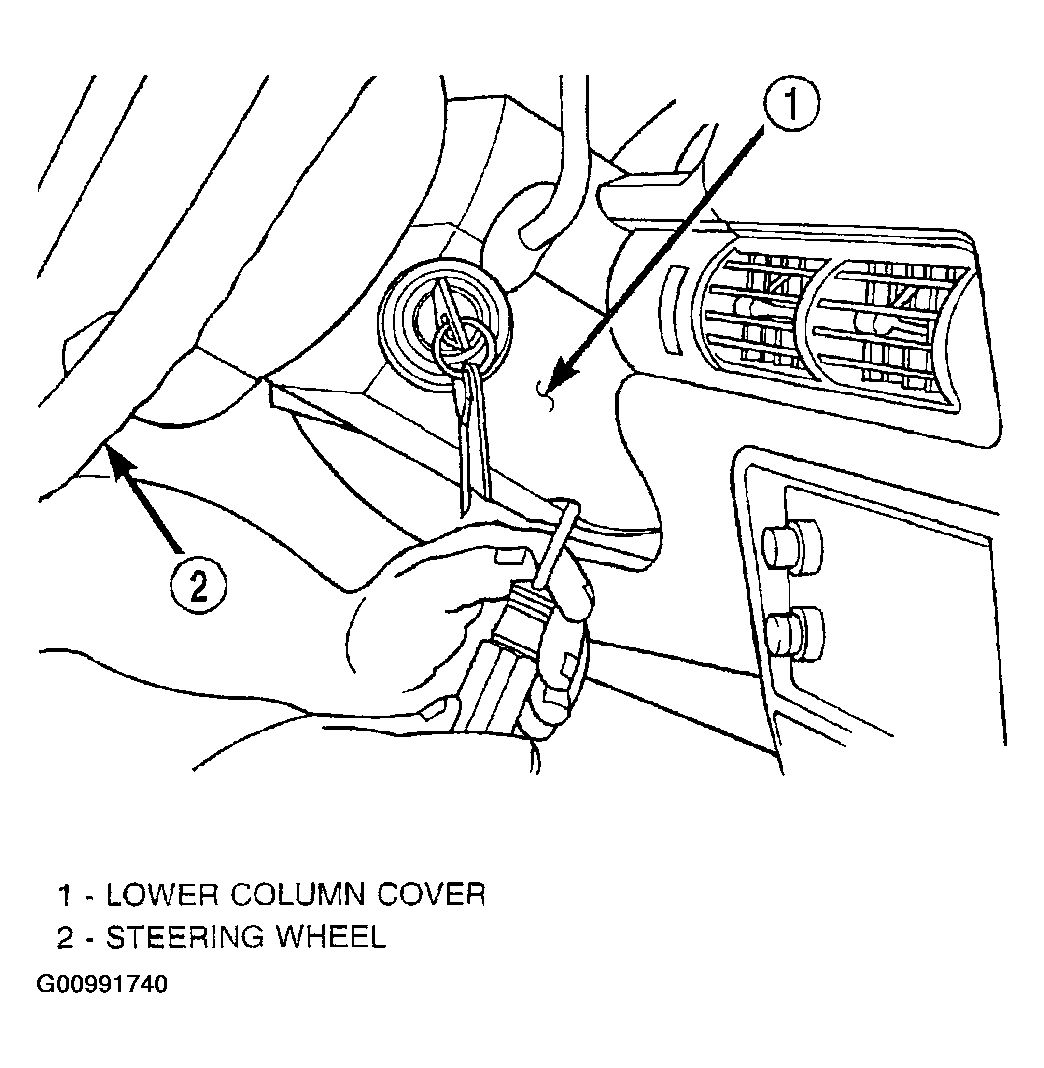

Remove column cover screws. See Fig 3.

Fig 3: Removing Lower Column Cover Screw
Courtesy of DAIMLERCHRYSLER CORP.
Tilt column down and remove upper half of column cover. See Fig 4.

Fig 4: Removing Upper Column
Courtesy of DAIMLERCHRYSLER CORP.

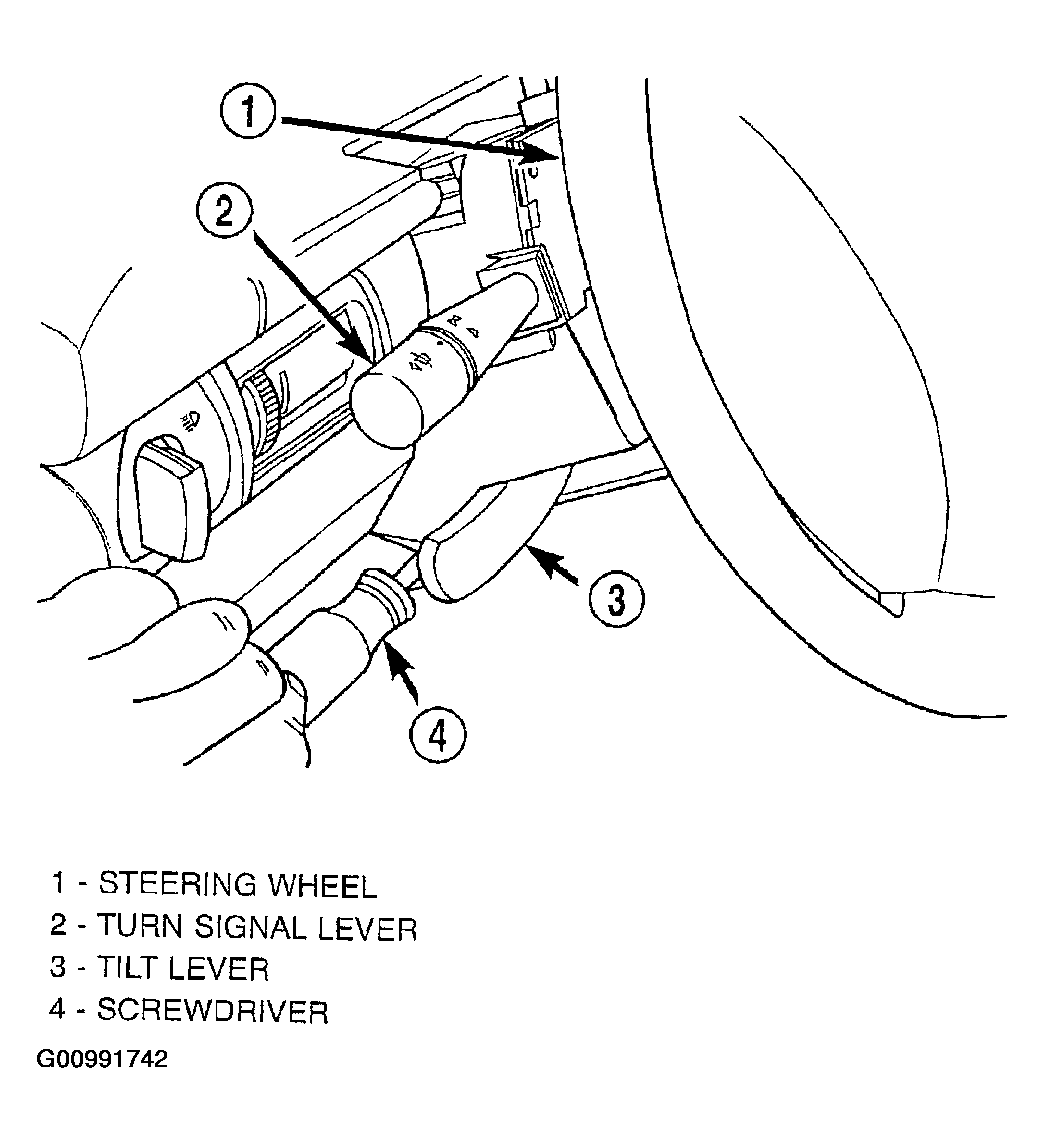

Tilt the column to the uppermost position and remove the tilt lever. See Fig 5.

Fig 5: Removing Tilt Lever Screw
Courtesy of DAIMLERCHRYSLER CORP.
Remove the ignition key and remove lower column cover. See Fig 6.

Fig 6: Removing Lower Column Cover
Courtesy of DAIMLERCHRYSLER CORP.
Remove cable from shift pin. See Fig 7.

Fig 7: Removing Column Gear Shift Cable
Courtesy of DAIMLERCHRYSLER CORP.
Remove cable retainer clip from shift cable conduit bracket. See Fig 7.
CAUTION: Column must be tilted fully upward to remove cable retainer clip.
Raise hood. From inside the engine compartment, remove the gear shift cable from the cable bracket. See Fig 8.

Fig 8: Identifying Throttle/Gearshift Cable Bracket
Courtesy of DAIMLERCHRYSLER CORP.
Unseat the cable grommet from the firewall and pull the shift cable from the interior of the vehicle. See Figure.
Raise vehicle on hoist and unbolt fill tube bracket. Rotate fill tube to gain access to the integrated shift cable clamp.
Disconnect cable from routing bracket as shown in Fig 9.
Remove shift cable retaining nut and slide cable assembly off of mounting stud. See Figure.
Disconnect shifter cable from shift lever assembly at transaxle. See Figure.
Remove cable from vehicle.

Fig 9: Identifying Cable Routing Bracket
Courtesy of DAIMLERCHRYSLER CORP.
